AVerMedia D133SONB NVIDIA Jetson Orin Nano Super Mode Rugged Mini PC with TPM 2.0 and 12-24V DC Input

Super Mode narrows the gap between an Orin Nano and an Orin NX, so a project that once needed the larger module can often run on the smaller one. The AVerMedia D133SONB is a rugged mini PC built around that idea, running a Jetson Orin Nano 8GB in normal or Super Mode, and it is the Orin Nano box in the D133S series. It uses the D133S carrier board, and the D133SOXB is the same unit with an Orin NX module.

The D133SONB is supplied with a Jetson Orin Nano 8GB module, rated by NVIDIA at up to 67 TOPS in Super Mode and 40 TOPS at standard settings. That typically suits two or more analyzed camera streams, or a larger model on one stream. Two internal MIPI CSI-2 connectors with four lanes each, on 22-pin FPCs, take embedded cameras directly. AVerMedia publishes JetPack 6.2 board support packages on Ubuntu 22.04, and an onboard TPM 2.0 holds security keys in hardware.

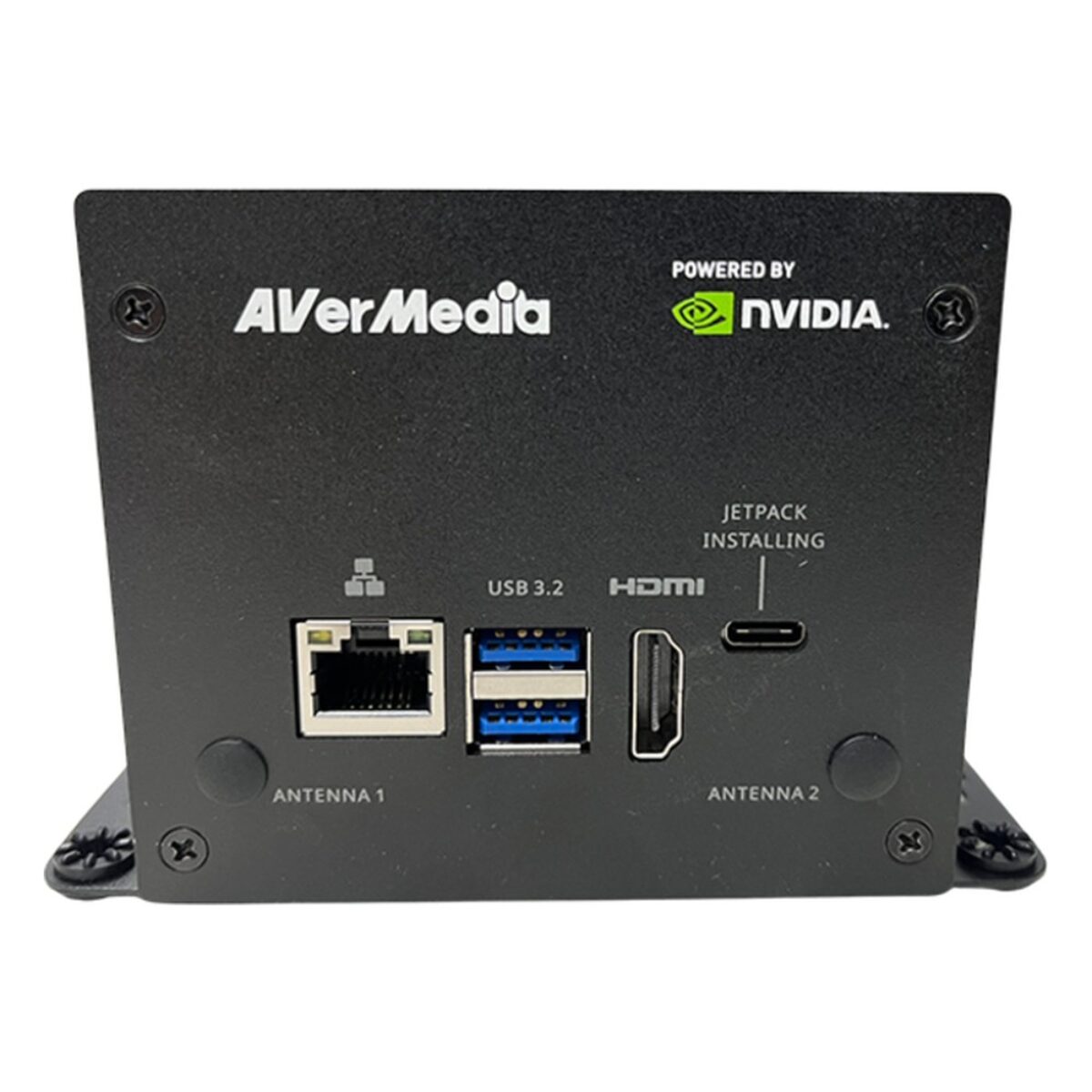

Networking is one GbE RJ45 port, with an M.2 E-key 2230 socket for optional Wi-Fi. A header takes an optional Allxon out-of-band module for remote power cycling and console access, and further headers take an optional 4G or 5G daughter board. One HDMI output drives a 4K display at 30 Hz, two USB 3.2 Type-A ports cover peripherals and USB-C handles recovery. A 256GB NVMe SSD sits in the M.2 M-key 2280 socket, and the 20-pin header carries nine GPIO lines, two I2C buses and one UART.

The D133SONB is fan-cooled and runs from 12-24 V DC on a screw terminal, with a 19 V adapter supplied. AVerMedia lists CE, FCC, VCCI and KC marks with RoHS 2 compliance. If your site runs hot or cold, speak to our team about the operating envelope before you order. We supply the D133SONB with the Orin Nano module fitted, JetPack flashed and the SSD installed, with any optional 4G or 5G modem, OOB module, Wi-Fi card and antennas fitted, then test it before it ships.
