AVerMedia D133S NVIDIA Jetson Orin Super Mode Rugged Mini PCs and Carrier Board

Super Mode gives Orin NX and Orin Nano modules more AI throughput, which can mean a larger model or more cameras without changing module. The AVerMedia D133S series brings that to the small D133 design, with a carrier that runs modules in normal or Super Mode on a 12-24 V DC input. The D133S series also adds an onboard TPM 2.0 for keys held in hardware, plus headers for an optional out-of-band module and an optional 4G or 5G daughter board.

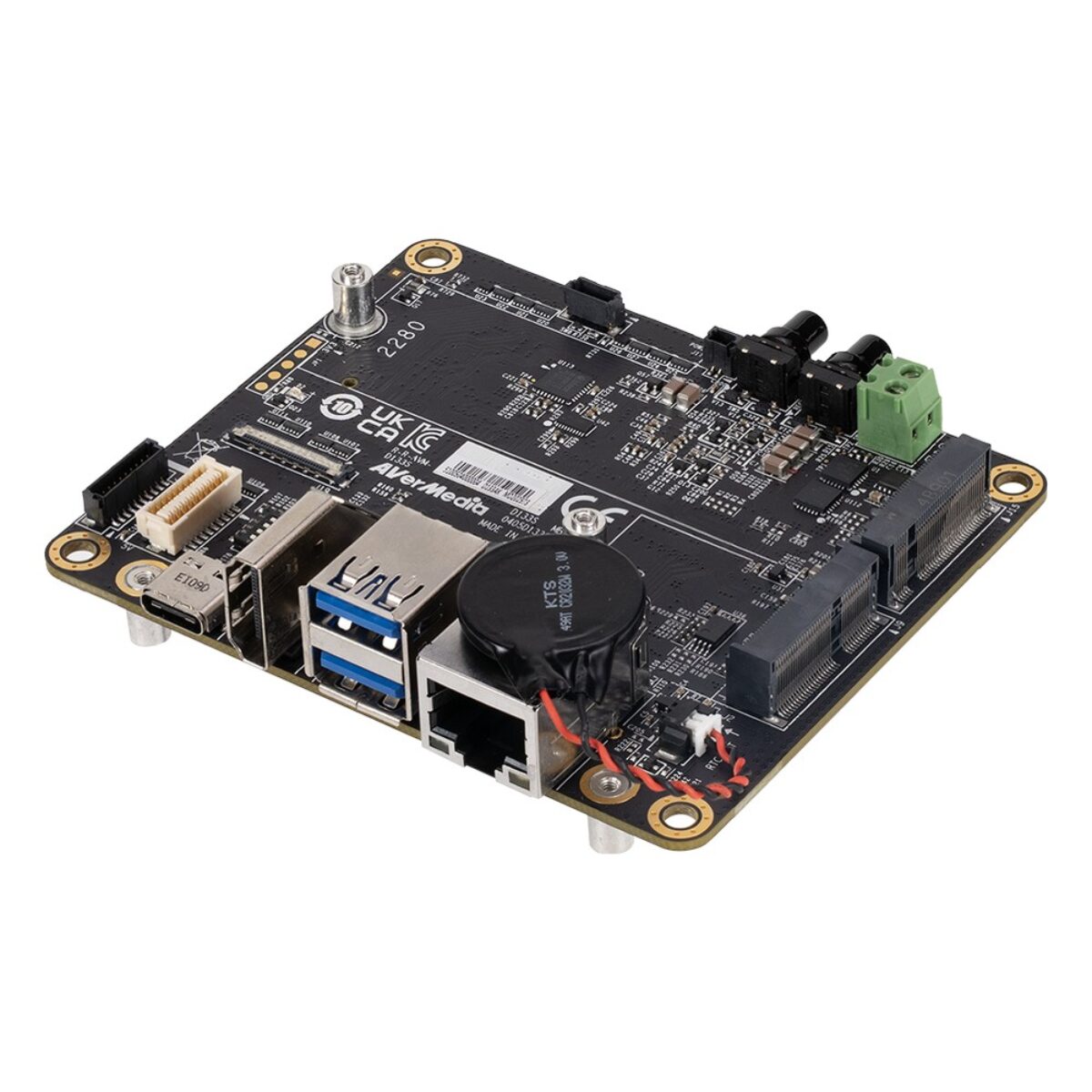

Every D133S product shares one board. Two MIPI CSI-2 connectors with four lanes each, on 22-pin FPCs, take embedded cameras directly. One GbE RJ45 port, one HDMI output at 4K, two USB 3.2 Type-A ports and USB-C for recovery cover the I/O, with M.2 M-key 2280 and E-key 2230 sockets for NVMe storage and optional Wi-Fi. The 20-pin header carries nine GPIO lines, two I2C buses and one UART for triggers and serial sensors. AVerMedia publishes JetPack 6.2 board support packages on Ubuntu 22.04, and its manual names Allxon as the out-of-band management service.

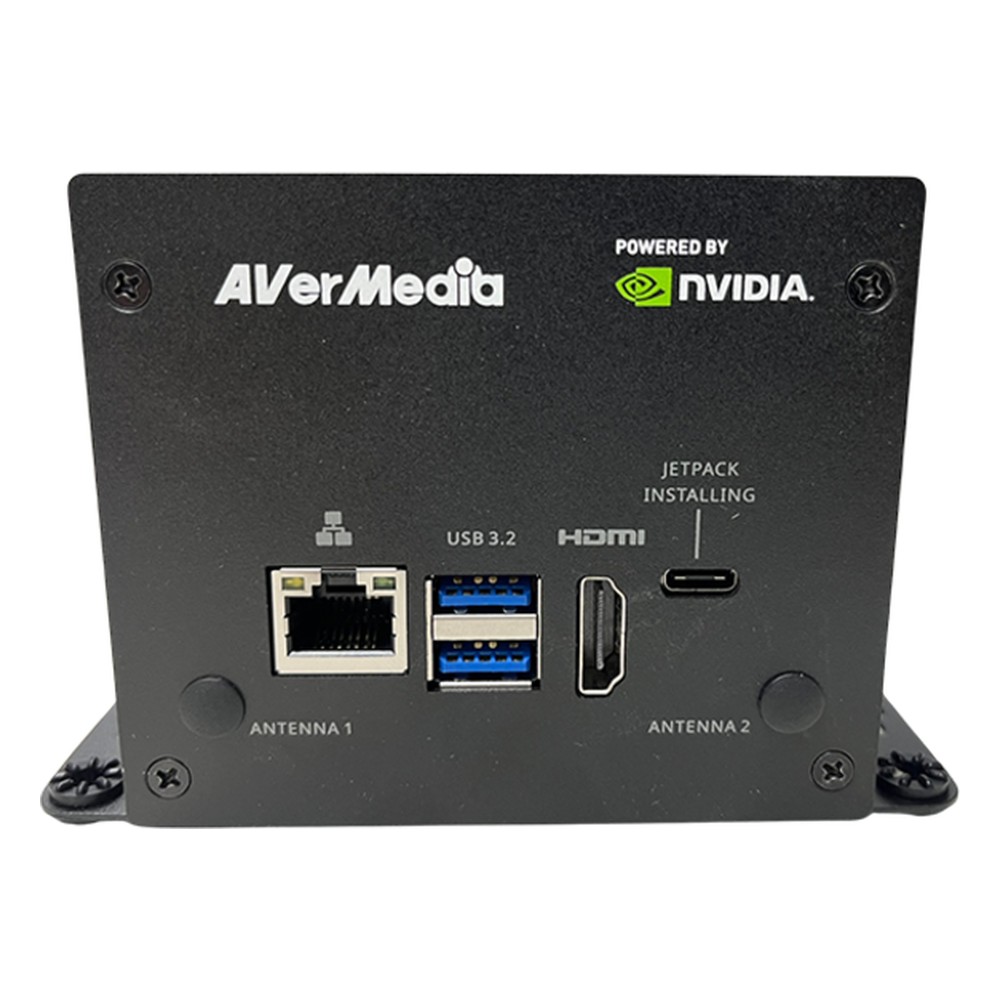

The D133S range covers two finished mini PCs and the board. The D133SOXB takes a Jetson Orin NX 16GB or 8GB, rated at up to 157 TOPS or 117 TOPS in Super Mode and 100 TOPS or 70 TOPS standard, and runs from -25 °C to 60 °C in standard mode and -25 °C to 55 °C in Super Mode. The D133SONB takes an Orin Nano 8GB, rated at up to 67 TOPS in Super Mode and 40 TOPS standard. Both boxes ship with a 19 V adapter and list CE, FCC, VCCI and KC marks. The D133S is the bare carrier board, rated from -40 °C to 85 °C with an optional fan.

In practice the D133S series suits multi-camera junction analytics, perimeter and entrance security, and connected smart city equipment where devices sit on shared networks and must be recoverable remotely. The boxed mini PCs are fan-cooled with a 256GB NVMe SSD installed, and every product takes 12-24 V DC on a screw terminal with RoHS 2 compliance. Where Super Mode and TPM 2.0 are not needed, the D133-1 series offers the same remote options on a 9-24 V DC input.
