AVerMedia D315-1 NVIDIA Jetson AGX Orin Rugged Edge AI Computers with 5G Options

On the original D315 design, 4G or 5G needs an adapter card in the mPCIe slot. For a robot or remote system where cellular is part of the specification, that is one more part to source and qualify. The AVerMedia D315-1 series moves cellular onto an M.2 B-key socket, adds support for the AGX Orin Industrial module and keeps the PCIe x16 slot and 10GbE, in a carrier board, a fan-cooled box and a fanless box.

Every D315-1 model takes an NVIDIA Jetson AGX Orin 32GB, AGX Orin 64GB or AGX Orin Industrial 64GB module, with JetPack 5 and JetPack 6.2 builds on Ubuntu 20.04 or 22.04. The M.2 B-key 3042/3052 socket with Micro SIM takes an optional 4G LTE or 5G module directly. An M.2 E-key 2230 socket takes optional Wi-Fi 6E, an M.2 M-key 2280 socket holds an NVMe SSD or capture card, and a PCIe x16 slot at x8 signal takes a further card. One 10GbE and one GbE RJ45 port suit 10GigE Vision cameras and IP video, the 120-pin connector takes GMSL2, FPD-Link III or V-by-One HS cameras through an optional adapter board, and a CAN bus terminal block handles motor controllers.

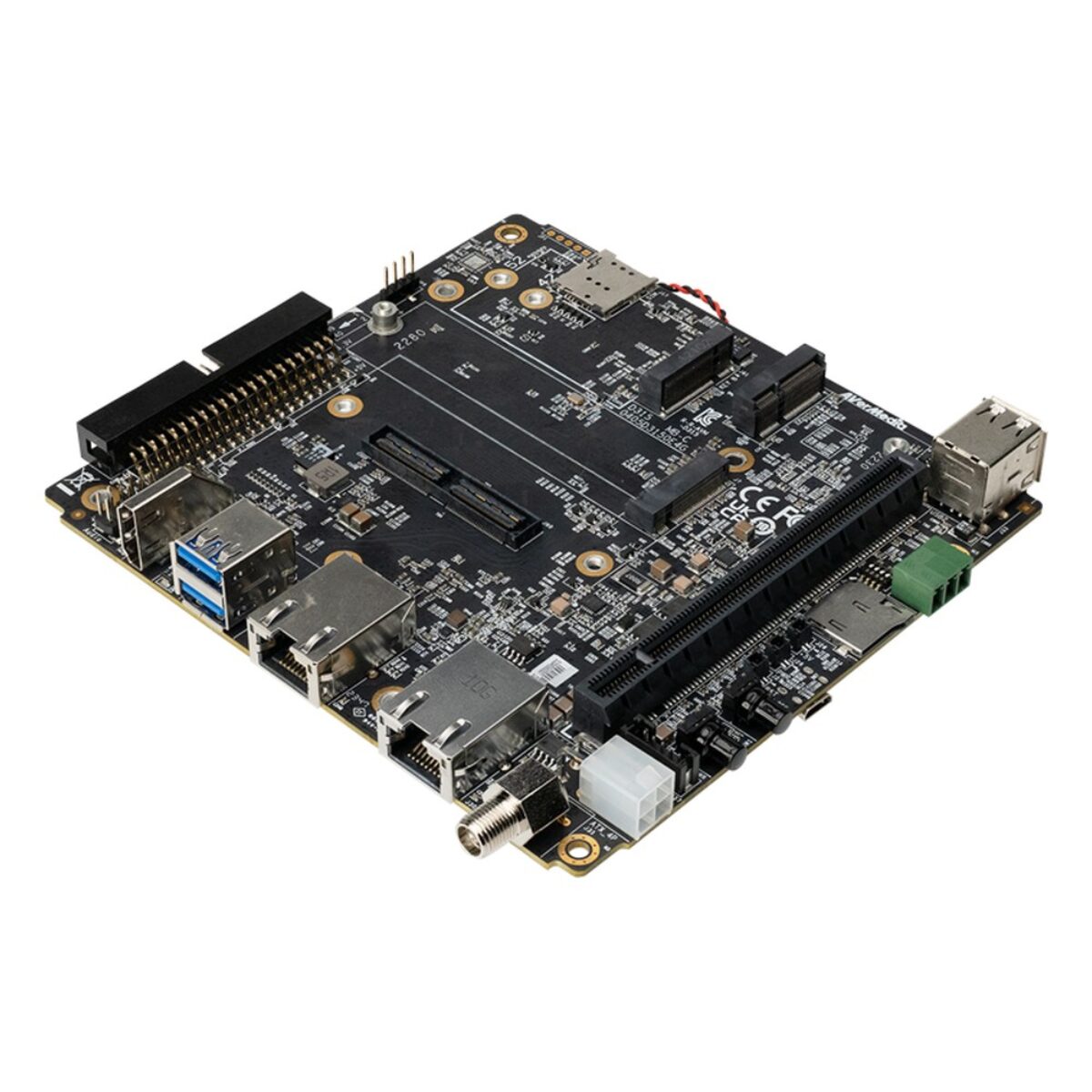

The D315-1 range splits by enclosure. The D315-1 is the carrier board, rated from -40 °C to 85 °C with an optional heat sink and fan, and AVerMedia lists support for the Stereolabs ZED Link Quad capture card. The D315AOB-1 is the fan-cooled box PC, rated from -25 °C to 65 °C. The D315AOP-1 is the fanless box PC, with a finned enclosure designed to prevent dust build-up and a rating of -25 °C to 50 °C with the 32GB module or -25 °C to 40 °C with the 64GB module.

In practice the D315-1 series suits connected AMRs, remote inspection systems and security installations where a cellular link is part of the design from the start. All three models take 12-54 V DC on a locking DC jack or ATX 4-pin input, out-of-band support is optional, and AVerMedia lists CE, FCC and KC marks across the series, adding VCCI on the fanless box. Where full out-of-band management matters, the D315-2 series builds on the same layout.
