AVerMedia D315-2 NVIDIA Jetson AGX Orin Industrial AI Computers and Carrier Board with Out-of-Band Management

When an edge system sits on a robot fleet or a remote gantry, the cost of a frozen unit is often the drive to reach it rather than the hardware. Out-of-band management lets you work on the system when the operating system has stopped responding. The AVerMedia D315-2 series adds full out-of-band support to the D315-1 design, in a carrier board and a fan-cooled box, so remote Jetson AGX Orin installs can be managed from a distance.

Both D315-2 models take an NVIDIA Jetson AGX Orin 32GB, AGX Orin 64GB or AGX Orin Industrial 64GB module, on JetPack 6.2 with Ubuntu 22.04. Out-of-band management runs through a dedicated header, and AVerMedia notes that it shares resources with two UART headers, so the two cannot be used at once. Internal MIPI camera inputs take GMSL2, FPD-Link III or V-by-One HS cameras, and AVerMedia lists support for the Stereolabs ZED Link Quad capture card. An M.2 B-key 3042/3052 socket with Micro SIM takes an optional 4G LTE or 5G module, an M.2 E-key 2230 socket takes optional Wi-Fi 6E, an M.2 M-key 2280 socket holds an NVMe SSD, and a PCIe x16 slot at x8 signal takes a further card. One 10GbE and one GbE RJ45 port suit 10GigE Vision cameras and IP video.

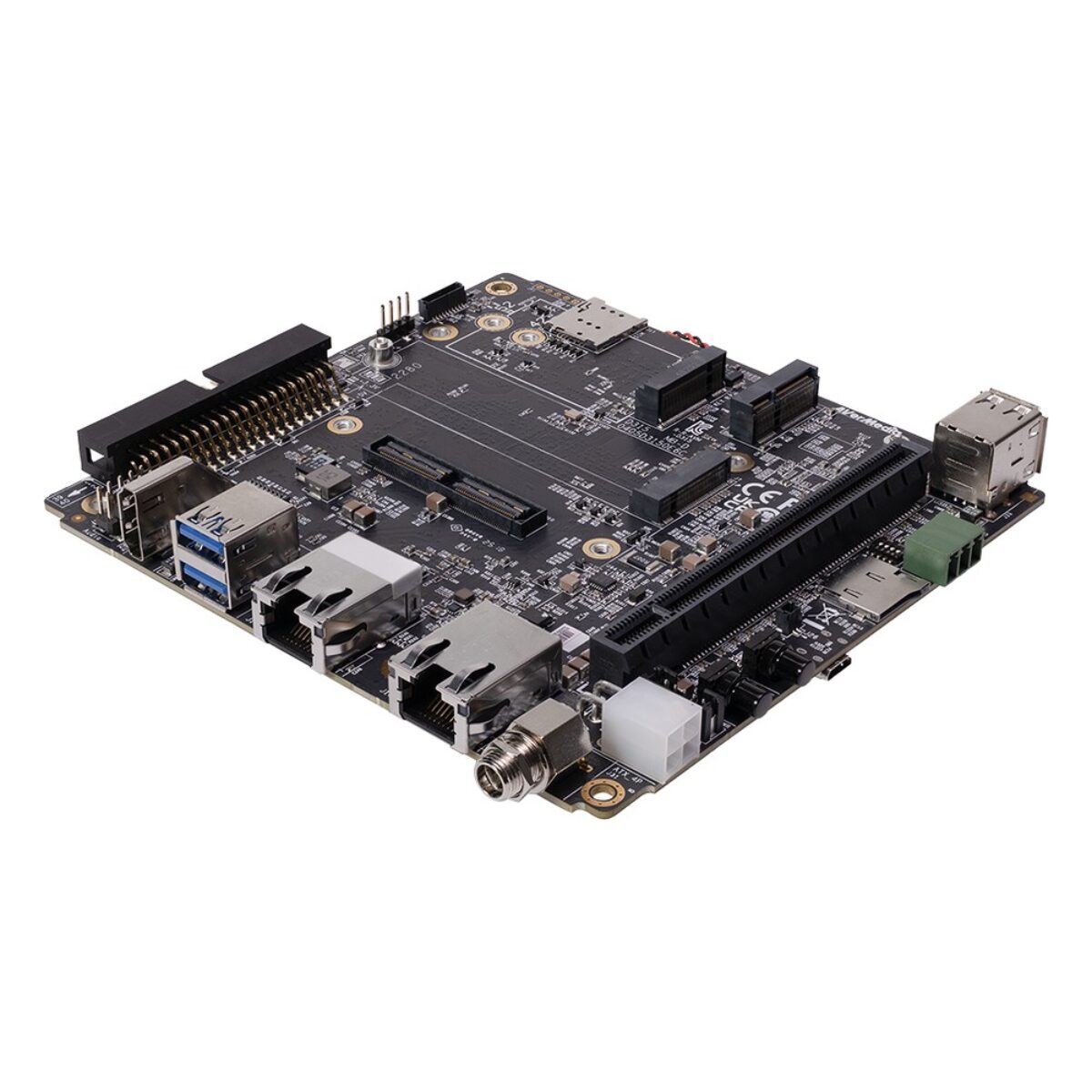

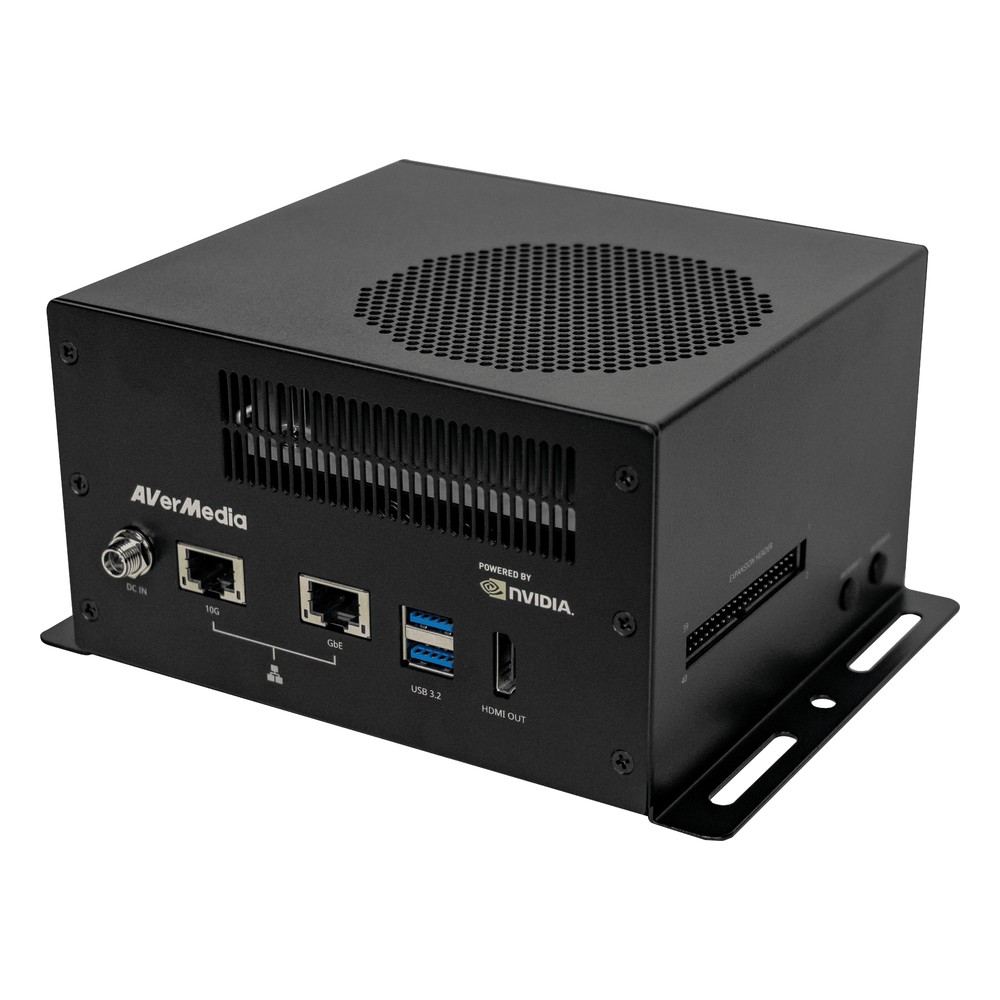

The D315-2 range has two builds. The D315-2 is the carrier board, rated from -40 °C to 85 °C with an optional heat sink and fan, for teams fitting the board into their own enclosure. The D315AOB-2 is the fan-cooled box PC, rated from -25 °C to 65 °C and to 95% humidity at 40 °C non-condensing, with ordering options for an ERMI RMII board or an eight-port GMSL board.

In practice the D315-2 series suits AMR fleets, remote inspection and security systems where recovering a unit without a site visit is worth planning for. Both models take 12-54 V DC on a locking DC jack or ATX 4-pin input, with auto power-on or button start, and AVerMedia lists CE, FCC and KC marks across the series. A CAN bus terminal block with transceiver and the 40-pin Jetson header handle motor controllers, sensors and other field devices.
