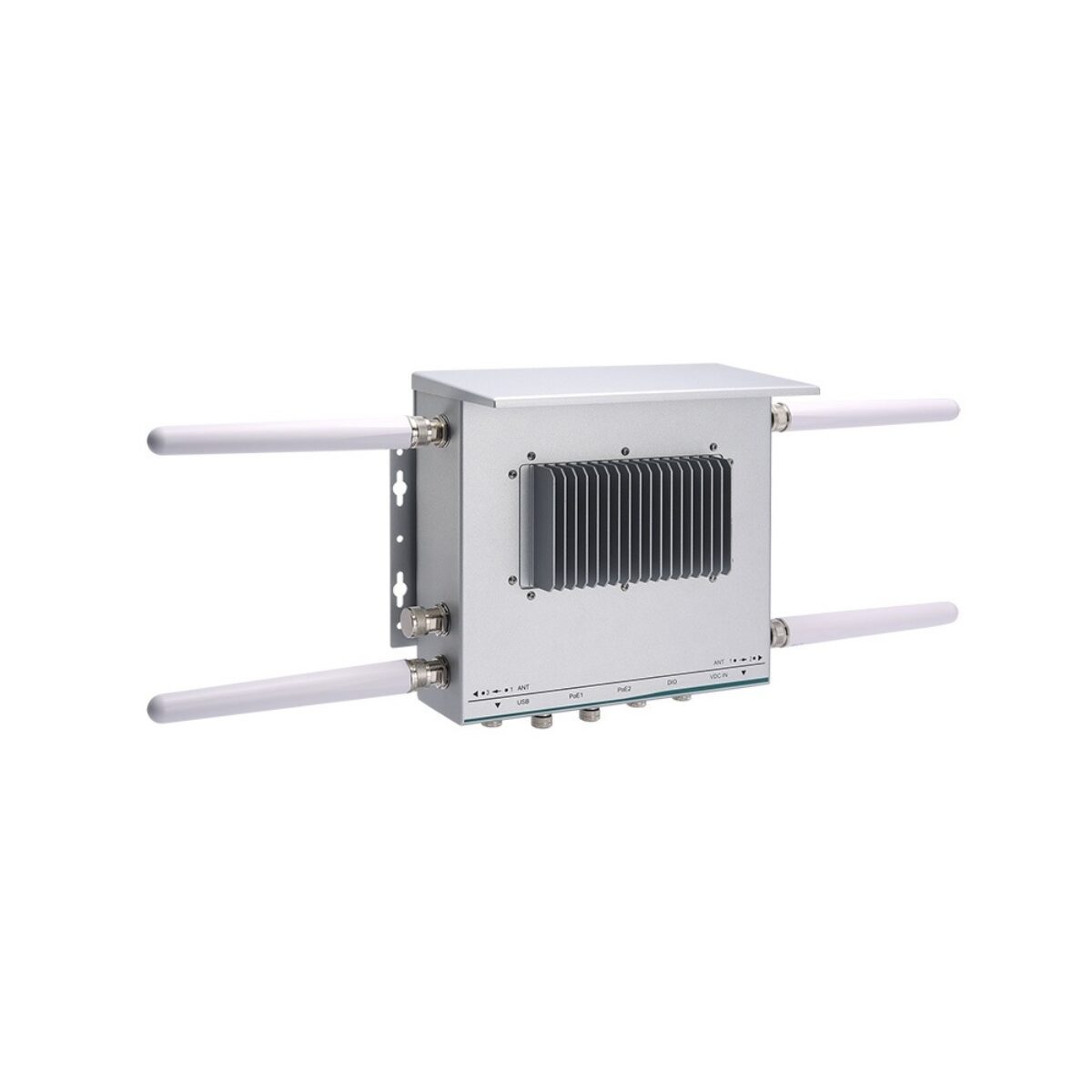

Axiomtek AIE810-ONX
Linux
PoE Support- 2x M.2
- 1x mPCIe
- 1x SIM
- 4G
- 5G
- Wi-Fi
- NVMe SSD
- Fanless
- Extended Temp
- CE
AIE810-ONX Specifications
| Overview | |
|---|---|
| Brand & Model | Axiomtek AIE810-ONX |
| Features | Compact Embedded Fanless GPU Industrial M12 Connectors Rugged Waterproof |
| Performance | |
| AI Performance | 100 TOPS |
| System-on-Module | NVIDIA Jetson Orin NX 16GB: 100 TOPS, 1024-core Ampere GPU with 32 Tensor Cores, 8-core Arm Cortex-A78AE 2.0GHz, 16GB 128-bit LPDDR5, 10-25W |
| Operating System | Linux |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x GbE LAN [M12] [PoE] | |
| PoE Standard | PoE+ [IEEE 802.3at] |
| PoE Power Budget | 25.5W |
| USB | 2x USB Ports |
| 2x USB 2.0 [M12] | |
| Digital I/O | Isolated DIO [4-in, 4-out] |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 E-Key [2230] 1x M.2 M-Key [PCIe x4] [2280] | |
| mPCIe | 1x mPCIe Slots |
| 1x mPCIe [PCIe/USB] | |
| SIM Slots | 1x SIM Slots |
| Wireless Connectivity | Optional 4G/5G Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD 1x Micro SD |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | 9-36V DC Input [M12] |
| Power Support Modes | AT: PWR on Input |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -25°C to 65°C [-13°F to 149°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Ingress Protection | IP67 IP67 [Dustproof, Protection against immersion in water up to 1 meter for 30 minutes] |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-27 |
| Certification | CE |
| Mechanical Properties | |
| Weight | 4KG (8.81Lbs) |
| Chassis Material | Aluminum |
| Dimensions | 240mm x 220mm x 93.4mm (9.44″ x 8.66″ x 3.67″) |
| Mounting Options | Wall Mount |
No specifications match your search.
See product variants.
AIE810-ONX Variants
Axiomtek AIE810-ONX-16GB NVIDIA Jetson Orin NX 16GB IP67 Waterproof Edge AI Computer with M12 PoE+
AIE810-ONX with Jetson Orin NX 16GB, IP67 housing and 2x M12 PoE+
| Overview | |
|---|---|
| Brand & Model | Axiomtek AIE810-ONX-16GB |
- AIE810-ONX Datasheet Download
