Axiomtek is a major Taiwanese manufacturer of industrial and embedded computers. The range spans fanless embedded box PCs, NVIDIA Jetson and Hailo-8 edge AI systems, EN 50155 railway and in-vehicle computers, front IP65 and IP69K panel PCs and HMIs, 3.5-inch single-board computers and PCIe expansion cards, on Intel Core, Atom and Celeron, AMD Ryzen Embedded and NVIDIA Jetson.
01 Product Range
Axiomtek Industrial and Embedded Computers
Six product families on Intel, AMD and NVIDIA Jetson, from a 3.5-inch board to an EN 50155 railway panel PC. Pick the family that matches the role, then the series or model that matches the processor and I/O.
eBOX Fanless Compact Embedded Computers
Fanless compact box PCs for cabinets, kiosks and machines, from the Alder Lake-N eBOX100A to the 13th Gen Core eBOX570, with low-profile and MXM GPU models alongside them for signage, NVR and inference work.
- eBOX100A on Intel Alder Lake-N, eBOX570 on 13th Gen Core Raptor Lake
- eBOX626A low-profile and eBOX671B MXM GPU models complete the line
- Fanless designs for continuous operation in cabinets and enclosures
Series in This Family

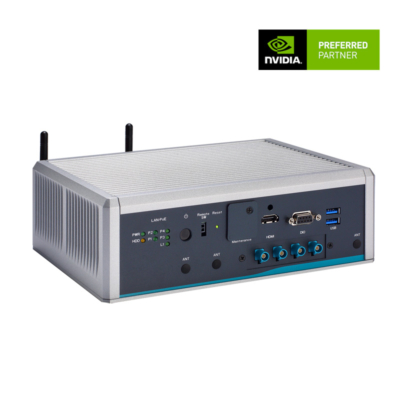

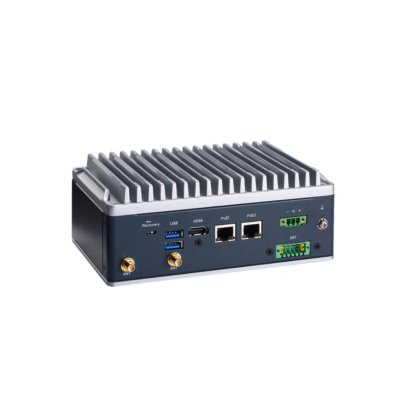

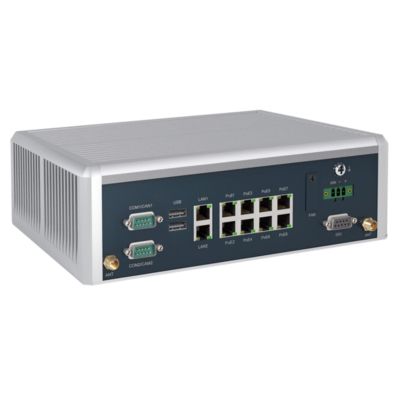

AIE NVIDIA Jetson Edge AI Computers and Developer Kits
Compact fanless Jetson computers on Orin Nano and Orin NX for vision and inference at the edge, with the AIE110 developer kits sharing the same modules so a prototype moves straight to the AIE100 or AIE810 deployment box.
- Jetson Orin Nano (ONA) and Orin NX (ONX) modules

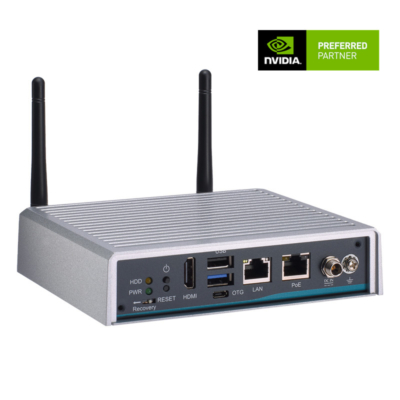

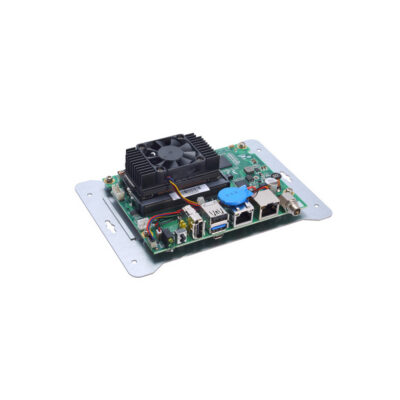

- AIE100 and AIE810 compute boxes, AIE110 developer kits with PoE
- DIN-rail and fanless designs for cabinets and gateways
Series and Models in This Family
RSC Hailo-8 Edge AI Computers
Fanless edge AI computers that pair an Intel Celeron J6413 host with a Hailo-8 accelerator, for vision inference on x86 without a GPU or a Jetson module.
- Intel Celeron J6413 with Hailo-8
- Fanless, for NVR and gateway roles
- The x86 alternative to the AIE Jetson line
Series in This Family

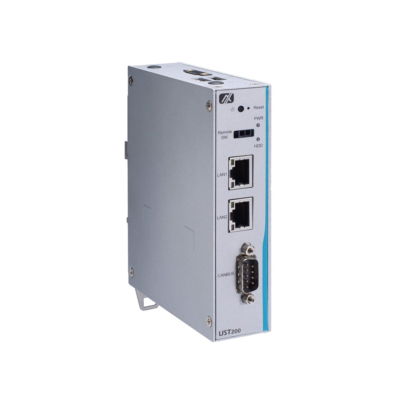

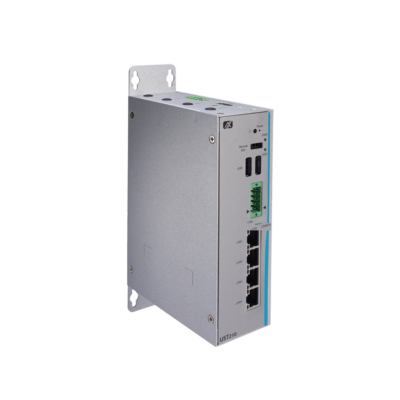

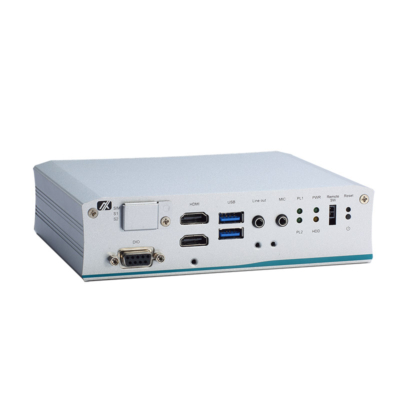

tBOX and UST Railway and In-Vehicle Computers
Fanless transportation computers on Intel Atom x5 and 12th Gen Core: the tBOX110 and tBOX520 for railway duty, the UST200 and UST210 in-vehicle gateways and computers, and the VAM range of tBOX expansion modules adding M12 or RJ-45 LAN and PoE, serial, CAN, DIO, video and antenna I/O.
- Intel Atom x5-E3930 and x5-E3940, 12th Gen Core Alder Lake-U on the tBOX520
- Designed to EN 50155 and EN 45545-2 requirements

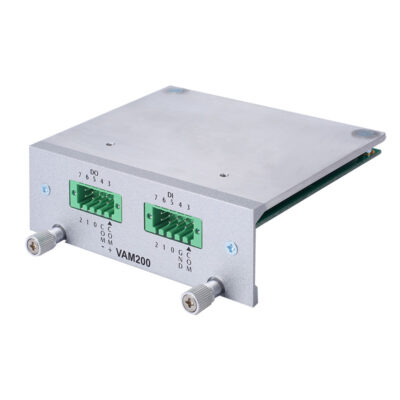

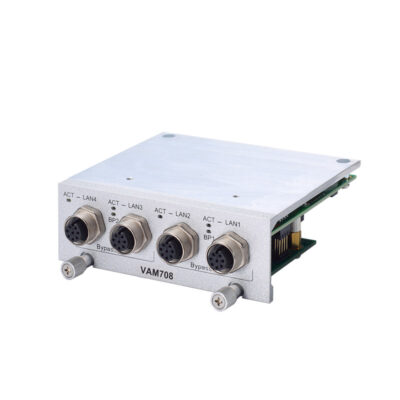

- Modular I/O through the VAM tBOX expansion modules
Series, Models and Expansion Modules
CAPA 3.5-Inch Embedded Boards
3.5-inch single-board computers for your own enclosure, on AMD Ryzen Embedded V1000 and Intel Core 8th to 11th Gen, with wide-temperature options and Linux support, plus the KIWI310 1.8-inch board for the smallest housings.
- CAPA13R and CAPA13S on AMD Ryzen Embedded V1807B and V1605B
- CAPA520 on 8th and 9th Gen Core, CAPA55R on 11th Gen Tiger Lake
- Wide-temperature models for cabinet and outdoor enclosures
Series in This Family

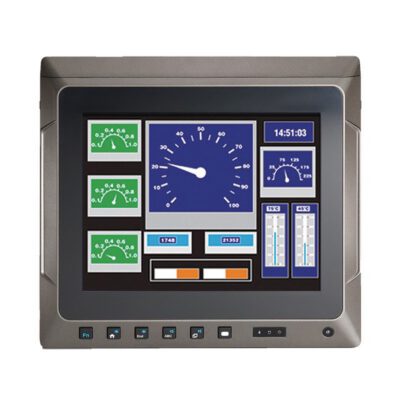

GOT and P7 Panel PCs and Railway Monitors
Touchscreen panel PCs and monitors for factory, rail and washdown environments: the GOT321B and GOT315B front IP65 panel PCs on socketed 12th to 14th Gen Intel Core, the GOT815A, GOT818A and GOT821A IP69K panel PCs on Intel Tiger Lake, the GOT7xx EN 50155 railway panel PCs and terminals on Intel Atom E3845, and the P7xx railway touchscreen and open-frame monitors for passenger information.
- GOT321B and GOT315B: 21.5 and 15.6-inch front IP65 panel PCs on LGA1700 Intel Core
- GOT815A, GOT818A and GOT821A: 15.6 to 21.5-inch IP69K panel PCs on Intel Tiger Lake
- GOT710, GOT712 and GOT715: 10.4 to 15-inch EN 50155 railway panel PCs and terminals
- P710, P712 and P7180 railway touchscreen and open-frame monitors
Models in This Family
// LOADING...
Browse Axiomtek Products
Or choose a product family above.
- Display: 15.6"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 450
- Format: Widescreen
- CPU: Intel Core 14th Gen Raptor Lake Refresh, Intel Pentium G Series Alder Lake, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
- OS: Linux, Windows 11
- Display Outputs: 2x HDMI
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
- mPCIe: 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x 2.5" HDD/SSD [SATA]
- Power: 10-36V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -10°C to 50°C [14°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC, RoHS, UKCA
- Mounting Options: Desktop, VESA Mount, Wall Mount
- Display: 21.5"[16:9, 1920 x 1080, FHD]
- Touch: 10-Pt PCAP Multi Touch
- Brightness: 400
- Format: Widescreen
- CPU: Intel Core 14th Gen Raptor Lake Refresh, Intel Pentium G Series Alder Lake, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
- OS: Linux, Windows 11
- Display Outputs: 2x HDMI
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
- mPCIe: 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x 2.5" HDD/SSD [SATA]
- Power: 10-36V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -10°C to 50°C [14°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC, RoHS, UKCA
- Mounting Options: Desktop, VESA Mount, Wall Mount

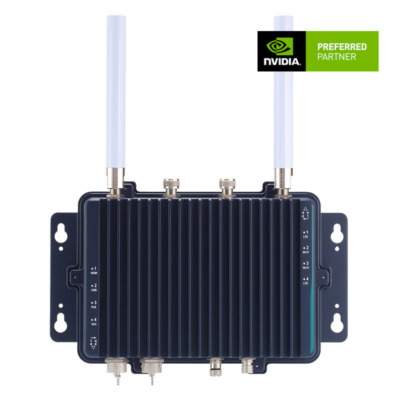

- AI Performance: 100 TOPS
- SOM: NVIDIA Jetson Orin NX 16GB
- OS: Linux
- Ethernet: 2x GbE LAN [M12] [PoE]
- USB: 2x USB 2.0 [M12]
- M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe x4] [2280]
- mPCIe: 1x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD, 1x Micro SD
- Power: 9-36V DC Input [M12]
- Temp: -25°C to 65°C [-13°F to 149°F]
- IP Rating: IP67
- Certification: CE
- Mounting Options: Wall Mount
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
- OS: Linux Ubuntu 22.04, Windows 10, Windows 11
- Display Outputs: 2x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Type A], 4x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
- mPCIe: 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x M.2 SSD
- Power: 12V DC [Terminal Block]
- Temp: -40°C to 70°C [-40°F to 158°F]
- Certification: CE, FCC, UKCA
- CPU: Intel Core 13th Gen Raptor Lake
- CPU: Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake
- GPU / AI Accelerator: Discrete GPU (MXM)
- GPU: NVIDIA RTX A2000 Embedded (MXM)
- Memory: 2x DDR5 4800MHz SO-DIMM Slot, 64GB
- OS: Linux Ubuntu 22.04, Windows 10, Windows 11
- Display Outputs: 2x HDMI, 3x Display Port
- Ethernet: 1x GbE LAN [RJ45], 3x 2.5 GbE LAN [RJ45]
- USB: 6x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232 [DB9], 2x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [PCIe x2] [3052], 1x M.2 E-Key [USB] [2230], 1x M.2 M-Key [PCIe x4] [2280]
- mPCIe: 1x mPCIe [PCIe/USB/SIM/SATA]
- Storage: 1x M.2 SSD, 1x mSATA, 2x 2.5" HDD/SSD
- Power: 9-36V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -40°C to 65°C [-40°F to 149°F]
- Certification: CE, FCC, UKCA
- CPU: Intel Celeron J Series Elkhart Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
- OS: Linux Ubuntu 22.04, Windows 10, Windows 11
- Display Outputs: 1x HDMI, 1x VGA
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Type A], 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [DB9], 2x RS232 [DB9]
- M.2: 1x M.2 E-Key [USB] [2230]
- mPCIe: 1x mPCIe [PCIe/USB/SIM/SATA]
- Storage: 1x 2.5" HDD/SSD, 1x mSATA
- Power: 9-36V DC Input [Terminal Block]
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC, UKCA
- CPU: Intel Processor N Series Alder Lake
- Memory: 1x DDR5 4800MHz SO-DIMM, 16GB
- OS: Linux Ubuntu 22.04, Windows 10, Windows 11
- Display Outputs: 1x Display Port, 1x HDMI
- USB: 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Type A]
- Serial: 2x RS232/422/485 [DB9]
- mPCIe: 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x 2.5" HDD/SSD
- Power: 9-36V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -40°C to 60°C [-40°F to 140°F]
- Certification: CE, FCC, UKCA
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
- CPU: AMD Ryzen V-Series
- OS: Linux
- Display Outputs: 1x Display Port, 1x eDP, 2x HDMI
- USB: 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [Board], 1x RS232/422/485 [Board]
- M.2: 1x M.2 B-Key [PCIe x2/SATA/USB] [2242/3042], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 12V DC [4-Pin]
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC, UKCA
- Memory: 1x DDR4 2400MHz SO-DIMM Slot, 16GB
- Ethernet: 3x GbE LAN [RJ45]
- CPU: Intel Core 11th Gen Tiger Lake, Intel Celeron 6000 Series Tiger Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux
- Display Outputs: 1x Display Port, 1x HDMI, 1x LVDS
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 3x USB 3.2 Gen 2 [Type A], 4x USB 2.0 [Type A]
- Serial: 2x RS232/422/485 [Board]
- M.2: 1x M.2 B-Key [USB 3.2/USB/SATA] [3042/3050], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 12-24V DC [Barrel Connector]
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: CE, FCC, UKCA
- CPU: AMD Ryzen V-Series
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
- OS: Linux
- Display Outputs: 1x Display Port, 1x LVDS, 2x HDMI
- USB: 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [Board], 1x RS232/422/485 [Board]
- M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242/3042], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 12V DC [4-Pin]
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC, UKCA
- Ethernet: 4x GbE LAN [RJ45]
- CPU: Intel Core 8th Gen Coffee Lake, Intel Core 9th Gen Coffee Lake, Intel Celeron G Series Coffee Lake, Intel Pentium G Series Coffee Lake
- Memory: 1x DDR4 2666MHz SO-DIMM Slot, 16GB
- OS: Linux
- Display Outputs: 1x Display Port, 1x HDMI, 1x LVDS
- USB: 3x USB 2.0 [Type A], 3x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [Board]
- mPCIe: 1x mPCIe [PCIe/USB/SATA]
- Storage: 1x mSATA, 2x SATA Ports
- Power: 12V DC [4-Pin]
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC, UKCA
- Ethernet: 2x GbE LAN [RJ45]
- CPU: Intel Celeron N Series Apollo Lake
- Memory: 4GB Soldered On-board
- OS: Linux
- Display Outputs: 1x Mini HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Type A], 2x USB 3.1 Gen 1 [Type A]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
- Storage: 64GB eMMC
- Power: 12V [USB-C], 15V [USB-C], 20V [USB-C], 9V [USB-C]
- Temp: 0°C to 60°C [32°F to 140°F]
- Certification: CE, FCC, UKCA
- Touch: Projective Capacitive Touch
- Brightness: 400
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Core 11th Gen Tiger Lake, Intel Celeron 6000 Series Tiger Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
- OS: Linux
- Ethernet: 1x 2.5 GbE LAN [RJ45]
- USB: 4x USB 2.0 [Type A]
- Serial: 2x RS232/422/485 [M12]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
- Storage: 1x 2.5" HDD/SSD
- Power: 12-24V DC [M12]
- Temp: -20°C to 50°C [-4°F to 122°F]
- IP Rating: IP69K
- Certification: CE, FCC, UKCA
- Touch: Projective Capacitive Touch
- Brightness: 400
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Core 11th Gen Tiger Lake, Intel Celeron 6000 Series Tiger Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
- OS: Linux
- Ethernet: 1x 2.5 GbE LAN [RJ45]
- USB: 4x USB 2.0 [Type A]
- Serial: 2x RS232/422/485 [M12]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
- Storage: 1x 2.5" HDD/SSD
- Power: 12-24V DC [M12]
- Temp: -20°C to 50°C [-4°F to 122°F]
- IP Rating: IP69K
- Certification: CE, FCC, UKCA
- Touch: Projective Capacitive Touch
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Core 11th Gen Tiger Lake, Intel Celeron 6000 Series Tiger Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
- OS: Linux
- Ethernet: 1x 2.5 GbE LAN [RJ45]
- USB: 4x USB 2.0 [Type A]
- Serial: 2x RS232/422/485 [M12]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
- Storage: 1x 2.5" HDD/SSD
- Power: 12-24V DC [M12]
- Temp: -20°C to 50°C [-4°F to 122°F]
- IP Rating: IP69K
- Certification: CE, FCC, UKCA
Why Choose Axiomtek
Axiomtek has designed and built industrial and embedded computers in New Taipei City, Taiwan, since 1990, from motherboards and system-on-modules to fanless systems, edge AI computers and panel PCs. Its own factory, validation lab and design-in engineers stand behind the range. As an official Axiomtek distributor, we bring that to USA projects.
Own Factory Production
Axiomtek builds boards and systems on its own lines in Taiwan, with five SMT lines, two DIP lines and four assembly lines backed by 3D AOI, X-ray inspection and in-circuit test.
ISO Certified Quality
The headquarters holds ISO 9001, ISO 14001, ISO 13485 for medical devices and ISO/IEC 27001, with IQC, IPQC, FQC and OQC checks and an MES that tracks production.
Verification and Validation Lab
An in-house lab runs signal integrity, environmental chamber and system integration testing, and Axiomtek also holds ISO/IEC 17025, the standard for testing and calibration laboratories.
Design-In Service
Five phases from planning to shipment, covering schematic and layout reviews, FloTHERM-simulated thermal design, debug, validation, certification support and longevity support once a design is in production.
BIOS and OS Customization
UEFI BIOS customization on Intel and AMD platforms, with Windows IoT, Linux and Android images, plus drivers and APIs for hardware monitoring and remote management.
AXView Remote Management
AXView software monitors temperature, voltage and fan speed on deployed machines, raises alerts by email, SNMP trap or MQTT, and manages devices from a browser dashboard.
Edge AI Partnerships
A Preferred member of the NVIDIA Partner Network with Embedded Compute competency, Axiomtek builds its AIE systems on Jetson and works with Hailo on Hailo-8 vision computers.
Certified Transportation Systems
tBOX and UST systems are certified to EN 50155, EN 50121 and EN 45545 for rail, ISO 7637-2 and E-Mark for vehicles, or DNV and IEC 60945 for marine use.
Local Support
Your Axiomtek Partner in the USA
Our Axiomtek news, case studies and white papers cover the latest hardware and projects we have delivered with them. As the official Axiomtek distributor in the USA, we help you choose the right Axiomtek system, configure and test it in the USA as standard, and support it locally for the life of your project. When Axiomtek launches, updates or retires a product, we will update you directly, with time to plan the change or a last-time buy.
// Official Axiomtek Distributor
Speak to an Axiomtek Specialist.
Things Embedded is an official Axiomtek distributor and integration partner in the USA. Tell us the environment, the compute you need and the interfaces you have to connect, and we will point you to the right family, then configure, image and test the system before it ships.
Phone · USA
+1 407 214 9446
