Axiomtek P7180 18.5″ Open Frame Railway Monitor with 500 Nit Full HD LCD for Passenger Information
Ignition Control
CE
EN50155
FCCP7180 Overview

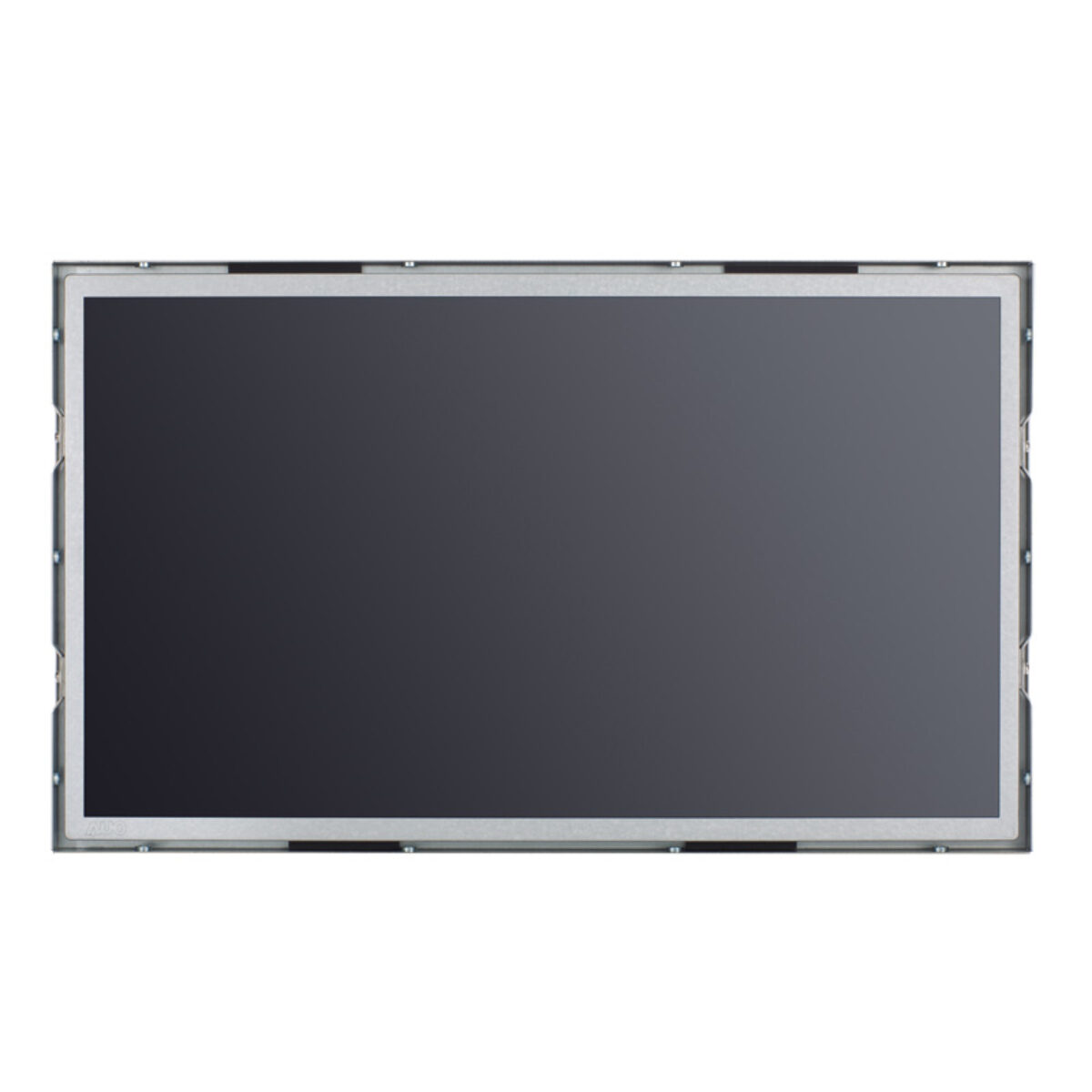

Passenger information screens on trains have to be built into carriage panels, run from the vehicle supply and stay readable to passengers at any seat. The P7180 is Axiomtek’s 18.5 inch open frame railway monitor for passenger information systems, with a 500 nit 1920 x 1080 LCD and M12 power, and it is compliant with EN 50155.

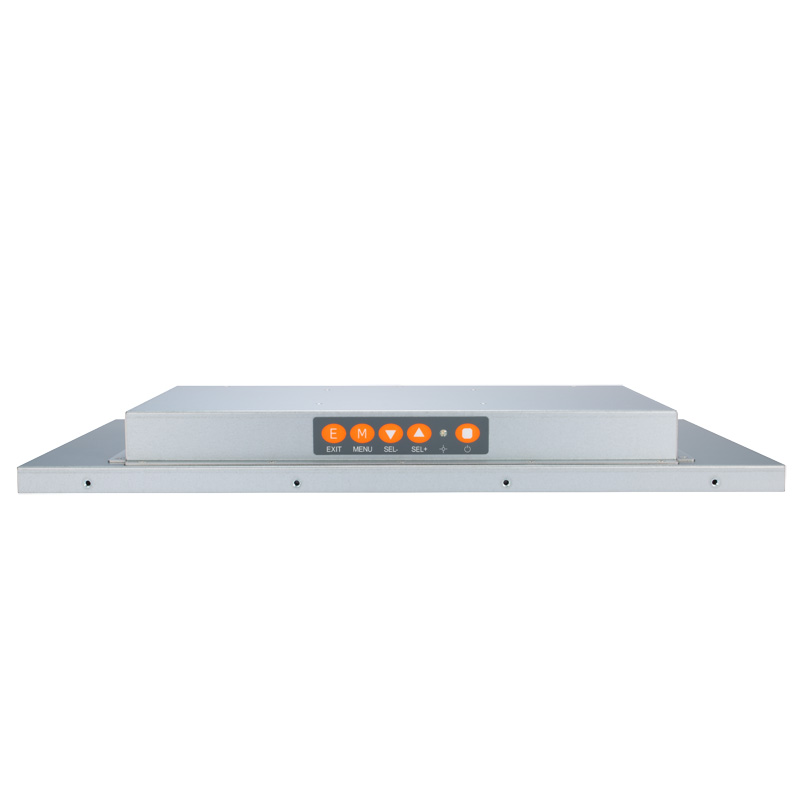

The panel is an FHD LCD at 1920 x 1080 with 500 nits, a 1000:1 contrast ratio, 178° viewing angles and a 20 ms response time, showing 16.7 million colors. The wide viewing angles keep route maps and next-stop text legible to passengers seated off to the side. The P7180 is a display only, without a touch screen, and five OSD keys handle set-up.

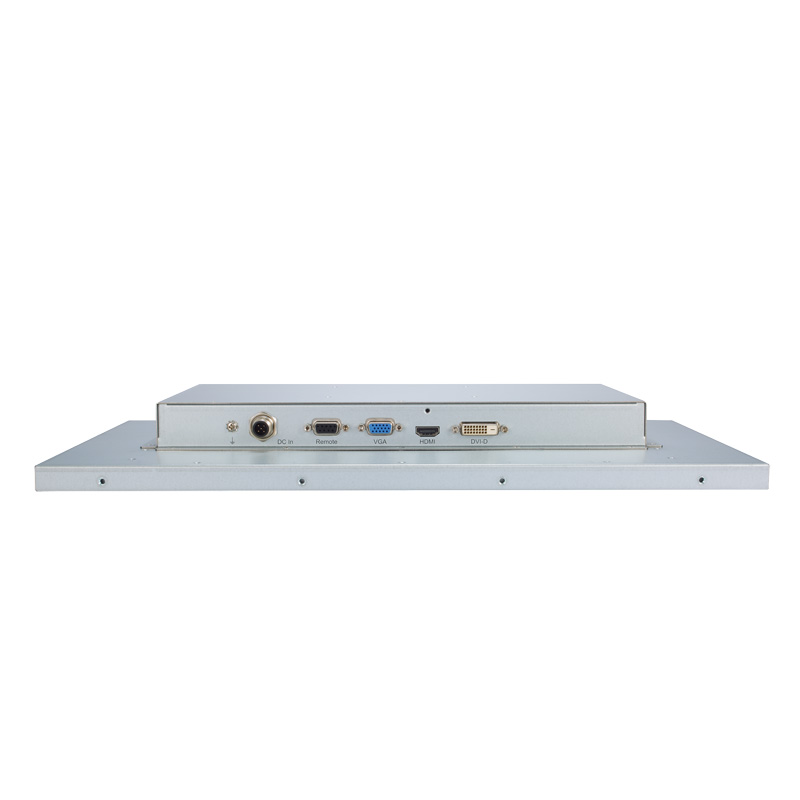

Video arrives over HDMI, DVI-D or VGA, so the P7180 connects to a range of passenger information players, and an RS-232 port allows remote control. The open frame chassis is 46.2 mm deep to fit behind a carriage trim panel. Where the screen also needs touch input, the P712 is the 12.1 inch railway touch monitor, and the P710 is the 10.4 inch model.

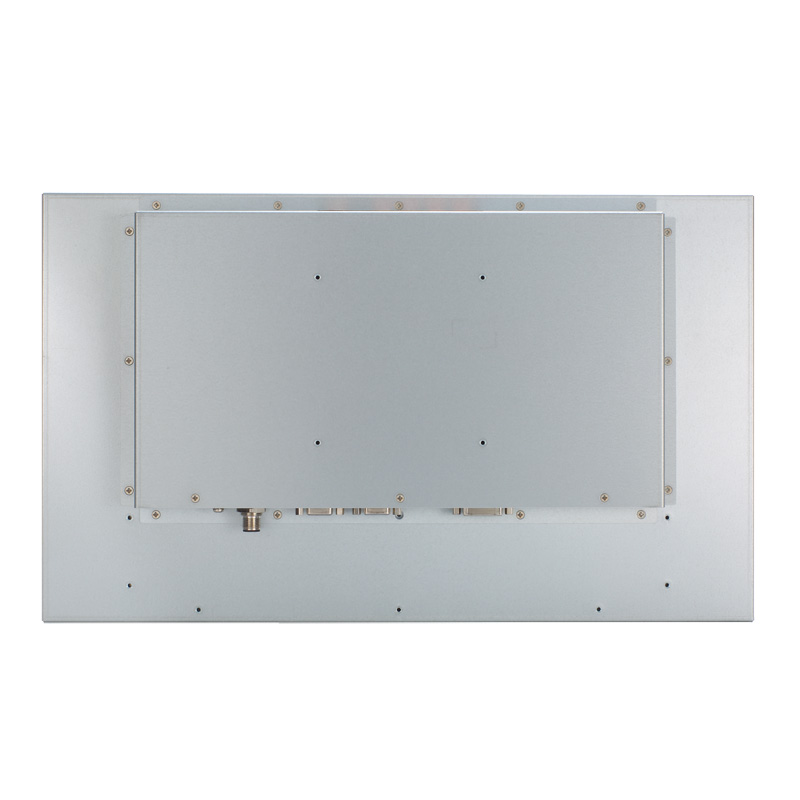

Power is 24 to 110 V DC on an M12 A-coded 5-pin connector. The P7180 is fanless and operates from -25 °C to 55 °C at 0 to 95% humidity, with vibration to EN 61373 Cat. 1 Class B. It carries CE and FCC marks. It measures 442.6 x 266.8 x 46.2 mm and weighs 3.41 kg, with VESA 100 mounting, an optional wall mount kit and an optional junction box kit for installation.
P7180 Specifications
| Overview | |
|---|---|
| Brand & Model | Axiomtek P7180 |
| Features | Industrial M12 Connectors Rugged |
| Display | |
| Brightness | 500 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 1000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x HDMI Input 1x VGA Input 1xDVI-D |
| Power | |
| Power Input | 24V-110V DC [M12] |
| Ignition Sensing | Supports Ignition Control |
| Environmental Conditions | |
| Operating Temperature | -25°C to 55°C [-13°F to 131°F] |
| Humidity | 0% - 95% (Non-condensing) |
| Certification | CE EN50155 FCC |
| Mechanical Properties | |
| Dimensions | 443mm x 46mm x 267mm (17.44" x 1.81" x 10.51") |
- P7180 Datasheet Download
Official Axiomtek USA Distributor
Things Embedded is an official Axiomtek USA distributor, supplying the P7180 for USA rolling stock projects. Within the Axiomtek range the P712 is the 12.1 inch railway touch monitor for crew consoles, and the GOT715S is the 15 inch railway panel PC for installs that need a computer at the screen.
The P7180 sits among our open frame monitors, our train monitors and our 18.5 and 19 inch monitors. Where a carriage needs a built-in 1920 x 1080 passenger information screen running from the train supply, this is the model to specify.
