Cincoze DI-1200 Intel 12th Gen Core Alder Lake-P Rugged Embedded PCs with Dual 2.5GbE and CMI Expansion

Autonomous mobile robots, delivery vehicles and small control cabinets now run vision, mapping and fleet software at the edge, which asks more of a small fanless computer than serial ports and a single GbE link. The Cincoze DI-1200 series is the 12th Gen successor to the DI-1100, keeping the same sealed fanless chassis and 9-48 V DC input while moving to Intel Core Alder Lake-P processors, faster networking and M.2 wireless expansion. Wall, side, DIN rail and VESA mounting options carry over, so a DI-1200 can replace a DI-1100 in an existing installation.

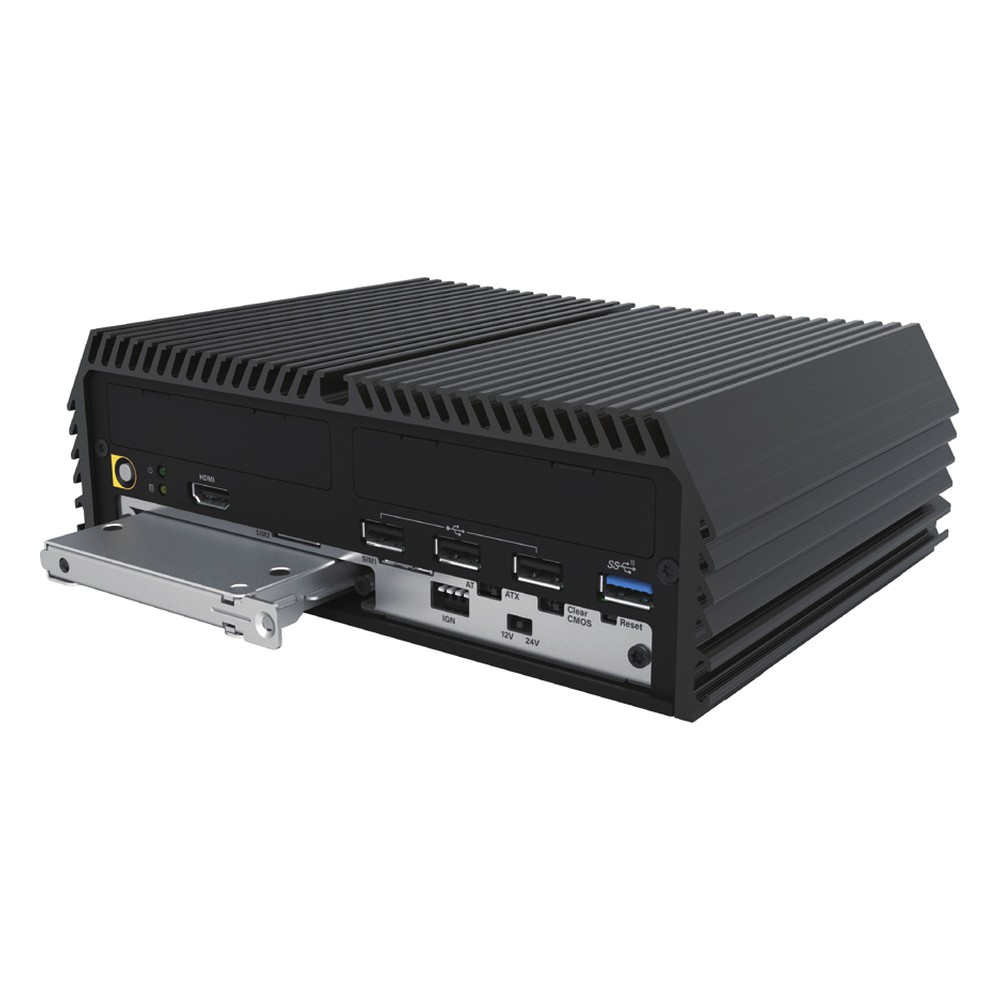

Every DI-1200 has one DDR5 SO-DIMM socket for up to 32GB, one HDMI and two DisplayPort outputs at 4K, and two 2.5GbE ports on Intel I226 controllers. USB covers one USB 3.2 Gen 2, two USB 3.2 Gen 1 and three USB 2.0 ports, with two RS-232/422/485 ports and audio. A hot-swappable 2.5-inch SATA bay sits behind the front panel with RAID 0 or 1 support. An M.2 B-key socket with two front SIM slots takes 5G, GNSS or SATA storage, and an M.2 E-key socket takes Wi-Fi and Bluetooth, including Intel CNVi cards.

The series splits by processor. The DI-1200-i7 uses the ten-core Intel Core i7-1265UE at up to 4.7 GHz with Iris Xe graphics for vision and multi-application loads. The DI-1200-i5 uses the ten-core Intel Core i5-1245UE with Iris Xe graphics for analytics, data acquisition and supervisory control. The DI-1200-i3 uses the six-core Intel Core i3-1215UE with UHD graphics for gateways, HMIs and control duties. All three stay within a 15 W processor budget.

Two CMI interfaces accept optional modules for four GbE, 2.5GbE or M12 LAN ports, two 10GbE ports, CAN FD, serial, 16-channel DIO or a fourth VGA, HDMI or DisplayPort output, and the CFM interface adds four-port PoE or vehicle ignition sensing. The DI-1200 runs from -20 °C to 70 °C, and Cincoze lists MIL-STD-810H shock and vibration, E-Mark, EN 50121-3-2 railway EMC compliance, UL, cUL and CB safety and CE, UKCA and FCC marks, with Windows 11 and Ubuntu 22.04 LTS support. Remote power on and off and a remote power LED connect through terminal blocks for panel-mounted switches.
