Specification

Overview

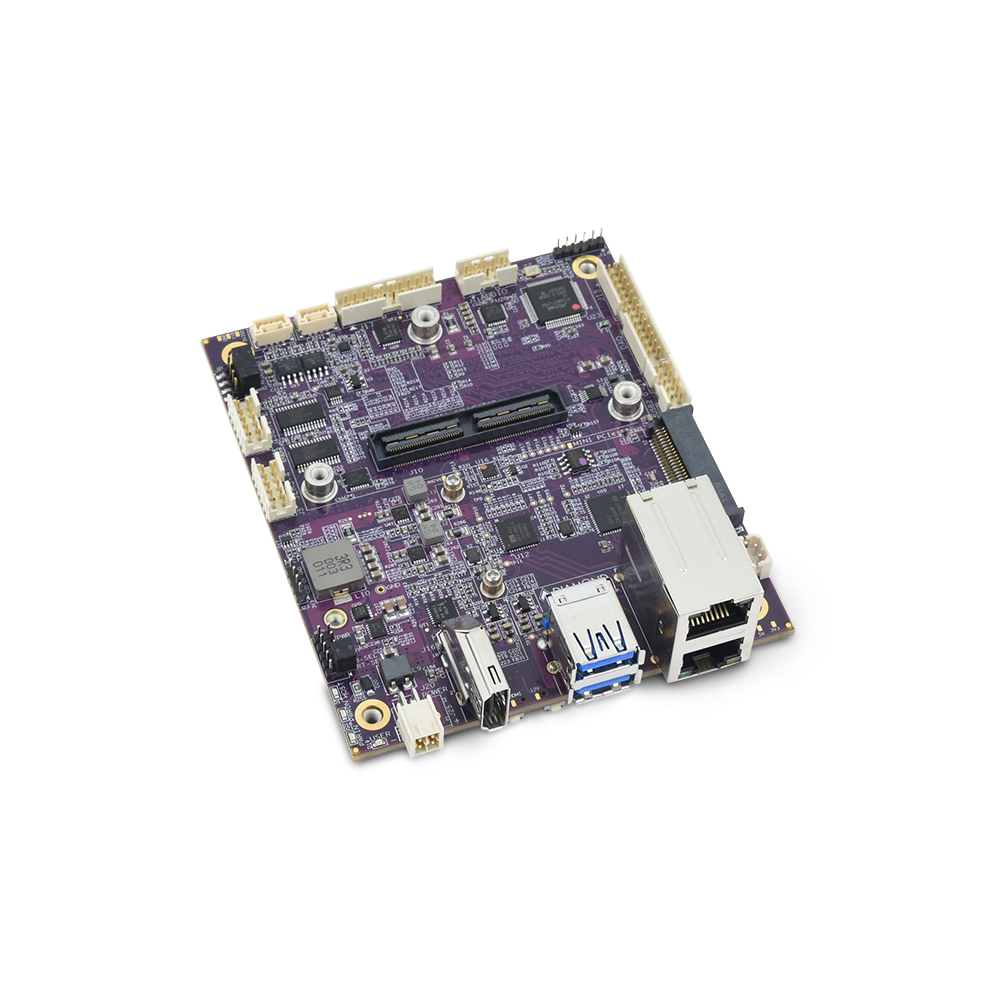

Brand & Model Diamond Systems JETBOX-STEVIE : JB-STV-AGX32-01
Small Rugged Computer with Jetson AGX Xavier
Features Compact
Embedded
Fanless
GPU
Industrial
Performance
System-on-Module AGX Xavier (32GB)
AGX Xavier [64GB]: 512 Core GPU, 64 Tensor Cores, 32 TOPs
Operating System Linux Ubuntu 18.04
Graphics
AI Accelerator NVIDIA Jetson SOM
Number of GPUs Single GPU Support
GPU Architecture NVIDIA Volta
Display Outputs 1x HDMI
I/O
Ethernet 2x Ethernet Ports
2 x GbE LAN [RJ45]
USB 4x USB Ports
2 x USB 2.0 [Type A]
2 x USB 3.1 Gen 1 [Type A]
Serial 4x Serial Ports
4x RS232/422/485 [DB9]
CANbus 2x CANbus Ports
2 x CANbus, DB9
GPIO ADC [6-lines]
DAC [2-lines]
GPIO [13-lines]
MIPI Interface 3x 4 Lane MIPI CSI-2
Expansion
M.2 1x M.2 Expansion Slots
1x M.2 M-Key [PCIe x4] [2280]
mPCIe 1x mPCIe Slots
1 x mPCIe [PCIe/USB]
Wireless Connectivity Optional WiFi/Bluetooth
Storage
Storage 1x M.2 SSD
1x Micro SD
32GB eMMC
NVMe NVMe SSD Support
Power
Power Input 9-20V DC [Terminal Block]
AC Power Supply Included
Environmental Conditions
Thermal Dissipation Fanless Passively Cooled Chassis
Operating Temperature -25°C to 70°C [-13°F to 158°F]
Storage Temperature -40°C to 85°C [-40°F to 185°F]
Certification CE
FCC
Mechanical Properties
Dimensions 150mm x 72mm x 112mm (5.91" x 2.83" x 4.41")
Mounting Options Desktop
DIN Mount
