Diamond Systems JETBOX FLOYD-SC : JB-FLDSC-BASE-01 NVIDIA Jetson Nano, TX2 NX or Xavier NX DIN Rail Embedded PC Kit (BB01)
Linux
USB3
1x M.2
NVMe SSD
Fanless
Extended Temp
CE
FCCJB-FLDSC-BASE-01 Overview

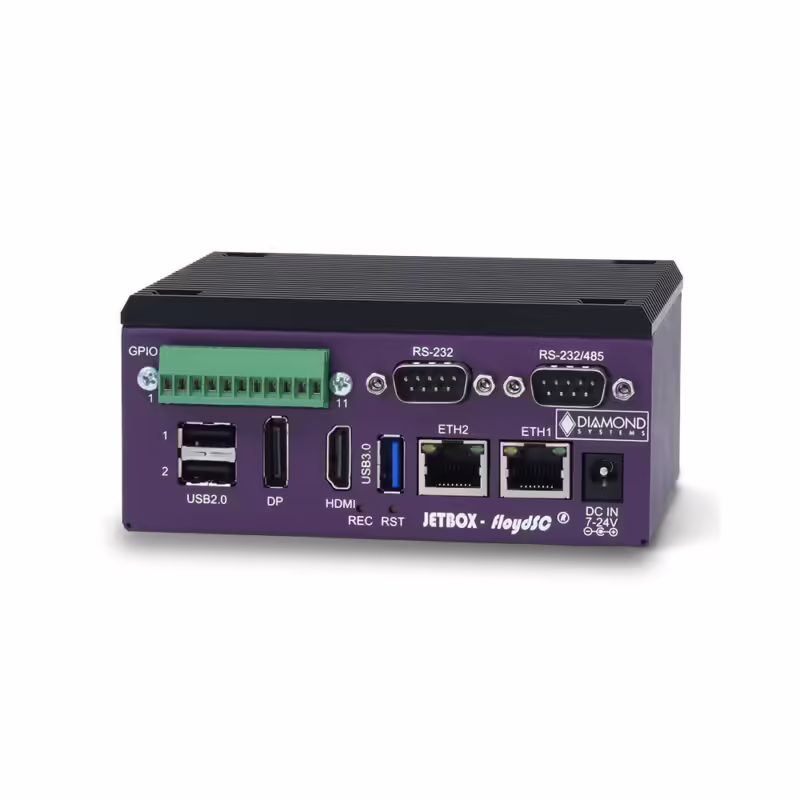

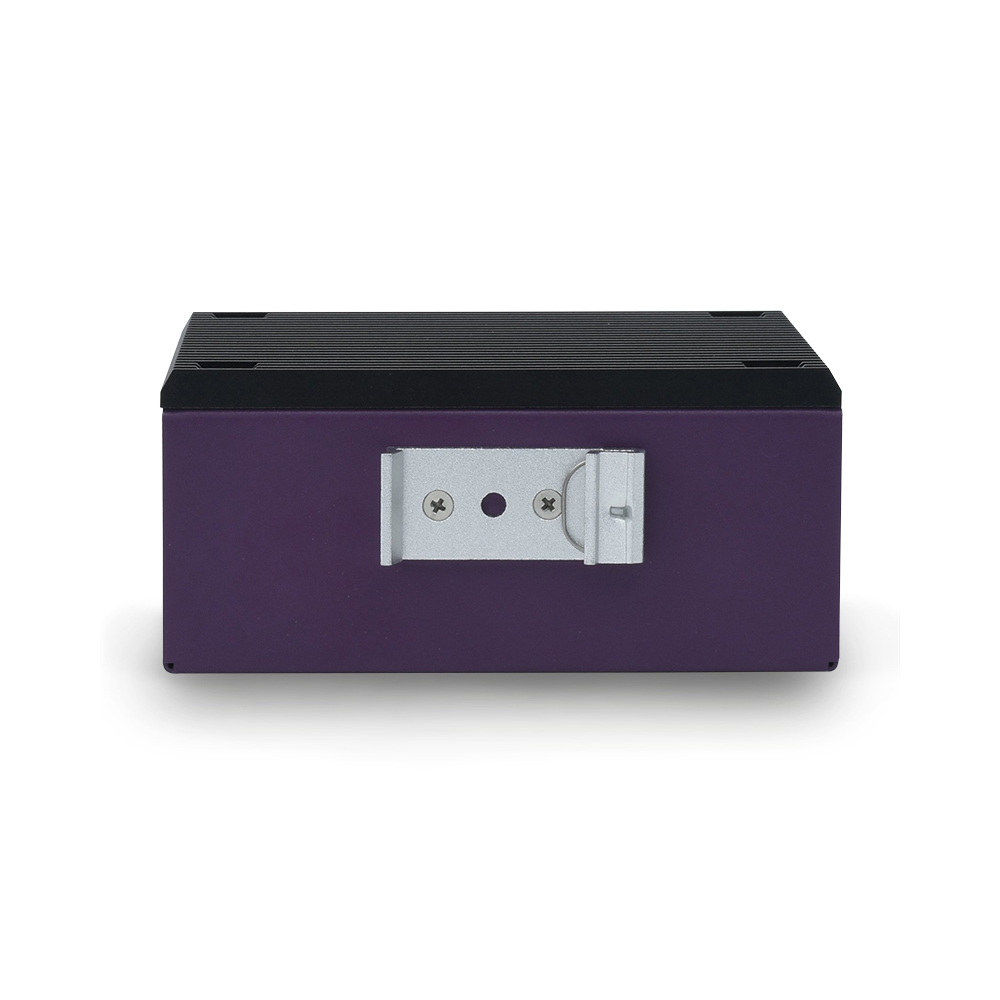

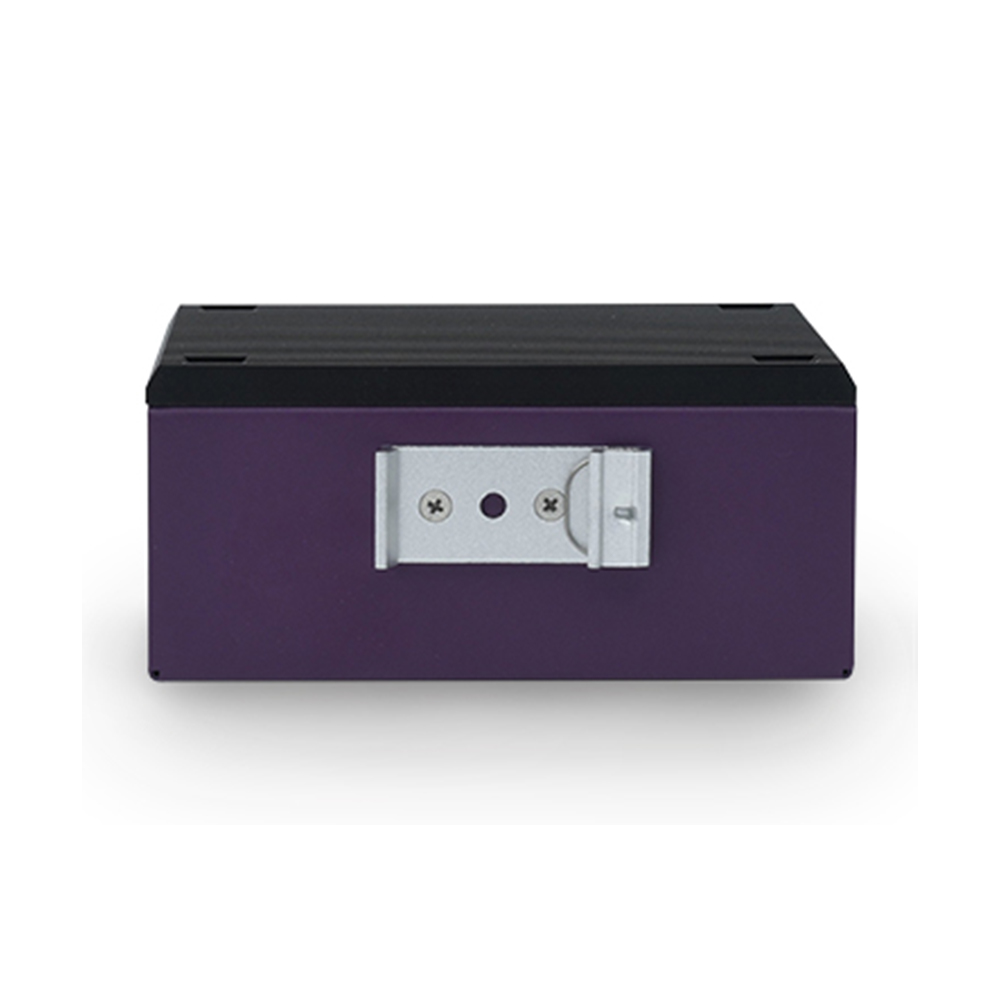

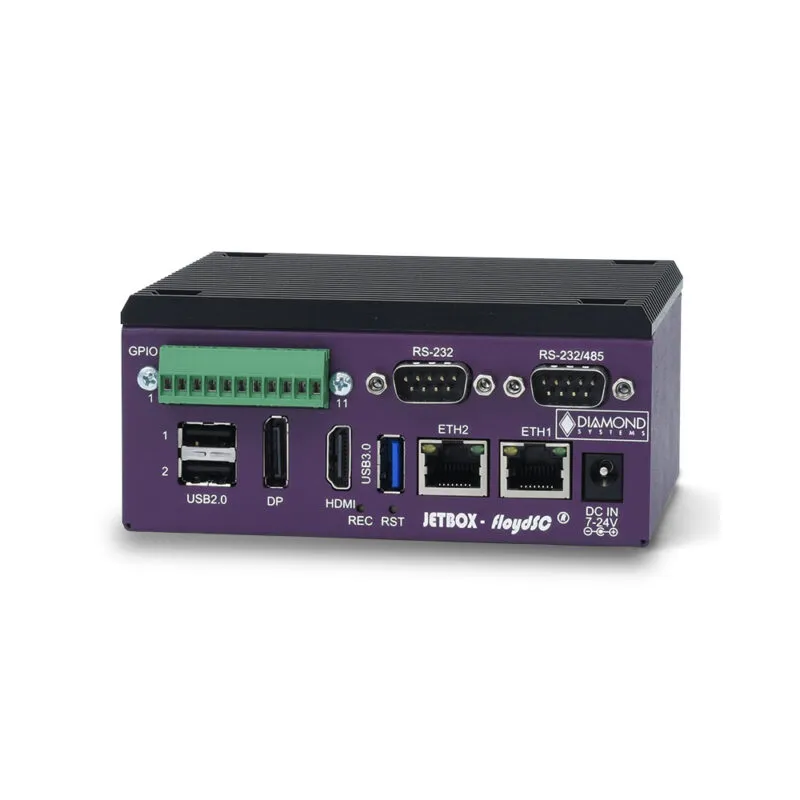

Some teams standardize on their own Jetson modules and software image, and only need a proven enclosure and carrier to put them in. The Diamond Systems JB-FLDSC-BASE-01 is a DIN rail embedded PC kit in the JETBOX FLOYD-SC series that includes the Floyd SC carrier board, enclosure and every other component except the Jetson module, in a fanless steel and aluminum enclosure with shelf and DIN rail mounting.
The kit takes any Nano-size Jetson module: Jetson Nano, TX2 NX or Xavier NX. The module is not included, and system assembly and operating system programming are needed before use, so the kit suits teams that already hold modules or have their own JetPack build process.

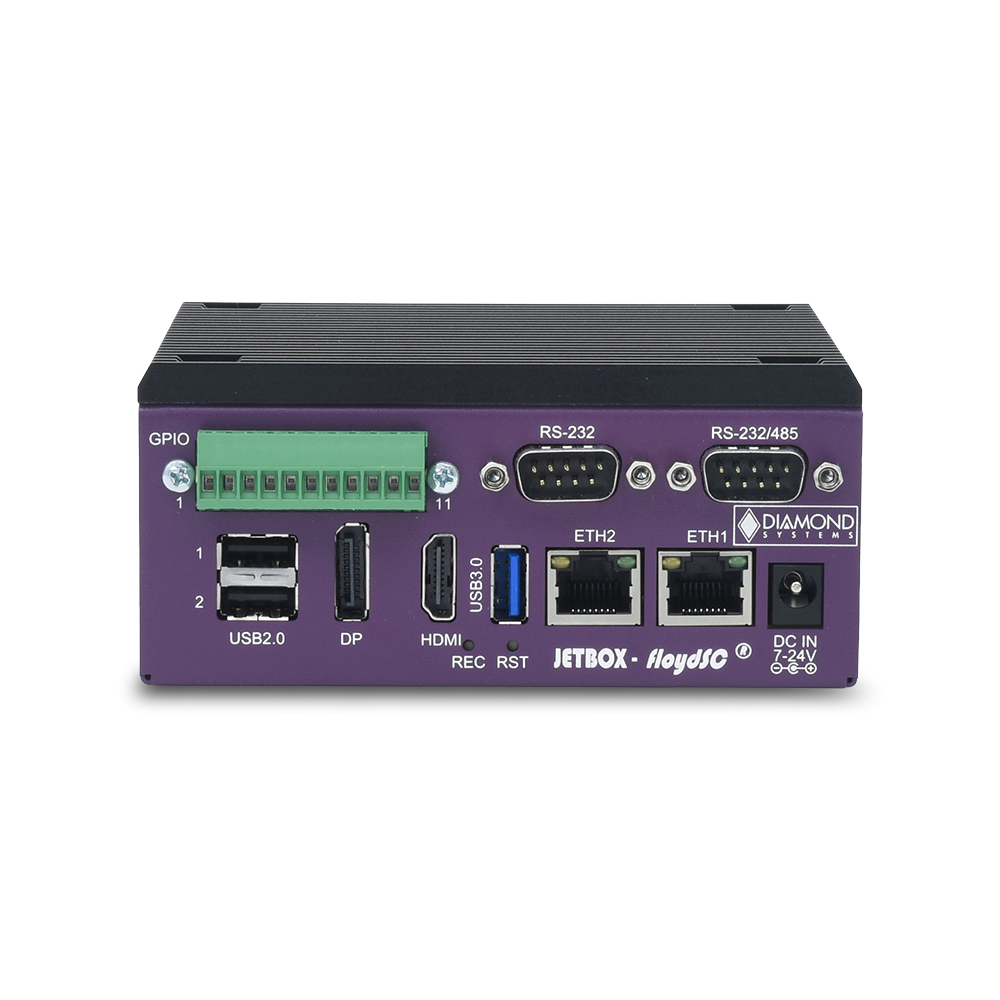

The JB-FLDSC-BASE-01 is built on Diamond’s FLDSC-BB01 carrier board rather than the BB02 used in the complete JETBOX FLOYD-SC systems, so the exact I/O set depends on that carrier and on the module you install. Diamond’s published JETBOX FLOYD-SC I/O covers HDMI, DisplayPort, Gigabit Ethernet, USB 3.0, USB 2.0, two serial ports and eight screw-terminal GPIO on the BB02, so the BB01 configuration should be confirmed against the chosen module before deployment.
Power on the JB-FLDSC-BASE-01 is a 7-24 V DC input, and a 12 V AC adapter is included for bench work. The integrated heat sink cover cools the module without a fan, and the system supports -25 to +80 °C operation across the full range of the Jetson modules. For complete systems with a module installed, see the JB-FLDSC-NAO-02 or the JB-FLDSC-XNX-02.
JB-FLDSC-BASE-01 Specifications
| Overview | |
|---|---|
| Brand & Model | Diamond Systems JETBOX FLOYD-SC : JB-FLDSC-BASE-01 |
| Features | Compact Embedded Fanless GPU Industrial |
| Performance | |
| AI Performance | 0.5–21 TOPS |
| System-on-Module | NVIDIA Jetson Nano 4GB: 512 GFLOPS (FP16), 128-core Maxwell GPU, 4-core Arm Cortex-A57 1.43GHz, 4GB 64-bit LPDDR4, 16GB eMMC, 5-10W NVIDIA Jetson TX2 NX 4GB: 1.33 TFLOPS, 256-core Pascal GPU, 2-core NVIDIA Denver 2 + 4-core Arm Cortex-A57 2.0GHz, 4GB 128-bit LPDDR4, 16GB eMMC, 7.5-15W NVIDIA Jetson Xavier NX 16GB: 21 TOPS, 384-core Volta GPU with 48 Tensor Cores, 6-core NVIDIA Carmel Armv8.2 1.9GHz, 16GB 128-bit LPDDR4x, 16GB eMMC, 10-20W NVIDIA Jetson Xavier NX 8GB: 21 TOPS, 384-core Volta GPU with 48 Tensor Cores, 6-core NVIDIA Carmel Armv8.2 1.9GHz, 8GB 128-bit LPDDR4x, 16GB eMMC, 10-20W |
| Operating System | Linux |
| Jetpack Version | JetPack 4.6 |
| Graphics | |
| Display Outputs | 1x HDMI |
| I/O | |
| Ethernet | 1x Ethernet Ports |
| 1x GbE LAN [RJ45] | |
| USB | 3x USB Ports |
| 1x USB 3.0 [Type A] 2x USB 2.0 [Type A] | |
| Serial | 2x Serial Ports |
| 1x RS232 [DB9] 1x RS232/485 [DB9] | |
| CANbus | 1x CANbus Ports |
| 1x CANbus [Board] | |
| GPIO | GPIO [8-lines] |
| Expansion | |
| M.2 | 1x M.2 Expansion Slots |
| 1x M.2 M-Key [PCIe x4/SATA] [2242/2280] | |
| Storage | |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | 7-24V DC [Barrel Connector] |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -25°C to 80°C [-13°F to 176°F] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 124mm x 56mm x 99mm (4.88" x 2.2" x 3.9") |
| Mounting Options | DIN Mount |
Official Diamond Systems USA Distributor
Things Embedded is an official Diamond Systems USA distributor, supplying the JB-FLDSC-BASE-01 as a kit or fully built with a Jetson module, storage and Linux image installed. The JB-FLDSC-BASE-02 is the matching kit on the FLDSC-BB02 carrier, and the JETBOX-FLOYD offers a larger box with PoE+ for Nano and Xavier NX. Within the JETBOX FLOYD-SC range, the Nano, TX2 NX and Xavier NX builds share the same enclosure, front panel and Floyd SC BB02 carrier, so moving up a module later keeps the same mounting, cabling and screw-terminal wiring in the cabinet.
Across our range, the JB-FLDSC-BASE-01 sits with our DIN rail computers and our Jetson carrier boards for teams building their own Jetson systems. It suits teams that already standardize on the BB01 carrier and supply their own Jetson modules and software image for each system they assemble in house. Its 7-24 V DC input and small footprint let it share a rail with existing PLCs, relays and power supplies.
