US Military Panel PCs
Military Touch Screen Computers for Consoles, Ships and Vehicles
A military panel PC combines the computer and a rugged touch screen in one enclosure designed to MIL-STD-810H and MIL-STD-461 requirements, so a defense console needs one unit instead of a separate computer and monitor. Available from 15 to 32 inches on 11th and 12th Gen Intel Core processors.
Options include 19 inch rack mount builds for equipment racks, console-mount defense panel PCs and Intel Core i7 builds, suited to command and control consoles, shipboard systems, ground stations and vehicle crew positions.
Speak to a defense computing specialist to match the size, mounting and standards to your program.
Browse Our Defense Panel PCs
- Display: 21.5"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Core 12th Gen Alder Lake
- OS: Linux Ubuntu 22.04, Windows 11
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 100-240V AC, 9-36V DC Input [MIL-STD]
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC, MIL-STD-461, MIL-STD-810
- Display: 23.8"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Core 11th Gen Tiger Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Serial: 1x RS232/422/485 [DB9]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 100-240V AC, 9-36V DC Input [MIL-STD]
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC, MIL-STD-461, MIL-STD-810
- Display: 23.8"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Core 12th Gen Alder Lake
- OS: Linux Ubuntu 22.04, Windows 11
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 100-240V AC, 9-36V DC Input [MIL-STD]
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC, MIL-STD-461, MIL-STD-810
- Display: 24"[8:5, 1920 x 1200, WUXGA]
- Touch: Optional 5-Wire Resistive Touch
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Core 11th Gen Tiger Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Serial: 1x RS232/422/485 [DB9]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 100-240V AC, 9-36V DC Input [MIL-STD]
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC, MIL-STD-461, MIL-STD-810
- Display: 24"[8:5, 1920 x 1200, WUXGA]
- Touch: Optional 5-Wire Resistive Touch
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Core 12th Gen Alder Lake
- OS: Linux Ubuntu 22.04, Windows 11
- USB: 1x USB 2.0 [MIL-STD]
- Serial: 2x RS232 [MIL-STD]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 100-240V AC, 9-36V DC Input [MIL-STD]
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC, MIL-STD-461, MIL-STD-810
- Display: 24"[8:5, 1920 x 1200, WUXGA]
- Touch: Optional 5-Wire Resistive Touch
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Core 12th Gen Alder Lake
- OS: Linux Ubuntu 22.04, Windows 11
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 100-240V AC, 9-36V DC Input [MIL-STD]
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC, MIL-STD-461, MIL-STD-810
- Display: 32"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 400
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Core 11th Gen Tiger Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Serial: 1x RS232/422/485 [DB9]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 100-240V AC, 9-36V DC Input [MIL-STD]
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC, MIL-STD-461, MIL-STD-810
- Display: 32"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 400
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Core 12th Gen Alder Lake
- OS: Linux Ubuntu 22.04, Windows 11
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 100-240V AC, 9-36V DC Input [MIL-STD]
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC, MIL-STD-461, MIL-STD-810
Military Panel PC Ranges Configured by Things Embedded
We work with the leading manufacturers of defense computers, so the ranges below are the ones we specify for consoles, racks and ships. Compare them by size, processor and mounting, then browse the models above or ask a defense computing specialist which range suits your program.

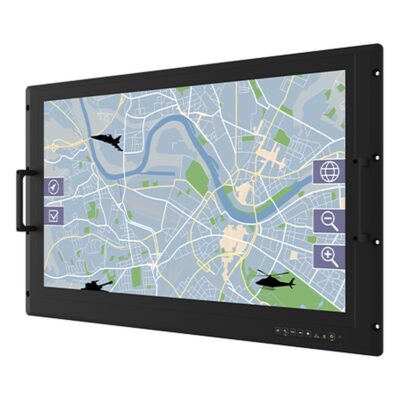

Winmate ML Defense Panel PCs
Console touch computers from 15 to 32 inches on Intel Core i5 or i7, designed to MIL-STD-810H and MIL-STD-461 requirements.

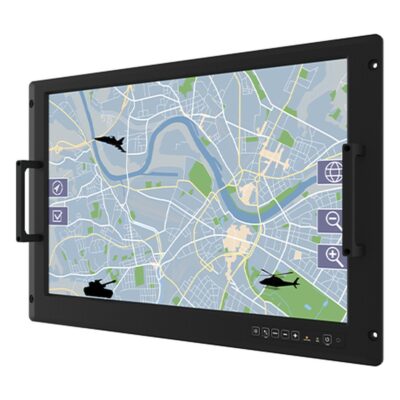

Winmate RK Rack Mount Defense Panel PCs
Rack-eared 17, 19 and 24 inch screens with the computer built in, for equipment racks and consoles.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a Defense Panel PC
Our defense computing specialists specify every military panel PC against the platform, the operator and the standards it must meet. These are the choices that decide whether the computer suits the installation, and the ones we work through with you before recommending a range.
Military Standards
Designed to MIL-STD-810H environmental and MIL-STD-461 EMI requirements; confirm the tests per model.
Rack or Console
19 inch rack mount builds or console and panel mounting.
Processor
11th Gen and 12th Gen Intel Core i5 and i7 processors.
Night Operation
Dimmable screens for crew stations; NVIS screens are listed separately.
Long-Term Availability
Ask about availability and revision control for your program.
Military Panel PC Innovation & Defense Console Insights
Speak to a Defense Computing Specialist.
Tell us where the system will be installed, the approvals it must meet and the interfaces you need to connect. We will recommend the right form factor, then configure, image and test it before it ships.
