What Is a PTZ Camera?

A PTZ camera is a camera that can be steered and zoomed by remote control. PTZ stands for pan, tilt and zoom: motors rotate the camera horizontally (pan), move it up and down (tilt), and change the focal length of its lens (zoom). One PTZ camera can therefore watch a wide area at a glance, then turn and close in on a person, vehicle or number plate hundreds of meters away.

Most surveillance PTZ cameras sit in a dome or on a pan-tilt head, with the motors, lens and electronics sealed inside. An operator steers them with a joystick or the video management software, or the camera follows a programmed routine. A fixed camera, by contrast, always shows the same view. Some multi-sensor models combine both, with fixed wide-angle sensors around a central PTZ, so the site keeps an overview while the PTZ zooms in.

Each axis adds a different capability, and PTZ cameras add software features on top.

PTZ and fixed cameras do different jobs, and most sites use both.

The usual design pairs fixed cameras for constant recording with a PTZ camera that an operator, or an analytics alert from a fixed camera, points at the event for a closer look.

IP PTZ cameras take commands over the network. ONVIF, the camera interoperability standard, defines PTZ commands, so one recorder or software package can steer cameras from different makers. Older analog and many specialist PTZ heads use serial protocols over RS-485, most often Pelco-D or Pelco-P, and broadcast cameras commonly use Sony’s VISCA protocol. A computer driving a PTZ head therefore often needs a serial port as well as video inputs.

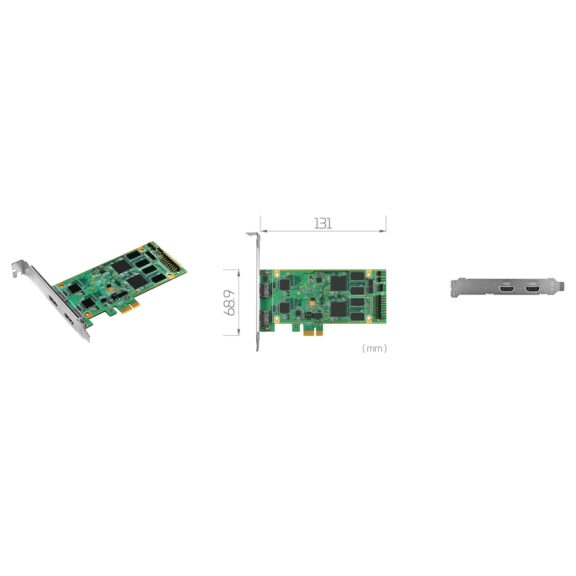

Broadcast and live-streaming PTZ cameras usually output video over SDI, HDMI or NDI as well as IP. Bringing that video into a computer for recording or AI needs a capture card, such as our HDMI video capture cards.

Basic auto-tracking follows anything that moves. AI-based tracking runs a detection model on the video, picks out a person, vehicle, vessel or drone, then steers the camera to hold it in frame while it zooms. Our object tracking FAQ explains how the tracker keeps its lock. Putting the AI computer inside or beside the camera removes the network delay, which matters when a fast target is crossing the frame at full zoom.

Our drone detection case study shows an all-in-one PTZ camera running on Jetson AGX Orin with low-latency HDMI 2.0 capture. In defense and border security, the same idea scales up to stabilized gimbals with visible and thermal sensors.

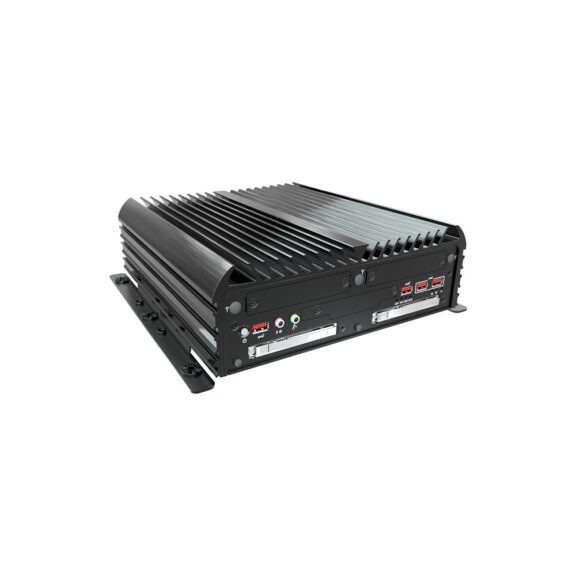

PTZ cameras appear wherever one camera has to cover a large area and still show detail: city centres, car parks, ports, rail yards, stadiums, perimeters and critical infrastructure. In broadcast and live streaming, compact PTZ cameras film lectures, churches, conferences and studios with no camera operator in the room. On vehicles and vessels, rugged PTZ heads give crews a steerable view around the platform, and our industrial NVRs record and manage fixed and PTZ cameras together.

When specifying a PTZ camera, start from the distance and the detail you need: identifying a person at 200 m needs far more zoom than watching a car park. Then check pan and tilt speed for tracking fast targets, IR range for night use, the IP rating and operating temperature for outdoor masts, and image stabilization if the mount can move in the wind or on a vehicle.

We build the computers behind PTZ systems as standard: AI recorders and edge computers with the capture cards, serial ports and drivers fitted, installed and tested with your cameras before they ship.
