Neousys NRU-160-AWP NVIDIA Jetson Orin NX and Orin Nano IP66 Waterproof Computers with GMSL2 or M12 PoE+

Roadside cabinets, food factories, mines and farm machinery all expose a computer to rain, hose-down cleaning or dust, and an enclosure built around a standard box PC adds cost, heat and wiring. The Neousys NRU-160-AWP series is an IP66 edge AI computer that needs no enclosure: every connector on the small chassis is a waterproof FAKRA Z or M12 type, and a standard cable kit brings the ports out to RJ45, USB, DB9 and VGA where a cabinet needs them.

Compute is an NVIDIA Jetson Orin NX with 8 or 16 GB of LPDDR5, or an Orin Nano with 4 or 8 GB, bundled with JetPack. With the Orin NX 16 GB the series delivers up to 100 sparse TOPS (INT8) and transcodes up to eighteen 1080p video streams. Storage is an M.2 2242 M key socket for an NVMe SSD (PCIe Gen3 x1). A full-size mini PCIe socket takes a CAN, serial or Wi-Fi module, and an M.2 B key socket with dual micro SIM takes a 4G LTE or 5G NR module.

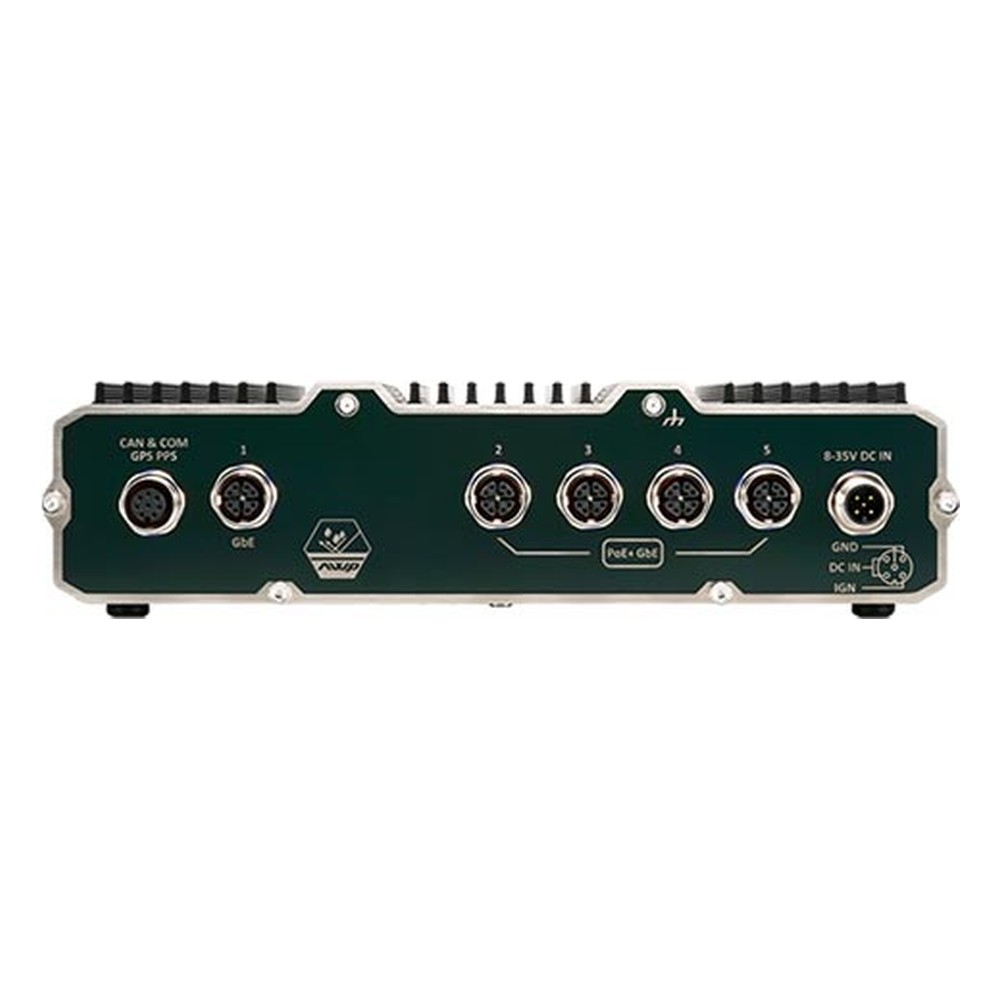

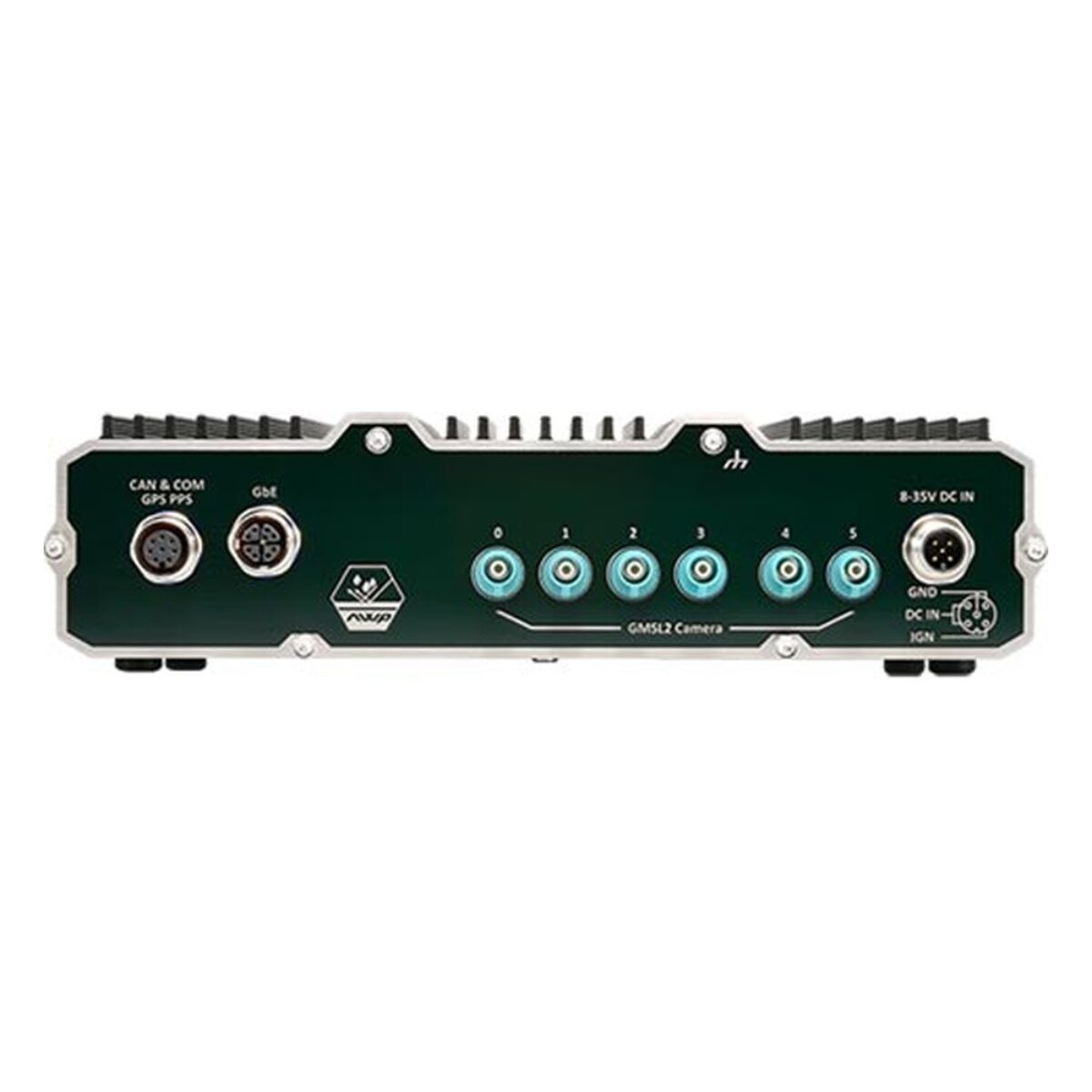

There are two versions. The NRU-161V-AWP has six waterproof GMSL2 FAKRA Z inputs with pre-built drivers for IMX390, ISX031 and IMX490 automotive cameras, for robots, ADAS on off-highway vehicles and multi-camera inspection. The NRU-162S-AWP has four Gigabit ports on M12 X-coded connectors with IEEE 802.3at PoE+ and a 50 W total budget, by an Intel I350-AM4 controller, for IP and GigE cameras.

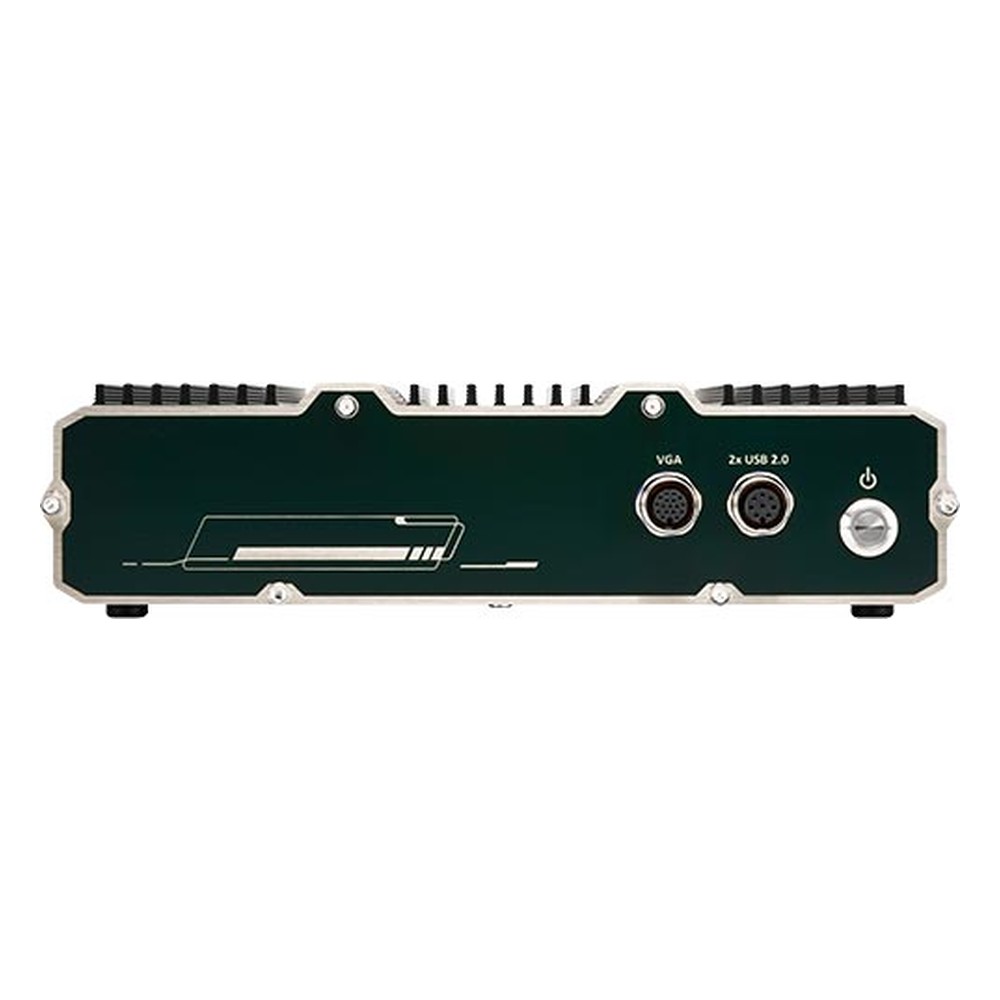

Both versions share a further Gigabit port on M12 X-coded for LiDAR or a host computer, two USB 2.0 ports, a VGA output at 1920 x 1080, an RS-232 port, a CAN FD port and an isolated GPS PPS input, all on M12 connectors. Power is 8 to 35 V DC on an M12 A-coded connector with built-in ignition control (12 to 35 V above 60 W of system load, 20 to 35 V above 96 W). The chassis runs fanless from -25 °C to 70 °C in the 20 W mode, meets MIL-STD-810H for vibration and shock, and carries CE and FCC Class A, with EN 50121-3 EMC on the NRU-162S-AWP. VESA 75 and wall mounting are standard.
