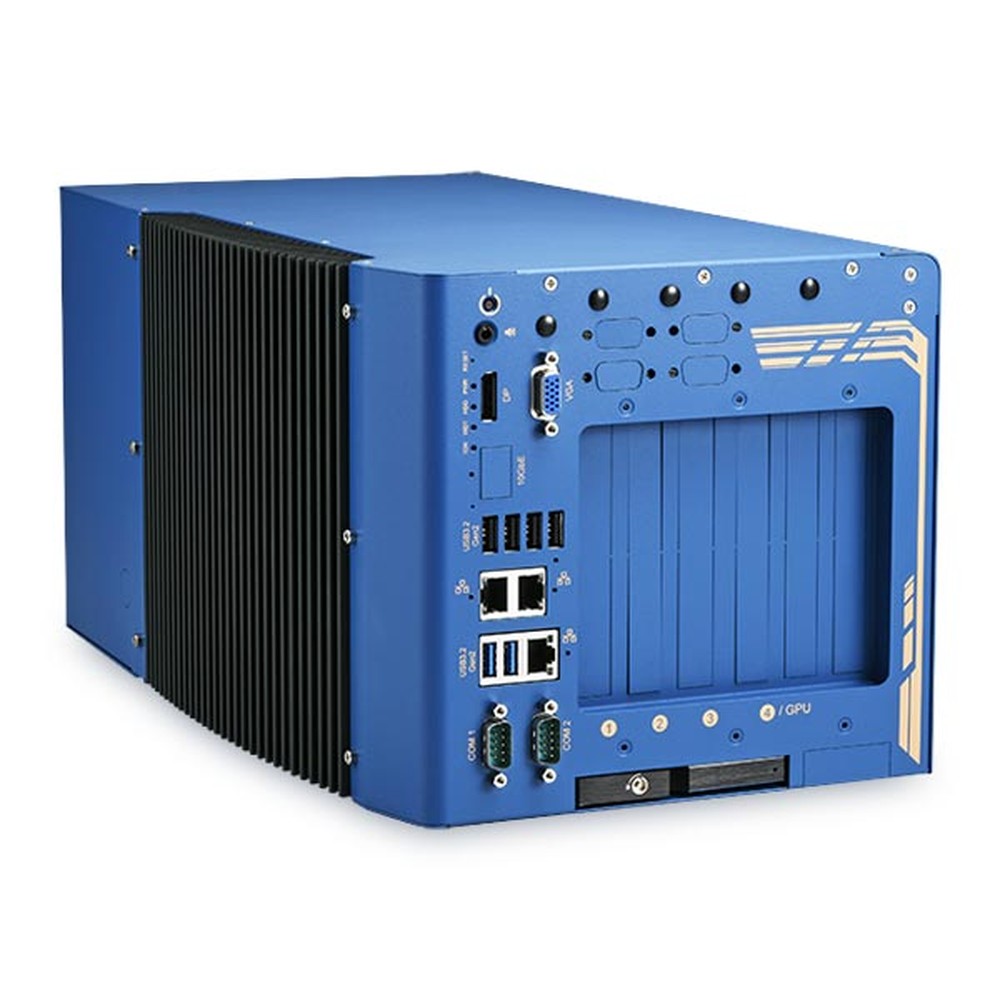

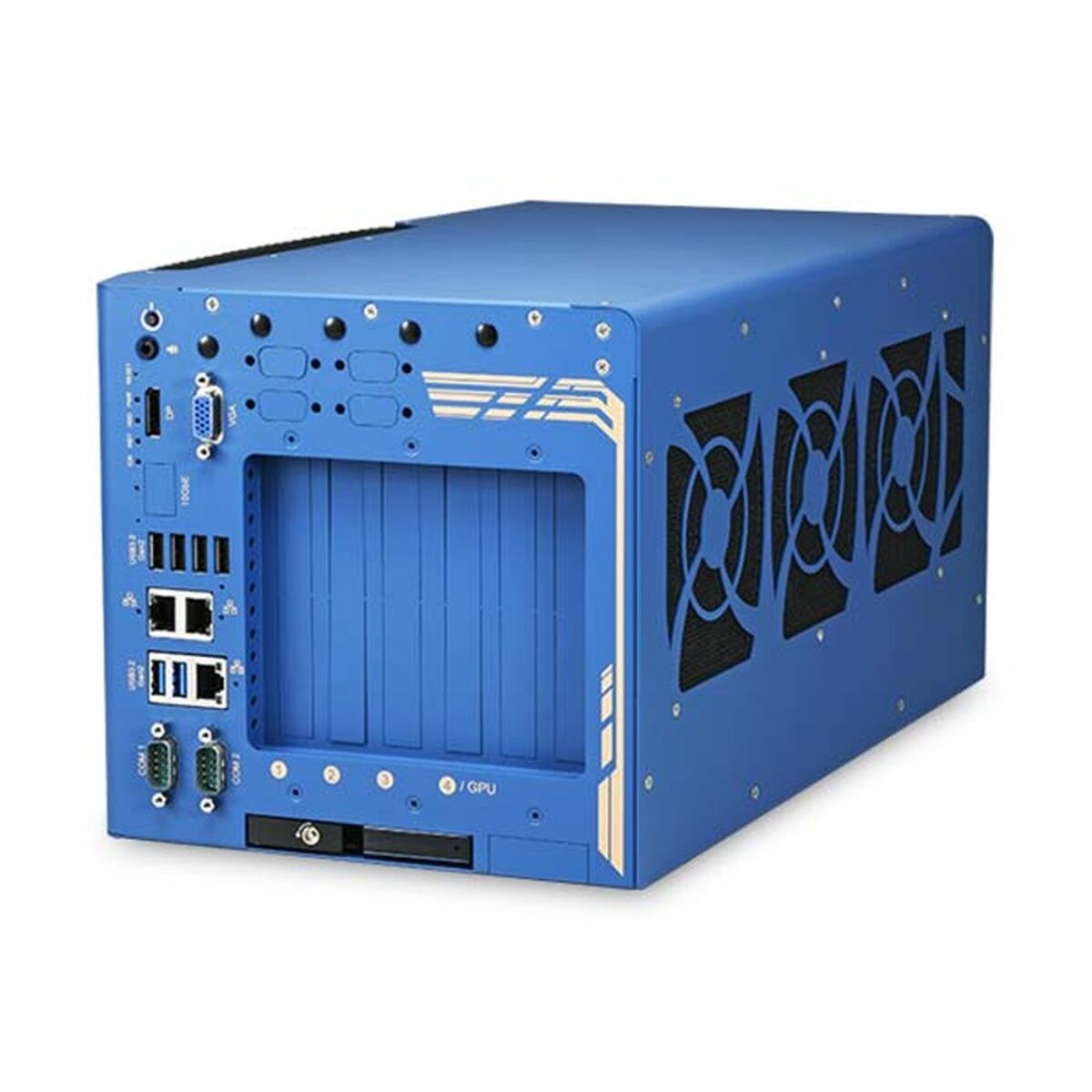

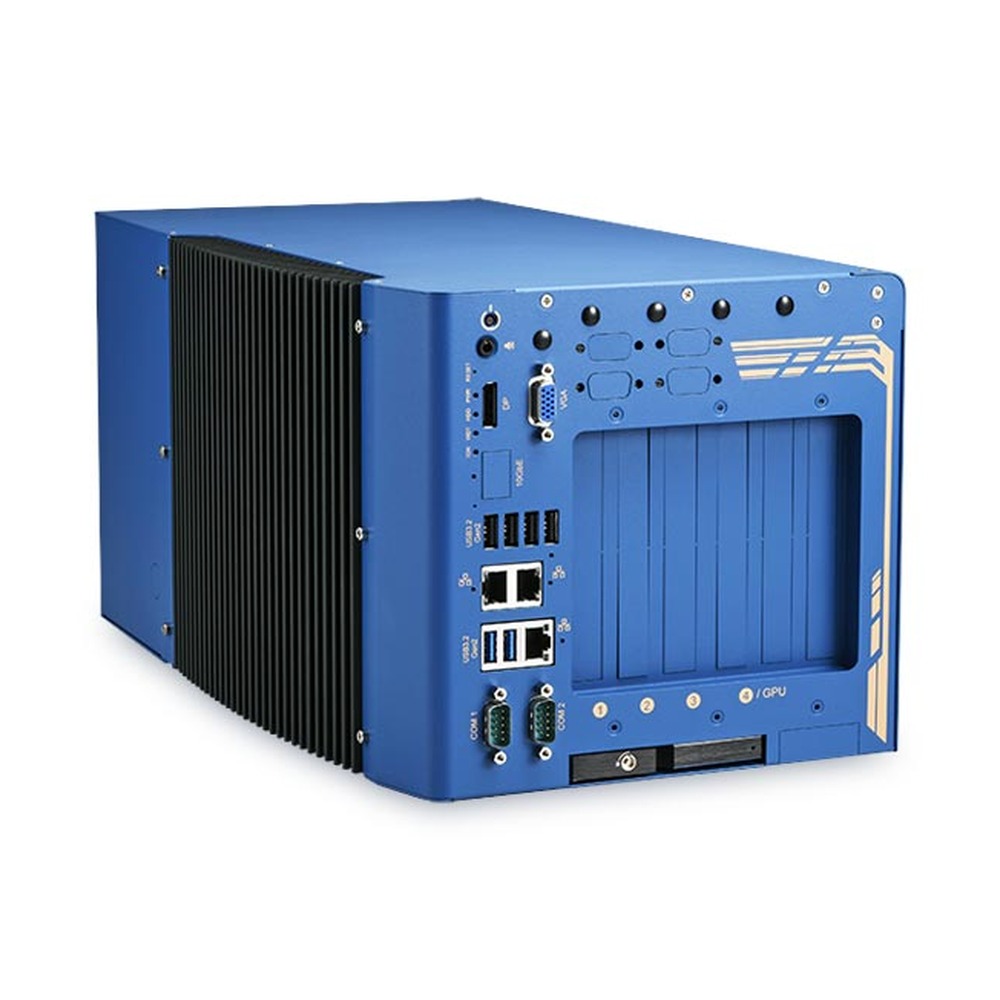

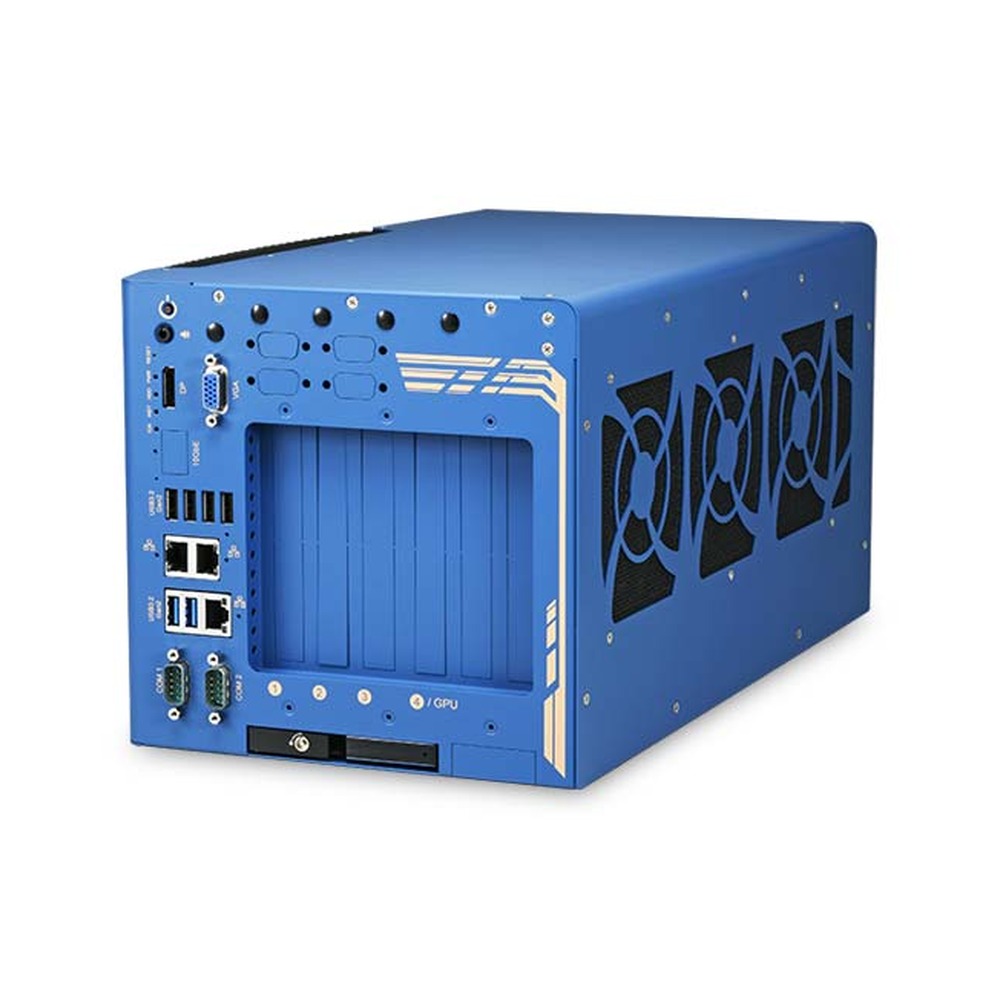

Neousys Nuvo-10109GC Intel 14th Gen Core Rugged Edge AI Computer with 600W NVIDIA RTX Pro 6000 GPU

Running large language models or perception stacks at the edge now calls for the same GPUs used in data centres, and those cards draw up to 600W. The NUVO-10109GC is a rugged edge AI computer from Neousys designed around a single 600W NVIDIA GPU, with a dedicated locking bracket for the RTX Pro 6000, and Neousys quotes up to 4000 AI TOPS for FP4 LLM inference with the latest Blackwell GPU.

The host is Intel 14th, 13th and 12th Gen Core on the LGA1700 socket at 35W or 65W, on the Intel R680E chipset with up to 128 GB of ECC or non-ECC DDR5-4800 in two SODIMM slots. vPro with AMT 16.0 and dTPM 2.0 are supported. The GPU slot is PCIe x16 at Gen4 with 16 lanes, and three more PCIe x8 slots with Gen3 x4 signals take GMSL2 frame grabbers, automotive Ethernet adapters or camera capture cards, so the NUVO-10109GC can act as one complete system rather than a GPU box plus a separate I/O computer.

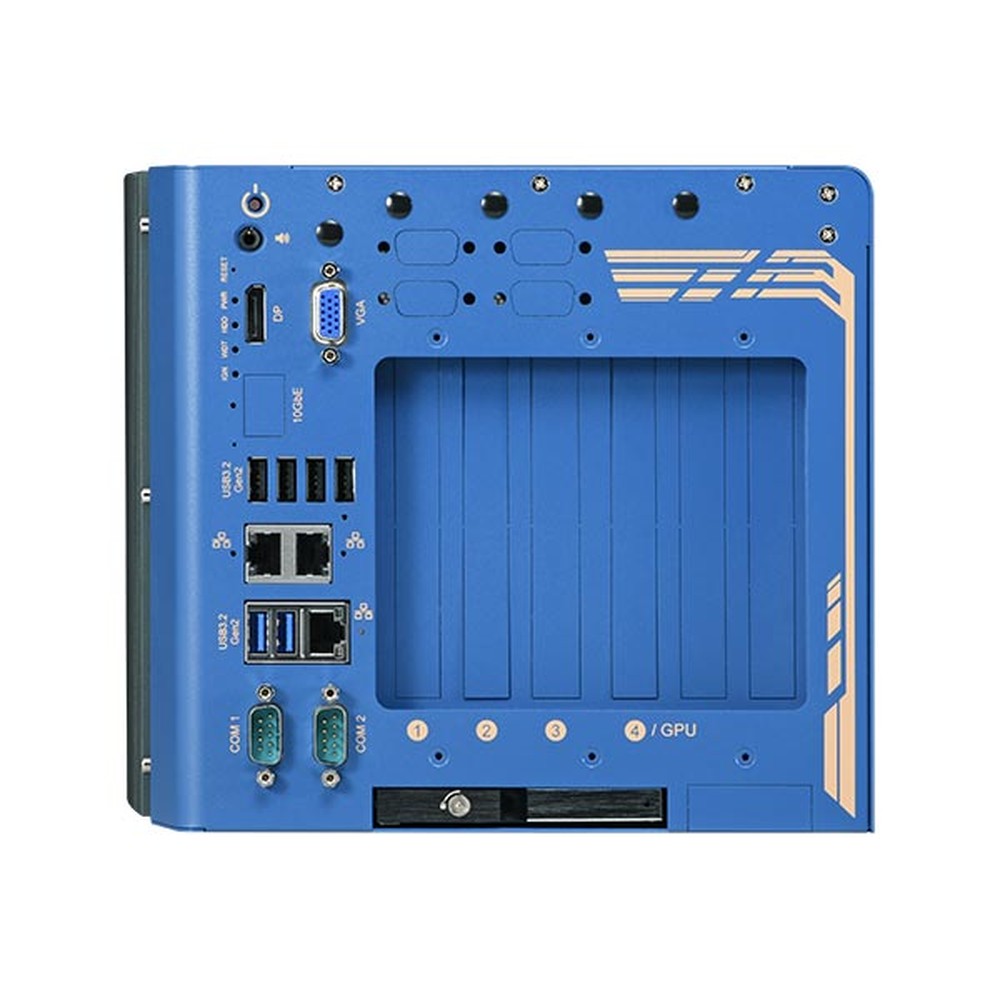

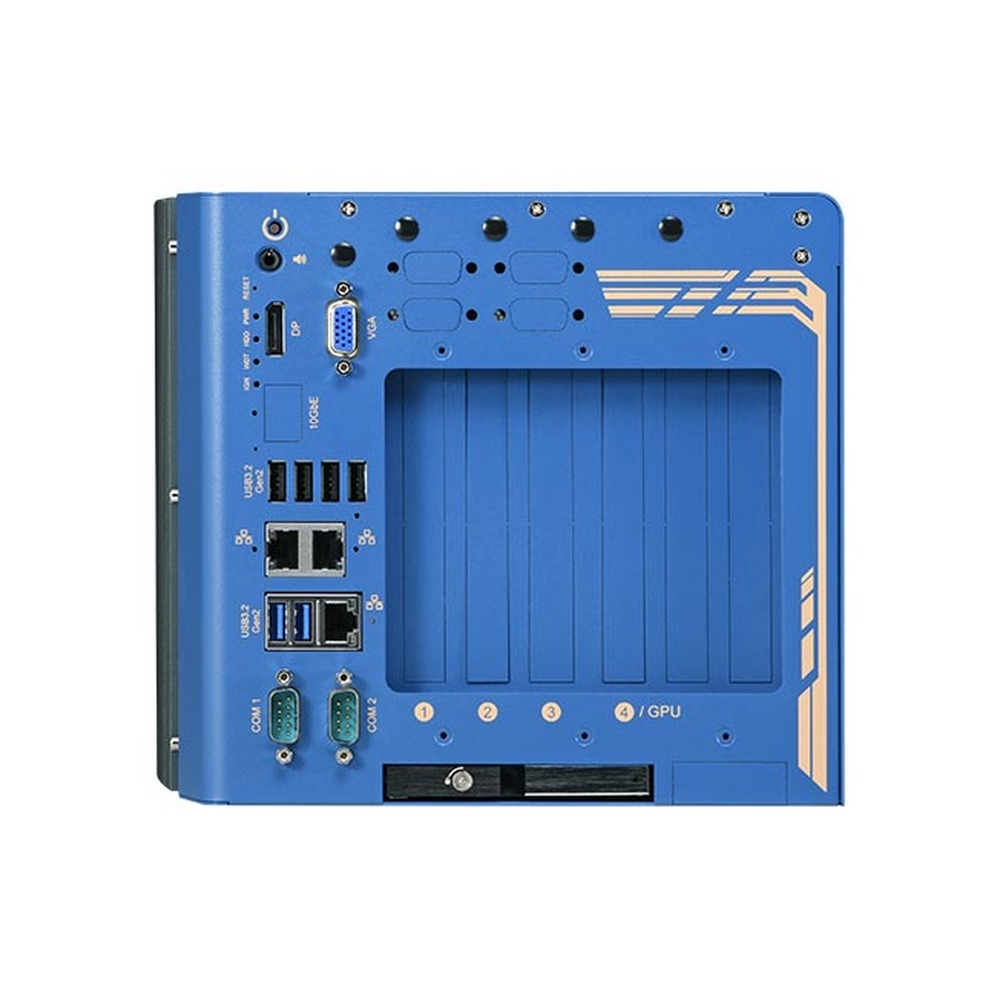

Networking is two Intel I226-IT 2.5GbE ports and one I219-LM GbE port, with an optional 10GBASE-T port that also runs NBASE-T. Six USB 3.2 Gen2 ports, VGA and DisplayPort outputs, two RS-232/422/485 ports and audio complete the panel. Storage is a front-access hot-swap 2.5″ SATA tray, an internal M.2 Gen4 x4 NVMe socket and an optional front-access M.2 NVMe tray, which suits sensor logging and HIL or VIL test rigs. Two mini-PCIe sockets and an M.2 B key socket, each with SIM, add wireless modules.

A new power design keeps full-rated output across a 9 to 32V DC input, so the NUVO-10109GC runs directly from 12V and 24V vehicle supplies, and ignition control is built in. It operates from -25°C to 60°C with a 35W CPU and a 600W GPU, and with a 65W CPU the optional fan kit keeps that rating. The reinforced 224 x 400 x 196 mm enclosure weighs 7.1 kg and wall-mounts on damping brackets, tested to MIL-STD-810H.
