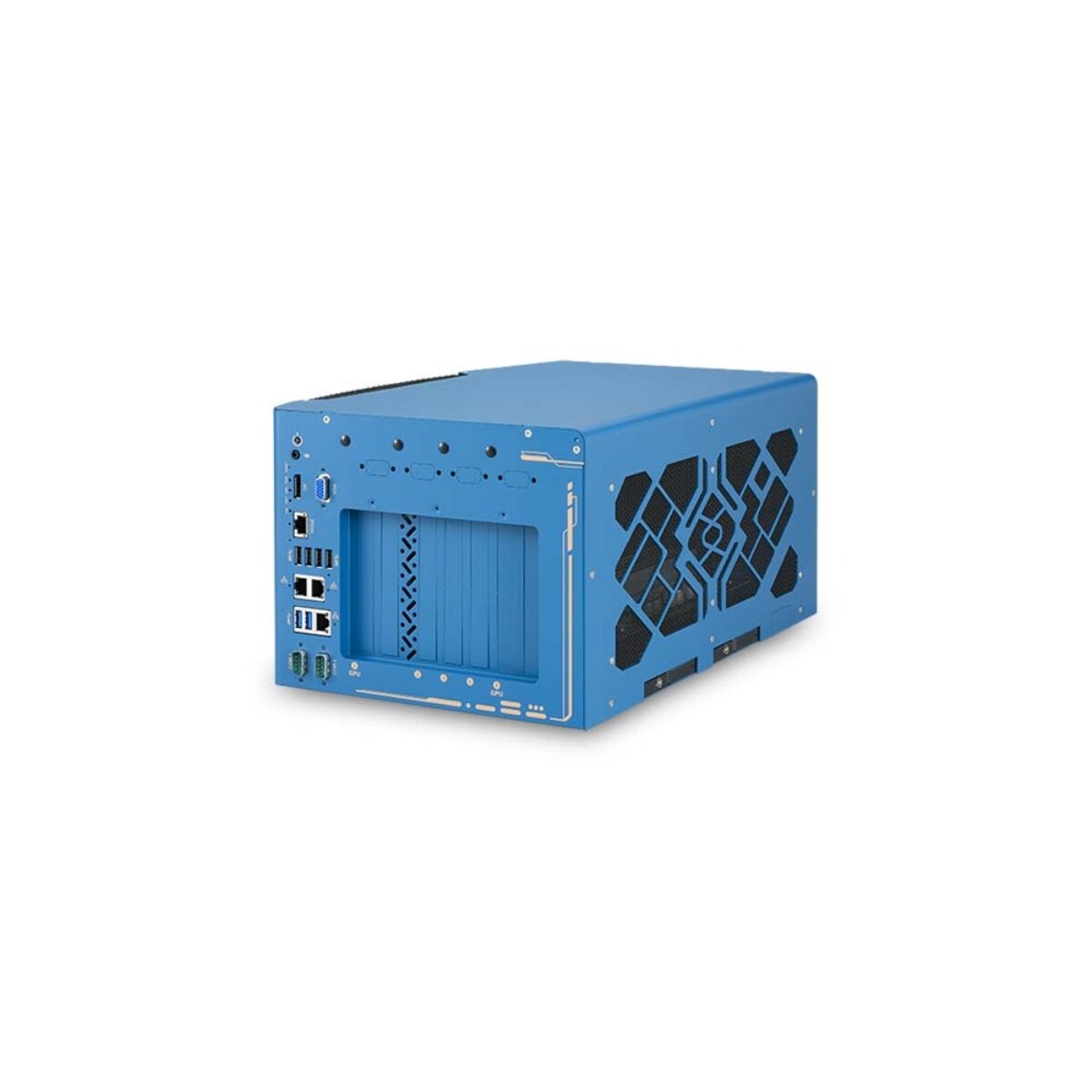

Neousys Nuvo-10208GC Intel 14th/13th/12th Gen Core Rugged Edge AI Server with Dual 350W NVIDIA RTX GPUs

The Neousys Nuvo-10208GC is an edge AI server that holds two NVIDIA RTX cards of up to 350 W each on patented locking brackets, reaching up to 200 TFLOPS of FP32 beside Intel 14th/13th/12th Gen Core and ECC DDR5. It suits autonomous driving, vision inspection and surveillance systems that need two GPUs on the vehicle or machine.

  • Dual 350 W NVIDIA RTX GPUs: Two PCIe x16 slots at Gen4 x8 with patented locking brackets hold RTX Pro 4500, 5000 or 6000 Max-Q cards, up to 200 TFLOPS FP32.
  • Intel 14th/13th/12th Gen Core with ECC: LGA1700 processors with up to 24 cores and 32 threads run on the R680E chipset with up to 128 GB of ECC DDR5.
  • Dual Hot-Swap RAID Trays: Two hot-swappable 2.5-inch SATA trays run RAID 0 or 1, beside an internal M.2 Gen4 x4 NVMe socket and an optional removable NVMe tray.
  • Three PCIe Slots and 10GbE Option: Three PCIe x8 slots with Gen3 x4 signals take frame grabbers and add-on cards, and an optional 10GBASE-T port carries high-bandwidth data.
  • Ignition-Controlled 8 to 48 V Input: 8 to 48 V DC input with ignition control, -25 °C to 60 °C operation with a 35 W CPU and MIL-STD-810H shock and vibration.
Processor Brand: IntelIntel
Operating Software: LinuxLinux
Operating Software: WindowsWindows
Multi Display Support: Dual Display SupportDual Display Support
Ethernet Speed: 2.5GbE2.5GbE
Ethernet Speed: 10GbE10GbE
USB Generation: USB3USB3
M.2: 22x M.2
mPCIe: 22x mPCIe
PCIe: 55x PCIe
SIM Slots: 33x SIM
Connectivity: 4G4G
Connectivity: 5G5G
Connectivity: WirelessWi-Fi
NVMe: NVMe SSD SupportNVMe SSD
Ignition Sensing: Supports Ignition ControlIgnition Control
Operating Temperature: Extended TemperatureExtended Temp
Certification: CECE
Certification: FCCFCC
USA Support Team: +1 407 214 9446 Call
Select section
  • Overview
  • Specifications
  • Downloads

Nuvo-10208GC Overview

Some inference workloads do not fit on one card: a perception stack running detection, segmentation and tracking together, or an inspection cell with two camera groups on separate models. The Neousys Nuvo-10208GC is an edge AI server built for that case, holding two NVIDIA RTX cards of up to 350 W each on patented GPU locking brackets beside Intel 14th/13th/12th Gen Core compute, with a Neousys patented damping bracket for on-road and off-road vehicles.

The LGA1700 socket on the Intel R680E chipset takes 14th Gen Core i3 to i9 and 13th and 12th Gen Core E-series processors at 35 W or 65 W, up to 24 cores and 32 threads, with two SO-DIMM slots for up to 128 GB of DDR5-4800 in ECC or non-ECC form. Each GPU slot is PCIe x16 with Gen4 x8 signals, and with two RTX Pro 6000 Max-Q cards the Nuvo-10208GC reaches up to 200 TFLOPS of FP32.

Three further PCIe x8 slots with Gen3 x4 signals take frame grabbers and add-on cards. Networking is two 2.5GbE ports by Intel I226-IT and one Gigabit port by I219-LM, with an optional 10GBASE-T port, and six USB 3.2 Gen 2 ports run at 10 Gbps. Storage on the Nuvo-10208GC pairs an internal M.2 2280 Gen4 x4 NVMe socket with two hot-swappable 2.5-inch trays in RAID 0 or 1 and an optional removable NVMe tray, while two mini-PCIe sockets and an M.2 B-key socket with SIM sockets take wireless and cellular modules.

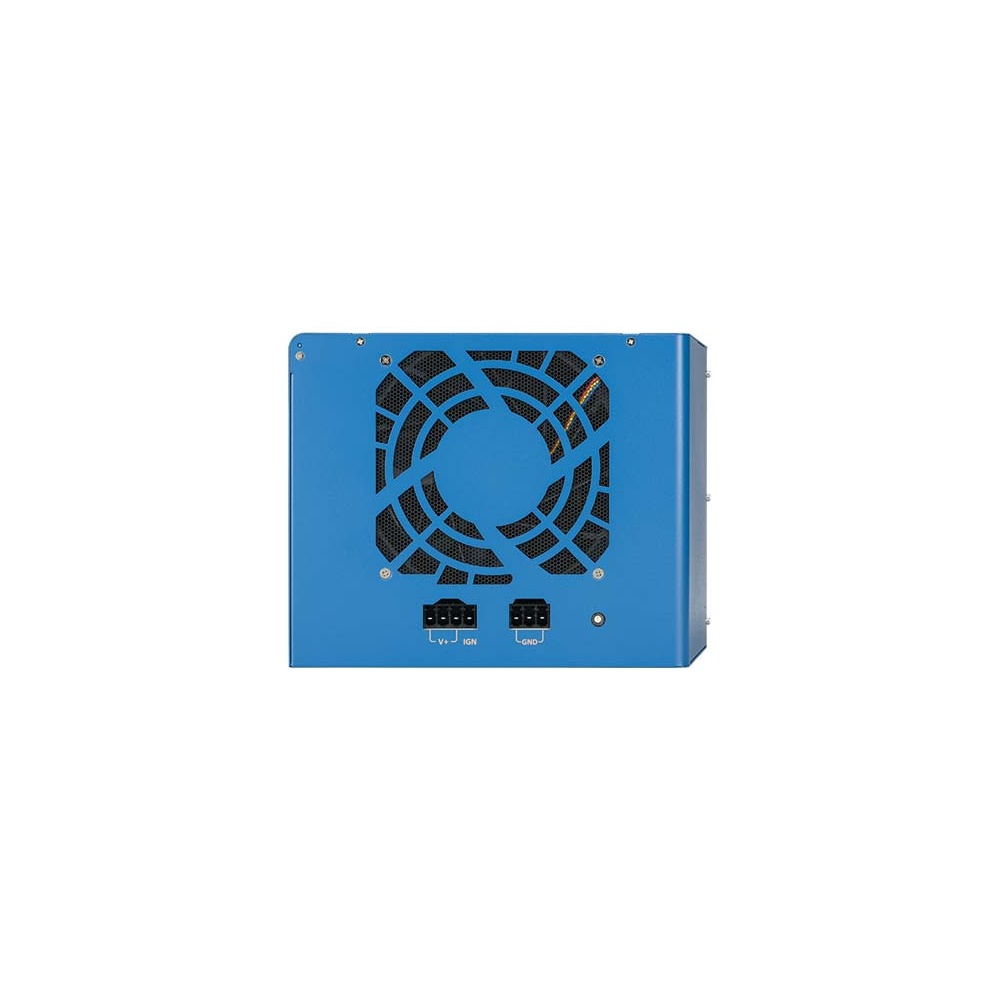

Power arrives at 8 to 48 V DC with ignition control, so the edge AI server can follow a vehicle’s key switch. With a 35 W processor and two 350 W GPUs it operates from -25 °C to 60 °C; at 65 W the range is -25 °C to 50 °C, or 60 °C with the optional fan kit. Vibration and shock are tested to MIL-STD-810H, EMC is CE and FCC Class A, and the unit measures 268 x 400 x 196 mm at 6.5 kg. Where one card is enough, the Nuvo-10108GC carries a single 350 W GPU in a narrower enclosure.

Nuvo-10208GC Specifications

Overview
Brand & ModelNeousys Nuvo-10208GC
FeaturesExpandable
GPU
Industrial
Rugged
Performance
Processor SeriesIntel Pentium G Series Alder Lake
Intel Core 12th Gen Alder Lake
Intel Core 13th Gen Raptor Lake
Intel Celeron G Series Alder Lake
Processor ModelsIntel Pentium Gold G7400E: 3.6GHz, 2 Cores, 4 Threads, 6MB Cache, 46W
Intel Pentium Gold G7400TE: 3.0GHz, 2 Cores, 4 Threads, 6MB Cache, 35W
Intel Core i3-14100: 3.5~4.7GHz, 4 Cores, 8 Threads, 12MB Cache, 60W
Intel Core i3-14100T: 2.7~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 35W
Intel Core i5-13400E: 2.4~4.6GHz, 10 Cores, 16 Threads, 20MB Cache, 65W
Intel Core i5-14400: 2.5~4.7GHz, 10 Cores, 16 Threads, 20MB Cache, 65W
Intel Core i5-14500: 2.6~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 65W
Intel Core i5-14500T: 1.7~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 35W
Intel Core i7-14700: 2.1~5.4GHz, 20 Cores, 28 Threads, 33MB Cache, 65W
Intel Core i7-14700T: 1.3~5.2GHz, 20 Cores, 28 Threads, 33MB Cache, 35W
Intel Core i9-14900: 2.0~5.8GHz, 24 Cores, 32 Threads, 36MB Cache, 65W
Intel Core i9-14900T: 1.1~5.5GHz, 24 Cores, 32 Threads, 36MB Cache, 35W
Intel Celeron G6900E: 3.0GHz, 2 Cores, 2 Threads, 4MB Cache, 46W
Intel Celeron G6900TE: 2.4GHz, 2 Cores, 2 Threads, 4MB Cache, 35W
Intel Core i3-12100E: 3.2~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 60W
Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W
Intel Core i3-13100E: 3.3~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 60W
Intel Core i3-13100TE: 2.4~4.1GHz, 4 Cores, 8 Threads, 12MB Cache, 35W
Intel Core i5-12500E: 2.9~4.5GHz, 6 Cores, 12 Threads, 18MB Cache, 65W
Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W
Intel Core i5-13500E: 2.4~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 65W
Intel Core i5-13500TE: 1.3~4.5GHz, 14 Cores, 20 Threads, 24MB Cache, 35W
Intel Core i7-12700E: 2.1~4.8GHz, 12 Cores, 20 Threads, 25MB Cache, 65W
Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W
Intel Core i7-13700E: 1.9~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W
Intel Core i7-13700TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W
Intel Core i9-12900E: 2.3~5.0GHz, 16 Cores, 24 Threads, 30MB Cache, 65W
Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W
Intel Core i9-13900E: 1.8~5.2GHz, 24 Cores, 32 Threads, 36MB Cache, 65W
Intel Core i9-13900TE: 1.0~5.0GHz, 24 Cores, 32 Threads, 36MB Cache, 35W
Performance Cores2 Cores
4 Cores
6 Cores
10 Cores
12 Cores
14 Cores
16 Cores
20 Cores
24 Cores
GPU / AI AcceleratorDiscrete GPU (PCIe)
Supported GPUsNVIDIA RTX PRO 4500 Blackwell: 10496 CUDA Cores, 32GB GDDR7 ECC, 200W
NVIDIA RTX PRO 5000 Blackwell: 14080 CUDA Cores, 48GB GDDR7 ECC, 300W
NVIDIA RTX PRO 6000 Blackwell Max-Q Workstation Edition: 24064 CUDA Cores, 96GB GDDR7 ECC, 300W
AI Performance1,617–3,511 TOPS
Number of GPUsDual GPU Support
GPU FamilyNVIDIA RTX PRO Blackwell
GPU ArchitectureNVIDIA Blackwell
System GPU Power Budget700W
Memory2x DDR5 4800MHz SO-DIMM Slot, 128GB
ChipsetIntel R680E
Secure Crypto ProcessorTPM 2.0 (Trusted Platform Module)
Operating SystemLinux
Windows 10
Windows 11
Graphics
Integrated GPUIntel UHD Series
Multi Display SupportDual Display Support
Display Outputs1x Display Port
1x VGA
Audio
InterfaceLine-Out
Mic-In
I/O
Ethernet4x Ethernet Ports
1x 10 GbE LAN [RJ45]
1x GbE LAN [RJ45]
2x 2.5 GbE LAN [RJ45]
LAN ControllersMarvell AQC113CS
Intel I219LM
Intel I226IT
USB7x USB Ports
1x USB 2.0 [Board]
6x USB 3.2 Gen 2 [Type A]
Serial2x Serial Ports
2x RS232/422/485 [DB9]
Remote ManagementIntel AMT
Intel vPro
Expansion
M.22x M.2 Expansion Slots
1x M.2 B-Key [PCIe x1/USB/SIM] [2242/3052]
1x M.2 M-Key [PCIe x4 Gen4] [2280]
mPCIe2x mPCIe Slots
2x mPCIe [PCIe/SIM/USB]
PCIe5x PCIe Slots
2x PCIe [x16 Slot] [x8 Signal] [Gen4]
3x PCIe [x8 Slot][4-Lane Signal][Gen3]
SIM Slots3x SIM Slots
Wireless ConnectivityOptional 4G/5G
Optional WiFi/Bluetooth
Storage
Storage1x M.2 SSD [M-Key 2242, PCIe Gen 3 x1]
2x 2.5" HDD/SSD [SATA]
NVMeNVMe SSD Support
Front Accessible StorageFront Accessible Storage
Hot Swap SSD SupportHot Swappable SSD Support
RAIDRAID 0 (Striping)
RAID 1 (Mirroring)
Power
Power Input8-48V DC [Terminal Block]
Power Support ModesAT: PWR on Input
ATX: Press Button to Power
Ignition SensingSupports Ignition Control
Environmental Conditions
Thermal DissipationOnboard Fan
Operating Temperature-25°C to 60°C [-13°F to 140°F]
Storage Temperature-40°C to 85°C [-40°F to 185°F]
Humidity10-90% (Non-condensing)
ShockMIL-STD-810H
VibrationMIL-STD-810H
EMCEN55032
EN55035
CertificationCE
FCC
Mechanical Properties
Weight6.5 Kg (14.3 Lbs)
Chassis MaterialAluminum
Dimensions268mm x 400mm x 196mm (10.55″ x 15.75″ x 7.72″)
Mounting OptionsWall Mount

Official Neousys USA Distributor

Things Embedded is an official Neousys USA distributor, and the Neousys GPU computing range runs from compact 150 W cassette systems to dual-card builds like this one. The Nuvo-10108GC takes a single 350 W RTX card in a narrower enclosure, the Nuvo-9166GC carries an NVIDIA L4 for rugged edge AI work, and the Nuvo-10000 offers up to seven slots where card count matters more than GPU class.

With two locked 350 W cards, ECC memory and RAID storage, the Nuvo-10208GC sits among our edge AI servers and rugged GPU computers. Its support for RTX Pro 4500, 5000 and 6000 Max-Q cards also places it with our NVIDIA RTX PRO computers, alongside other systems built around the same GPU generation.
