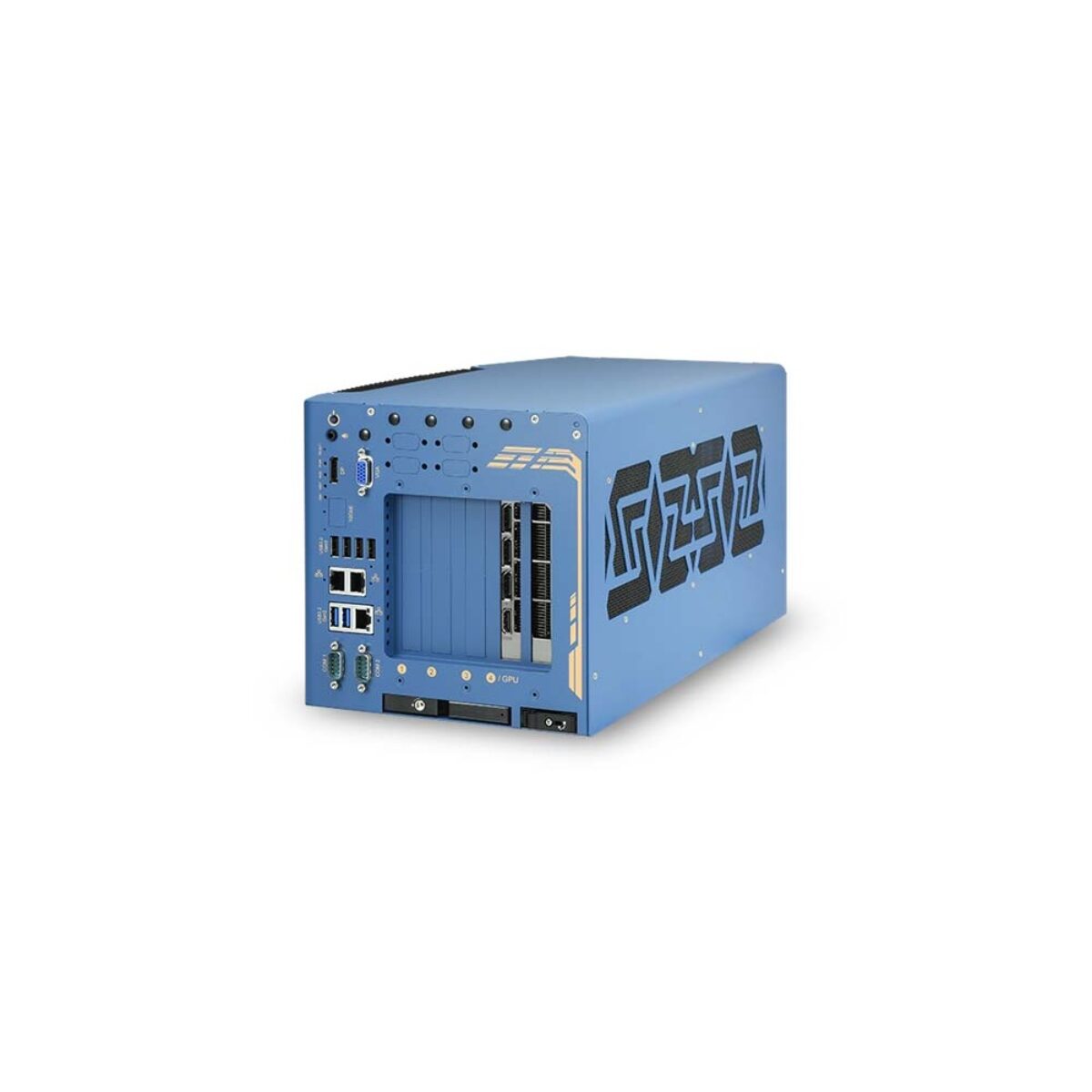

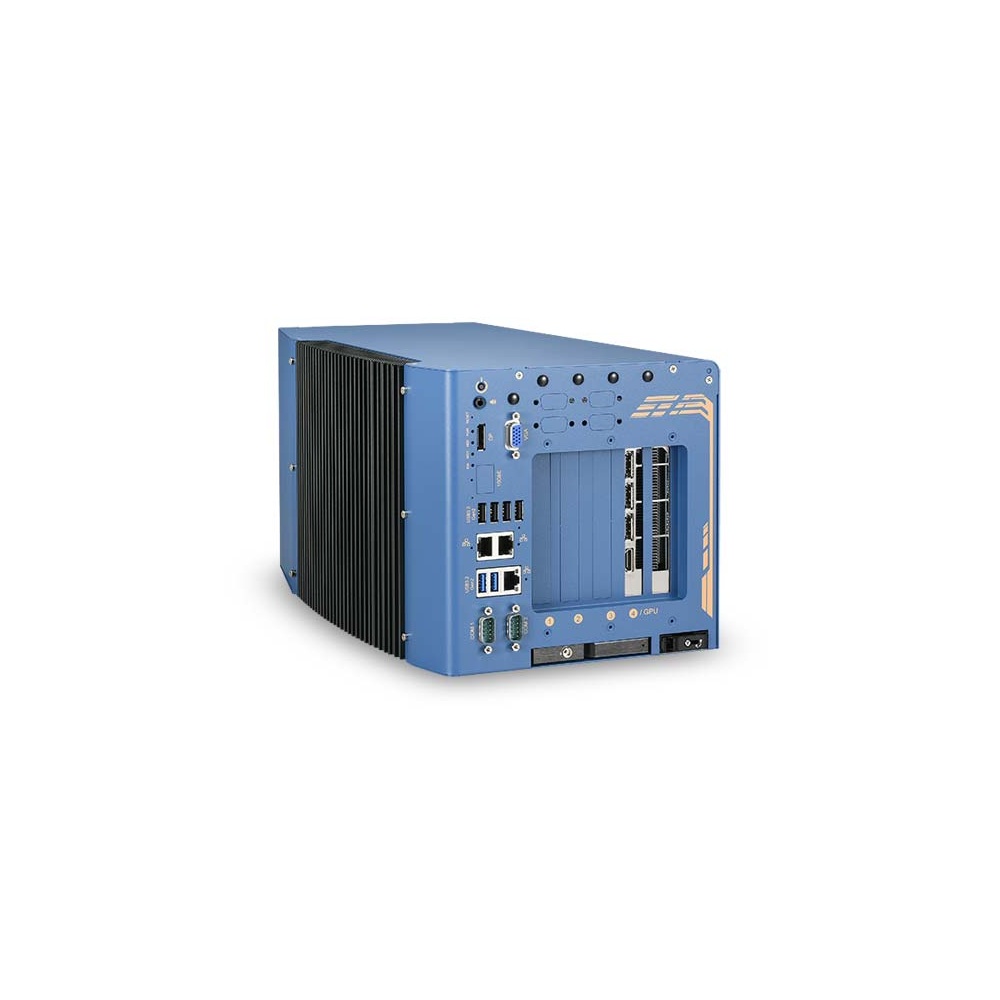

Neousys Nuvo-10108GC Intel 14th/13th/12th Gen Core Industrial GPU Computer with 350W NVIDIA RTX GPU

Autonomous driving and AI factory automation often call for a 350 W class GPU, and that card has to stay seated through continuous shaking on and off the highway. The Neousys Nuvo-10108GC is an industrial GPU computer built for that job: Intel 14th/13th/12th Gen Core compute with a single NVIDIA RTX card held by a dedicated GPU locking bracket, on a patented damping bracket that absorbs high-frequency vibration.

The LGA1700 socket on the Intel R680E chipset takes 14th Gen Core i3 to i9 and 13th and 12th Gen Core E-series processors at 35 W or 65 W, up to 24 cores and 32 threads, and two SO-DIMM slots hold up to 128 GB of DDR5-4800 in ECC or non-ECC form. The GPU slot carries full PCIe Gen4 x16 signals, and with an RTX Pro 6000 Max-Q the Nuvo-10108GC reaches up to 100 TFLOPS of single-precision compute; the standard bracket also suits RTX Pro 4000, 4500 and 5000 cards.

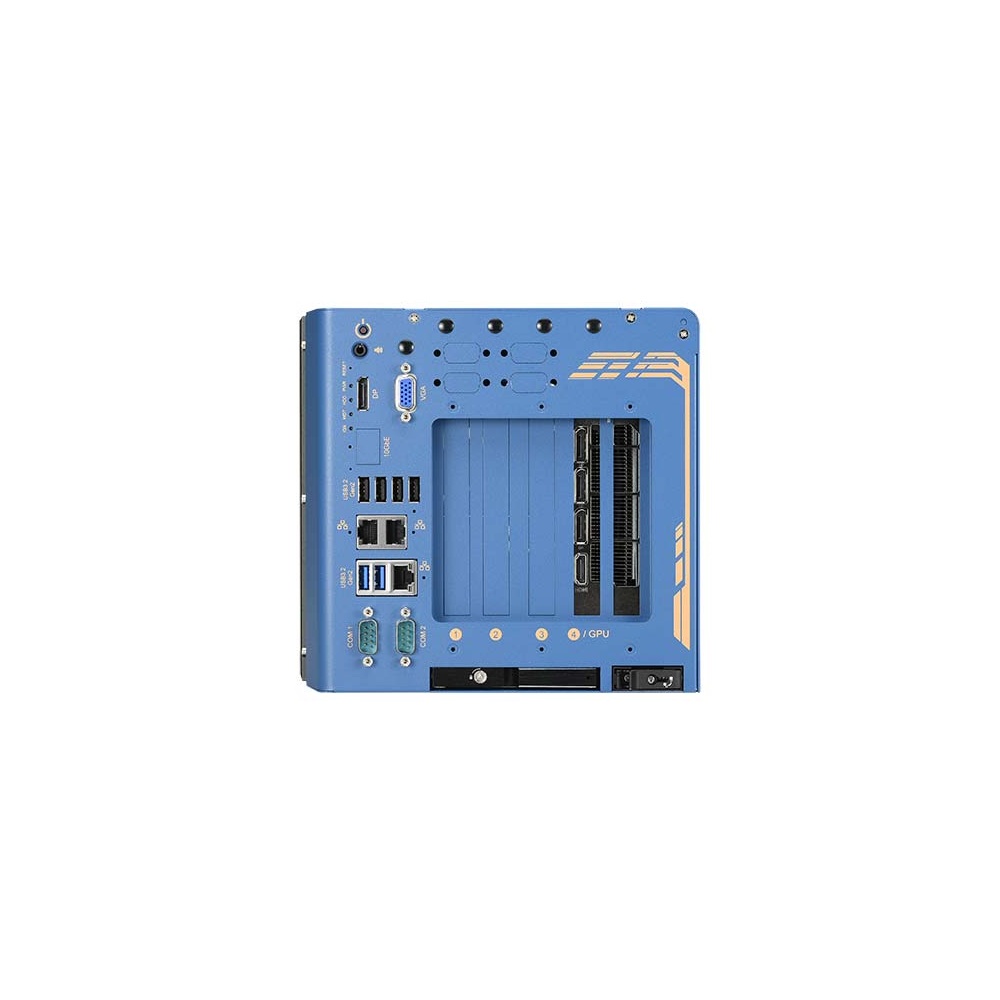

Three PCIe x8 slots with Gen3 x4 signals take GMSL2 or industrial camera frame grabbers and add-on cards. Networking is two 2.5GbE ports and one Gigabit port, with an optional 10GBASE-T port, and six USB 3.2 Gen 2 ports run at 10 Gbps. Two mini-PCIe sockets and an M.2 B-key socket take CAN, COM, Wi-Fi and 4G or 5G modules. Storage on the Nuvo-10108GC is an internal M.2 2280 Gen4 x4 NVMe socket plus a front-accessible hot-swappable 2.5-inch SATA tray and an optional front NVMe tray.

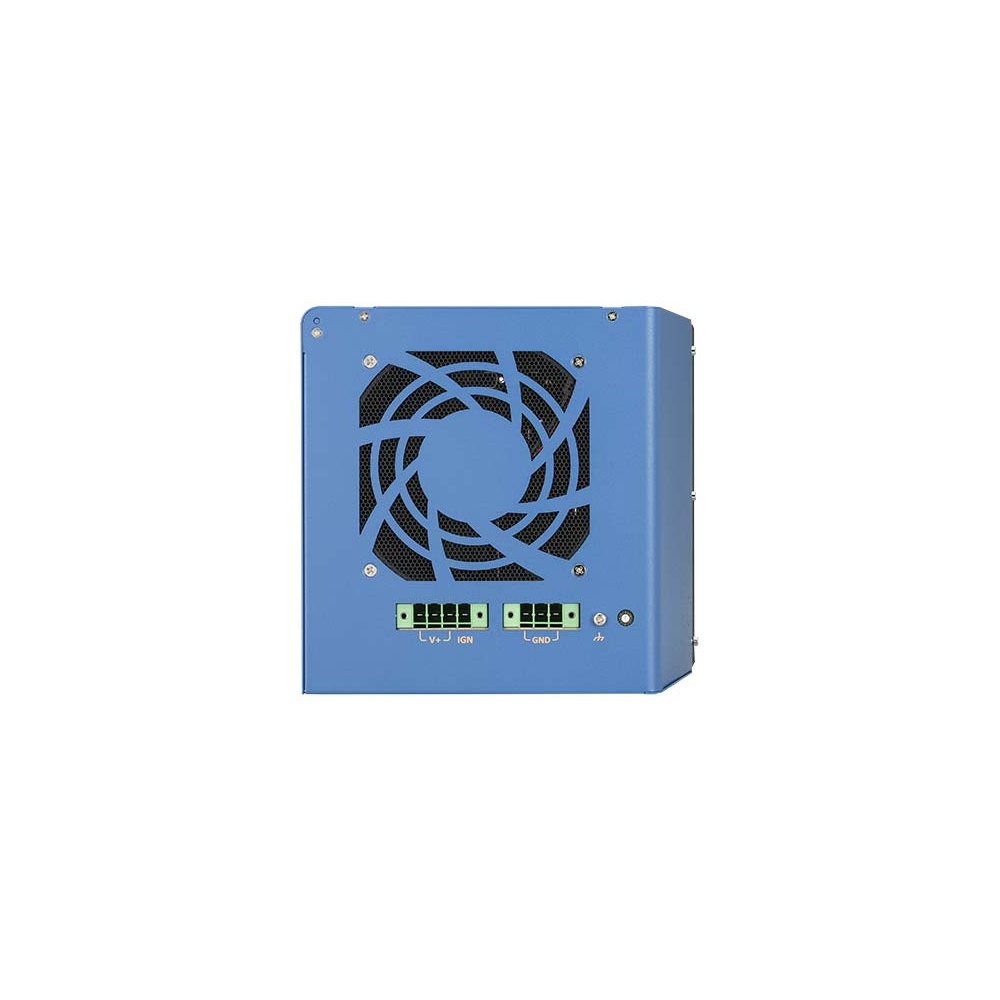

Power is 8 to 48 V DC with ignition control; Neousys specifies 13.8 to 48 V once system load passes 100 W. With a 35 W processor and a 350 W GPU the industrial GPU computer operates from -25 °C to 60 °C, and at 65 W from -25 °C to 50 °C, or 60 °C with the optional fan kit. Vibration and shock are tested to MIL-STD-810H, EMC is CE and FCC Class A, and it measures 214 x 400 x 196 mm at 6.2 kg. Where two GPUs are needed, the Nuvo-10208GC takes a pair of 350 W cards.
