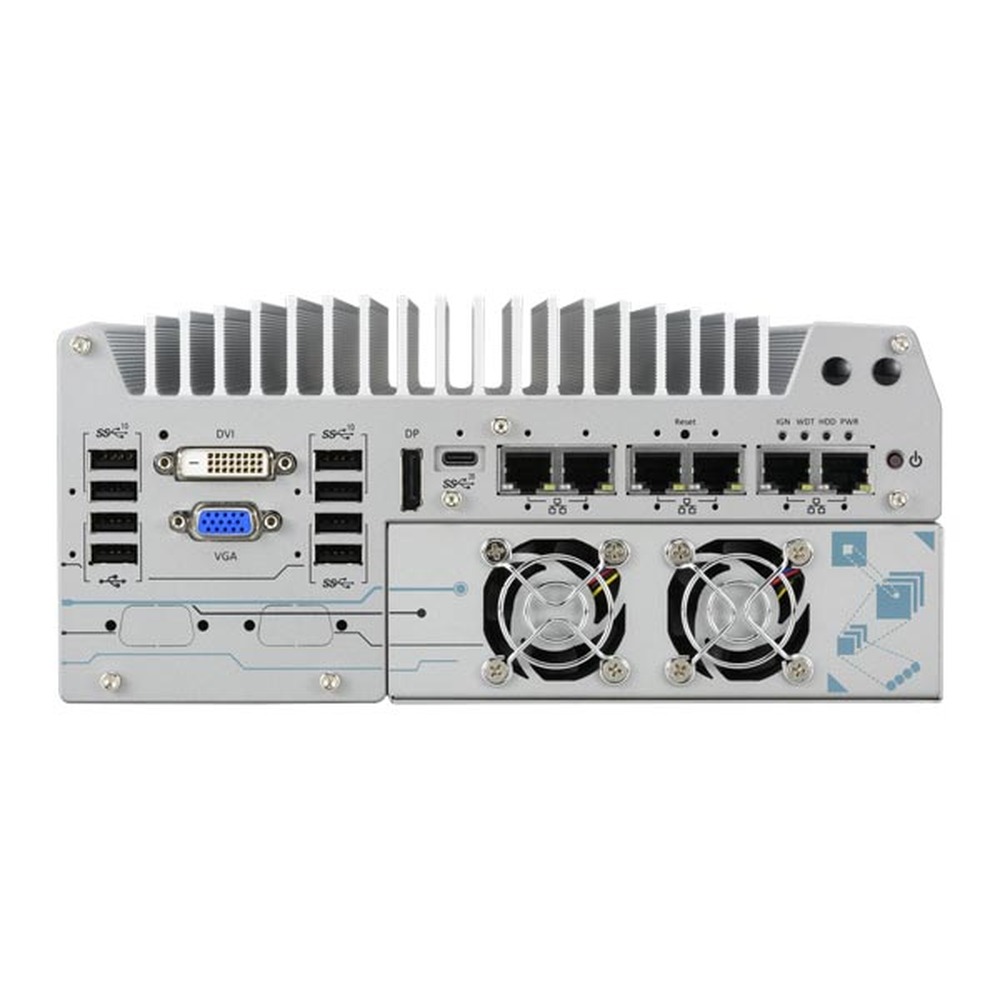

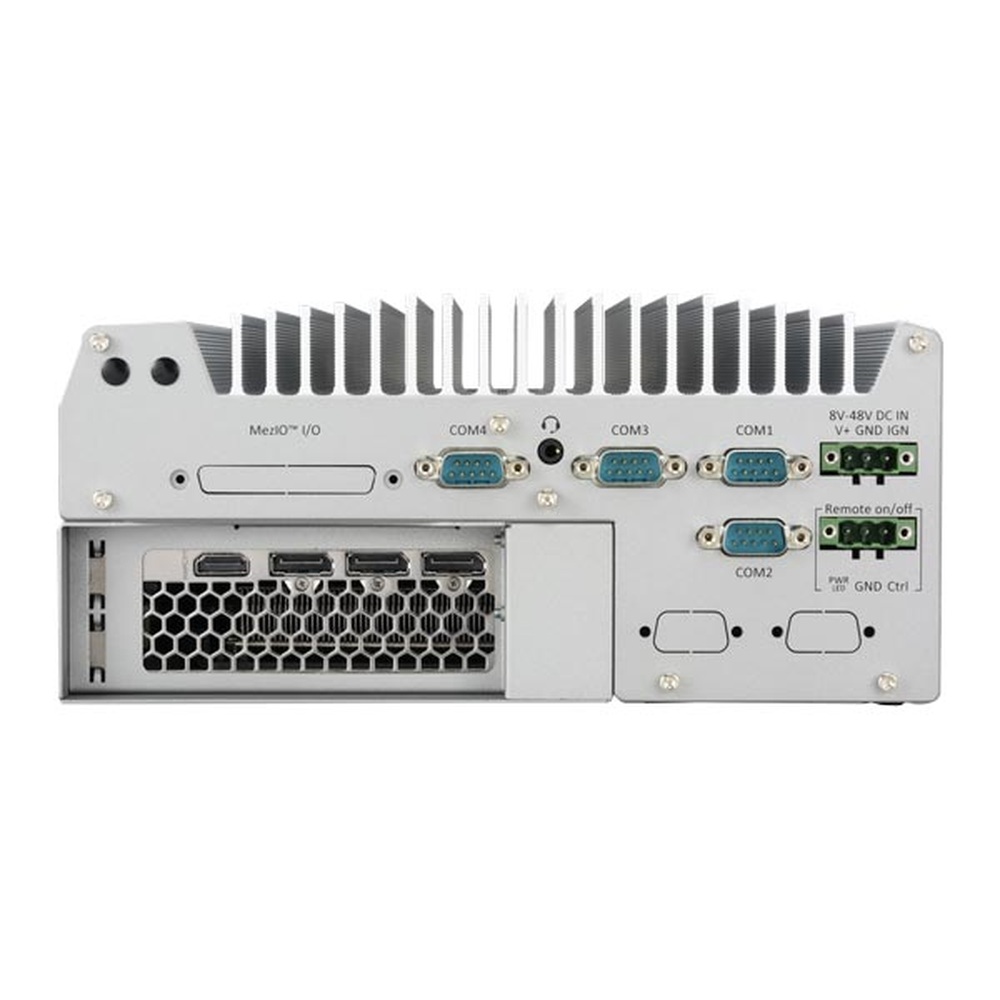

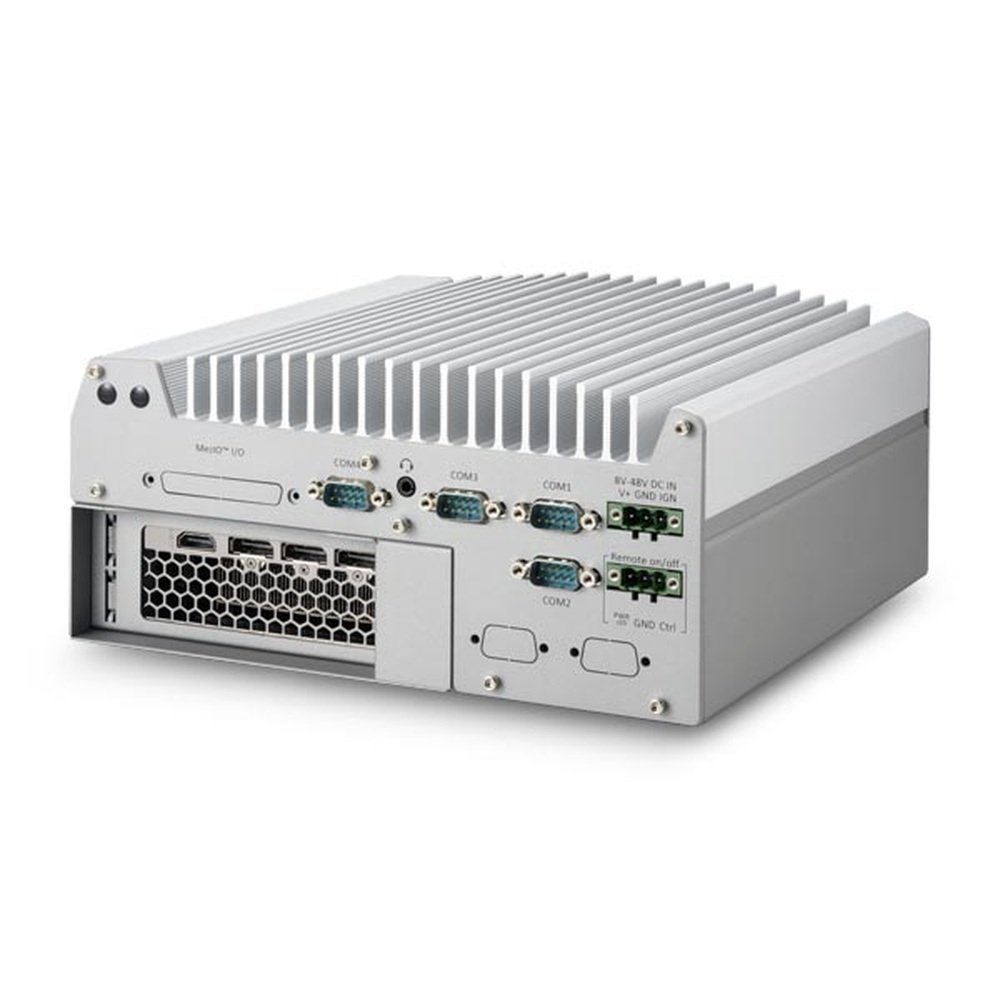

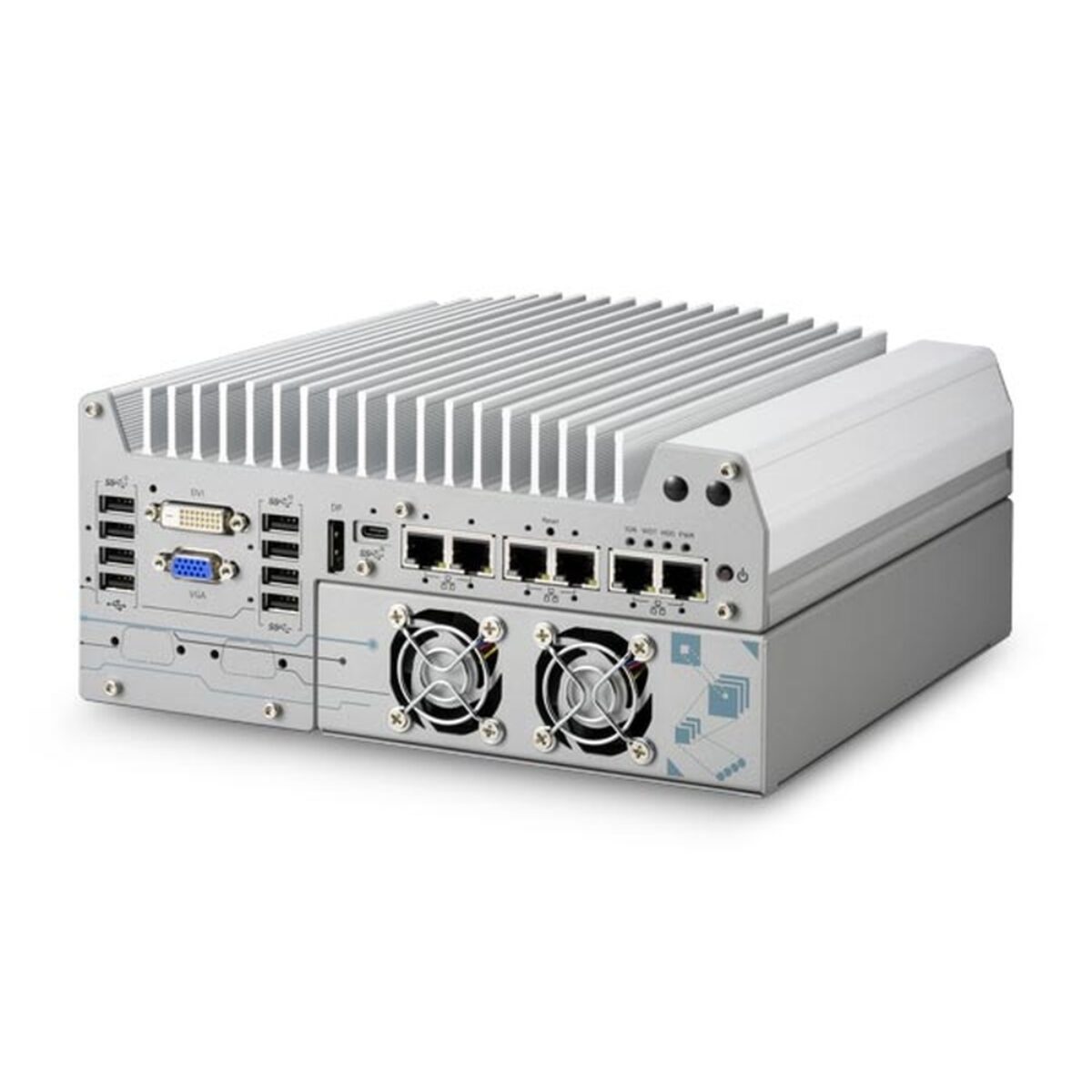

Neousys Nuvo-9160GC Intel 14th/13th/12th Gen Core Rugged Industrial PC with 150W NVIDIA RTX GPU and MezIO

Running a discrete GPU beside a production line means coping with shock, vibration and heat that an office PC is never asked to handle. The Neousys Nuvo-9160GC is a rugged industrial PC designed for that setting: a passively cooled Intel 14th/13th/12th Gen Core motherboard and a 150 W NVIDIA RTX card inside a patented expansion cassette with segregated ventilation, held by a GPU bracket for shock and vibration resistance.

The LGA1700 socket takes 14th Gen Core i3 to i9 and 13th and 12th Gen Core E-series processors at 35 W or 65 W, up to 24 cores and 32 threads, with up to 64 GB of DDR5-4800 in two SO-DIMM slots. The RTX card contributes up to 19.2 TFLOPS of FP32 for real-time inference across several cameras, such as vision inspection and video analytics, and Neousys brackets suit RTX Pro 2000, RTX 2000E Ada and RTX Pro 4000 SFF cards in the Nuvo-9160GC.

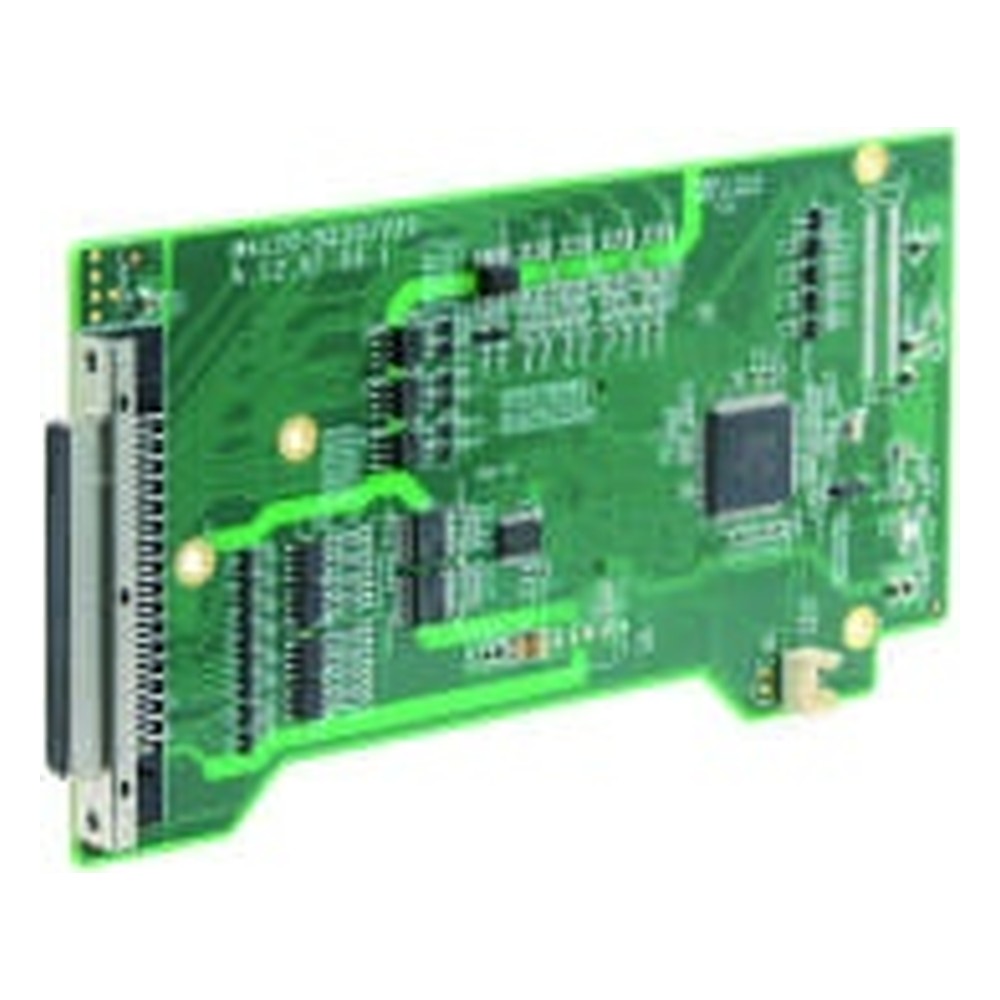

Cameras attach over five 2.5GbE ports and one Gigabit port, all with screw-lock, and the PoE+ option adds 802.3at power on ports 3 to 6 from a 100 W budget. With a 20 Gbps USB-C port and six USB 3.2 Type-A ports, the Nuvo-9160GC supports six GigE and six USB3 cameras. Four COM ports serve PLCs and controllers, and the MezIO port adds serial, isolated DIO, USB, GigE or ignition-control modules. Storage pairs an M.2 2280 Gen4 x4 NVMe socket with two 2.5-inch SATA drives in RAID 0 or 1, and an M.2 B-key socket with SIM takes 4G or 5G.

Power is an 8 to 48 V DC terminal block. With a 35 W processor the rugged industrial PC operates from -25 °C to 60 °C, or to 50 °C with the CPU configured at 65 W, and is tested to MIL-STD-810G vibration and shock with the optional damping bracket. EMC is CE and FCC Class A, at 240 x 225 x 110.5 mm and 3.89 kg. Where the cameras are GMSL2, the Nuvo-9154GC adds four automotive inputs and PPS timing in the same footprint.
