Neousys Nuvo-9166GC Intel 14th/13th/12th Gen Core Rugged Edge AI Computers with NVIDIA L4

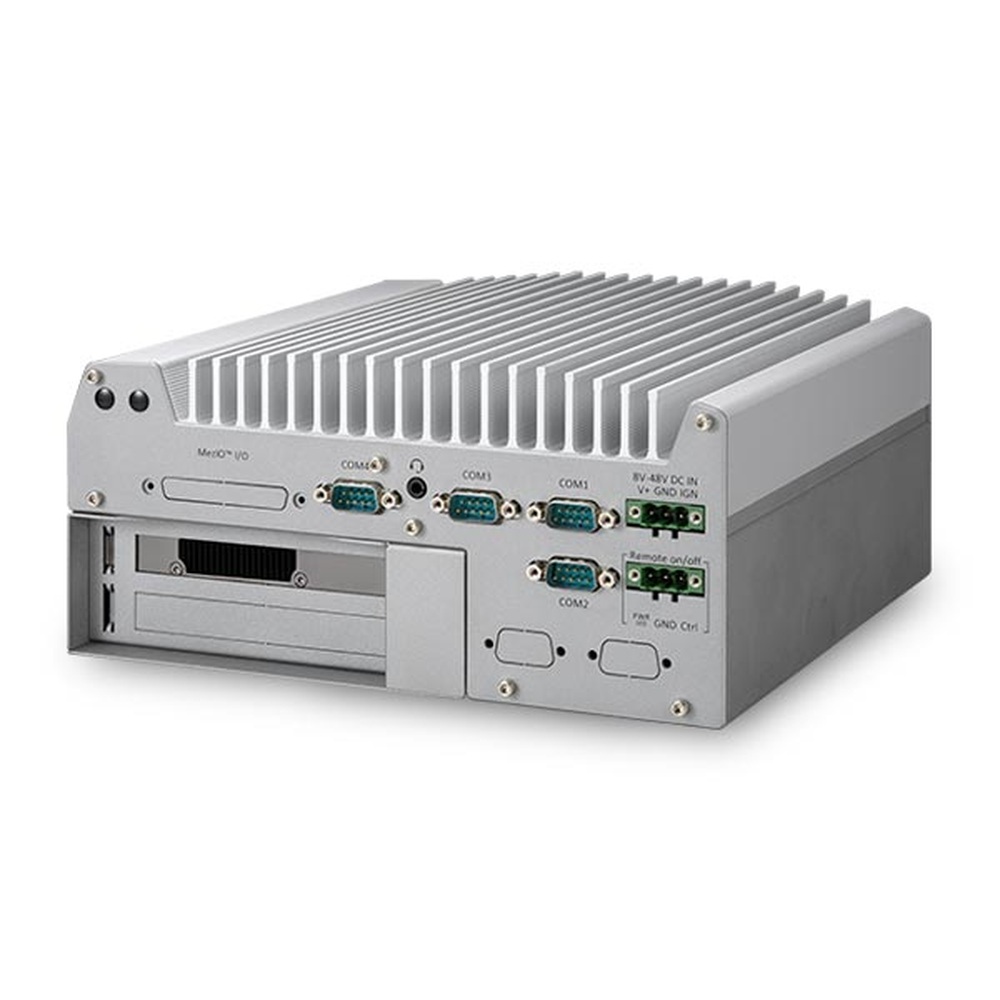

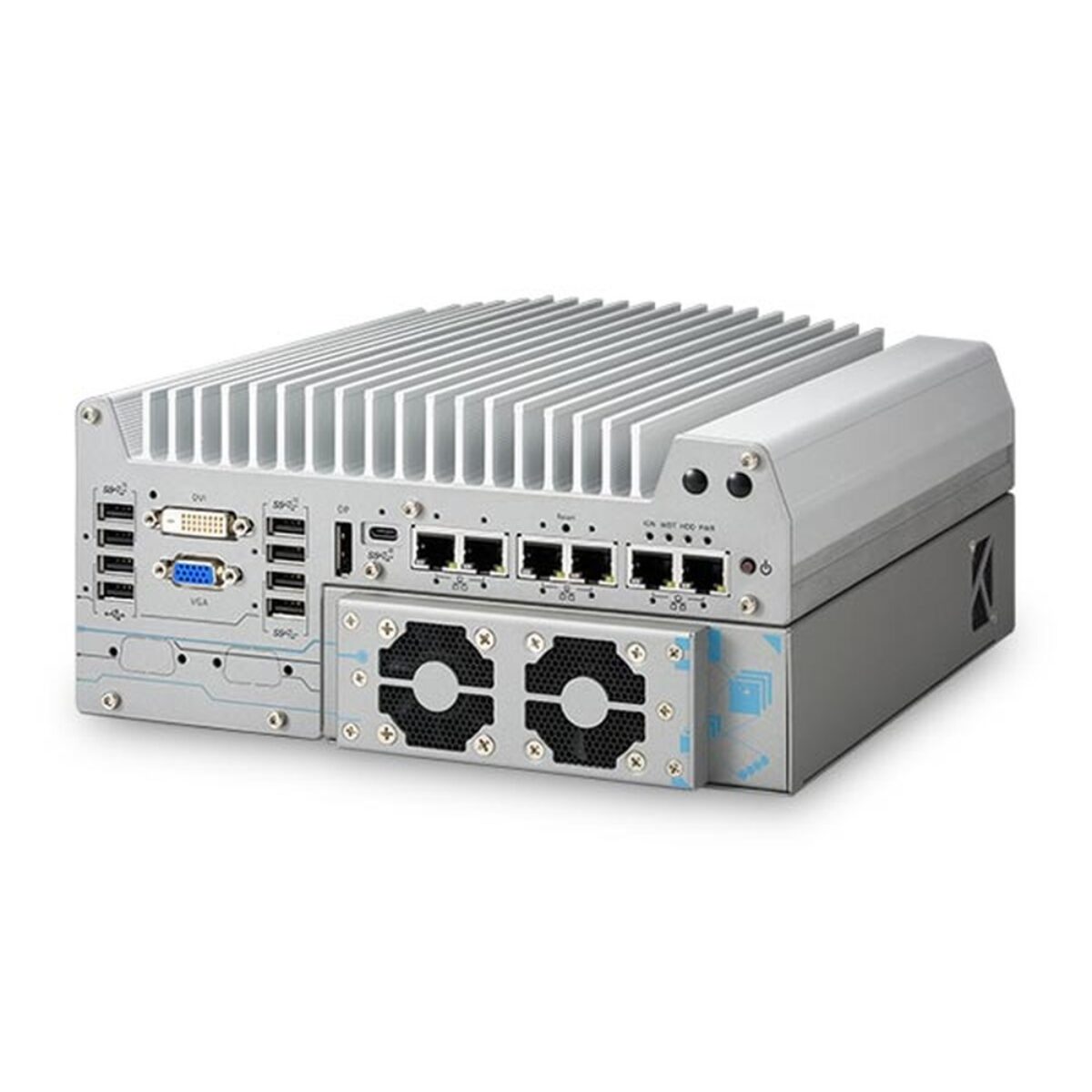

Multi-camera inspection and guidance systems need real-time answers from a lot of pixels, which usually calls for a discrete GPU beside a capable CPU. The Neousys Nuvo-9166GC series puts both in a wall-mount body of 240 x 225 x 110.5 mm: rugged edge AI computers with an NVIDIA L4 GPU and a second PCIe slot held in a patented cassette, on Intel 14th, 13th and 12th Gen Core processors, with camera expansion to fourteen GigE or eighteen USB3 cameras.

Every Nuvo-9166GC shares the same architecture. The LGA1700 socket takes 14th Gen Core i3 to i9, 13th and 12th Gen Core E-series parts and 12th Gen Pentium and Celeron options at 35 W or 65 W TDP, up to 24 cores and 32 threads, with two DDR5-4800 SO-DIMM slots to 64 GB and Intel vPro with AMT 16.0. The L4 offers up to 30.3 TFLOPS of FP32 or 485 TOPS of INT8 on the NVIDIA Ada Lovelace architecture. The CPU and DDR5 are passively cooled, while the patented cassette’s air tunnel guides a continuous airflow through the L4’s passive heat sink, and both PCIe x16 slots carry Gen3 x8 signals. Storage pairs an M.2 2280 PCIe Gen4 x4 NVMe socket with two internal 2.5 inch SATA bays in RAID 0 or 1, and a full-size mini-PCIe socket and an M.2 B key socket with SIM take expansion and 4G or 5G modules.

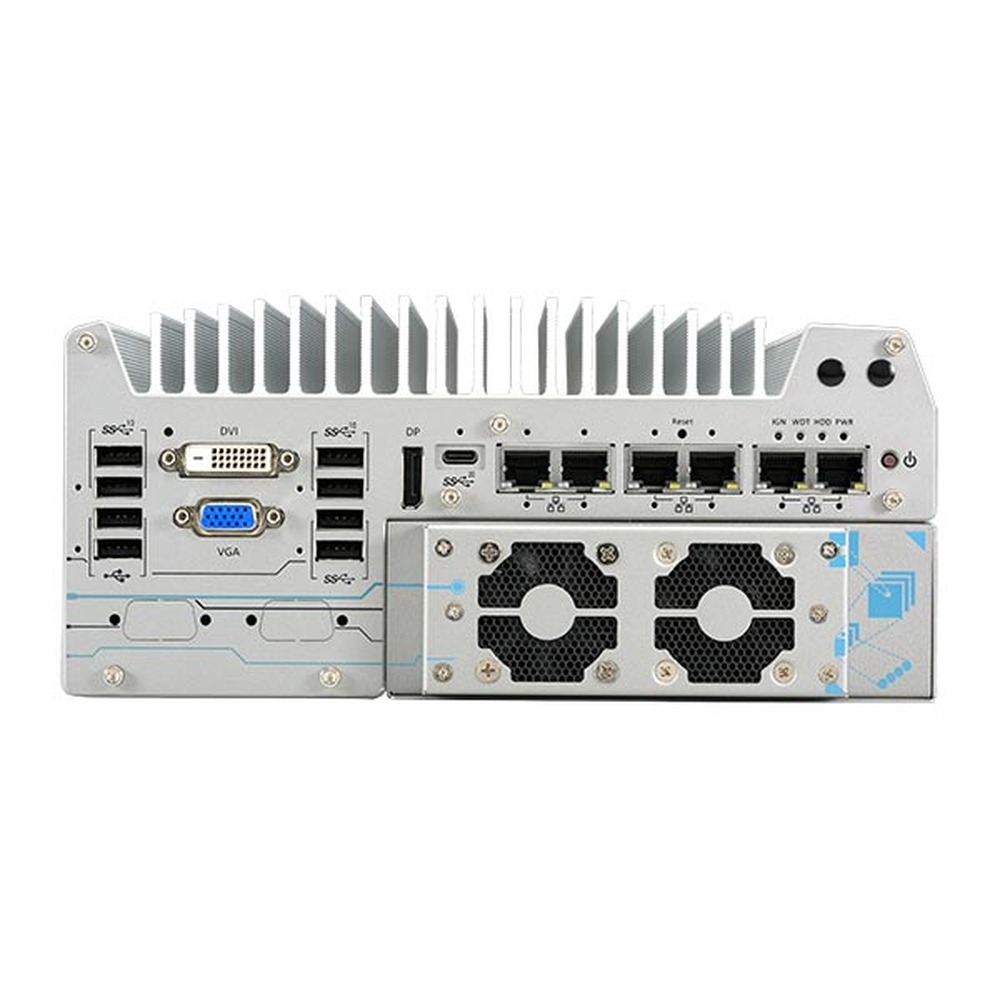

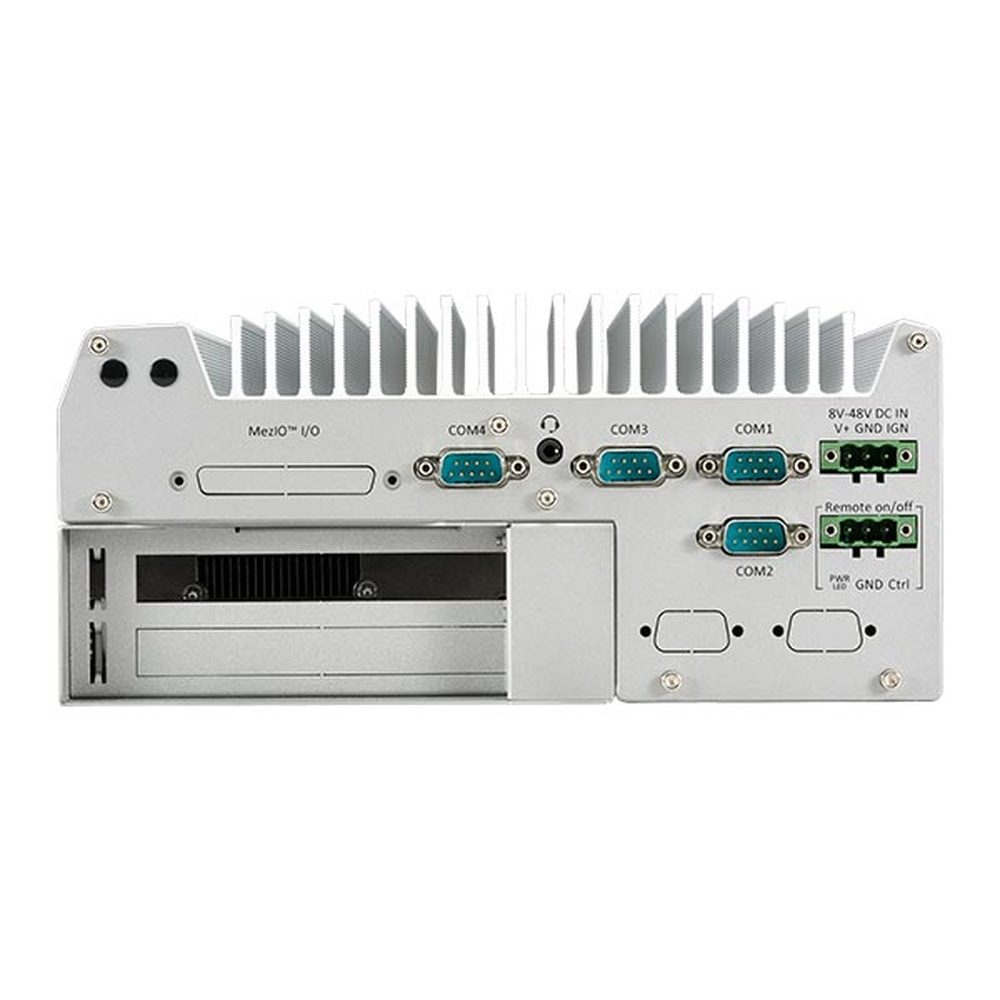

The two rugged edge AI computers split on power input and safety certification. The Nuvo-9166GC takes an 8 V to 48 V DC terminal block, with 12 V or above recommended for a CPU and L4, and 24 V or above once PoE+ or a high-wattage PCIe card is added. The Nuvo-9166GC-UL keeps the same compute, GPU and slots on a 24 V DC terminal block and is certified to UL 62368-1 and IEC 62368-1, for OEM equipment where safety evidence is part of the specification. Both take the PoE+ option on ports 3 to 6 from a 100 W budget, and both carry a 20 Gbps USB-C port with screw-lock, six USB 3.2 Type-A ports, four COM ports and DisplayPort, DVI-D and VGA outputs.

With a 35 W processor, or a 65 W part set to 35 W, the series operates from -25 °C to 60 °C, and to 50 °C at 65 W; sub-zero use needs a wide temperature SSD or HDD. Vibration and shock are tested to MIL-STD-810H Method 514.8 and Method 516.8 with the optional damping bracket, alongside CE and FCC Class A EMC. Neousys targets the Nuvo-9166GC series at AI inspection, robotic guidance and autonomous machines, beside the line or on the machine.
