Neousys Nuvo-2610VTC Intel Atom x6425E Rugged Fanless PCs with 4x M12 PoE+ for Vehicles

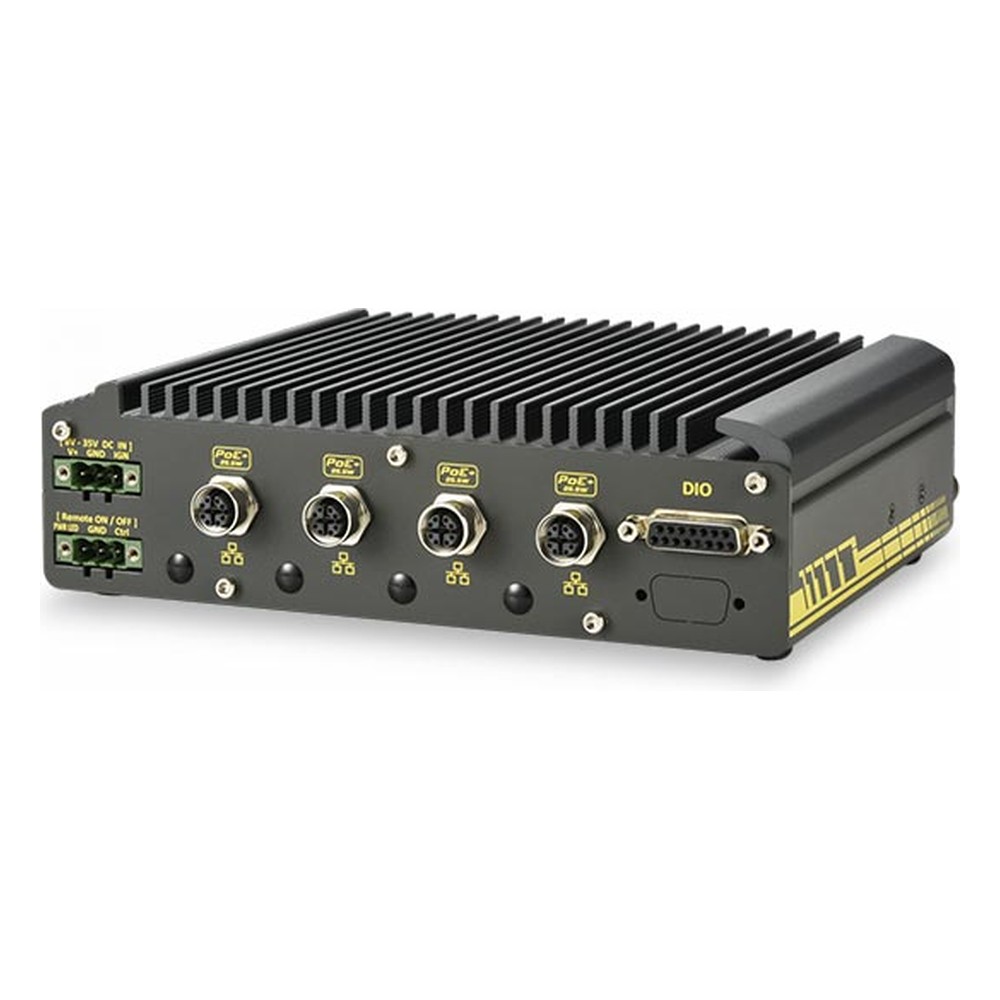

Buses, trains and service vehicles carry more cameras every year, for passenger safety, driver monitoring and evidence, and the recorder has to survive vibration, a noisy power supply and freezing or baking depots. The Neousys Nuvo-2610VTC series is a rugged fanless vehicle computer for that job, with four Gigabit PoE+ ports on locking M12 X-coded connectors, ignition-controlled 8 to 35 V DC input and -40 °C to 70 °C operation. A damping bracket comes as standard.

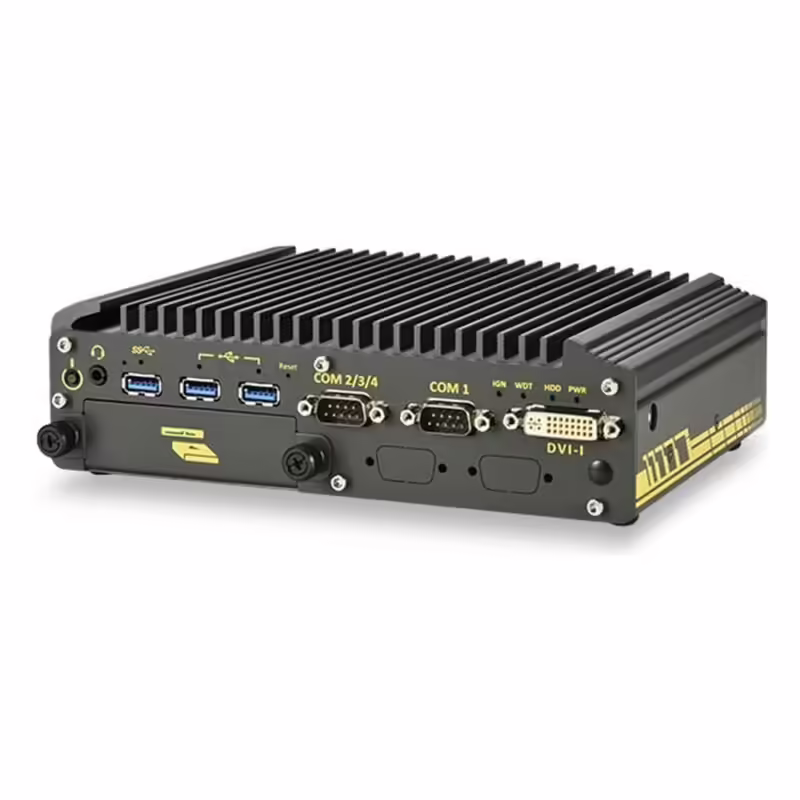

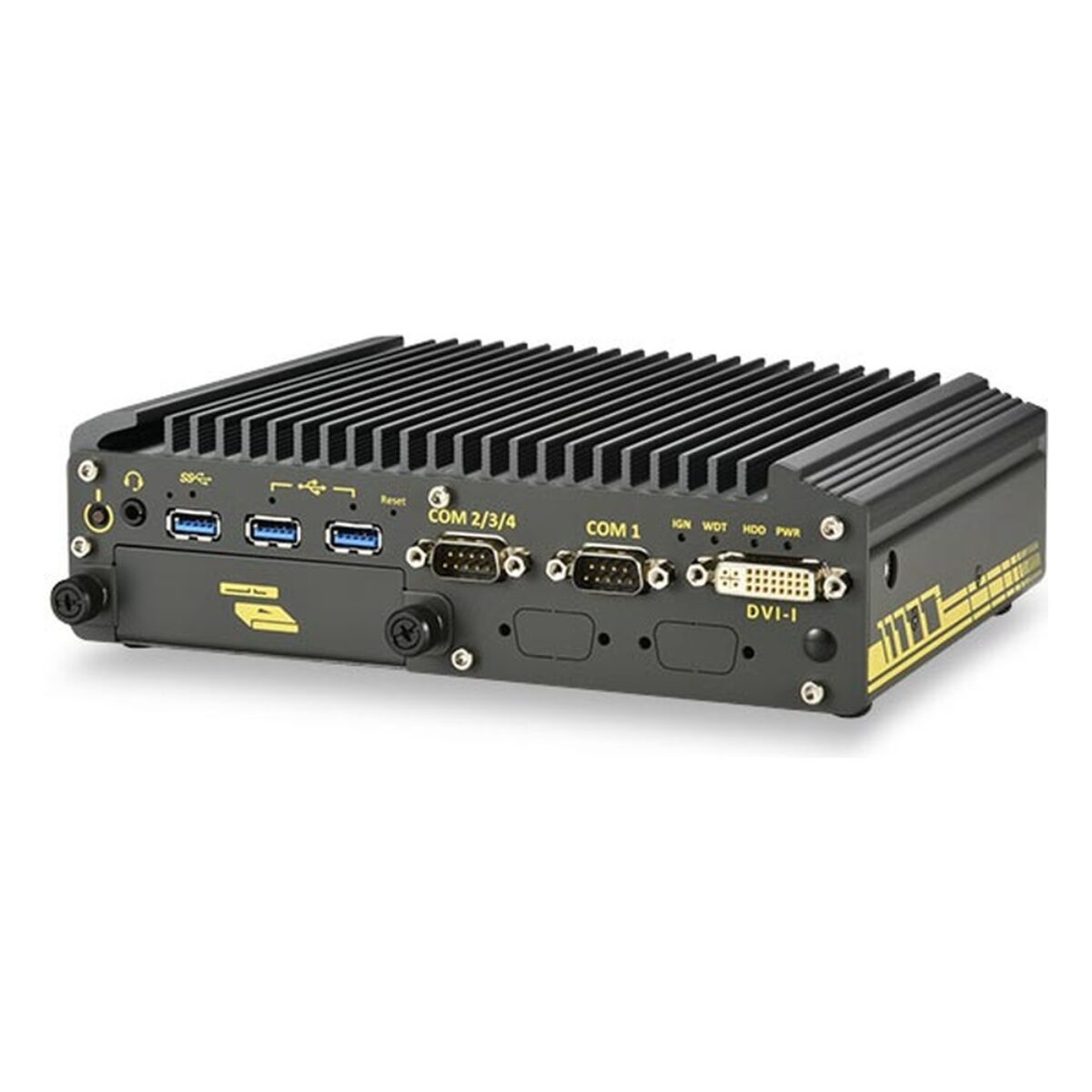

Inside is the Intel Atom x6425E, a four-core Elkhart Lake processor at 2.0 GHz with a 3.0 GHz burst and a 12 W TDP, with up to 32 GB of DDR4-3200 in one SO-DIMM socket. Intel UHD Graphics drive VGA and DVI outputs together through one DVI-I connector. Storage is an M.2 2280 SATA SSD plus a front-accessible tray for a 2.5-inch drive, including thicker high-capacity drives, which suits video recording. The four PoE+ ports run from Intel I210 controllers at up to 25.5 W each from a 100 W total budget, so each camera needs one cable.

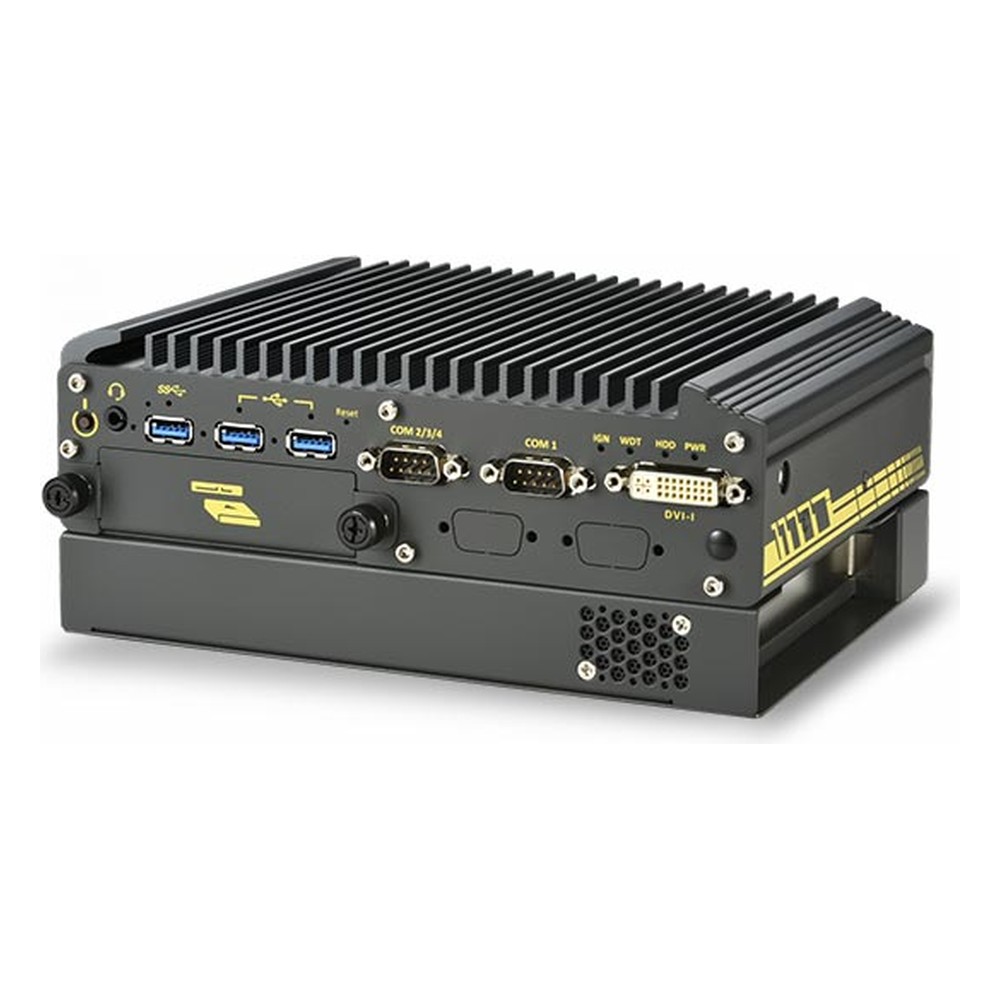

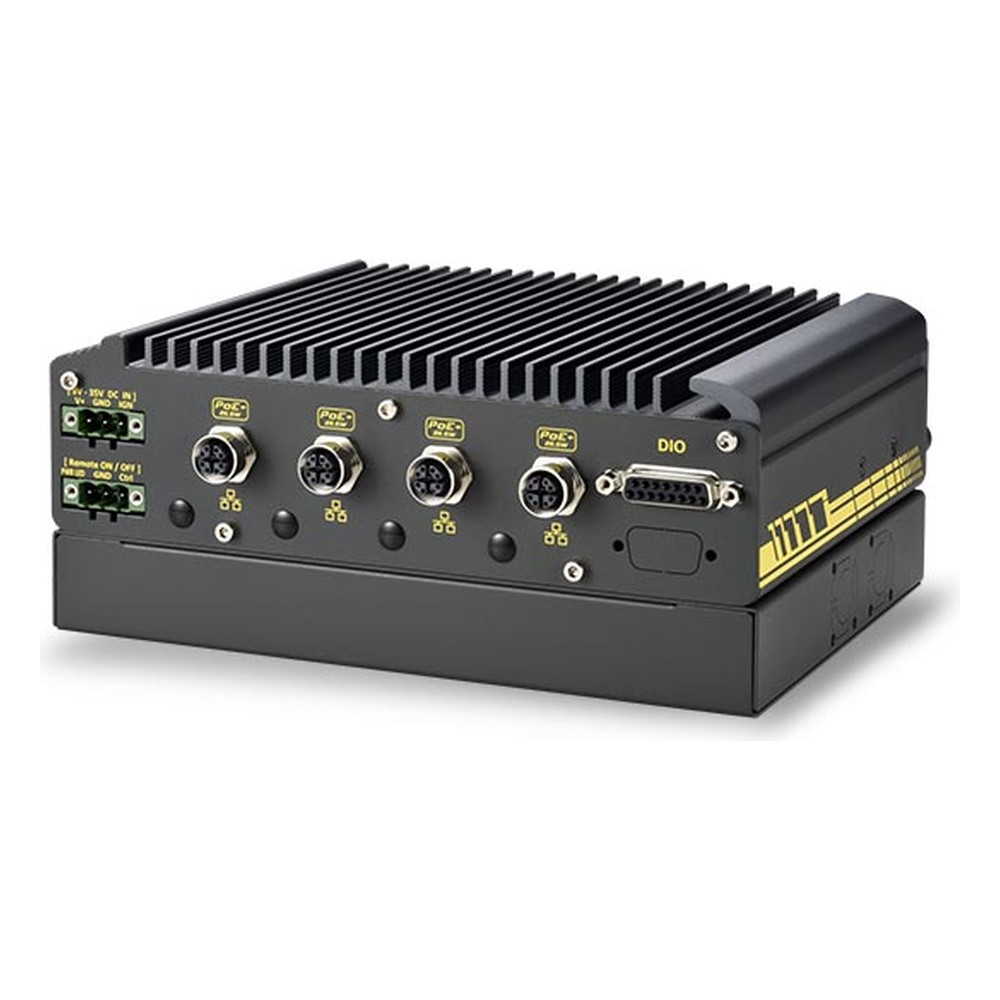

There are three versions. The Nuvo-2610VTC is the base model, E-Mark certified for in-vehicle use. The Nuvo-2611VTC adds a built-in SuperCAP UPS with 2500 watt-seconds of stored energy, so the system can shut down cleanly when power drops. The Nuvo-2612VTC adds a single-slot PCIe cassette with a Gen3 x4 slot (two-lane signal) for a frame grabber, CAN or I/O card, and is also E-Mark certified.

All three share one USB 3.1 Gen 1 and two USB 2.0 ports with screw locks, an isolated RS-485 port with 15 kV ESD protection, a second DB9 for three RS-232 ports or one RS-422/485 port, four isolated inputs and four isolated outputs, and a mic-in and speaker-out jack. Two mini PCIe sockets take Wi-Fi or a CAN module, and an M.2 B key socket with dual SIM takes a 4G or 5G module. A remote power switch and LED terminal block lets the driver control the unit from the cab. The series meets MIL-STD-810G and IEC 61373 Category 1 Class B for vibration and shock, and EN 50121 for EMC.
