Neousys POC-751vtc Intel Core i3-N305 Ultra-Compact In-Vehicle Computer with 4x PoE+

Bus and train operators often need one small computer to record cameras, talk to the vehicle network and keep a mobile data link running, all from vehicle power. The POC-751VTC is an in-vehicle computer from Neousys that combines four PoE+ ports, two isolated SocketCAN ports and ignition power control in a 176 x 116 x 64 mm enclosure with E-Mark certification.

The POC-751VTC uses the Intel Alder Lake Core i3-N305 with eight cores at 1.8 GHz base and 3.8 GHz burst in a 15W envelope, with up to 16 GB of DDR5-4800 in one SODIMM socket and dTPM 2.0. Neousys rates it at up to 1.5 times the CPU performance of the earlier POC-551VTC, and its UHD Graphics with 32 execution units support OpenVINO for light AI applications on board.

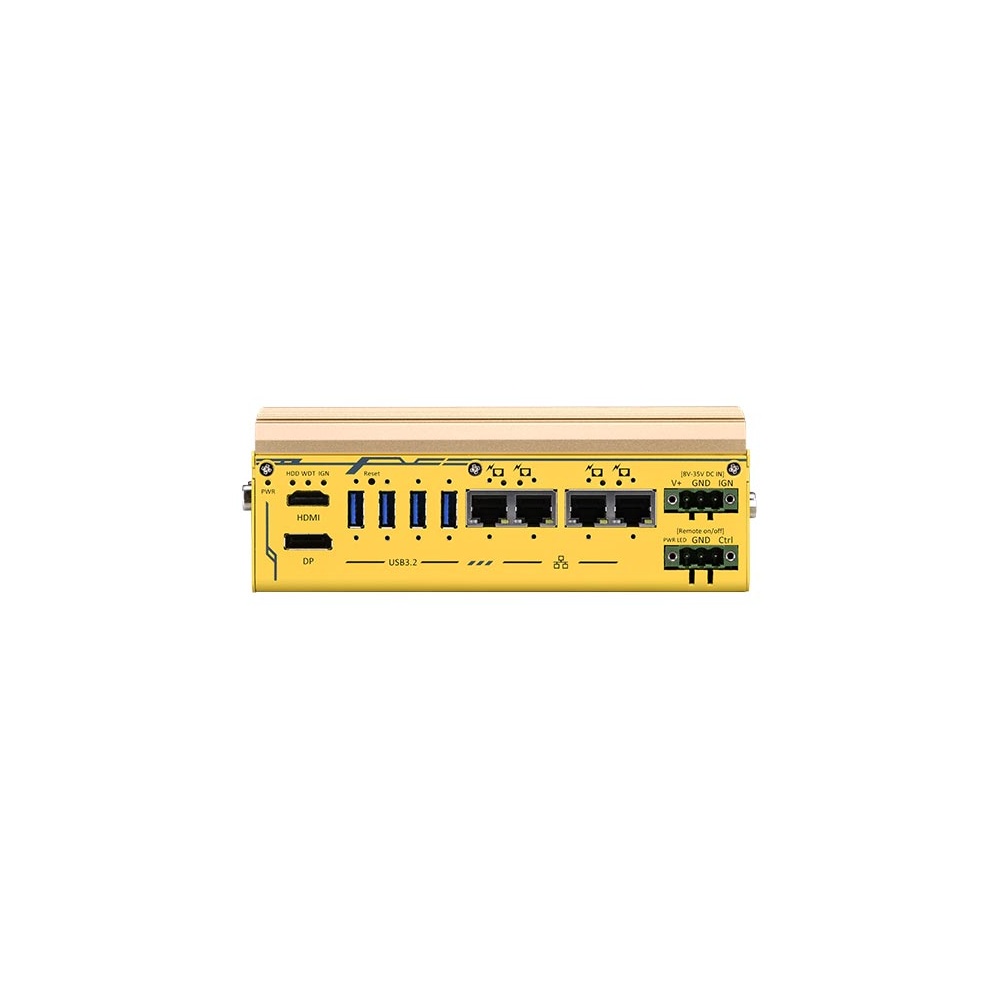

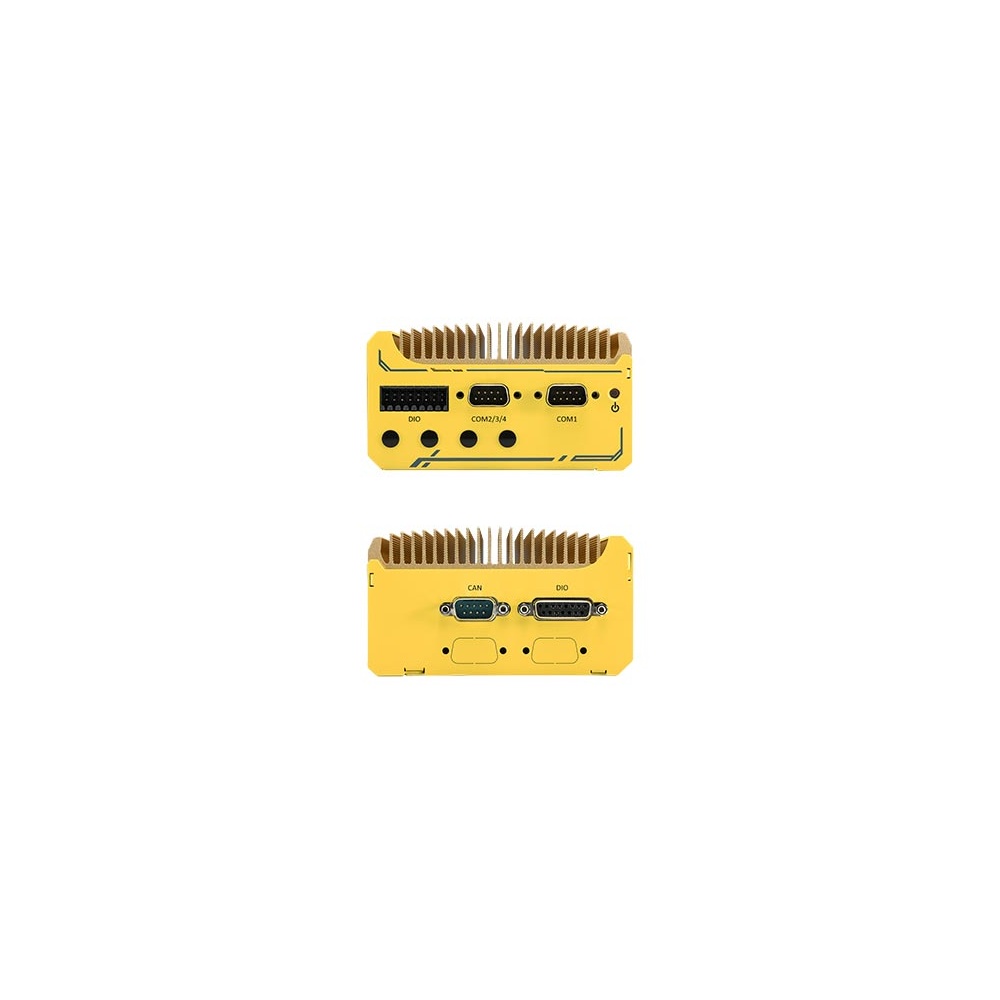

Four Intel I350-AM4 GbE ports carry 802.3at PoE+ for IP cameras, and four screw-lock USB 3.2 Gen2 ports, DP++ and HDMI 1.4b outputs and four COM ports cover the rest of the panel. Two isolated CAN 2.0 ports with SocketCAN support in Linux connect to the vehicle bus, and 8-channel isolated DI and 8-channel isolated DO handle doors, sensors and alarms. Two full-size mini-PCIe sockets with a conduction-cooled heatsink take Wi-Fi, 4G or 5G modules, and storage is an M.2 2280 M key SATA socket.

Power is 8 to 35V DC through a pluggable terminal block with built-in ignition control, so the POC-751VTC starts and shuts down with the vehicle. It runs from -40°C to 70°C, is E-Mark certified, meets EN 50121 EMC and is tested to EN 50155 and IEC 61373 Category I, Class B for vibration and shock. The 1.7 kg enclosure wall-mounts horizontally as standard, with vertical mounting as an option.
