Nexcom NDiS B360-i5 Intel Core i5-1145G7E Tiger Lake Digital Signage Player with Triple Display and Wi-Fi Option

Retail and hospitality screens increasingly split into zones, with video, live pricing and promotions running side by side on 4K panels. The NDiS B360-i5 is a Digital Signage Player from the Nexcom NDiS B360 series, built around the Intel Core i5-1145G7E in a fanless case 36 mm high. It is a good fit for multi-zone retail, hospitality and transit layouts, with dual 4K outputs and wide temperature operation in a footprint small enough to hide behind a screen.

The Core i5-1145G7E is a quad-core Tiger Lake-UP3 processor at 1.5 GHz with 8 MB cache and a 15 W TDP, paired with Intel Iris Xe graphics. One DDR4 SO-DIMM socket takes up to 32 GB of memory, and an M.2 2280 Key M socket with a PCIe x4 link holds an NVMe SSD for the operating system and content. Windows 10 and Linux are both supported.

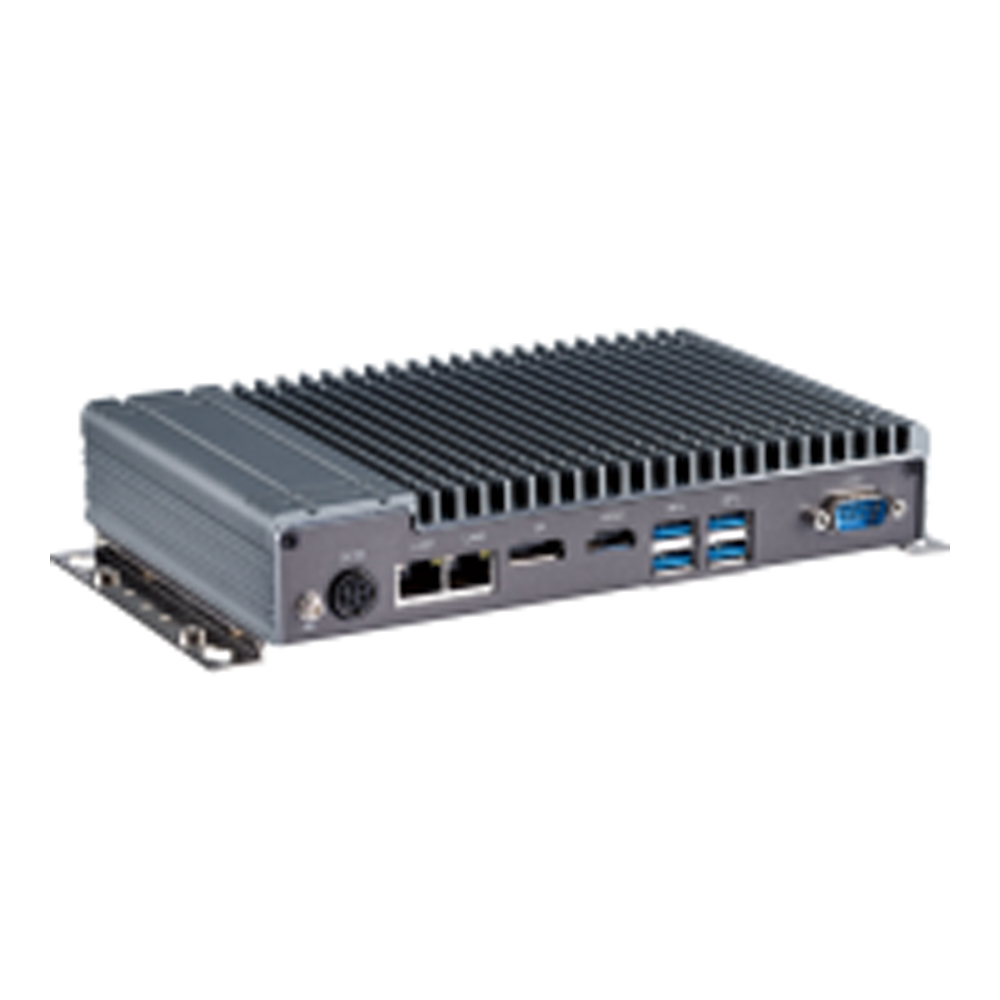

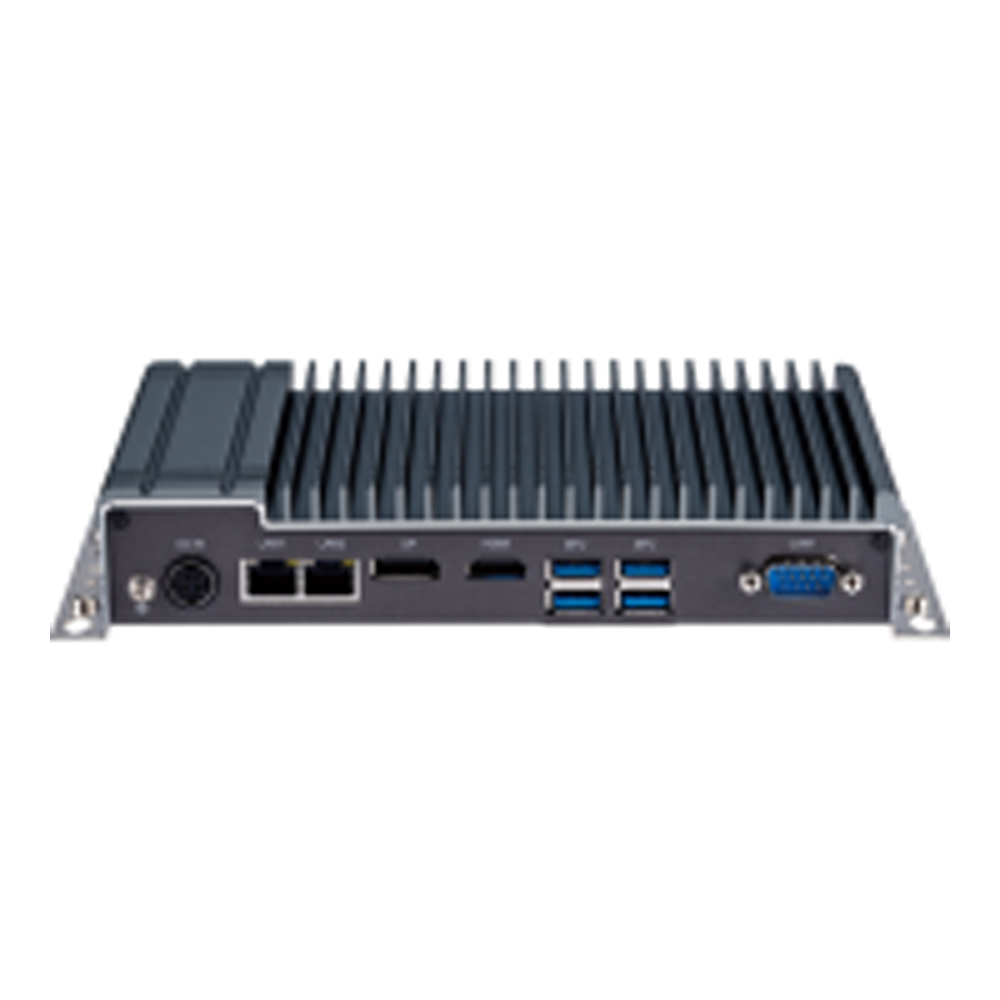

On the rear panel the NDiS B360-i5 has DP++ at 4096 x 2304 and HDMI 2.0 at 4096 x 2160, both at 60 Hz, and an internal eDP connector drives a third 4K panel in kiosk or display builds. Two Intel GbE ports, four USB 3.0 ports, an RS232 port and an RS232/422/485 port connect touch screens, card readers and control systems. An M.2 2230 Key E socket takes an optional Wi-Fi module, and TPM 2.0 is onboard.

The NDiS B360-i5 runs fanless from -20 °C to 60 °C and from 12 V DC, supplied by a 60 W adapter, so it can sit in drive-through housings, bus shelters and information stands as well as indoor displays. At 200 x 132.6 x 36 mm, this Digital Signage Player mounts behind a screen or in a cabinet, and it carries CE and FCC Class A approval.
