Nexcom NDiS V1100 Intel Core Tiger Lake Quad-Display Digital Signage Players with 4x HDMI

Menu walls, departure boards and retail counters often run four screens side by side, and using one player per screen multiplies the hardware, the cabling and the content management. The Nexcom NDiS V1100 series consolidates that into one fanless unit. These Digital Signage Players drive four HDMI 2.0 outputs at 4096 x 2160 and 60 Hz from an 11th Gen Intel Core processor, so a single player can feed a four-screen menu board or a small video wall.

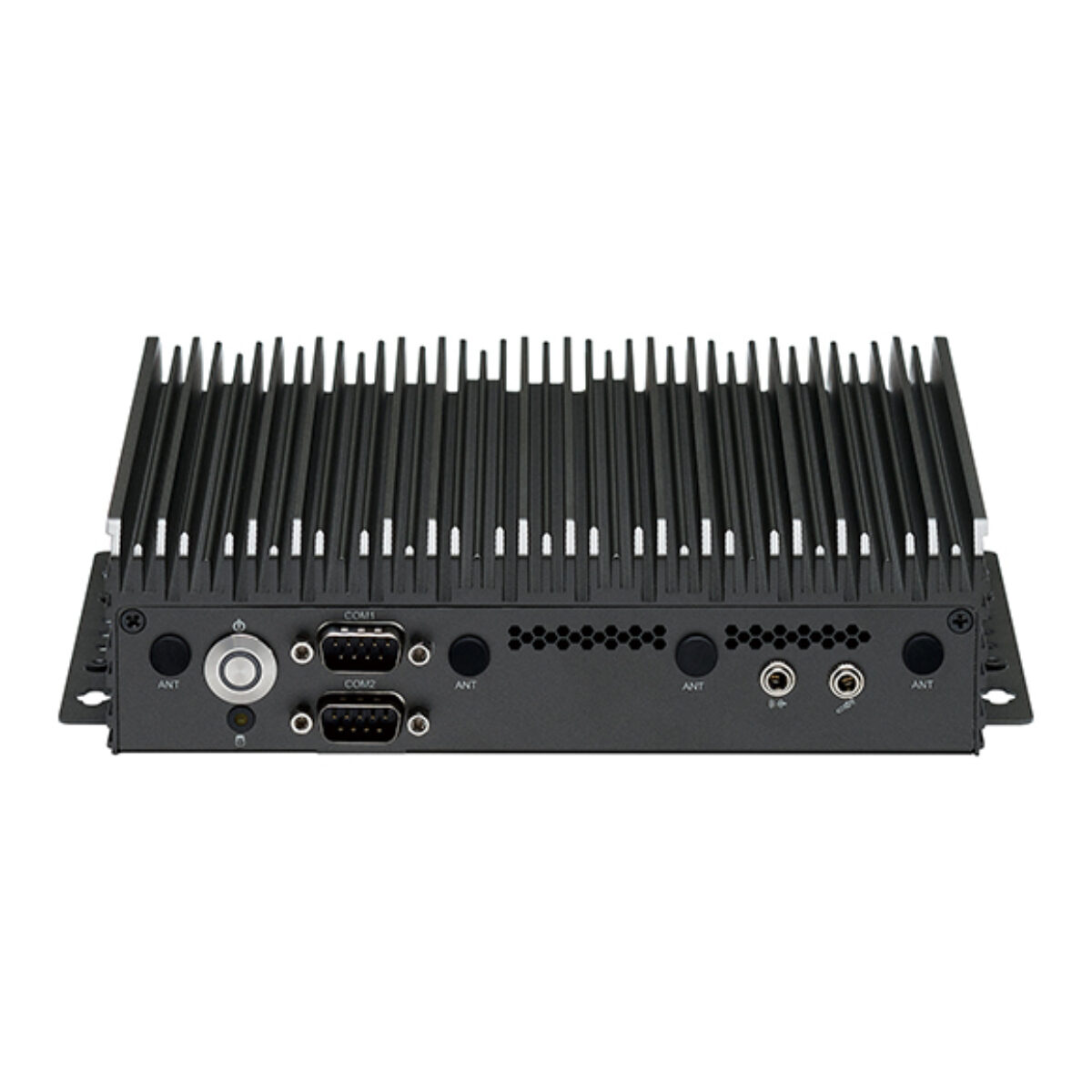

Every NDiS V1100 uses an onboard Tiger Lake UP3 SoC, with Intel UHD graphics on the Core i3 and Intel Iris Xe graphics on the Core i5. Two DDR4 SO-DIMM sockets take up to 64 GB of non-ECC memory, and storage is an M.2 2280 Key M socket supporting PCIe Gen4 x4 or SATA III, plus a SATA connector with power for a further drive. For connectivity there is an M.2 3052 Key B socket for an optional 5G module and a mini-PCIe socket for 4G, Wi-Fi or Bluetooth. The rear panel carries the four HDMI ports, two Intel GbE ports on I219-LM and I225-V controllers, three USB 3.0 ports and a USB 2.0 port, with two DB9 COM ports, COM1 supporting RS232/422/485, alongside the power button. Four more USB 2.0 headers, eight GPIO channels, a speaker amplifier and TPM 2.0 are internal.

The range has two versions, both fanless and rated from 0 °C to 45 °C. The NDiS V1100-i3 uses the dual-core Core i3-1115G4E at 2.2 GHz with 6 MB cache and Intel UHD graphics, a fit for four-screen menus and timetables with steady content. The NDiS V1100-i5 moves to the quad-core Core i5-1145G7E with 8 MB cache and Iris Xe graphics for richer video across all four outputs.

Nexcom positions the NDiS V1100 series for QSR menu boards and drive-through kiosks, box office displays, information stands and digital transit signs, as well as advertising, hospitality and brand promotion. The players run Windows 10 or Linux from a 12 V DC input with a 96 W adapter, measure 190 x 165 x 51.1 mm without the wall-mount bracket and carry CE and FCC Class A approval. In practice these Digital Signage Players suit indoor sites where four synchronized 4K screens need one compact, quiet player.
