Nexcom NDiS V1100-i5 Intel Core i5-1145G7E Fanless Digital Signage Player with 4x HDMI Outputs

Video walls and promotional displays push more moving content across every screen, and that is where graphics performance starts to show. The NDiS V1100-i5 is a Digital Signage Player from the Nexcom NDiS V1100 series that drives four HDMI 2.0 outputs from an Intel Core i5-1145G7E in a fanless case. The NDiS V1100-i3 covers lighter four-screen layouts with a dual-core Core i3.

The Core i5-1145G7E is a quad-core Tiger Lake UP3 processor at 1.5 GHz with 8 MB cache, paired with Intel Iris Xe graphics. Two DDR4 SO-DIMM sockets take up to 64 GB, and an M.2 2280 Key M socket supports PCIe Gen4 x4 or SATA III storage, with a SATA connector and power header for a second drive. Windows 10 and Linux are supported on the NDiS V1100-i5.

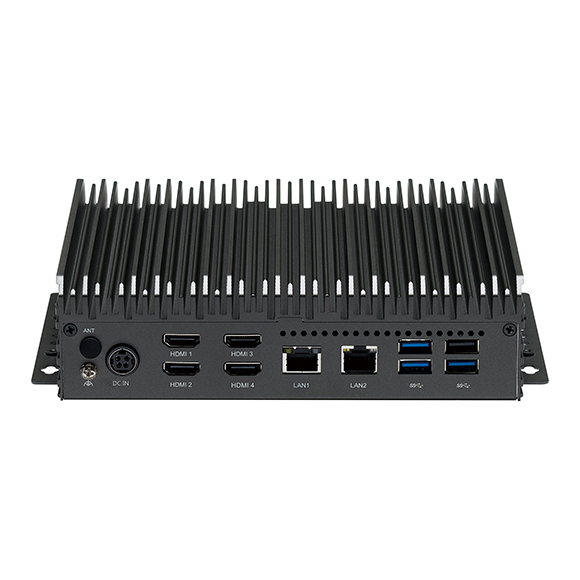

All four HDMI ports run at 4096 x 2160 and 60 Hz. The rear also carries two Intel GbE ports on I219-LM and I225-V controllers, three USB 3.0 ports, a USB 2.0 port and the 12 V DC jack, and two DB9 COM ports provide RS232/422/485 on COM1 and RS232 on COM2. An M.2 3052 Key B socket takes an optional 5G module and a mini-PCIe socket takes 4G, Wi-Fi or Bluetooth. Four internal USB 2.0 headers, eight GPIO channels and TPM 2.0 complete the NDiS V1100-i5.

The player runs fanless from 0 °C to 45 °C, so it belongs in indoor counters, back offices and display cabinets rather than outdoor housings. Power is 12 V DC from a 96 W adapter, and the case measures 190 x 165 x 51.1 mm without its wall-mount bracket. This Digital Signage Player carries CE and FCC Class A approval.
