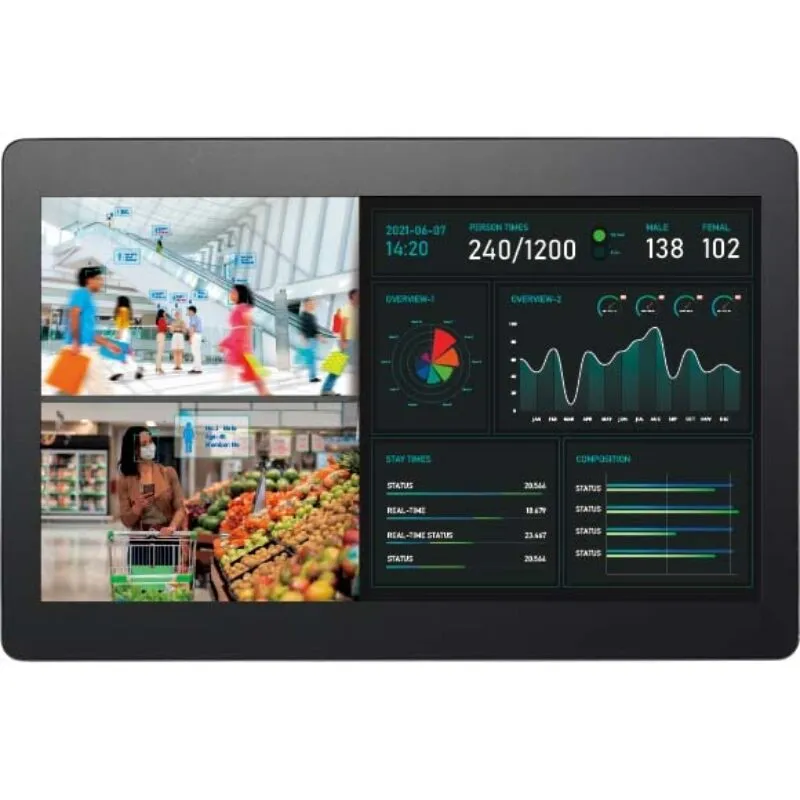

Nexcom XPPC 16-200-i5 15.6″ Slim PCAP Touchscreen Computer with Intel Core i5-1145G7E and FHD Bonded Display

Advertising screens that play video alongside touch need more graphics performance than an entry processor, without a fan. The XPPC 16-200-i5 is the Core i5 build in the Nexcom XPPC 16-200 series: a 15.6 inch fanless slim touchscreen computer in an enclosed black-silver metal chassis, with a slim-bezel PCAP front that meets IP65 when panel mounted.

An onboard 11th Gen Intel Core i5-1145G7E runs at 1.5 GHz base with 8 MB cache and Intel Iris Xe Graphics, available by request, which gives more graphics headroom for video-rich signage and analytics dashboards. One DDR4 SO-DIMM socket takes up to 32 GB and an M.2 2280 Key M socket on PCIe x4 takes a fast NVMe SSD; it ships as a barebone. Windows 10 64-bit and Linux are supported. The 15.6 inch LED-backlit LCD runs at 1920 x 1080 (FHD) at 405 nits with 700:1 contrast and 178° viewing angles, and the 10-point PCAP multi-touch is optically bonded to the LCD behind anti-smudge glass, which cuts reflections.

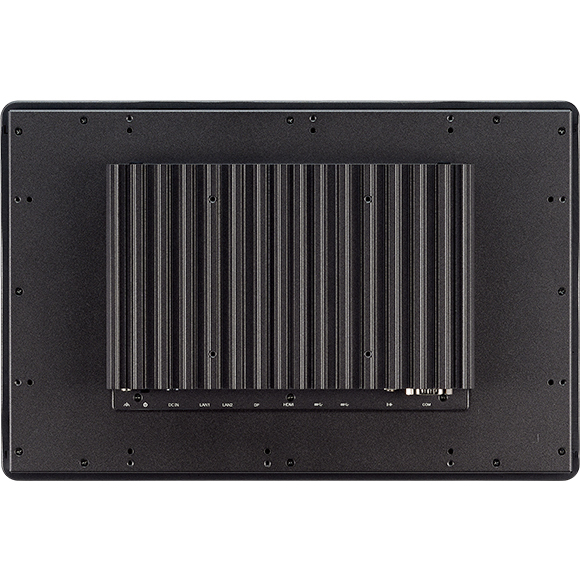

I/O covers two Intel Gigabit LAN ports, four USB 3.0 ports, one RS-232/422/485 port, a line-out and one DisplayPort (DP++) and one HDMI 2.0 output for a second screen. An M.2 2230 Key E socket takes an optional Wi-Fi module. The XPPC 16-200-i3 is the standard build with a Core i3-1115G4E, and the XPPC 10-200 series offers it at 10.1 inches.

Power is 12 V DC on a DC jack, with a locking 96 W 100 to 240 V AC adapter included. The XPPC 16-200-i5 is fanless, operates from 0 to 50 °C and is shock-tested to 50 g peak under IEC 60068-2-27. It carries CE and FCC Class A marks and meets EN 62368-1 under the LVD. It measures 382.2 x 251.4 x 51.7 mm and weighs 3.0 kg. VESA 100 x 100 mm mounting is standard and the panel cut-out is 370.5 x 240 mm for panels up to 9.5 mm thick, with panel-mount and open-frame kits available as ordering options.
