Premio BCO-1000-ADLN-N97-2L Quad-Core Intel N97 Fanless Industrial PC with Dual 2.5GbE and 2x COM
Intel
Linux
Windows
Dual Display Support
2.5GbE
USB3
2x M.2
Wi-Fi
Fanless
CE
FCCBCO-1000-ADLN-N97-2L Overview
Many indoor automation and signage installs need a quiet, low-power box with plenty of USB and serial ports rather than extra network ports. The Premio BCO-1000-ADLN-N97-2L is the two-LAN model of the BCO-1000-ADLN series, a fanless industrial PC with a quad-core Intel N97, dual 2.5GbE, six USB ports and a 2.5-inch drive bay.
The Intel N97 is a four-core, 12 W Alder Lake-N processor, which suits always-on control, data collection and signage playback at low power. One DDR5 4800 SO-DIMM socket takes up to 16 GB. A 128 GB SSD ships in the M.2 B-Key socket (2242, 2280 or 3042, SATA or PCIe x1), and an internal 2.5-inch SATA bay takes a second drive. TPM 2.0 and a watchdog are built in, and Windows 11 and Linux are supported.

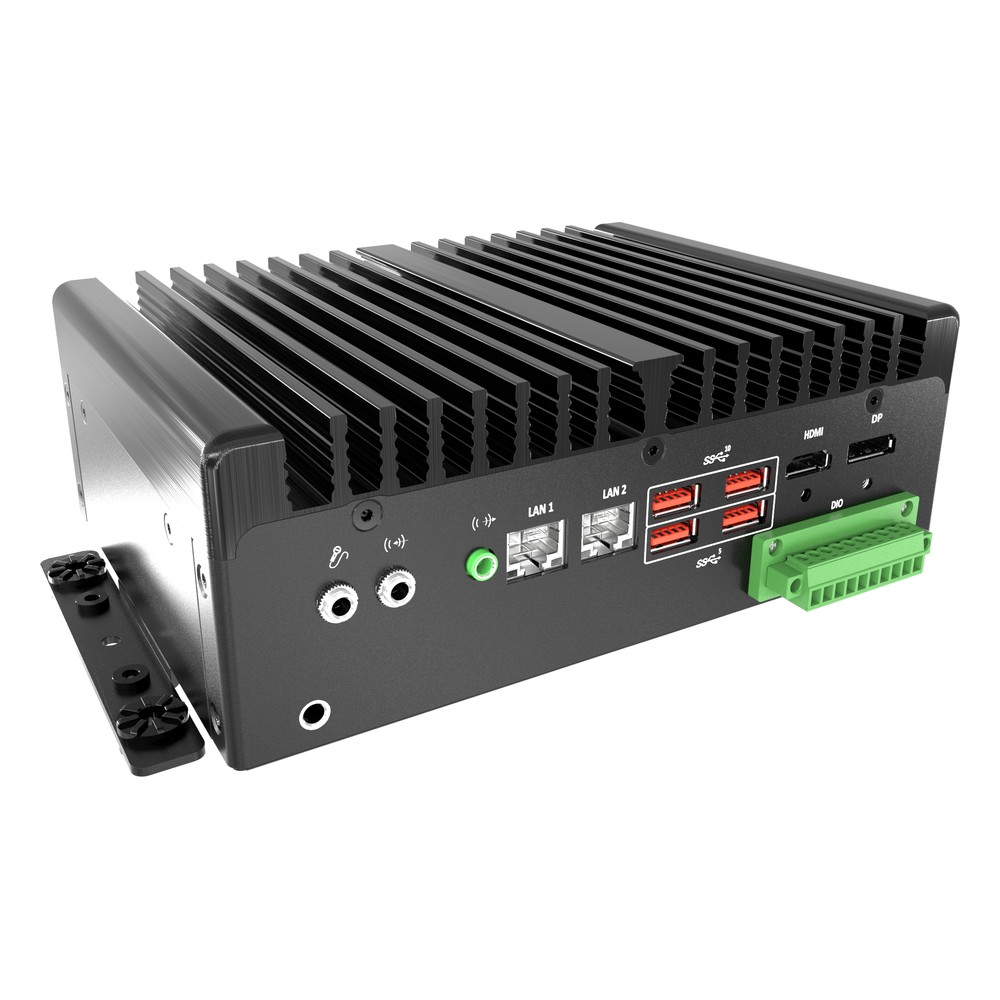

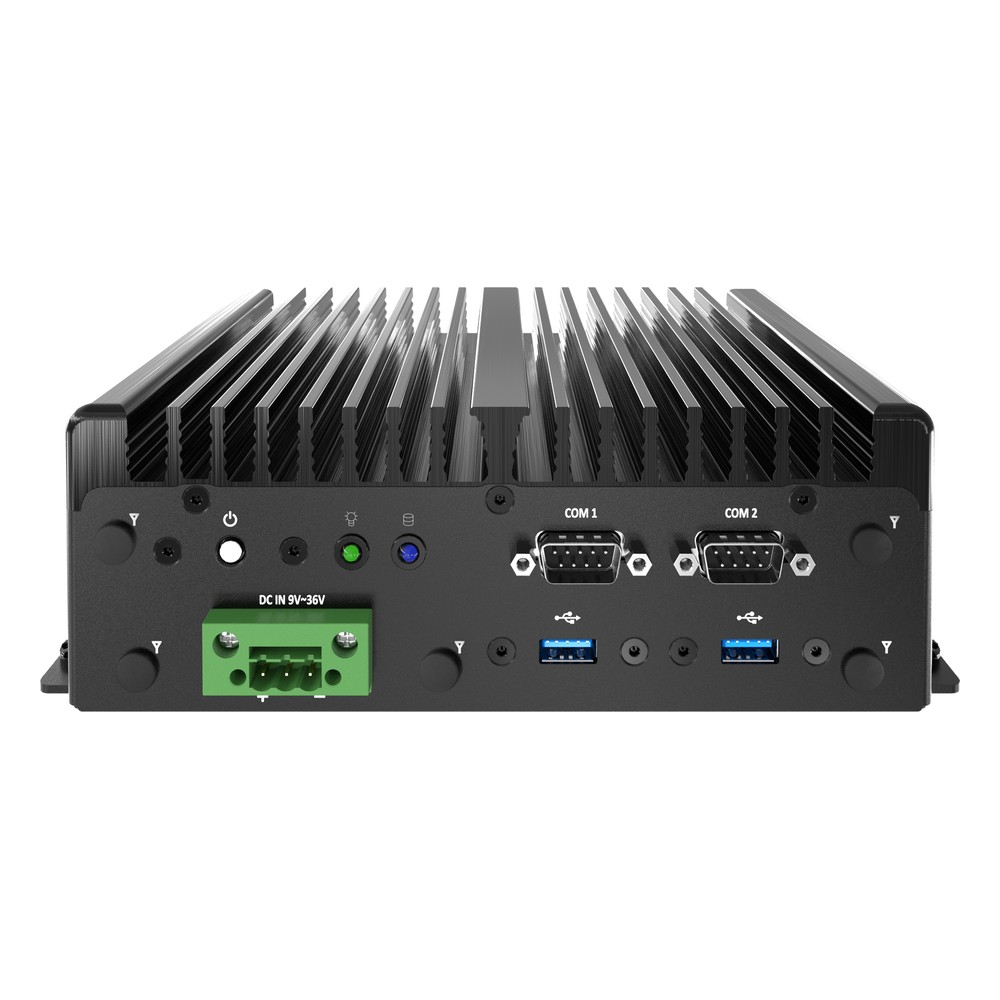

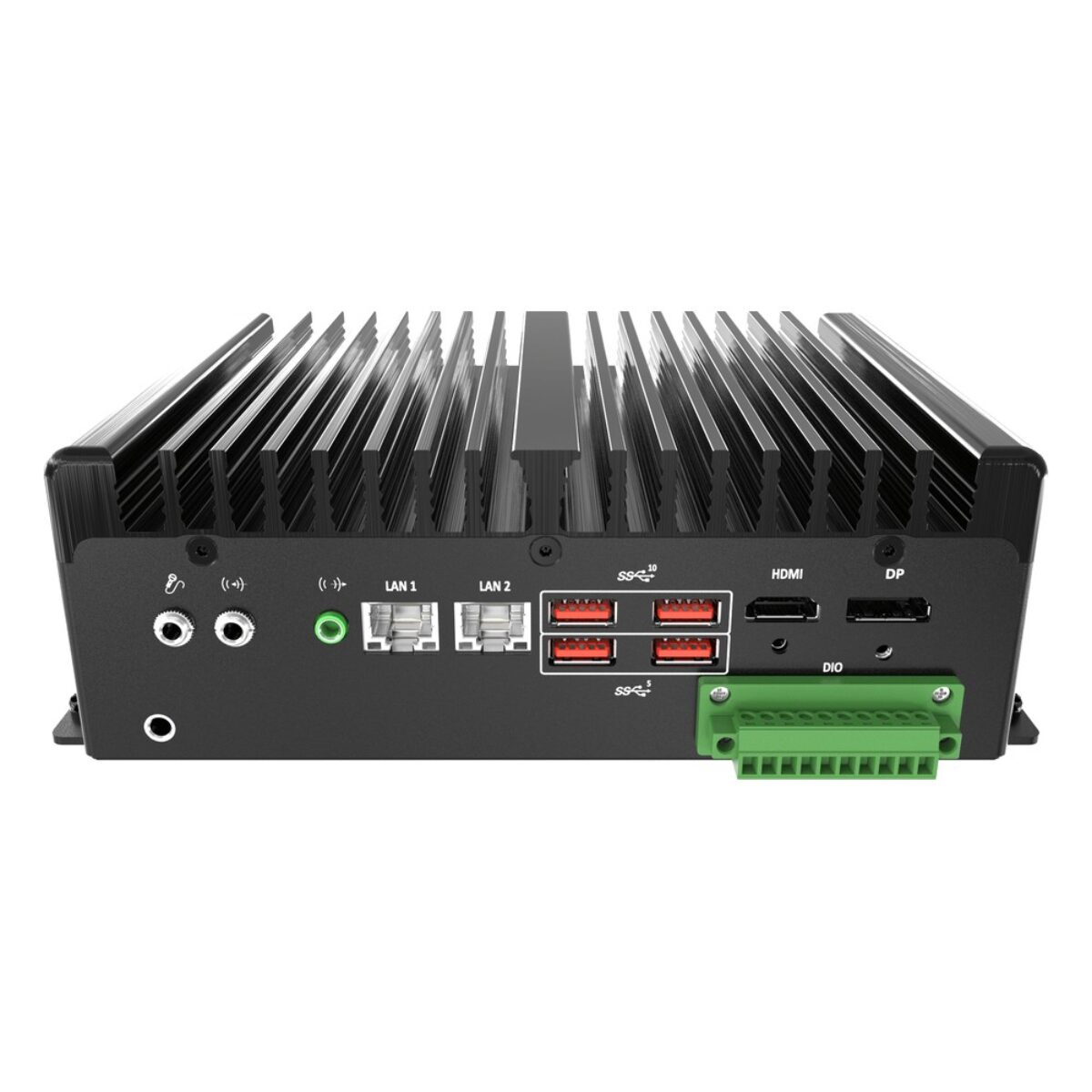

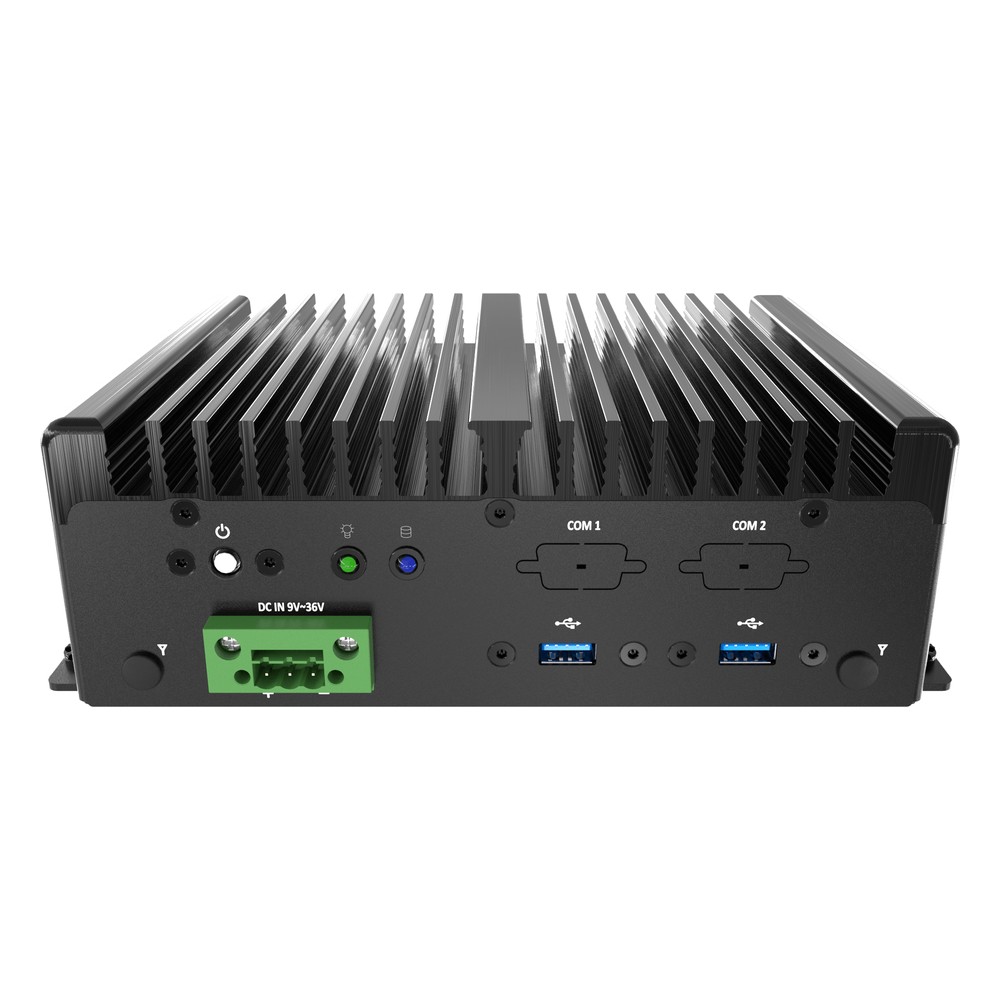

Two Intel I225-V 2.5GbE ports sit beside two USB 3.2 Gen 2, two USB 3.2 Gen 1 and two USB 2.0 ports, COM1 for RS-232/422/485 and COM2 for RS-232 on DB9, an 8-line digital I/O terminal block, and line-in, line-out and mic-in. A DisplayPort 1.4a output at 4K 60 Hz and an HDMI 1.4b output drive two independent displays. An M.2 E-Key socket with CNVi takes an optional Intel AX210 Wi-Fi and Bluetooth module.

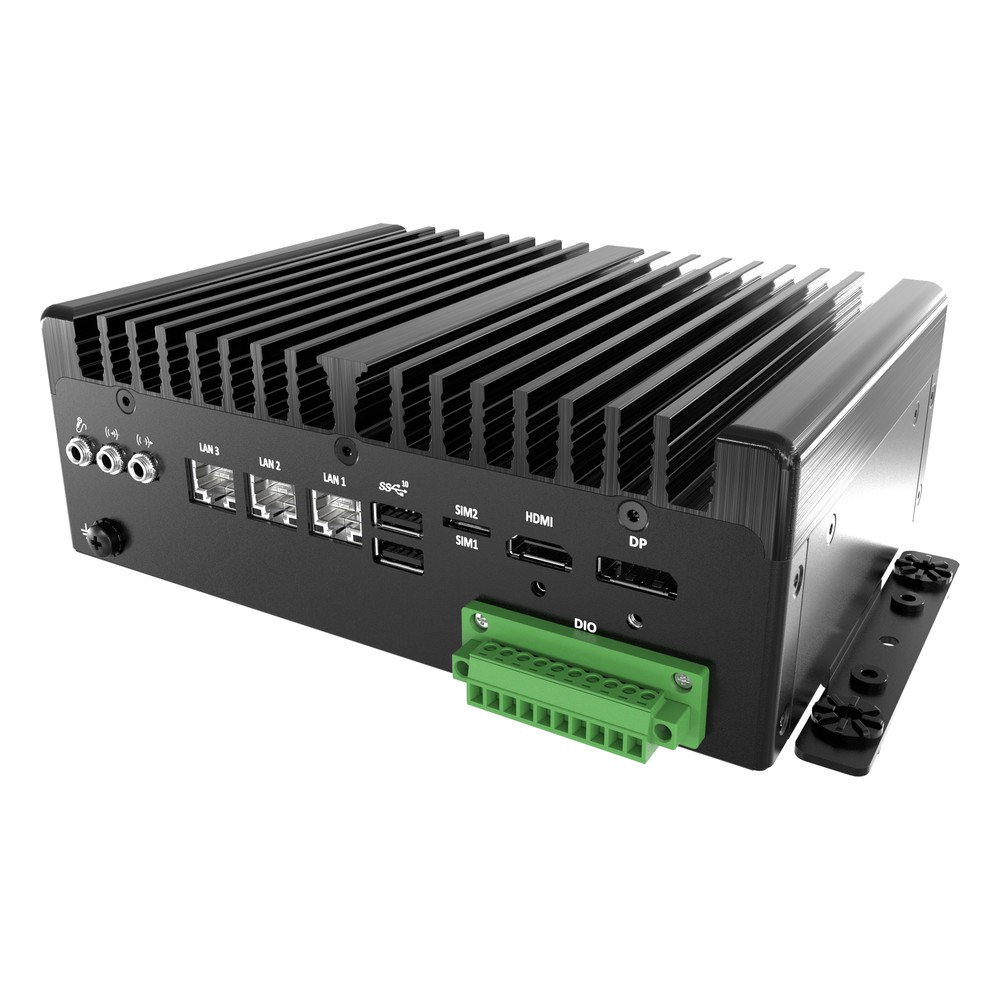

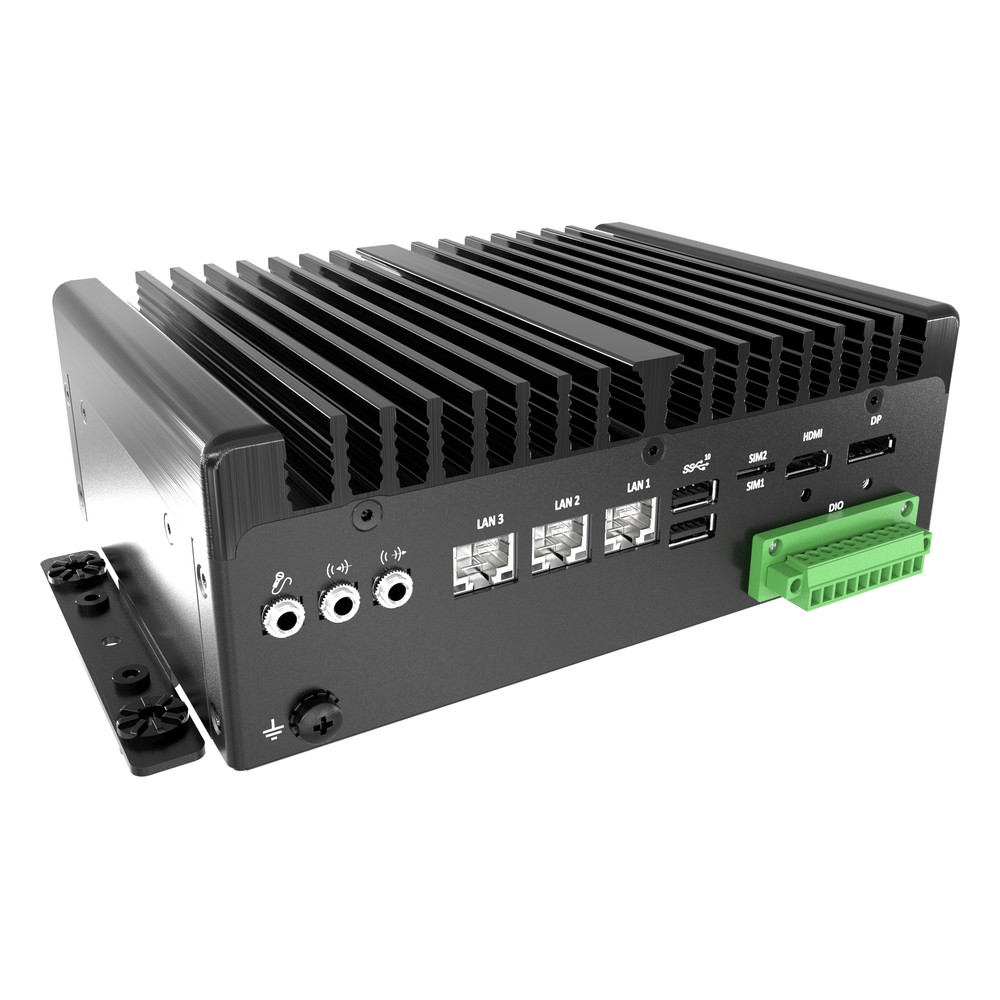

Power is 9 to 36 V DC on a terminal block with AT and ATX modes, with an AC/DC adapter optional. The BCO-1000-ADLN-N97-2L runs fanless from 0 °C to 50 °C, is designed to comply with MIL-STD-810H for shock and vibration, and carries CE, FCC Class A, UKCA and ICES-003 marks. Wall mounting is standard and a DIN-rail kit is optional. We supply it configured and tested, with memory, storage, the OS image and any Wi-Fi module fitted. The BCO-1000-ADLN-B-N97-3L adds a third 2.5GbE port and a dual SIM socket, and the BCO-500-2L-N97 pairs the same processor with four USB 3.2 Gen 2 ports in a semi-rugged, VESA-mountable box.
BCO-1000-ADLN-N97-2L Specifications
| Overview | |
|---|---|
| Brand & Model | Premio BCO-1000-ADLN-N97-2L |
| Features | Compact Embedded Fanless Industrial |
| Performance | |
| Processor Series | Intel Processor N Series Alder Lake |
| Processor Models | Intel Processor N97: 2.0~3.6GHz, 4 Cores, 4 Threads, 6MB Cache, 12W |
| Performance Cores | 4 Cores |
| Memory | 1x DDR5 4800MHz SO-DIMM, 16GB |
| BIOS | AMI UEFI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Linux Ubuntu 22.04 Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Standards | Display Port 1.4a HDMI 1.4b |
| Multi Display Support | Dual Display Support |
| Display Outputs | 1x Display Port 1x HDMI |
| Audio | |
| Interface | Line-In Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x 2.5 GbE LAN [RJ45] | |
| LAN Controllers | Intel I225V |
| USB | 6x USB Ports |
| 2x USB 2.0 [Type A] 2x USB 3.2 Gen 1 [Type A] 2x USB 3.2 Gen 2 [Type A] | |
| Serial | 2x Serial Ports |
| 1x RS232 [DB9] 1x RS232/422/485 [DB9] | |
| Digital I/O | DIO [8-lines] |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe x1/SATA] [2242/2280/3042] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] | |
| Wireless Connectivity | Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x 2.5" HDD/SSD 1x M.2 SSD [PCIe & SATA] |
| Power | |
| Power Input | 9-36V DC Input [Terminal Block] |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -30°C to 85°C [-22°F to 185°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Shock | IEC 60068-2-27 MIL-STD-810H |
| Vibration | IEC 60068-2-64 MIL-STD-810H |
| Certification | CE FCC IC (ICES-003) UKCA |
| Mechanical Properties | |
| Chassis Material | Aluminum |
| Dimensions | 192mm x 140mm x 68mm (7.56" x 5.51" x 2.68") |
| Mounting Options | DIN Mount Wall Mount |
Official Premio USA Distributor
Things Embedded is an official Premio USA distributor, and we supply the BCO-1000-ADLN-N97-2L configured and tested, with the memory, storage, operating system image and any wireless modules fitted before it ships. Within the Premio range, the BCO-1000-ADLN-B-N97-3L adds a third 2.5GbE port and a dual SIM socket for an optional 4G or 5G module.
Across our range, the BCO-1000-ADLN-N97-2L sits with our Intel Processor N systems, fanless industrial computers and embedded box PCs.
