Premio BCO-500-2L-N305 8-Core Intel Core i3-N305 Fanless Embedded PC with Dual 2.5GbE and 2x COM
Intel
Linux
Windows
Dual Display Support
2.5GbE
USB3
2x M.2
Fanless
CE
FCCBCO-500-2L-N305 Overview
When a small fanless box has to drive more than one content stream or run a few services together, extra cores matter more than clock speed. The Premio BCO-500-2L-N305 is the eight-core Intel Core i3-N305 model of the BCO-500 series, a semi-rugged fanless embedded PC with dual 2.5GbE, four USB 3.2 Gen 2 ports and two COM ports.
The Intel Core i3-N305 is an eight-core, 15 W Alder Lake-N processor, giving twice the cores of the N97 for multi-stream signage, local dashboards or several services on one box. One DDR5 4800 SO-DIMM socket takes up to 16 GB, and storage is a SATA SSD in an M.2 B-Key socket (2242, 2280 or 3042). TPM 2.0 and a watchdog are built in, and Windows 11 and Linux are supported.

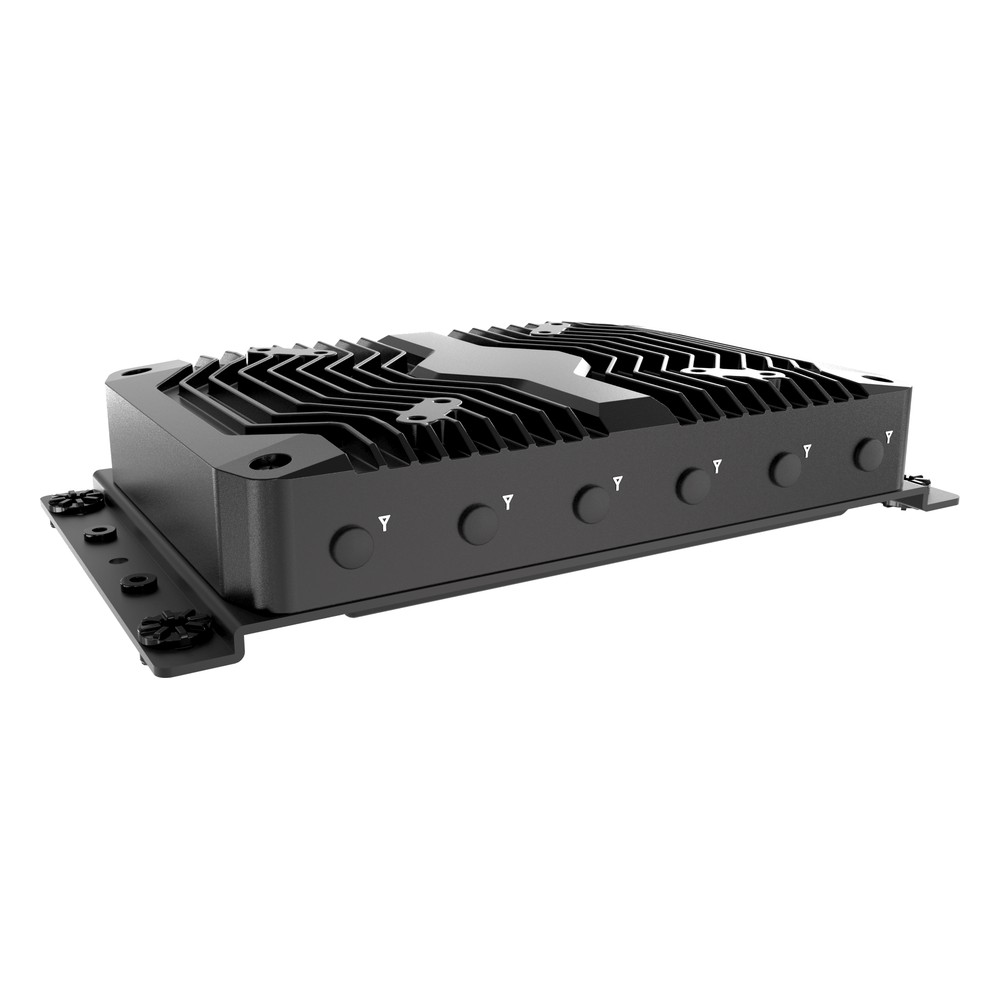

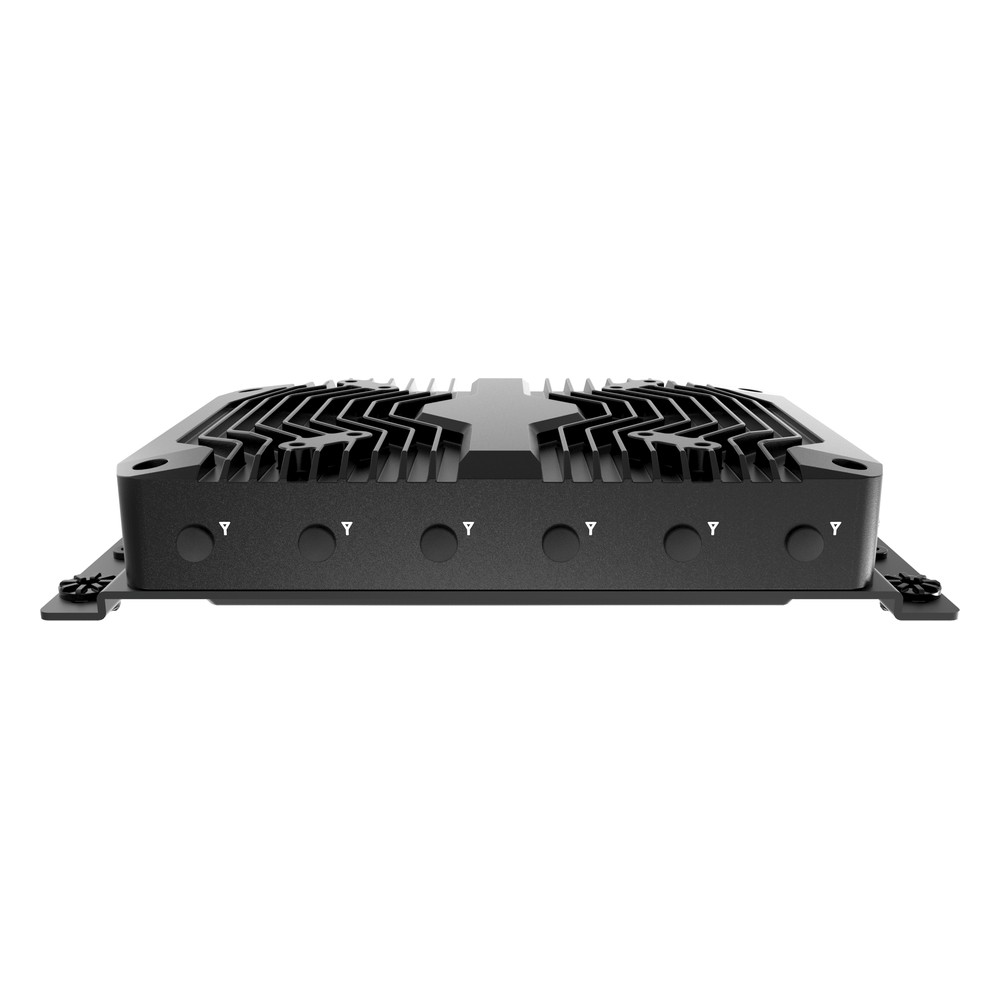

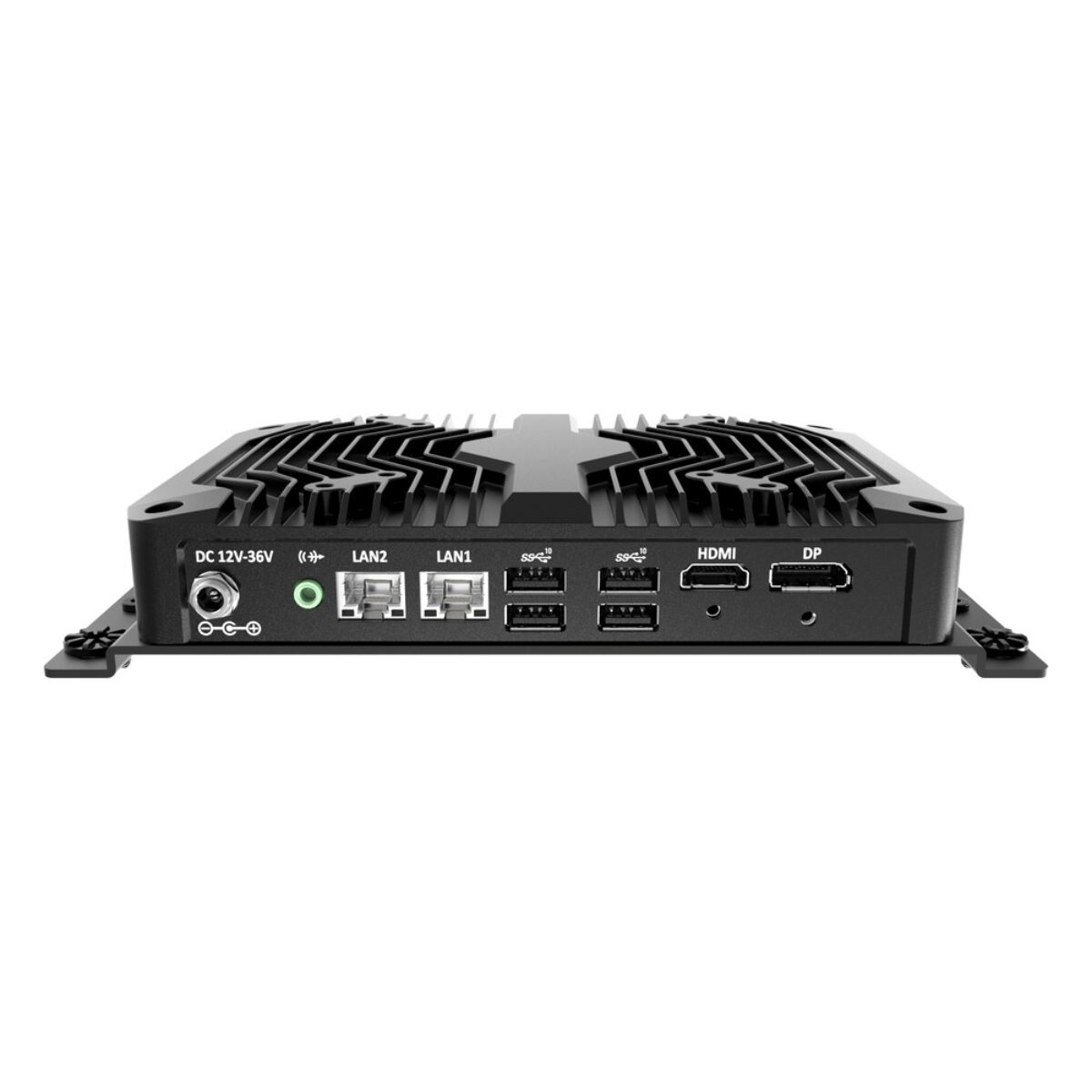

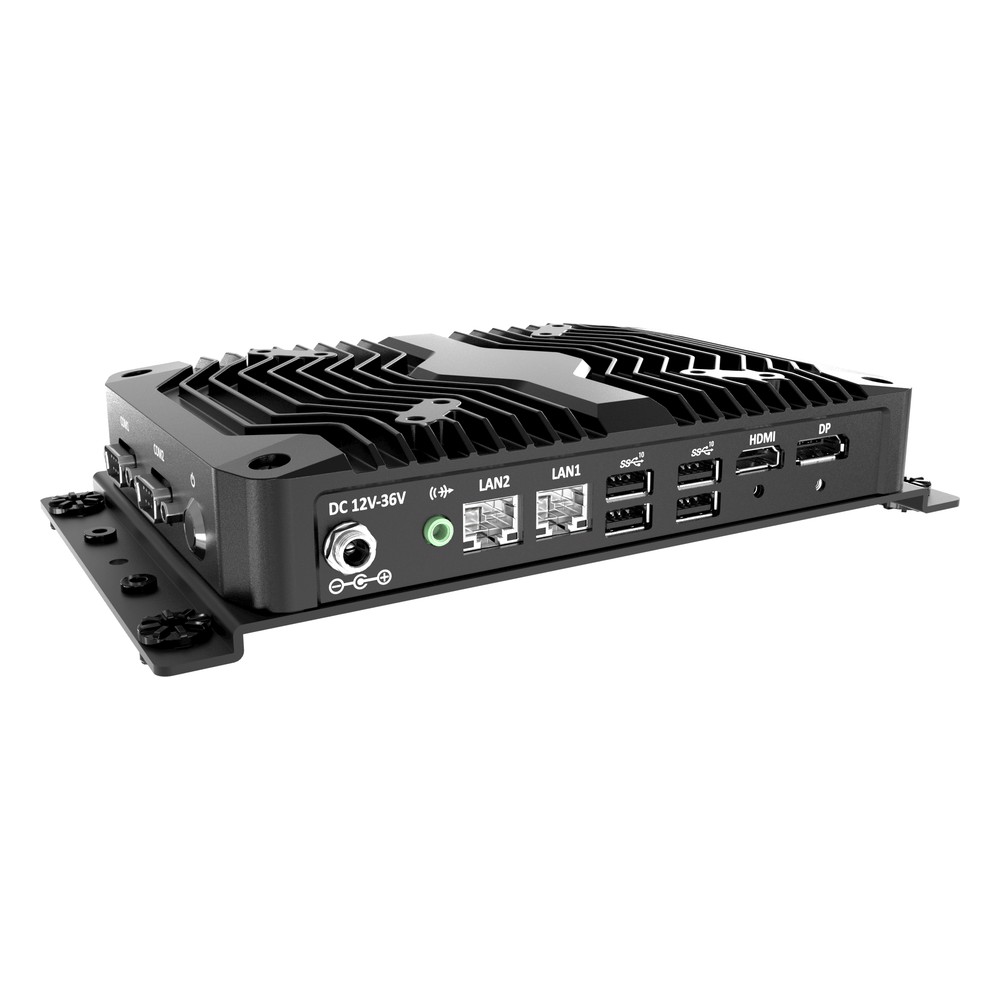

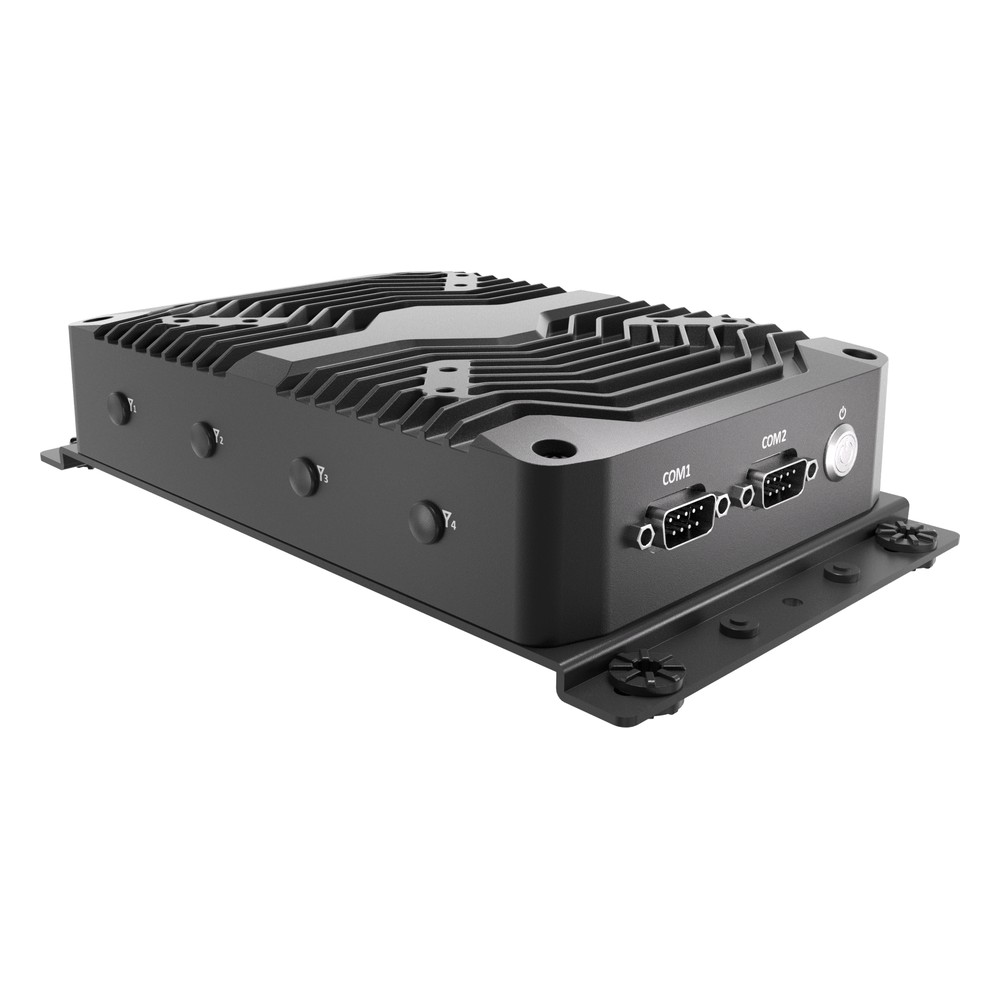

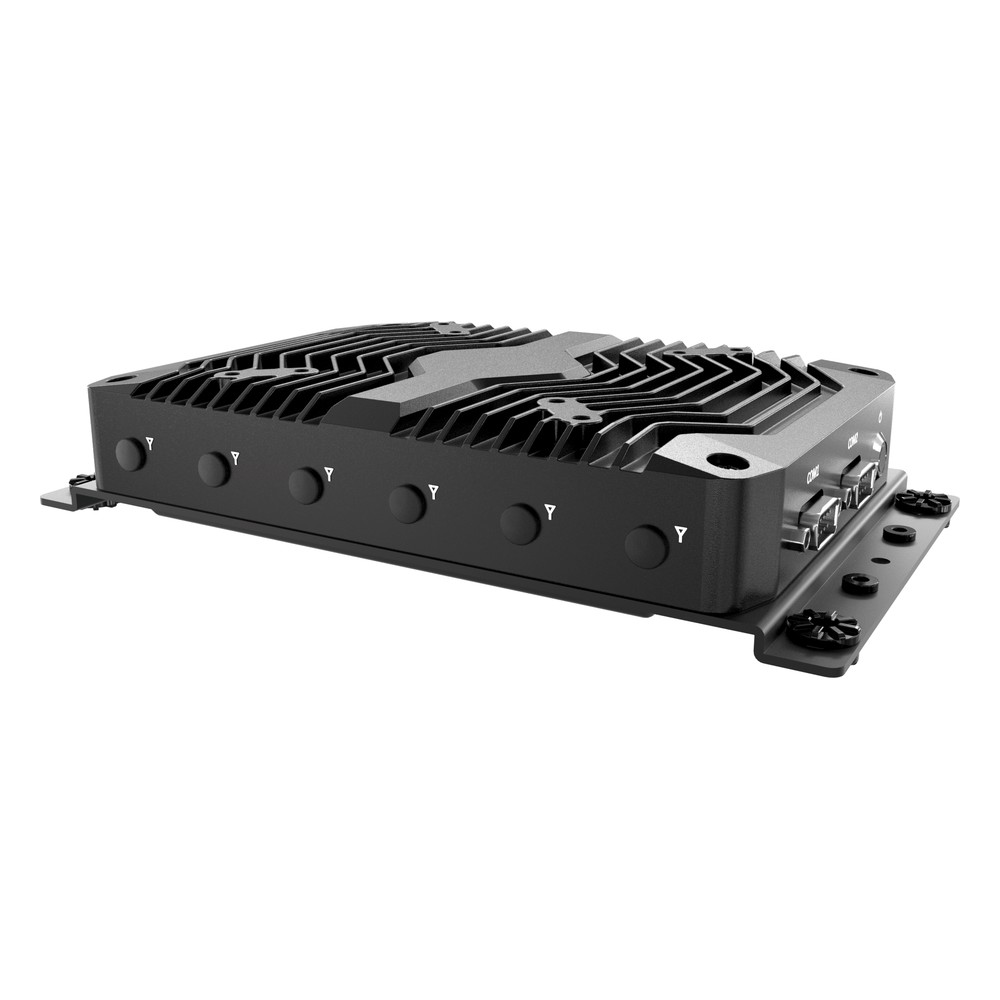

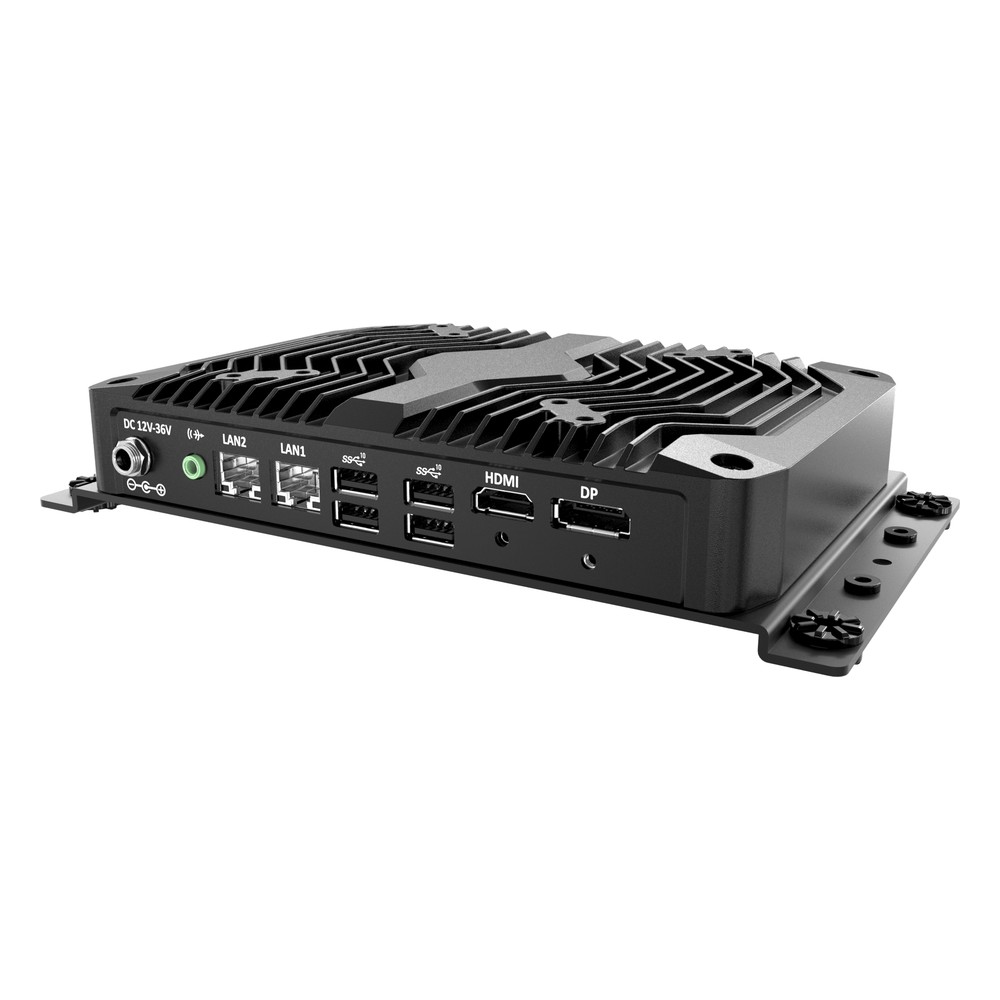

Two Intel I225-V 2.5GbE ports sit beside four USB 3.2 Gen 2 ports, COM1 for RS-232/422/485 and COM2 for RS-232 on DB9, and a line-out jack. A DisplayPort 1.4a output at 4K 60 Hz and an HDMI 1.4b output drive two independent displays. An M.2 E-Key socket takes optional Wi-Fi and Bluetooth, with six antenna holes ready on the enclosure.
Power is 12 to 36 V DC through a locking DC jack with AT and ATX modes, and an AC/DC adapter is optional. The BCO-500-2L-N305 runs fanless from -10 °C to 45 °C, is designed to comply with MIL-STD-810H for shock and vibration, and is UL listed to UL 61010-1 and UL 61010-2-201, with CE, FCC Class A, UKCA, VCCI and RCM. Wall and VESA mounting are supported, with a DIN-rail kit optional. We supply it configured and tested, with memory, the SSD, the OS image and any Wi-Fi module fitted. The BCO-500-2L-N97 uses the same build with a four-core 12 W Intel N97 and a 50 °C ceiling, and the BCO-500-MTL-125U steps up to a Core Ultra 5 with an NPU and three 2.5GbE ports.
BCO-500-2L-N305 Specifications
| Overview | |
|---|---|
| Brand & Model | Premio BCO-500-2L-N305 |
| Features | Compact Embedded Fanless Industrial Low Profile |
| Performance | |
| Processor Series | Intel Processor N Series Alder Lake |
| Processor Models | Intel Core i3-N305: 1.8~3.8GHz, 8 Cores, 8 Threads, 6MB Cache, 15W |
| Performance Cores | 8 Cores |
| Memory | 1x DDR5 4800MHz SO-DIMM, 16GB |
| BIOS | AMI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Multi Display Support | Dual Display Support |
| Display Outputs | 1x Display Port 1x HDMI |
| Audio | |
| Interface | Line-Out |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x 2.5 GbE LAN [RJ45] | |
| LAN Controllers | Intel I225V |
| USB | 4x USB Ports |
| 4x USB 3.2 Gen 2 [Type A] | |
| Serial | 2x Serial Ports |
| 1x RS232 [DB9] 1x RS232/422/485 [DB9] | |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe x1/SATA] [2242/2280/3042] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] | |
| Storage | |
| Storage | 1x M.2 SSD [SATA] |
| Power | |
| Power Input | 12-36V DC [Barrel Connector] |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -10°C to 45°C [14°F to 113°F] |
| Storage Temperature | -30°C to 85°C [-22°F to 185°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Certification | CAN/CSA C22.2 CE FCC IC (ICES-003) RCM REACH RoHS UKCA UL UL 61010-1 UL 61010-2-201 VCCI |
| Mechanical Properties | |
| Weight | 1.2 Kg (2.6 Lbs) |
| Dimensions | 225mm x 130mm x 41mm (8.86" x 5.12" x 1.61") |
| Mounting Options | DIN Mount VESA Mount Wall Mount |
Official Premio USA Distributor
Things Embedded is an official Premio USA distributor, and we supply the BCO-500-2L-N305 configured and tested, with the memory, storage, operating system image and any wireless modules fitted before it ships. Within the Premio range, the BCO-500-2L-N97 uses the same build with a four-core 12 W Intel N97 and a 50 °C ceiling.
Across our range, the BCO-500-2L-N305 sits with our Intel Processor N systems, fanless industrial computers and embedded box PCs.
