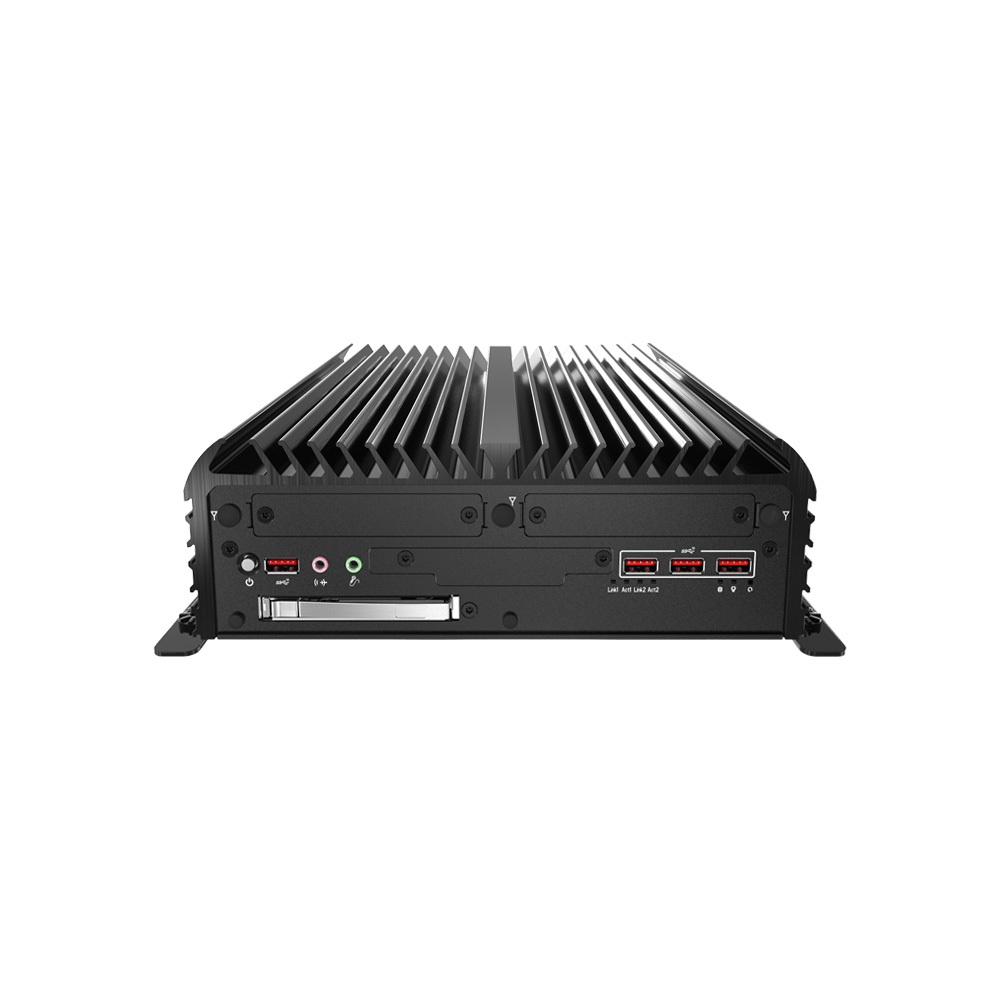

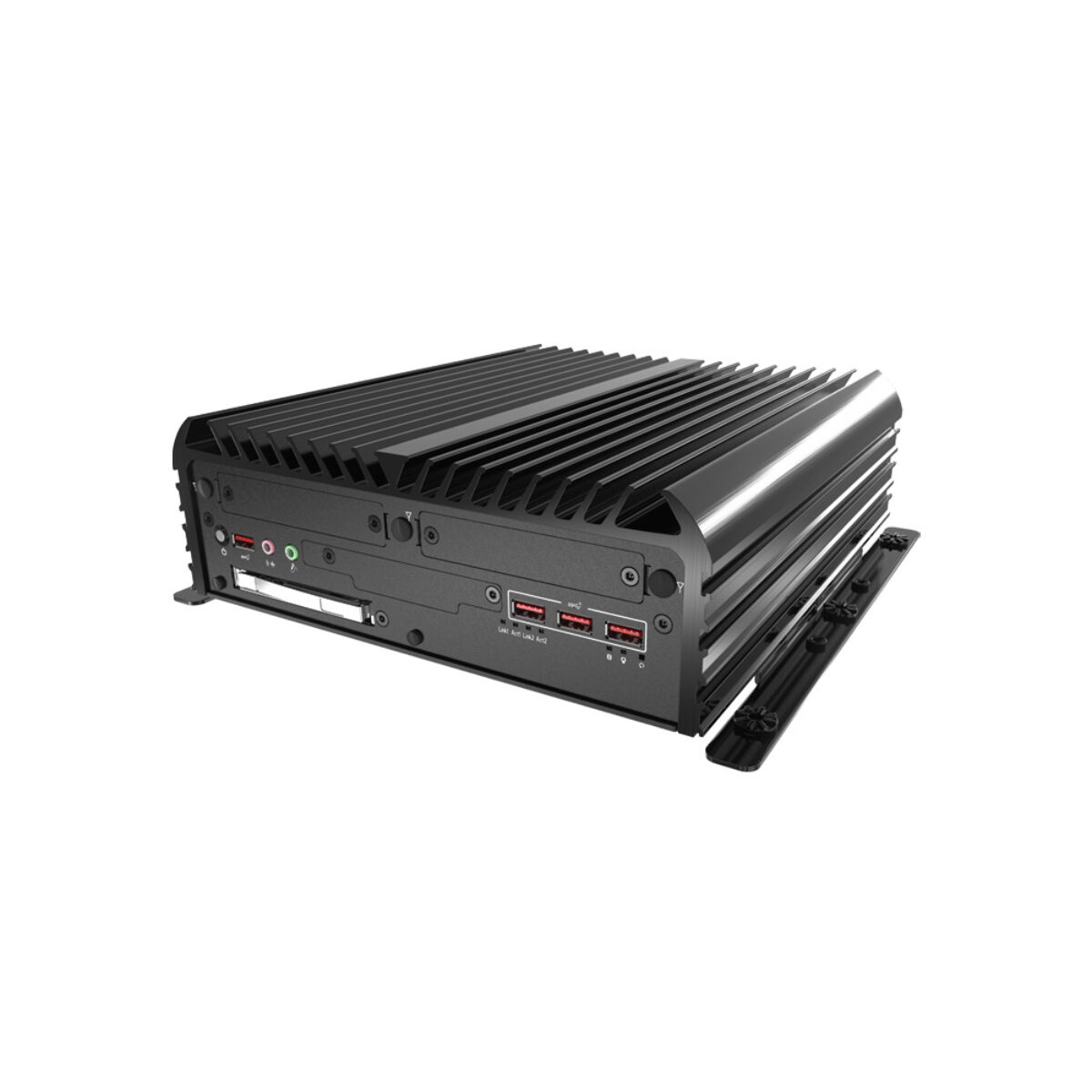

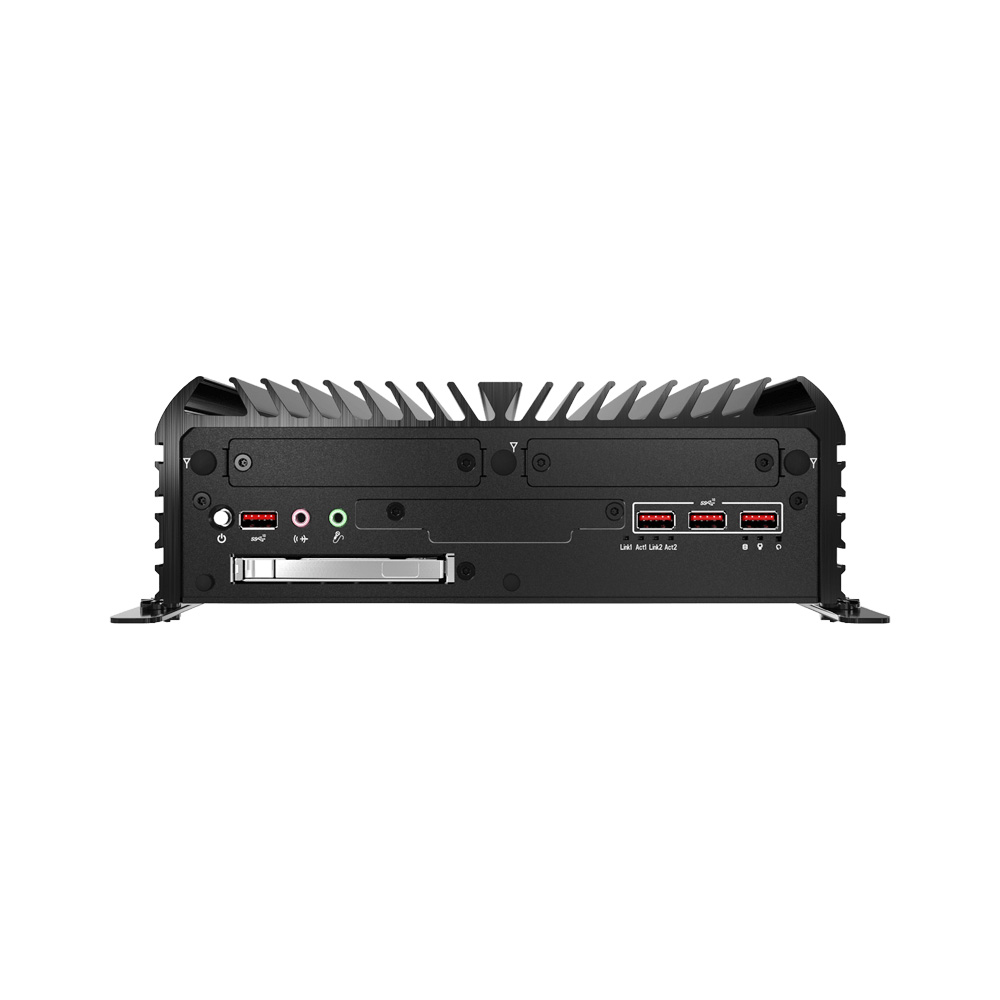

Premio RCO-6000-ADL-2M2BK Intel Core i5-12500TE Wide Temperature Rugged Industrial Computer with 2x 2.5GbE and 6x COM
C&T Solution is now Premio. C&T Solution joined Premio on 1 January 2026 and the RCO-6000-ADL-2M2BK continues under the Premio brand. Premio now lists the platform as the RCO-6000-RPL.
Intel
Linux
Windows
Triple Display Support
USB3
3x M.2
1x mPCIe
2x SIM
4G
5G
Wi-Fi
NVMe SSD
Ignition Control
Fanless
Extended Temp
CE
FCCRCO-6000-ADL-2M2BK Overview
Edge AI projects increasingly use M.2 accelerator modules, and one slot is rarely enough once storage and cellular are added. The RCO-6000-ADL-2M2BK is the Intel Core i5-12500TE wide temperature rugged industrial computer with 2x 2.5GbE and 6x COM in the Premio RCO-6000-ADL series, and its EDGEBoost module adds two M.2 B-key slots for that expansion.
Under the RCO-6000-ADL-2M2BK sits an LGA1700 socket on the Intel R680E chipset, which takes 12th and 13th Gen Intel Core processors at 35 W or 65 W, from Core i3 to Core i9-13900E, plus Pentium G7400E and Celeron G6900E. Two DDR5 SODIMM sockets hold up to 64 GB at up to 5600 MHz with ECC support, and Intel UHD Graphics drives DVI-I plus two DisplayPort outputs for three screens. The RCO-6000-ADL-2M2BK title names the Core i5-12500TE, a 35 W six-core part that keeps the full 70 °C rating while accelerators do the inference.

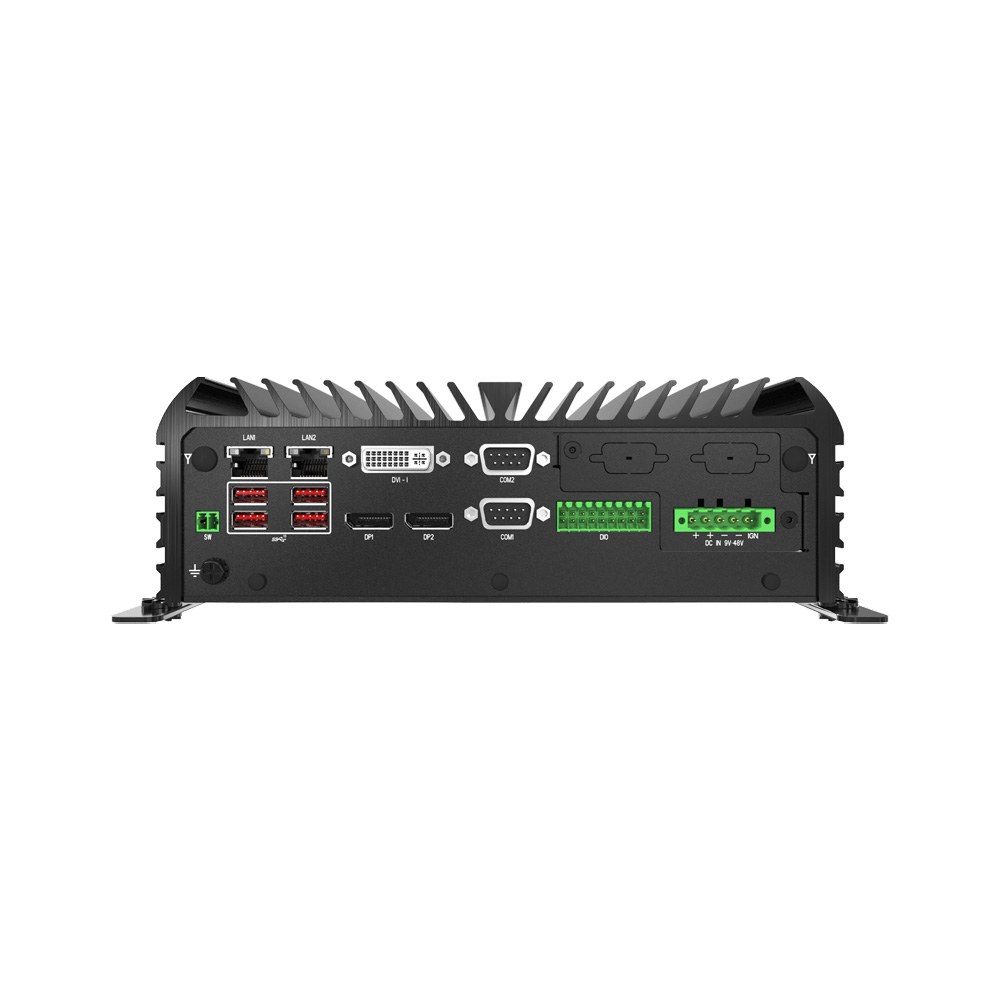

One EDGEBoost I/O bracket on the RCO-6000-ADL-2M2BK carries a module with a 2242 M.2 B-key slot for AI or NVMe modules and a 3042/3052 B-key slot for 5G, AI or NVMe, and this module fits one bracket only. The rest of the I/O is common to the range: two Intel I226 2.5GbE ports with TSN, six RS-232/422/485 ports, 8 in/8 out isolated DIO, two CAN 2.0 A/B headers, eight USB 3.2 Gen 2 ports and two 2.5 inch bays, one removable, with RAID 0 and 1.
Power comes in at 9 to 48 V DC on a 5-pin terminal block with ignition management, a PC/Car mode switch and protection against over-voltage, over-current and reverse polarity. Premio rates the RCO-6000-ADL-2M2BK fanless from -25 °C to 70 °C with 35 W processors or -25 °C to 60 °C at 65 W, and lists CE and FCC Class A. For a single PCIe x4 M.2 M-key slot instead, the RCO-6000-ADL-M2MK suits larger accelerators, and the RCO-6000-ADL-5G focuses on cellular.
RCO-6000-ADL-2M2BK Specifications
| Overview | |
|---|---|
| Brand & Model | Premio RCO-6000-ADL-2M2BK |
| Features | Compact Embedded Expandable Fanless Industrial Low Profile M12 Connectors Rugged |
| Performance | |
| Processor Series | Intel Core 12th Gen Alder Lake Intel Core 13th Gen Raptor Lake Intel Celeron G Series Alder Lake |
| Processor Models | Intel Celeron G6900E: 3.0GHz, 2 Cores, 2 Threads, 4MB Cache, 46W Intel Celeron G6900TE: 2.4GHz, 2 Cores, 2 Threads, 4MB Cache, 35W Intel Core i3-12100E: 3.2~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-12500E: 2.9~4.5GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W Intel Core i7-12700E: 2.1~4.8GHz, 12 Cores, 20 Threads, 25MB Cache, 65W Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W Intel Core i9-12900E: 2.3~5.0GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W |
| Performance Cores | 2 Cores 4 Cores 6 Cores 12 Cores 16 Cores |
| Memory | 2x DDR5 4800MHz SO-DIMM Slot, 64GB |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 10 |
| Graphics | |
| Integrated GPU | Intel Iris Xe Series |
| Multi Display Support | Triple Display Support |
| Display Outputs | 1x DVI 2x Display Port |
| Audio | |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x GbE LAN [RJ45] | |
| LAN Controllers | Intel I226 |
| USB | 11x USB Ports |
| 1x USB 3.2 Gen 1 [Board] 2x USB 2.0 [Board] 8x USB 3.2 Gen 2 [Type A] | |
| Serial | 6x Serial Ports |
| 2x RS232/422/485 [DB9] 4x RS232/422/485 [Board] | |
| CANbus | 2x CANbus Ports |
| 2x CANbus [Board] | |
| Digital I/O | Isolated DIO [8-in, 8-out] |
| Expansion | |
| M.2 | 3x M.2 Expansion Slots |
| 3x M.2 B-Key [PCIe/USB/SIM] [2242/3042/3052] | |
| mPCIe | 1x mPCIe Slots |
| 1x mPCIe [PCIe/USB/SATA] | |
| SIM Slots | 2x SIM Slots |
| Wireless Connectivity | Optional 4G Modem Optional 5G Modem Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD 1x mSATA 2x 2.5" HDD/SSD |
| NVMe | NVMe SSD Support |
| Front Accessible Storage | Front Accessible Storage |
| Hot Swap SSD Support | Hot Swappable SSD Support |
| RAID | RAID 0 (Striping) RAID 1 (Mirroring) |
| Power | |
| Power Input | 9-48V DC Input [Terminal Block] Optional AC Power Supply |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Ignition Sensing | Supports Ignition Control |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -25°C to 70°C [-13°F to 158°F] |
| Storage Temperature | -30°C to 80°C [-22°F to 176°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Certification | CE FCC RoHS |
| Mechanical Properties | |
| Weight | 4.5 Kg (9.9 Lbs) |
| Dimensions | 240mm x 261mm x 79mm (9.45" x 10.28" x 3.11") |
| Mounting Options | Wall Mount |
- RCO-6000-ADL-2M2BK Datasheet Download
