Stereolabs ZED-X-ONE-4K-NO-LENS (ZED-421010) GMSL2 4K HDR Camera with No Lens, 8.4MP Rolling Shutter Sensor and 6-Axis IMU
CEZED-X-ONE-4K-NO-LENS Overview

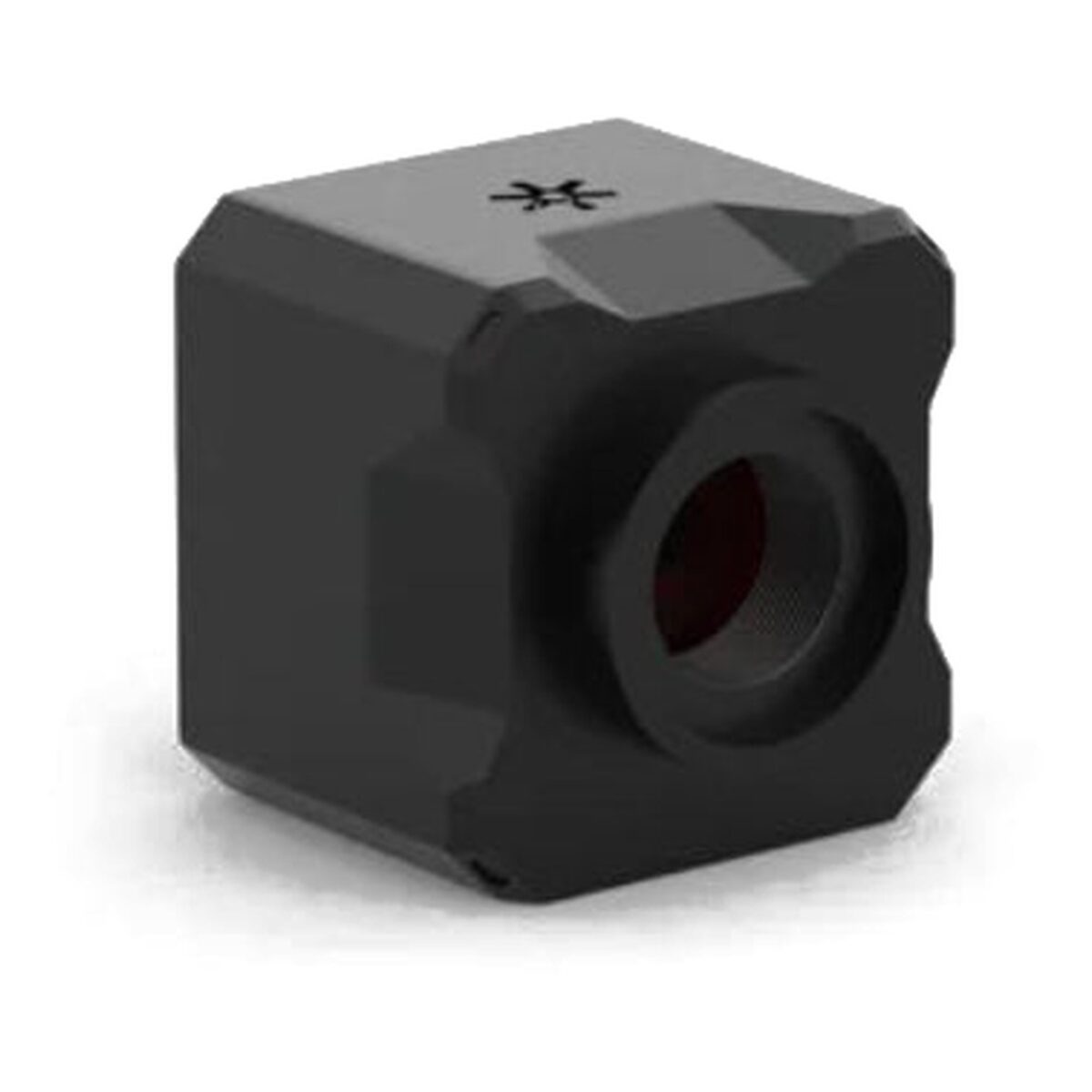

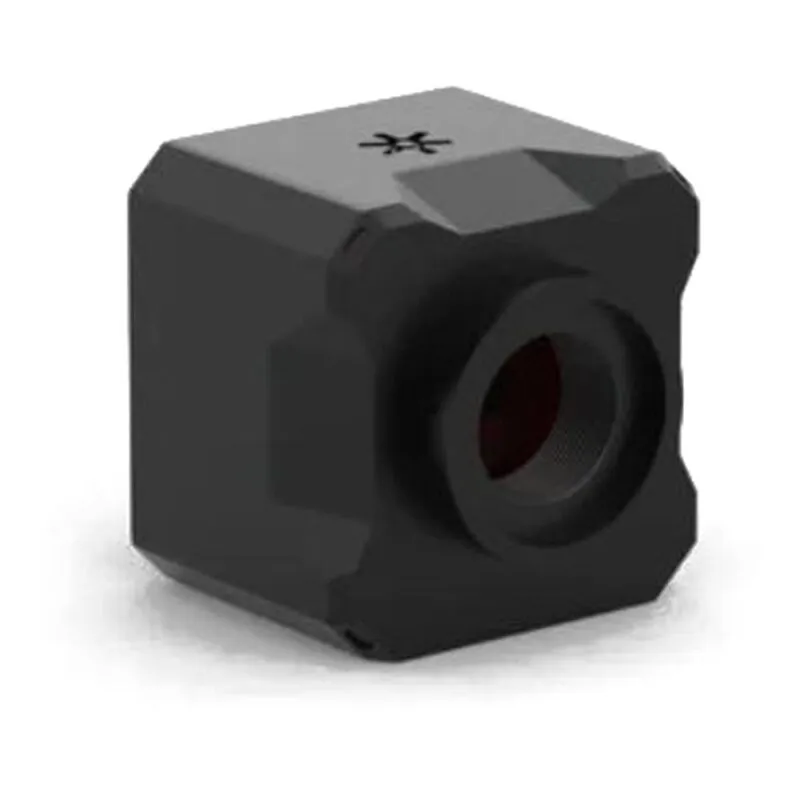

Inspection stations are often designed around the optic: a set working distance, a label size or a part that must fill the frame. The Stereolabs ZED-X-ONE-4K-NO-LENS is the no-lens build of the ZED-X-ONE-4K series, giving you the 8.4MP HDR sensor and GMSL2 link with no lens fitted, so the optic is yours to specify. If the standard 3.1 mm wide lens and its 110° view suit the station, the ZED-X-ONE-4K-WIDE ships ready to use.
The 1/1.8″ sensor has a 3856 x 2180 pixel array with 2 µm pixels and a recommended lens chief ray angle of 0° ± 10°, which gives some freedom when you shortlist lenses. It delivers 3840 x 2160 at 15 fps, 1920 x 1080 at up to 60 fps in cropping mode and 960 x 600 at up to 120 fps in binning mode, in RAW12 or YUV 4:2:2. HDR and 85 dB dynamic range keep shiny parts and shadowed recesses readable in the same frame. The rolling shutter suits static or slow-moving subjects such as barcodes and inspected parts.

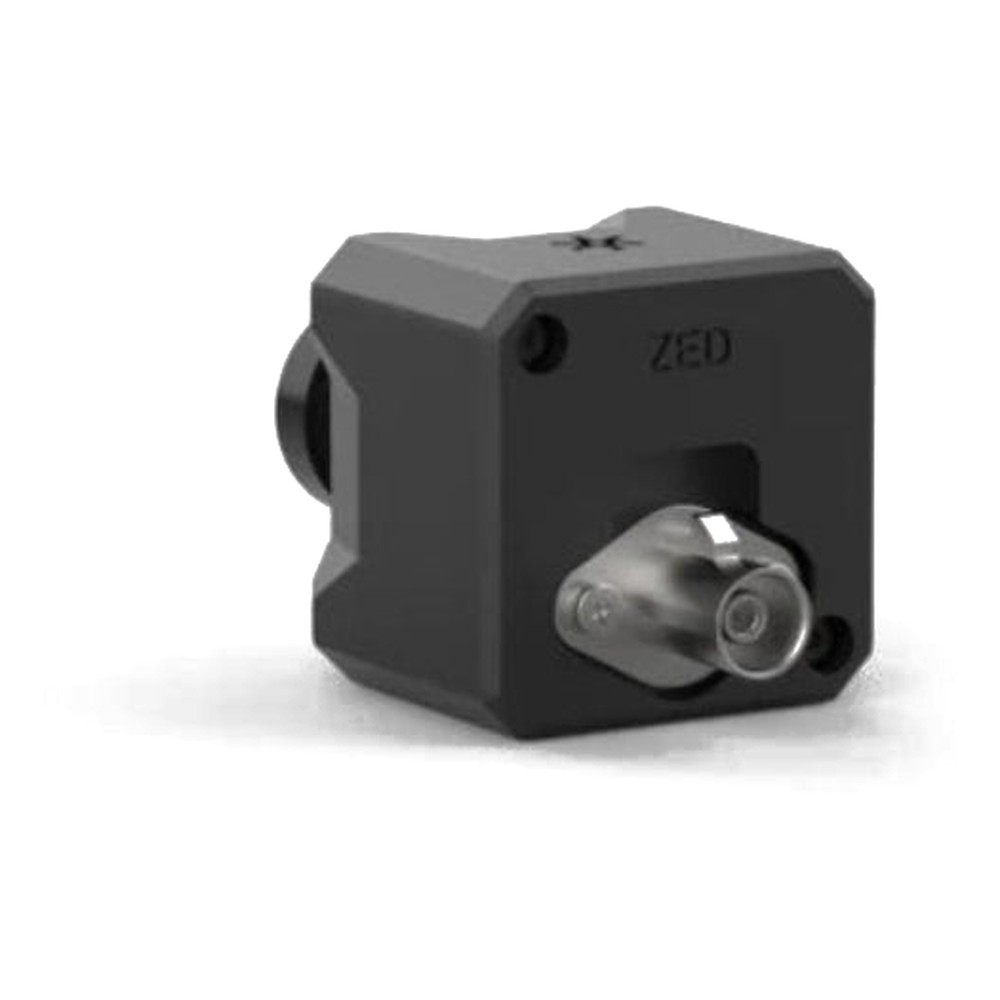

Video and power share one GMSL2 coax link on a lockable FAKRA Z connector, with runs of up to 15 m to an NVIDIA Jetson Orin host on Jetson Linux (L4T) v35.1 or newer. Hardware synchronization within 15 microseconds aligns several ZED-X-ONE-4K-NO-LENS cameras looking at the same part from different angles. At 4K, the ZED-LINK-DUO captures two cameras at 15 fps and the ZED-LINK-QUAD four.
The camera draws 0.92 W at 12 V over GMSL2 and carries a Bosch BMI088 six-axis IMU at 200 Hz. It mounts on four M4 threads or a 1/4″-20 adapter plate. Stereolabs lists CE, REACH, RoHS and TSCA compliance and a two-year warranty. We supply it tested with the GMSL2 cables, capture card and Jetson host for your station, with drivers configured before it ships.
ZED-X-ONE-4K-NO-LENS Specifications
| Overview | |
|---|---|
| Brand & Model | Stereolabs ZED-X-ONE-4K-NO-LENS (ZED-421010) |
| Camera | |
| Camera Type | Monocular |
| Camera Interface | GMSL2 [FAKRA Z] |
| Image Sensor | 8.4MP 1/1.8" [2µm] |
| Video Modes | 3840x2160 @ 15fps 960x600 @ 120fps |
| Shutter Type | Rolling Shutter |
| Lens | No Lens |
| Motion Sensors | 6-axis IMU [200Hz] |
| Compatible Hosts | NVIDIA Jetson Orin NVIDIA Jetson Xavier |
| Environmental Conditions | |
| Certification | CE REACH RoHS TSCA |
- ZED-X-ONE-4K-NO-LENS Datasheet Download
Official Stereolabs USA Distributor
Things Embedded is an official Stereolabs USA distributor, and we supply the ZED-X-ONE-4K-NO-LENS tested with the matching GMSL2 cable and a ZED Link capture card or ZED Box, with JetPack and the ZED SDK configured on the host before it ships. Within the Vecow range, the ZED-X-ONE-4K-WIDE ships with a 3.1 mm wide lens fitted for a 110° horizontal view.
Across our range, the ZED-X-ONE-4K-NO-LENS sits with our inspection and vision cameras, GMSL2 cameras and Stereolabs cameras and accessories.
