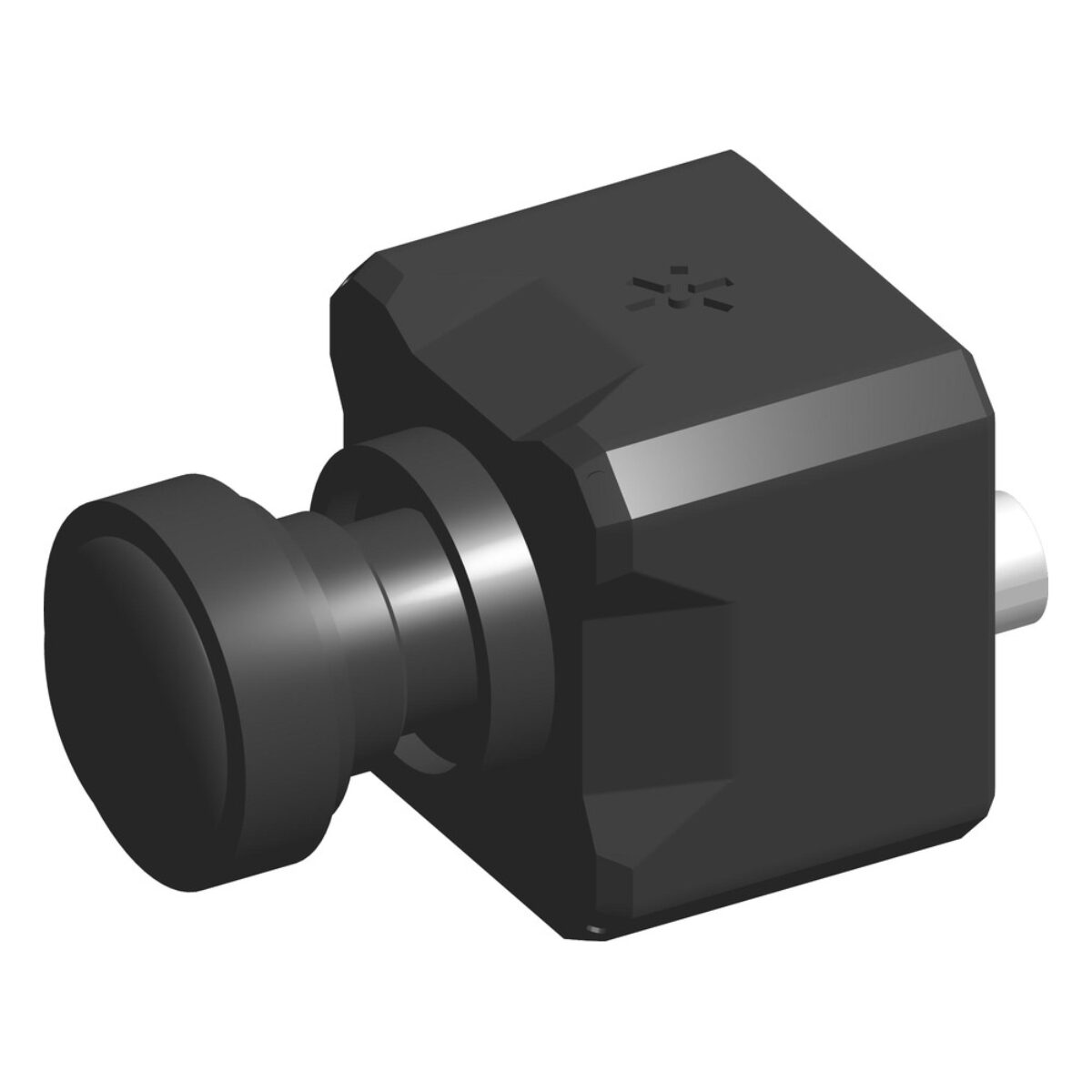

Stereolabs ZED-X-ONE-4K-WIDE (ZED-422010) 8.4MP GMSL2 4K HDR Camera with Wide 3.1 mm Lens, 110° Field of View and Hardware Sync
CEZED-X-ONE-4K-WIDE Overview
Reading a small barcode or spotting a scratch across a full tray asks for resolution and coverage at the same time. The Stereolabs ZED-X-ONE-4K-WIDE pairs a 3.1 mm f/2.0 lens and a 110° horizontal field of view with the 8.4MP HDR sensor of the ZED-X-ONE-4K series, so one camera can watch a broad inspection area at 4K. Where the station calls for a different focal length, the ZED-X-ONE-4K-NO-LENS takes your own lens.
The full field is 110°(H) x 72°(V) x 119°(D), with TV distortion under 5.85%. The 1/1.8″ sensor delivers 3840 x 2160 at 15 fps, 1920 x 1080 at up to 60 fps in cropping mode and 960 x 600 at up to 120 fps in binning mode, in RAW12 or YUV 4:2:2. HDR and 85 dB dynamic range hold detail on bright labels and dark recesses together, and exposure, gain, gamma and white balance are under low-level control. The rolling shutter suits static or slow-moving subjects.
GMSL2 on a lockable FAKRA Z connector carries video and power over one coax cable of up to 15 m to an NVIDIA Jetson Orin host on Jetson Linux (L4T) v35.1 or newer. Several ZED-X-ONE-4K-WIDE cameras can be hardware-synchronised within 15 microseconds to inspect one part from several sides. At 4K and 15 fps, the ZED-LINK-DUO captures two cameras and the ZED-LINK-QUAD four on a Jetson AGX Orin.
The camera draws 0.92 W at 12 V over GMSL2 and carries a Bosch BMI088 six-axis IMU at 200 Hz. It mounts on four M4 threads or a 1/4″-20 adapter plate. Stereolabs lists CE, REACH, RoHS and TSCA compliance and a two-year warranty. We supply it tested with the GMSL2 cables, capture card and Jetson host for your inspection cell, with drivers configured before it ships.
ZED-X-ONE-4K-WIDE Specifications
| Overview | |
|---|---|
| Brand & Model | Stereolabs ZED-X-ONE-4K-WIDE (ZED-422010) |
| Camera | |
| Camera Type | Monocular |
| Camera Interface | GMSL2 [FAKRA Z] |
| Image Sensor | 8.4MP 1/1.8" [2µm] |
| Video Modes | 3840x2160 @ 15fps 960x600 @ 120fps |
| Shutter Type | Rolling Shutter |
| Lens | Wide |
| Field of View | 110°H x 72°V x 119°D [3.1mm] |
| Motion Sensors | 6-axis IMU [200Hz] |
| Compatible Hosts | NVIDIA Jetson Orin NVIDIA Jetson Xavier |
| Environmental Conditions | |
| Certification | CE REACH RoHS TSCA |
| Mechanical Properties | |
| Weight | 59 g (2.1 oz) |
| Dimensions | 31mm x 31mm x 58mm (1.22" x 1.22" x 2.29") |
- ZED-X-ONE-4K-WIDE Datasheet Download
Official Stereolabs USA Distributor
Things Embedded is an official Stereolabs USA distributor, and we supply the ZED-X-ONE-4K-WIDE tested with the matching GMSL2 cable and a ZED Link capture card or ZED Box, with JetPack and the ZED SDK configured on the host before it ships. Within the Vecow range, the ZED-X-ONE-4K-NO-LENS has no lens fitted, so you can pair the same 8.4MP sensor with your own optic.
Across our range, the ZED-X-ONE-4K-WIDE sits with our industrial camera range, GMSL cameras and Stereolabs USA range.
