Vecow EAC-5100 NVIDIA Jetson AGX Orin Industrial Fanless PCs with PoE+

Camera-heavy AI on machines and vehicles usually needs three things at once: power for the cameras, a link to the vehicle network and enough GPU for the models. The Vecow EAC-5100 series puts all three in one unit, with four PoE+ camera ports, two isolated CAN FD ports and the NVIDIA Jetson AGX Orin module in a 69 mm high industrial fanless PC. That removes a separate PoE switch and CAN gateway from the build, which simplifies wiring on a machine where space and power are limited.

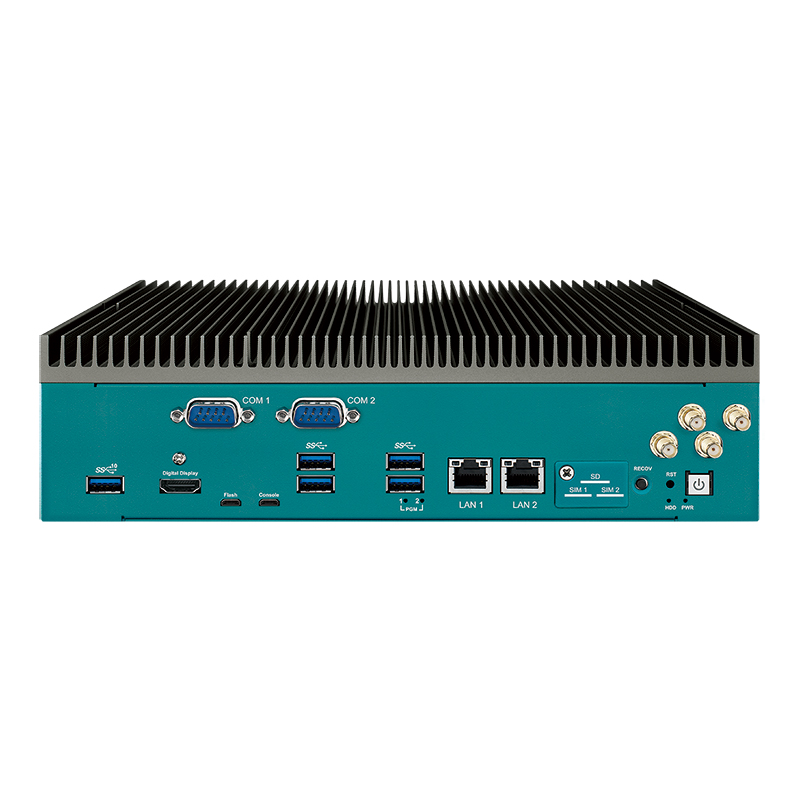

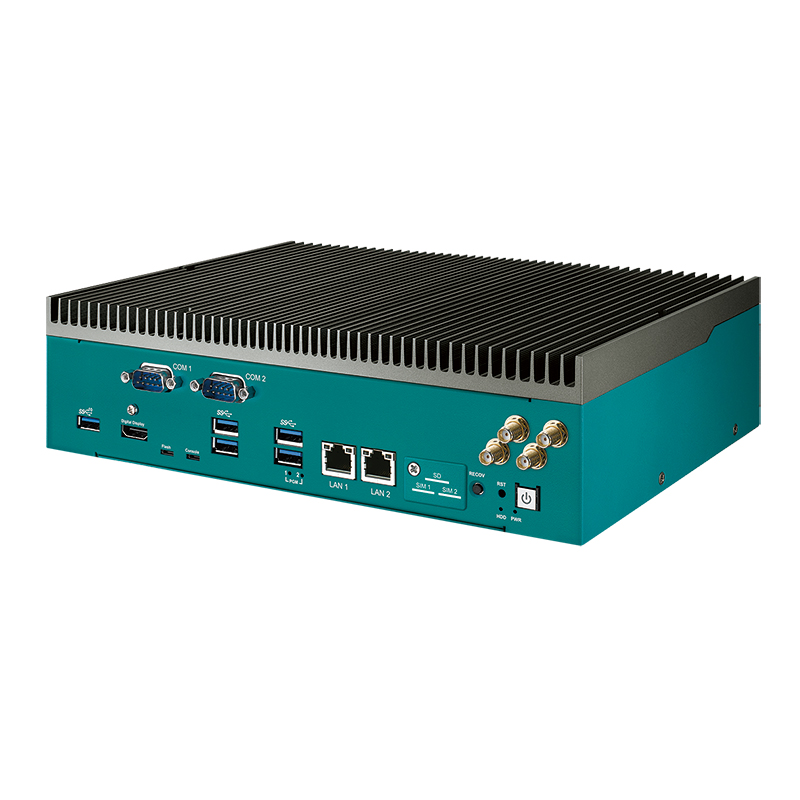

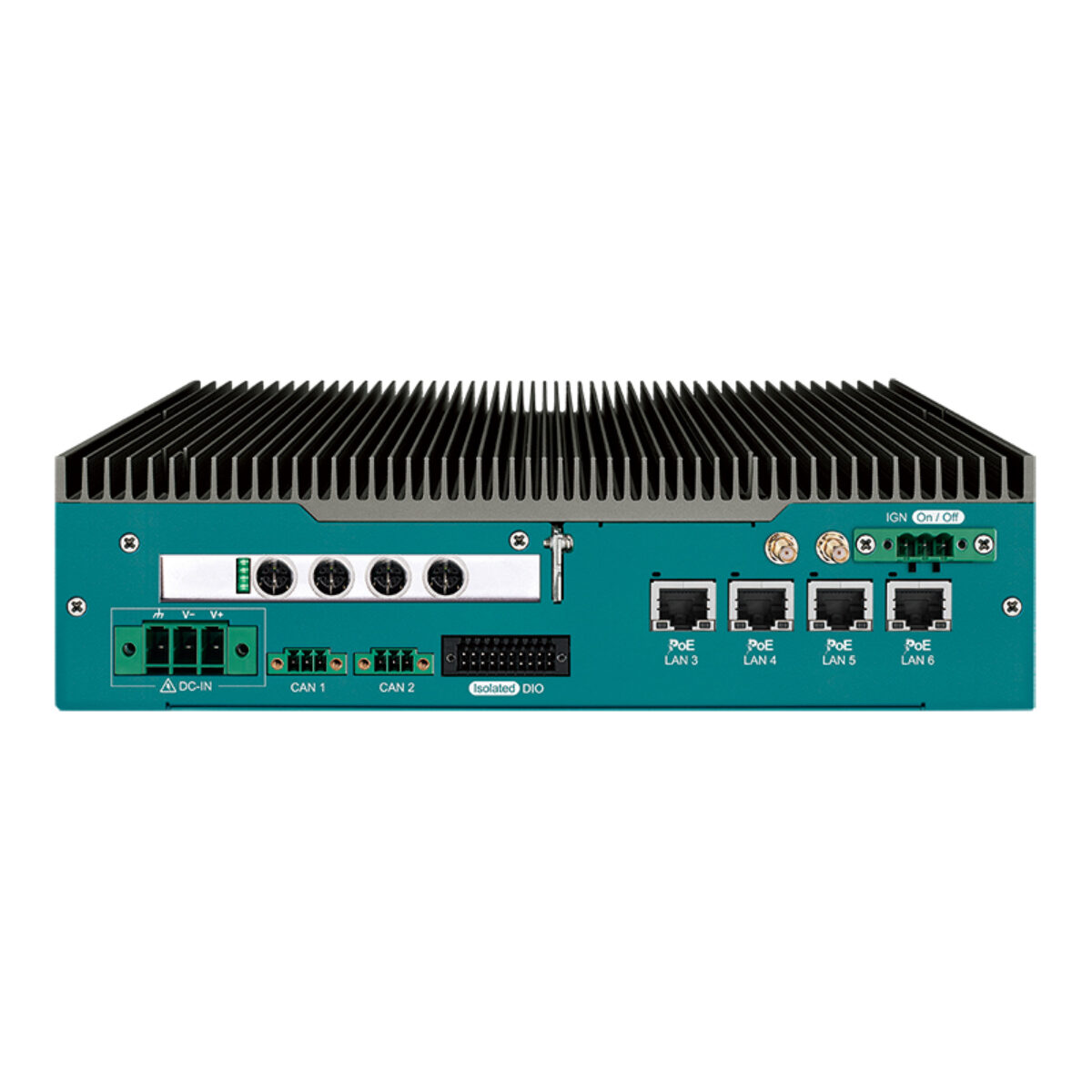

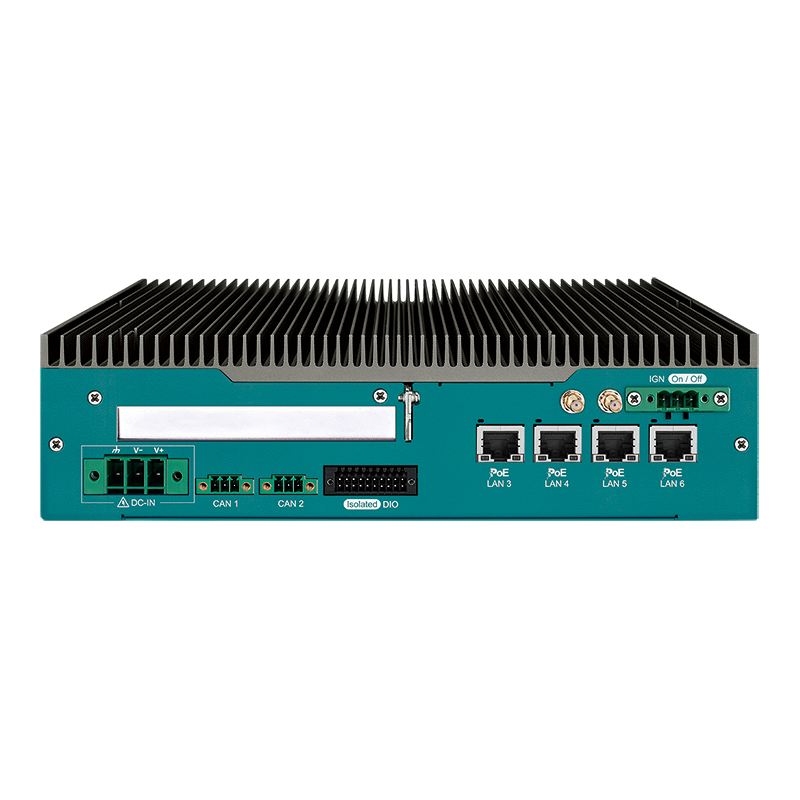

Both EAC-5100 models share the same design. The AGX Orin module runs Linux and the JetPack SDK with 64 GB of eMMC, two M.2 Key M NVMe sockets and a micro SD slot. Four IEEE 802.3at GbE PoE+ ports and two GbE LAN, all with optional X-coded M12, connect cameras and the site network, while two isolated CAN FD ports, 16 isolated DIO, two COM ports and five USB 3.1 ports handle machine control. A PCIe x8 slot takes an extra 10GbE, PoE or USB card, and Vecow supports Allxon remote management.

The two models differ by module. The EAC-5100-R64 carries the AGX Orin 64GB with a 12-core Arm Cortex-A78AE CPU and a 2048-core Ampere GPU with 64 Tensor cores, rated by Vecow at up to 275 TOPS. The EAC-5100-R32 uses the AGX Orin 32GB with an 8-core CPU and a 1792-core GPU with 56 Tensor cores, a fit for lighter models and tighter power budgets. Both share the same chassis and software image, so a project can move between modules as model sizes change.

EAC-5100 industrial fanless PCs typically serve real-time video analytics, autonomous mobile robots and agricultural machinery. A 9 V to 50 V DC input with 16-mode software ignition control suits vehicle and site power, and the 260 x 182 x 69 mm, 3.8 kg unit is rated from -20 °C to 70 °C in 30 W mode, with MIL-STD-810G operating shock and vibration and EN 50155 and EN 50121-3-2 EMC listings. Wall mounting is standard, with DIN-rail and VESA kits optional for fitting to a machine frame or a roadside cabinet.
