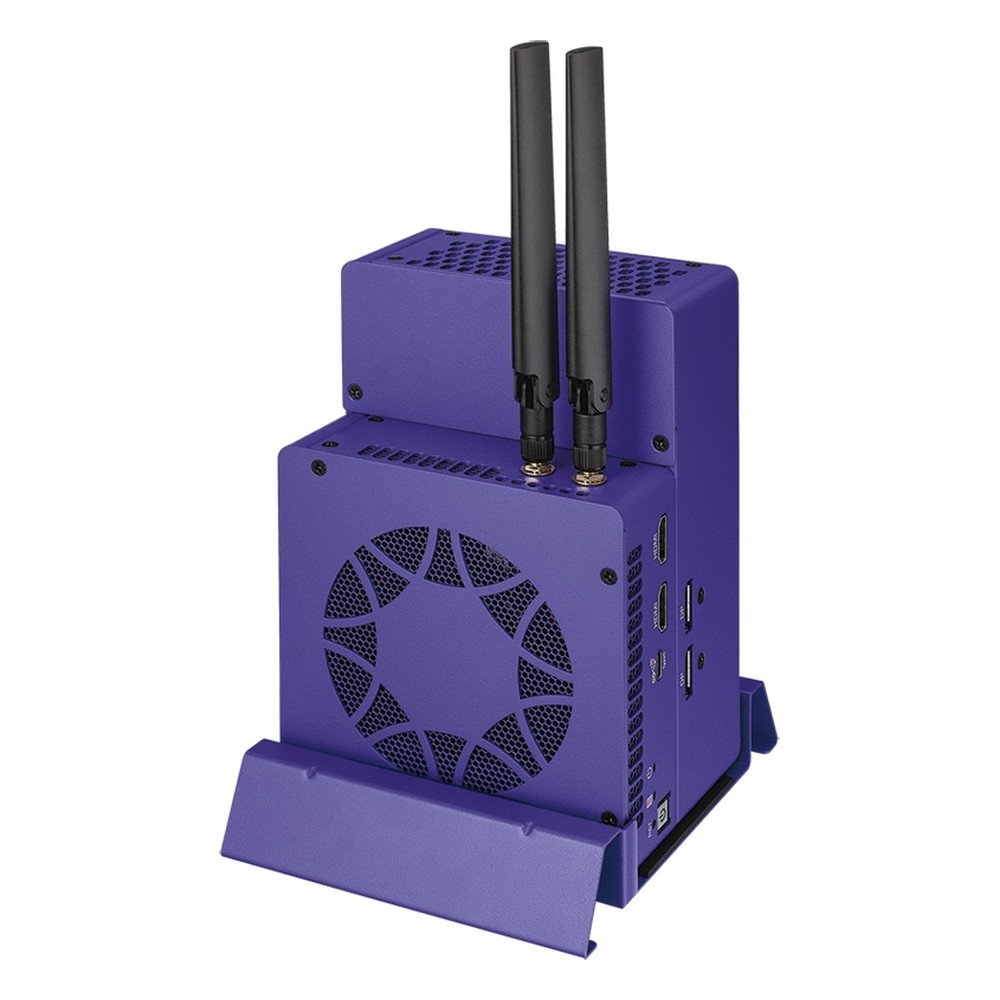

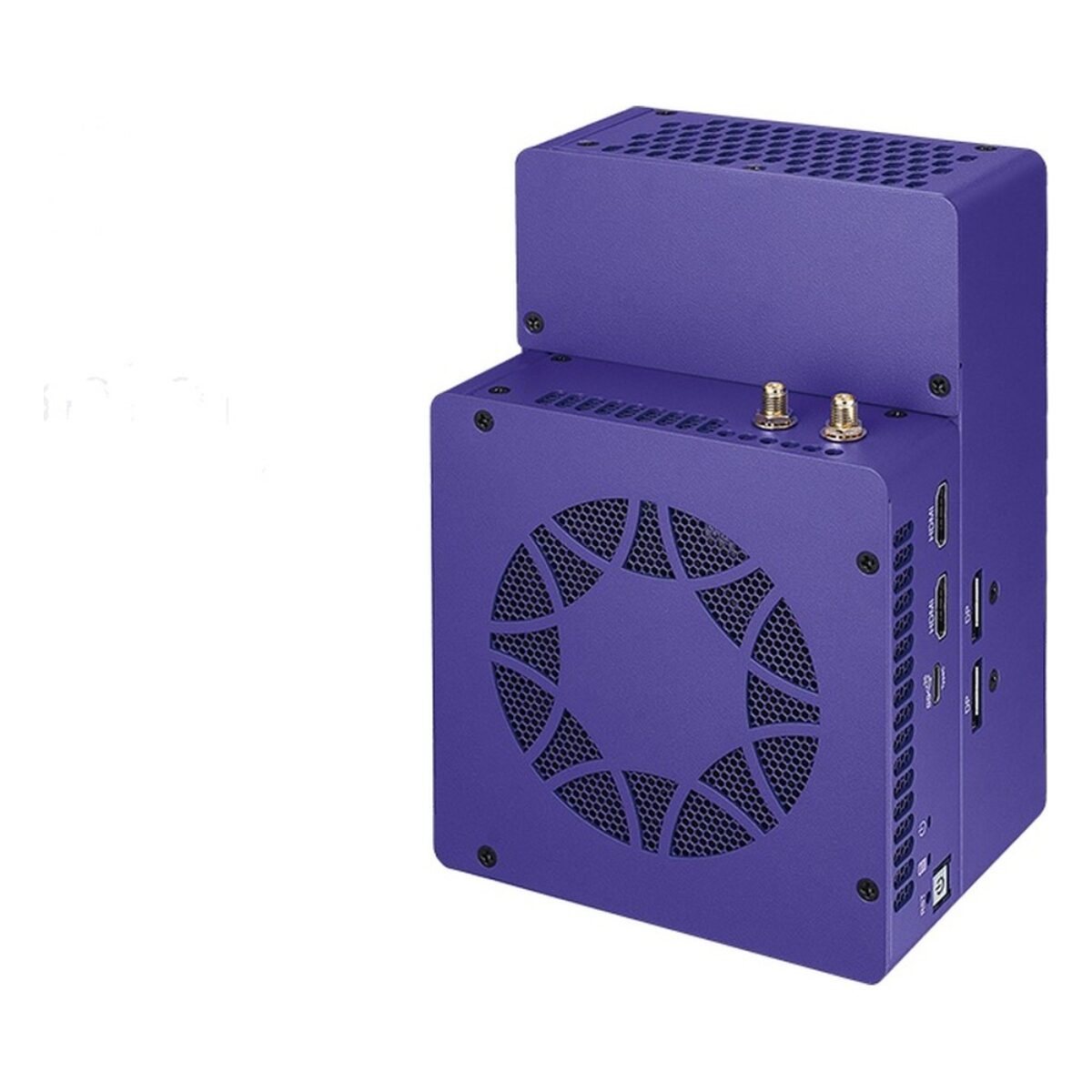

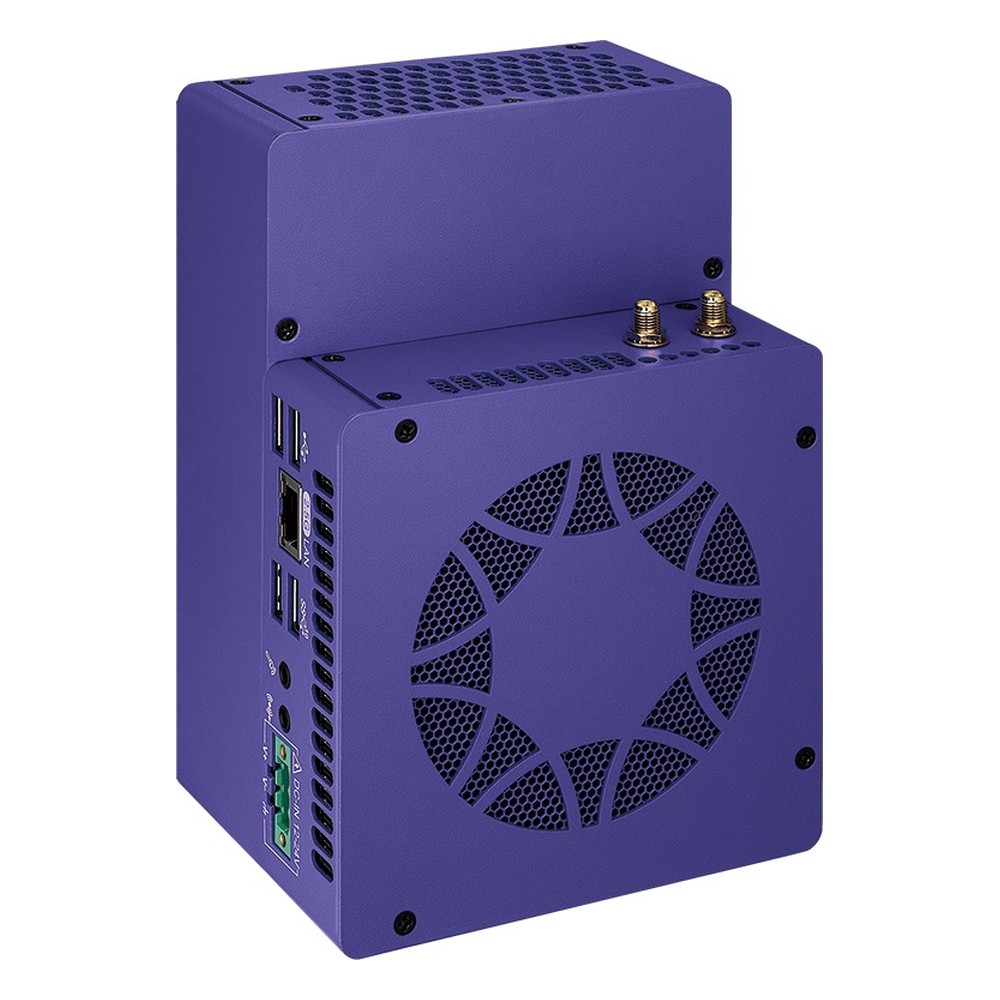

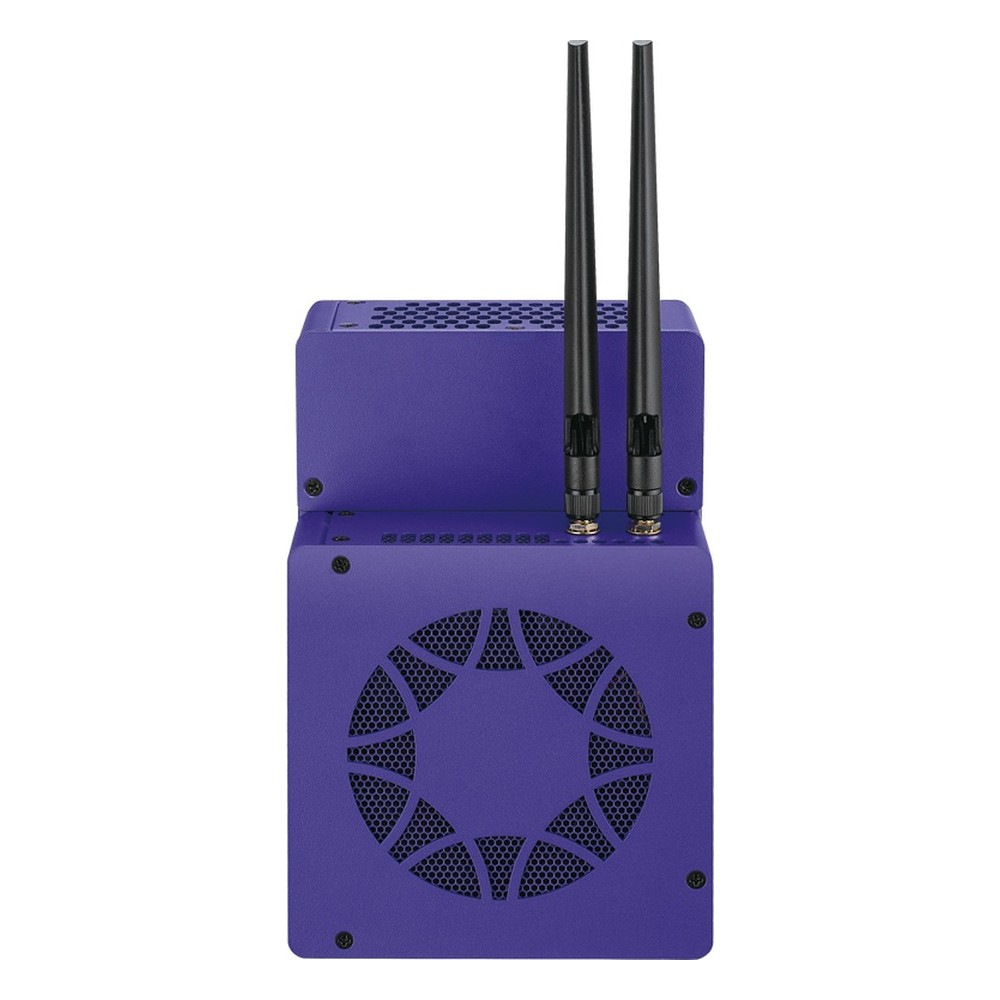

Vecow TGS-1550-135H Intel Core Ultra 5 Embedded Industrial PC with Optional Type B MXM GPU, 2.5GbE TSN and Dual NVMe

In GPU-led systems the discrete card often sets the pace, and the processor mainly feeds it. The Vecow TGS-1550-135H reflects that within the TGS-1000 series: a deeper MXM layer for an optional Type B MXM GPU by request, on the Core Ultra 5 135H.

The Intel Core Ultra 5 135H is a Meteor Lake-H processor with 14 cores, built-in Intel Arc graphics and an Intel AI Boost NPU. Two DDR5 5600 SO-DIMM sockets take up to 96 GB. With a Type B MXM GPU fitted, the TGS-1550-135H can run heavier models and multi-display output while keeping the processor free for the application, on Windows 11 or Linux.

Networking is a single Intel I226 2.5GbE port with TSN support. Displays run from two HDMI 2.1 outputs at up to 4096 x 2304 at 60 Hz, DisplayPort 1.4 through the USB-C port and two more DisplayPort 1.4 outputs from the MXM layer when a GPU is fitted, for up to five independent displays. USB covers two USB 3.2 Gen 2 Type-A, two USB 2.0 and one USB 3.2 Gen 2×2 Type-C, with mic-in and line-out audio. Storage is two M.2 M key sockets on PCIe 4.0 x4, one 2280 and one 2242, and an M.2 E key socket takes an optional Wi-Fi and Bluetooth module.

Power is 24 V DC only, on a three-pin terminal block, with Vecow recommending its 280 W wide-temperature adapter. The TGS-1550-135H is fan-cooled and rated from 0 °C to 45 °C with airflow, with shock and vibration tested to IEC 61373. Vecow lists CE, FCC and ICES marks and EN 50155 and EN 50121-3-2 compliance. It wall-mounts as standard, with an optional table stand. We supply it configured and tested, with memory, storage and any agreed GPU fitted. The TGS-1550-165H moves to a Core Ultra 7, and the TGS-1500-135H takes a Type A MXM GPU.
