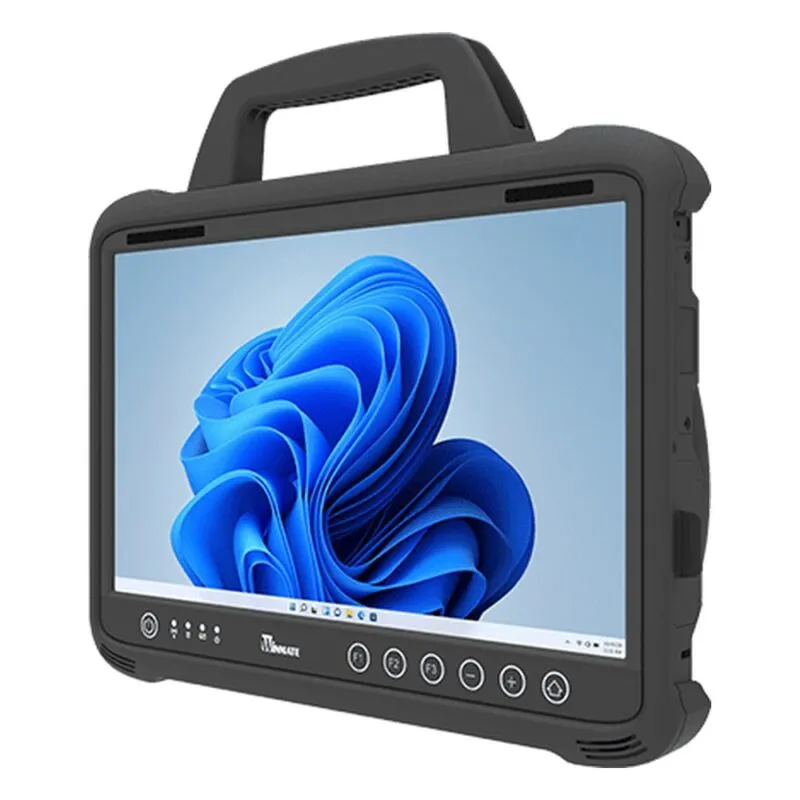

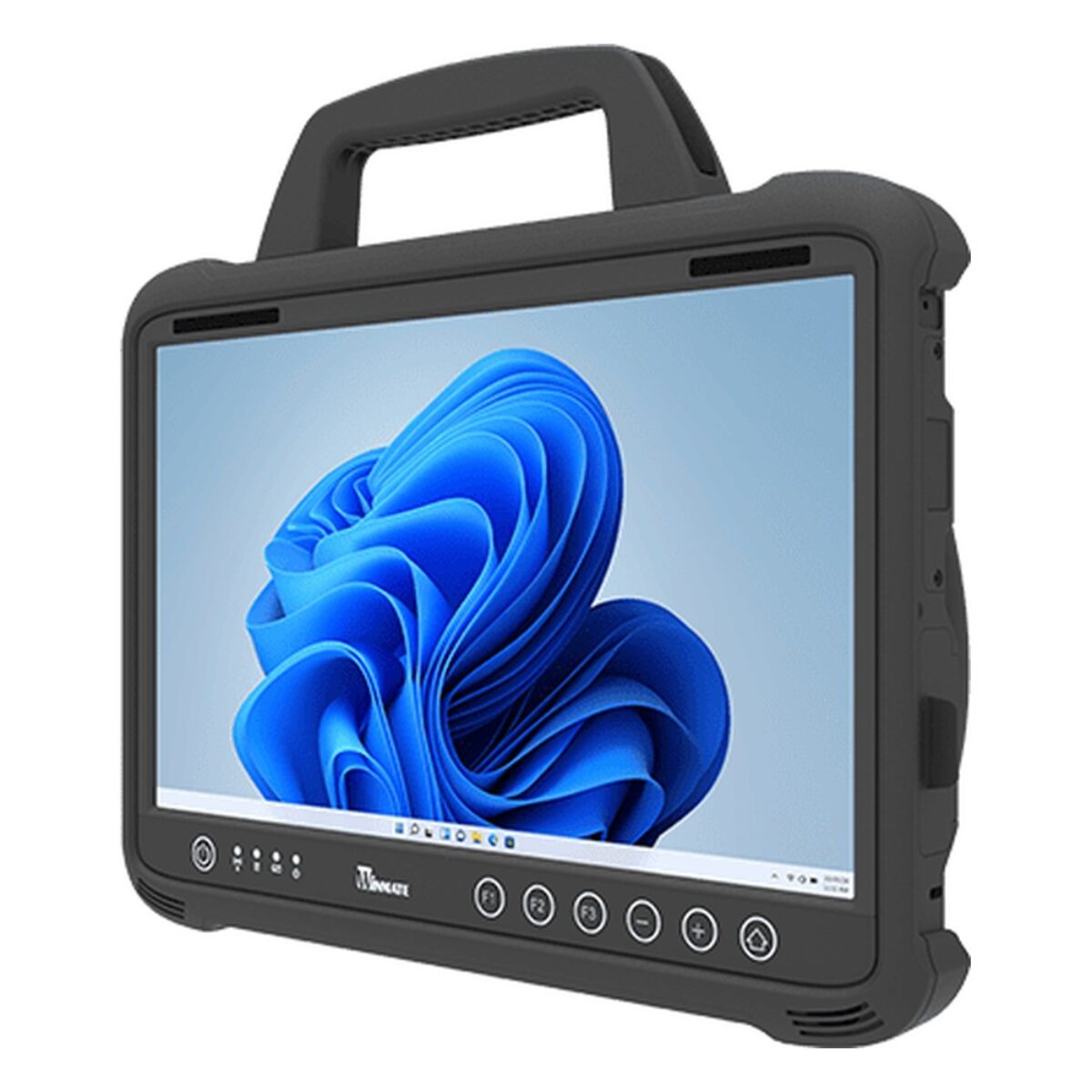

Winmate M133MT 13.3″ Military Rugged Tablet with Intel Core Ultra 5 125U and MIL-STD-461G

Defense and field engineering teams often still need to plug a tablet into serial equipment, a wired network and several USB devices at once, without carrying a dongle bag. The M133MT is Winmate’s 13.3″ military rugged tablet for that work, with an Intel Core Ultra 5 125U, MIL-STD-461G EMC listing and a full set of ports in an IP65 housing.

The Core Ultra 5 125U runs from 2.1 GHz with turbo up to 4.3 GHz and adds an integrated NPU for local AI inference. Memory is 8 GB as standard with 16 GB or 32 GB optional, and storage is a 128 GB SSD with options up to 2 TB. TPM 2.0 and a Kensington lock slot are included, with Windows 11 IoT Enterprise LTSC installed. The 13.3 inch 1920 x 1080 IPS screen gives 500 nits, 1000:1 contrast and 178 degree viewing angles with optical bonding and projected capacitive multi-touch.

Connections are generous for a tablet: three USB 3.0 Type-A and two USB 2.0 Type-A ports, one USB 3.0 Type-C port, an RJ45 Gigabit LAN port, an RS-232 port on a DB9 connector, a full-size SDXC slot and a docking connector. Wi-Fi, Bluetooth and GPS/GLONASS are built in, with 4G LTE optional, and an 8MP autofocus rear camera is fitted. A 1D/2D barcode reader and HF RFID are optional. Within the Winmate range the M133TG is the same tablet with an Intel Core i5-1135G7, and the M133TGML(HB) is the defense build with MIL-DTL-38999 connectors.

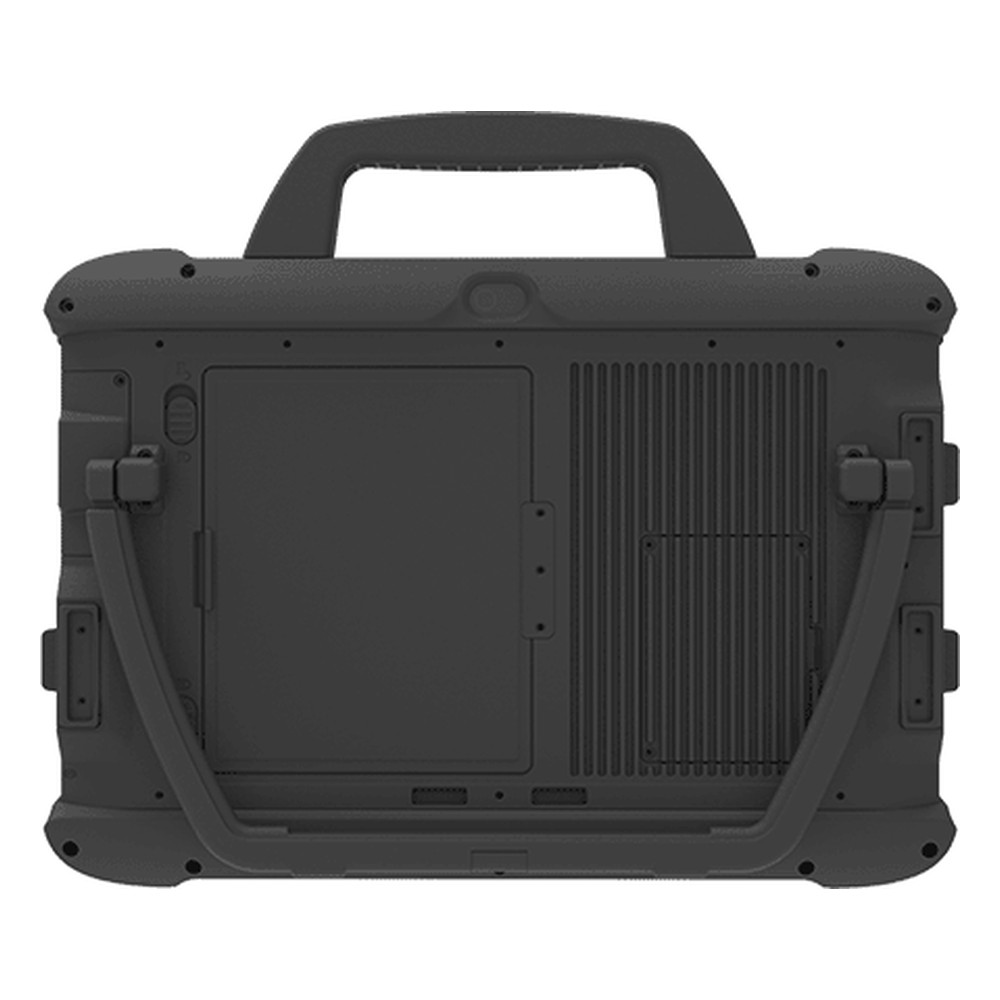

Winmate lists MIL-STD-461G methods CE101, CE102, RE101, RE102 and CS118 as standard, and the M133MT is tested to MIL-STD-810G methods for shock, vibration and a 4 ft drop. It operates from -20 °C to 60 °C. A 5900 mAh battery is standard, with a hot-swap battery optional. Power is 19 V DC, and an AC adapter and a stand with an integrated handle are supplied. We supply it configured, with the OS installed, and tested before dispatch, ready to deploy, and our team can advise on docks and vehicle mounting.
