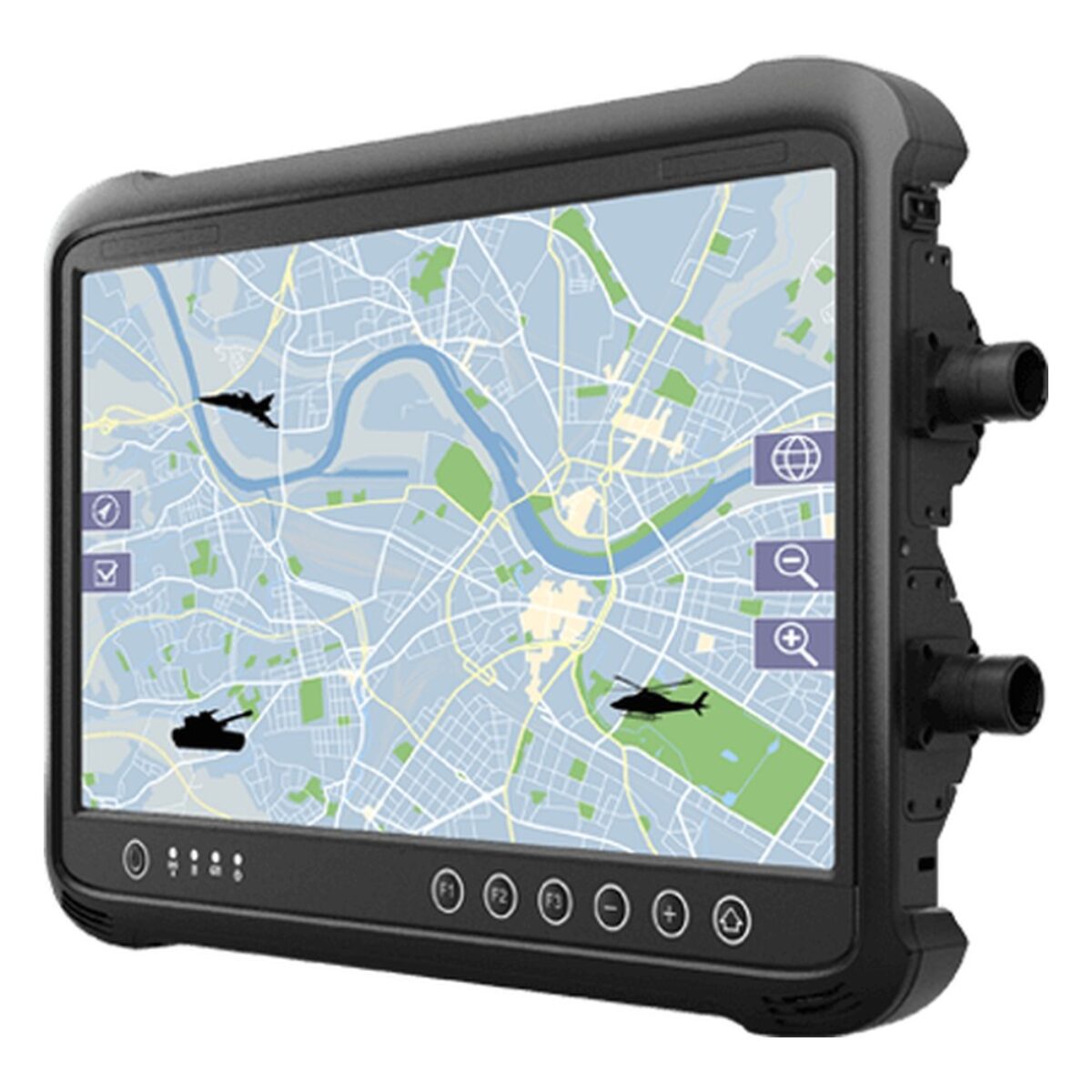

Winmate M133TGML(HB) 13.3″ Defense Rugged Tablet with Intel Core i5-1135G7 and MIL-DTL-38999 Connectors

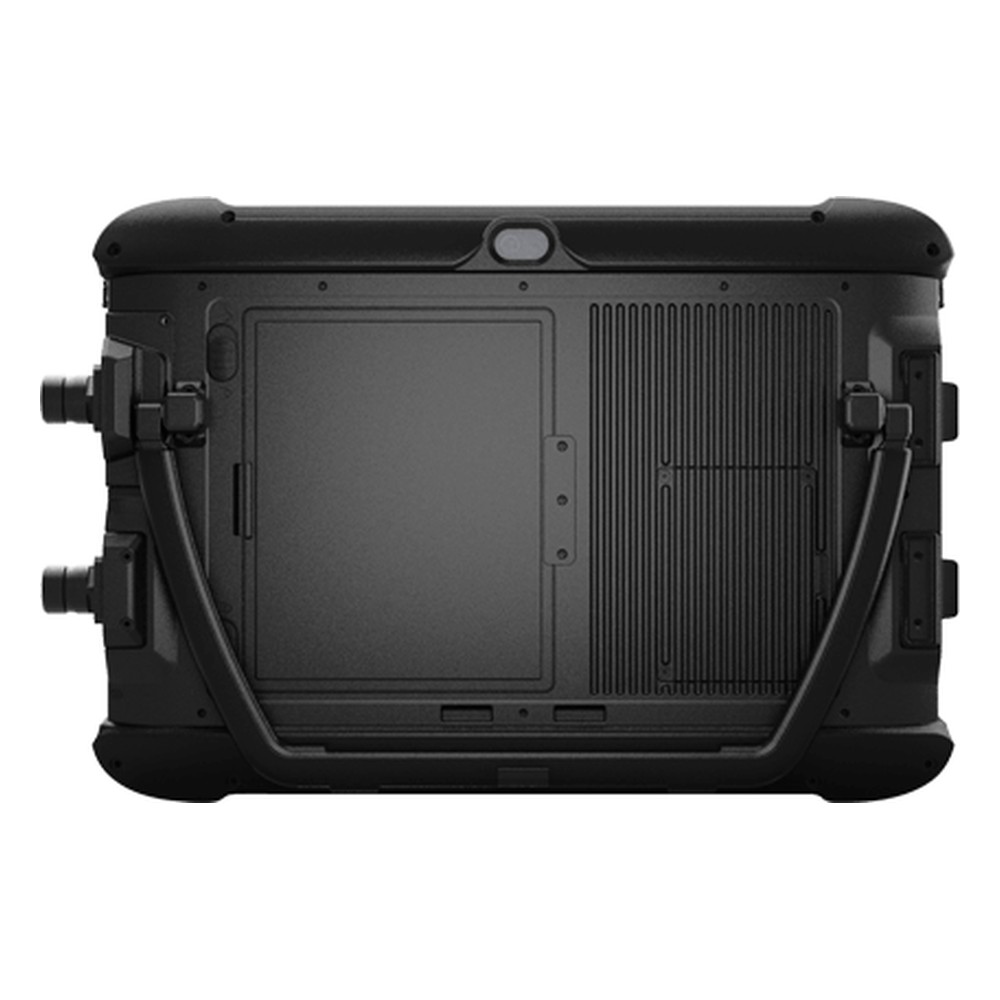

On defense vehicles and in field command posts, commercial plugs can work loose under vibration or let in dirt. The M133TGML(HB) is Winmate’s 13.3″ defense rugged tablet built for that setting, with an Intel Core i5-1135G7 and MIL-DTL-38999 circular connectors for its power, LAN, USB 2.0 and serial links, in an IP65 housing with a magnesium alloy rear.

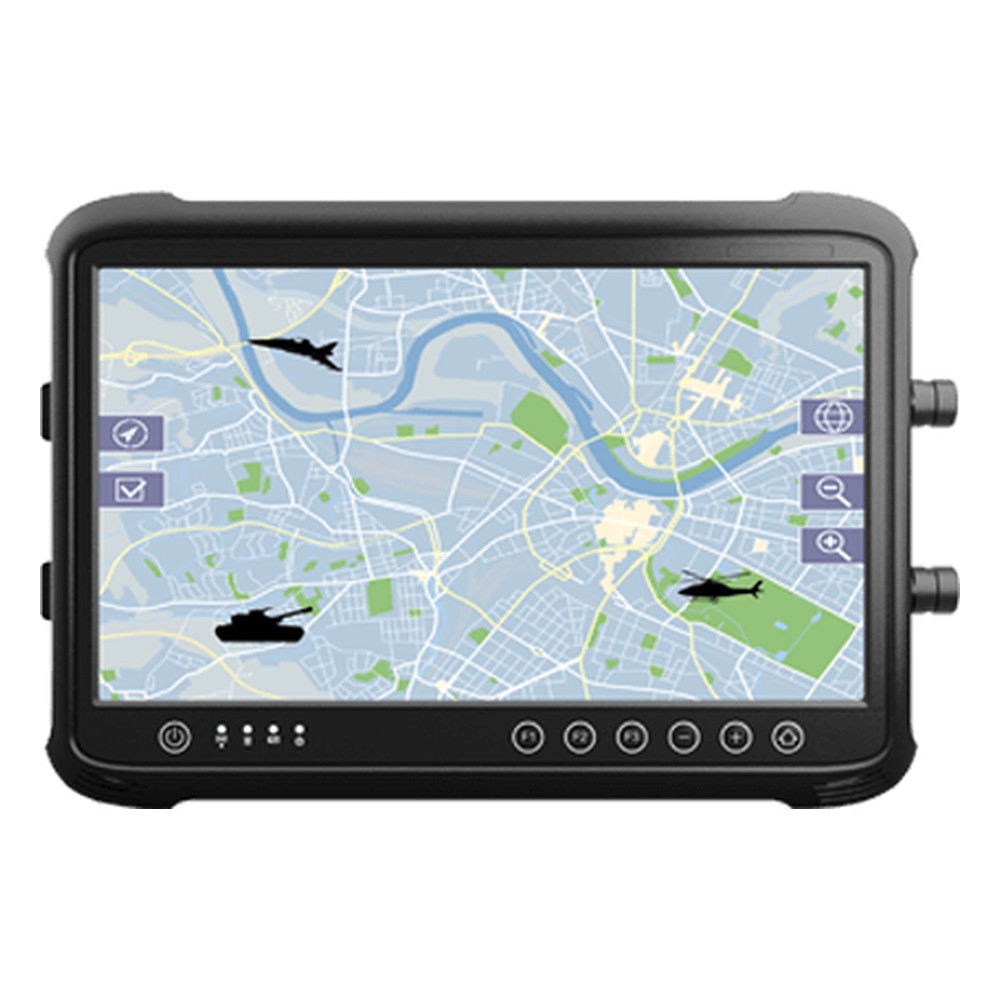

The Core i5-1135G7 runs from 2.4 GHz with turbo up to 4.2 GHz. Memory is 4 GB of DDR4 as standard with options up to 32 GB, and storage is a 128 GB M.2 SSD with options up to 2 TB plus an optional second M.2 SSD up to 2 TB and a micro SD slot. TPM 2.0 and a Kensington lock slot are included, and Windows is installed. The 13.3 inch 1920 x 1080 screen gives 500 nits as standard, with an optional 800 nit panel, 1000:1 contrast and projected capacitive multi-touch.

The MIL-DTL-38999 connectors carry 24 V DC power, Gigabit LAN, USB 2.0 and RS-232, and power/RS-232 and LAN/USB 2.0 breakout cables are supplied. Three USB 3.0 Type-A ports and one USB 3.1 Type-C port sit alongside. Wi-Fi, Bluetooth and GPS/GLONASS are built in, with 4G LTE optional, and an 8MP autofocus rear camera is fitted. Within the Winmate range the M133TG is the same size with standard connectors and 19 V DC input, and the M133MT uses an Intel Core Ultra 5 125U.

The M133TGML(HB) is tested to MIL-STD-810H methods for shock, vibration and a 4 ft drop, and operates from -10 °C to 50 °C. Winmate lists STANAG 4370 / AECTP 400 testing and NSTISSAM TEMPEST/192 or SDIP27 TEMPEST as options. Winmate quotes more than 10 hours from the 5900 mAh battery on BAPCo TabletMark v3, and a stylus and a stand with an integrated handle are supplied. We supply it configured, with the OS installed, and tested before dispatch, ready to deploy, and our team can talk through cabling and options for your program.
