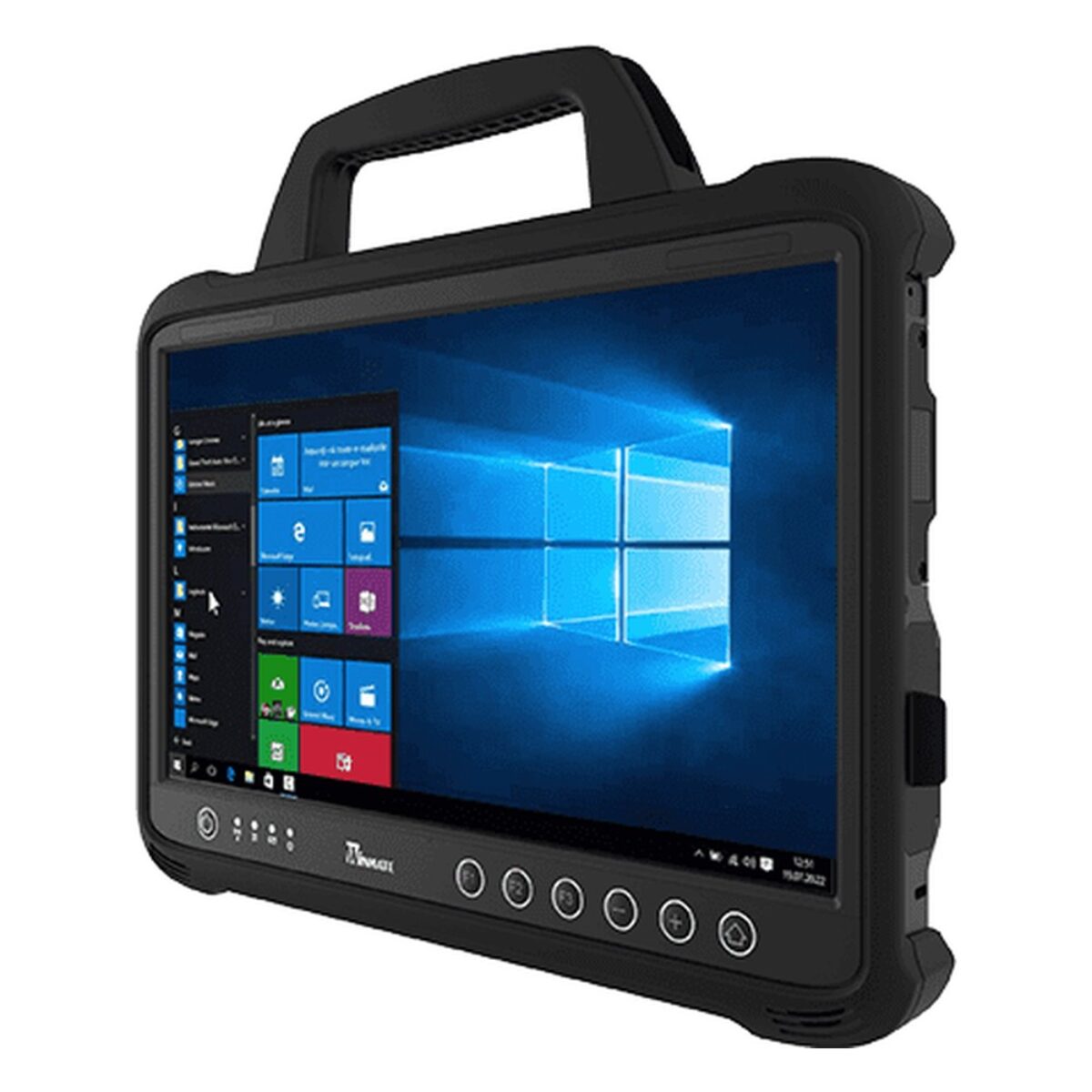

Winmate M133TG 13.3″ Rugged Tablet PC with Intel Core i5-1135G7, IP65 and MIL-STD-461G

A tablet used on vehicles, test benches and field sites often has to connect to serial equipment and wired networks as well as run a full Windows toolset. The M133TG is Winmate’s 13.3″ military rugged tablet for that work, with an Intel Core i5-1135G7, MIL-STD-461G EMC listing and a full set of ports in an IP65 magnesium alloy housing.

The Core i5-1135G7 runs from 2.4 GHz with turbo up to 4.2 GHz. Memory is 8 GB as standard with 16 GB or 32 GB optional, and storage is a 128 GB SSD with options up to 2 TB. TPM 2.0 and a Kensington lock slot are included, with Windows 11 IoT Enterprise LTSC installed. The 13.3 inch 1920 x 1080 IPS screen gives 500 nits, 1000:1 contrast and 178 degree viewing angles with optical bonding and projected capacitive multi-touch.

Connections are generous for a tablet: three USB 3.0 Type-A and two USB 2.0 Type-A ports, one USB 3.0 Type-C port, an RJ45 Gigabit LAN port, an RS-232 port on a DB9 connector, a full-size SDXC slot and a docking connector. Wi-Fi, Bluetooth and GPS/GLONASS are built in, with 4G LTE optional, and an 8MP autofocus rear camera is fitted. A 1D/2D barcode reader and HF RFID are optional. Within the Winmate range the M133MT is the same tablet with an Intel Core Ultra 5 125U and integrated NPU, and the M133TGML(HB) is the defense build with MIL-DTL-38999 connectors and 24 V DC input.

Winmate lists MIL-STD-461G methods CE101, CE102, RE101, RE102 and CS118 as standard, and the M133TG is tested to MIL-STD-810G methods for shock, vibration and a 4 ft drop. It operates from -20 °C to 60 °C, and Winmate quotes more than 10 hours from the 5900 mAh battery on BAPCo TabletMark v3, with a hot-swap battery optional. Power is 19 V DC, and an AC adapter and a stand with an integrated handle are supplied. We supply it configured, with the OS installed, and tested before dispatch, ready to deploy.
