Winmate R10L100-PPT2OD 10.4″ Sunlight Readable PCAP Panel Mount Monitor with 1000 Nit XGA and Front IP65
PCAP
High Bright
Extended Temp
Front IP65
CE
FCCR10L100-PPT2OD Overview

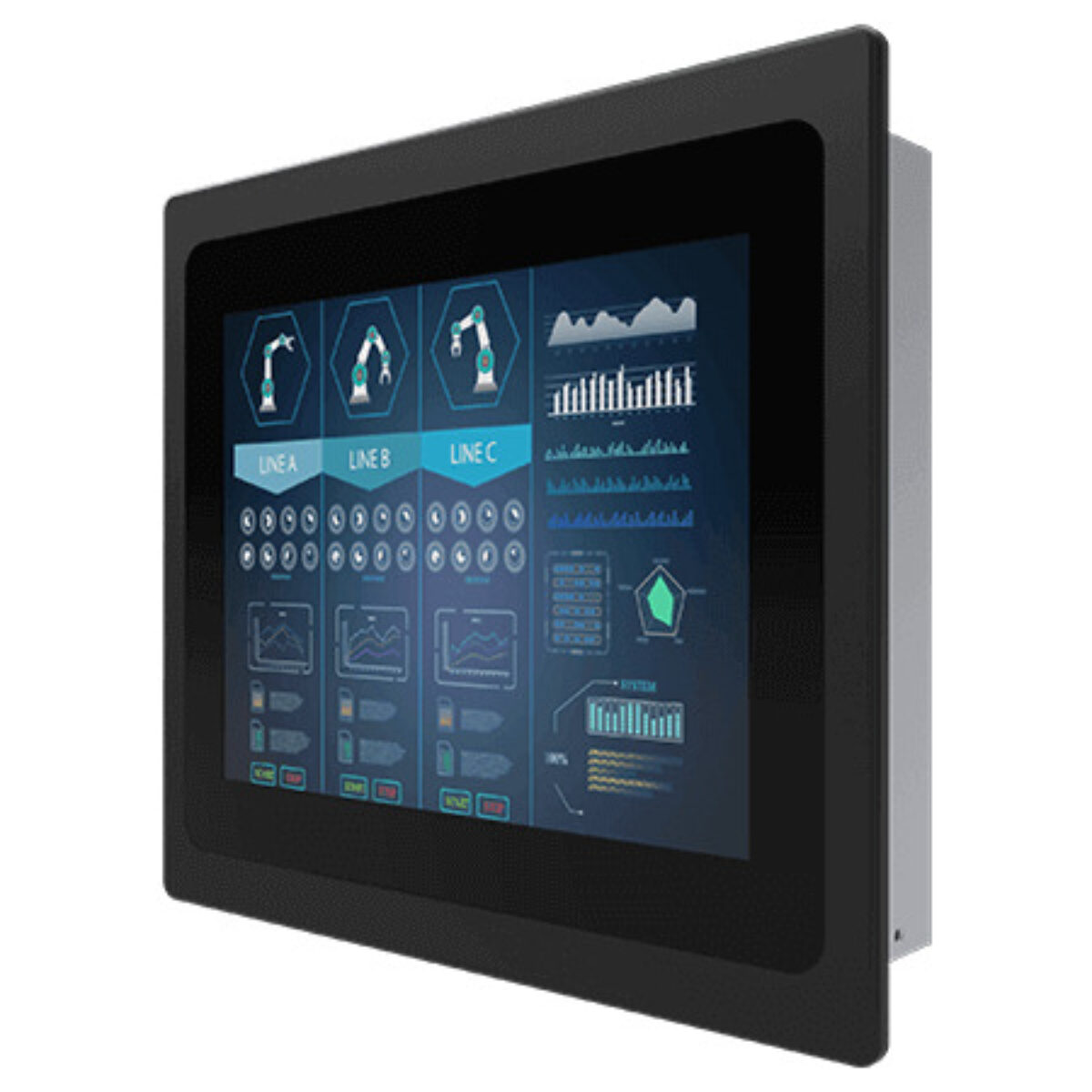

A panel mount screen on outdoor equipment has to stay readable in daylight and keep rain out of the enclosure it sits in. The R10L100-PPT2OD is Winmate’s 10.4 inch PCAP touch panel mount display for these jobs, with a 1000 nit panel and a front IP65 aluminum bezel.
The 10.4 inch LCD runs at 1024 x 768 with 1000 nits, a 1000:1 contrast ratio, 16.2M colors and 176° viewing angles. Winmate describes it as sunlight readable with a high brightness design. Projected capacitive multi-touch connects over USB, and five keys on the rear control the on-screen display.
Video comes in over VGA as standard, with HDMI and DVI available as options, and a 3.5 mm audio line-in with two speakers can be added. An optional UV film adds solar radiation protection for screens in direct sun, and an optional heater extends operation down to -25 °C. The R10L100-PCT2OD is the chassis version of this outdoor design, and the R12L100-PCM2OD offers a 12.1 inch chassis.
Power is 12 V DC, and Winmate supplies a 100 to 240 V AC adapter, power cord, VGA and HDMI cables and VESA screws. The monitor operates from -10 °C to 60 °C as standard, stores from -10 °C to 60 °C at 10 to 90% RH, non-condensing, and cools without a fan. It measures 284 x 252 x 55 mm, weighs 2.3 kg, fits a 262 x 218 mm cut-out or 75 x 75 mm VESA holes, and carries CE and FCC marks. Winmate names industrial visualization, control rooms and equipment monitoring as applications.
R10L100-PPT2OD Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R10L100-PPT2OD |
| Features | Fanless Industrial |
| Display | |
| Display | 10.4"[4:3, 1024 x 768, XGA] |
| Touch Controller | Multi Touch PCAP |
| Brightness | 1,000 Nits |
| Viewing Angle | Wide Viewing Angle |
| 176° Horizontal, 176° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 1000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Operating Temperature | -10°C to 60°C [14°F to 140°F] -25°C to 60°C [-13°F to 140°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 284mm x 252mm x 55mm (11.18" x 9.92" x 2.17") |
- R10L100-PPT2OD Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R10L100-PPT2OD configured for USA outdoor and industrial projects. Within the Winmate range the R10L100-PCT2OD is the VESA chassis version of this outdoor design, and the R10L100-GST2 adds full IP65 sealing with M12 connectors.
