Winmate R12L600-OFM2TR 12.1″ Transflective Open Frame Monitor with 600 Nit XGA LCD
Resistive
Fanless
CE
FCCR12L600-OFM2TR Overview

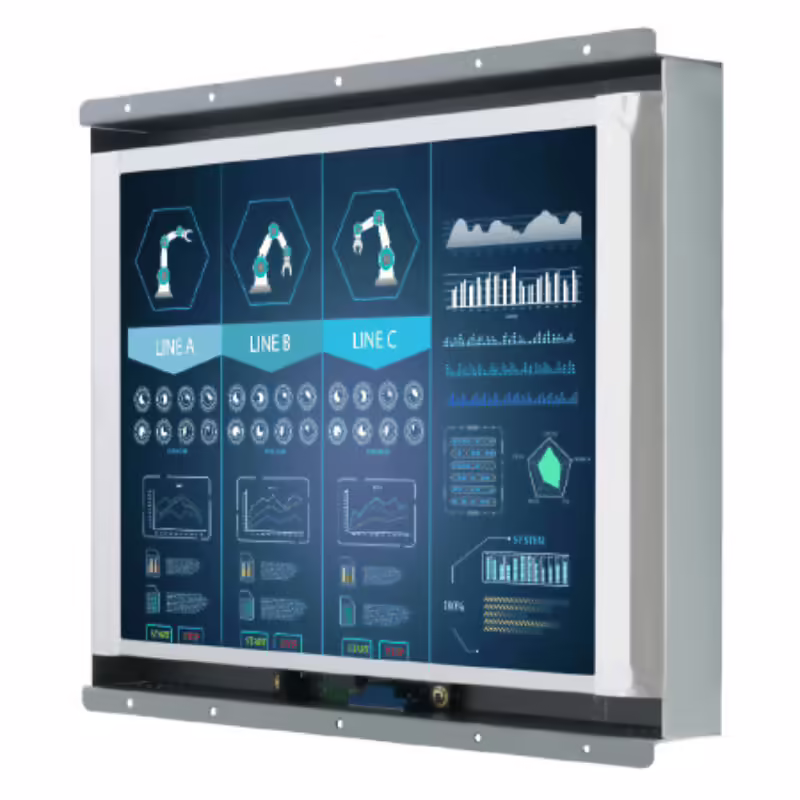

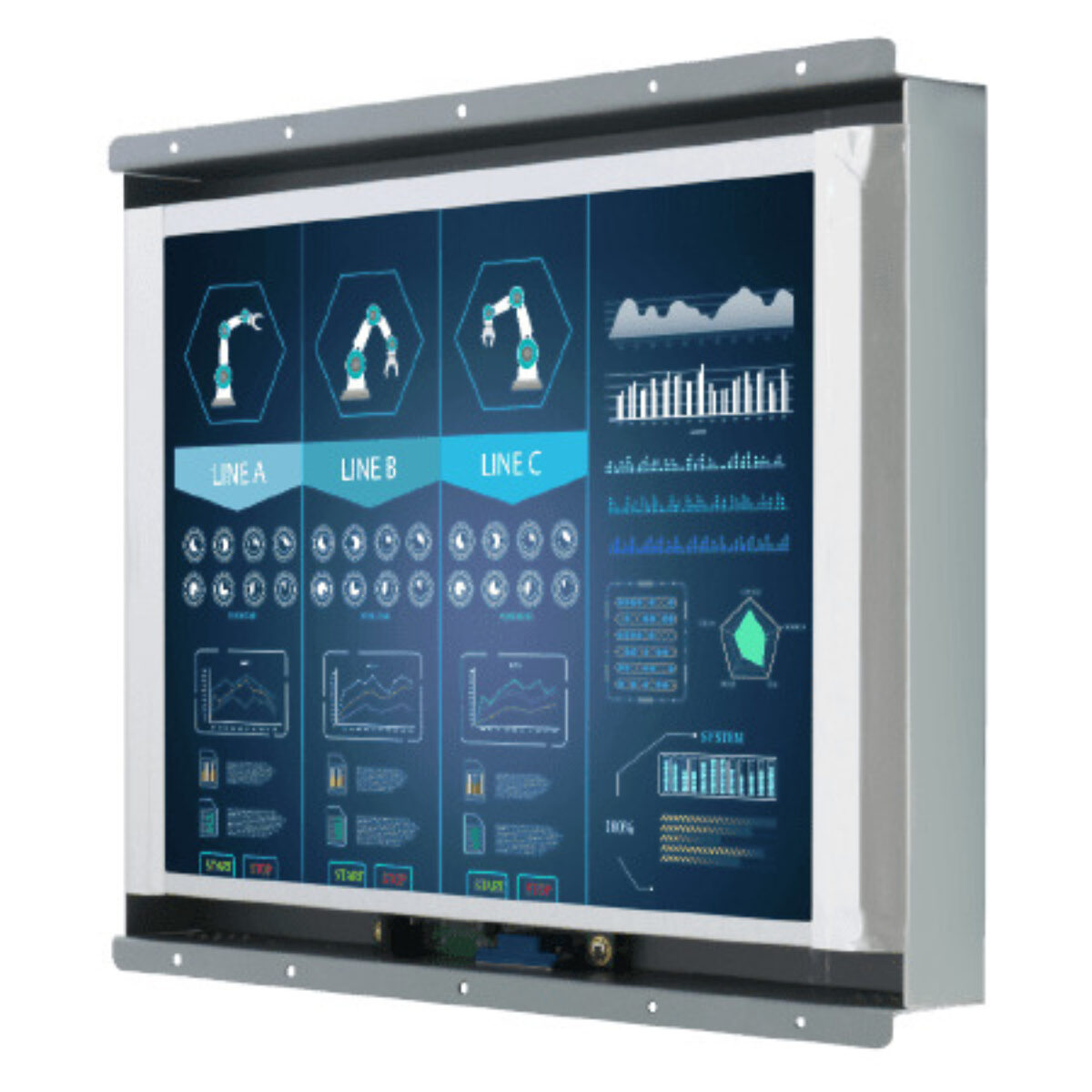

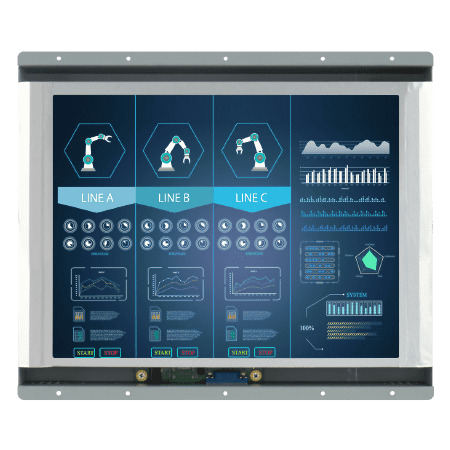

Terminals beside windows or under bright factory lighting can wash out, however hard a standard backlight works. The R12L600-OFM2TR is Winmate’s 12.1 inch open frame monitor with a transflective panel for those installs: a 1024 x 768 XGA display at 600 nits in a metal enclosure, fitted from behind on panel or VESA mounting.
A transflective panel reflects part of the incoming light back through the LCD, so bright surroundings help the picture rather than drown it. The panel has a 700:1 contrast ratio, 16.2 million colors and viewing angles of 160° horizontally and 140° vertically. Touch is chosen at order: resistive for gloved or stylus input, SAW for a clear glass surface, or protection glass alone for a display-only screen.

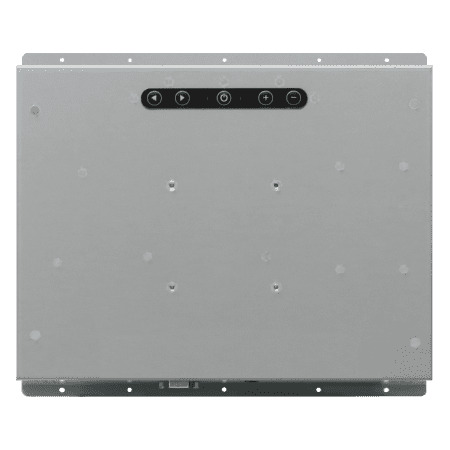

Video comes in over one VGA input, with HDMI and DVI inputs as options, so the monitor pairs with POS terminals, PLCs and controllers. One USB port serves the touch screen, a five-key OSD panel handles settings, and an optional 3.5 mm audio line-in with two speakers is available. The R12L600-OFM2HB is the 1000 nit high brightness version, and the R12L600-OFM2 is the 500 nit model with 178° viewing.
Power is 12 V DC, with a 100 to 240 V AC adapter supplied. The R12L600-OFM2TR is fanless, operates from 0 to 50 °C at 10 to 90% non-condensing humidity and stores from -10 to 60 °C. It measures 300 x 250 x 40 mm and takes panel mounting or 75 x 75 mm VESA mounting. Winmate names industrial visualization, control rooms, equipment monitoring, POS and POI environments, machines, factories and control centres as target applications.
R12L600-OFM2TR Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R12L600-OFM2TR |
| Features | Fanless Industrial |
| Display | |
| Display | 12.1"[5:3, 1280 x 800, WXGA] |
| Display Treatment | Protective Glass Transflective |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch Optional Surface Acoustic Wave Touch |
| Brightness | 600 Nits |
| Viewing Angle | Wide Viewing Angle |
| 160° Horizontal, 140° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 700:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x DVI Input 1x HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 300mm x 250mm x 40mm (11.81" x 9.84" x 1.57") |
- R12L600-OFM2TR Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R12L600-OFM2TR configured for USA terminal and machine builders. Within the Winmate range the R12L600-OFM2HB is the 1000 nit high brightness version, and the R12L600-OFM2 is the 500 nit model with 178° viewing for indoor use.
With a transflective panel the R12L600-OFM2TR sits among our open frame industrial monitors, our 4:3 monitors and our SAW touch monitors. Where ambient light is the main problem for a 12.1 inch terminal screen, this is the model to specify.
