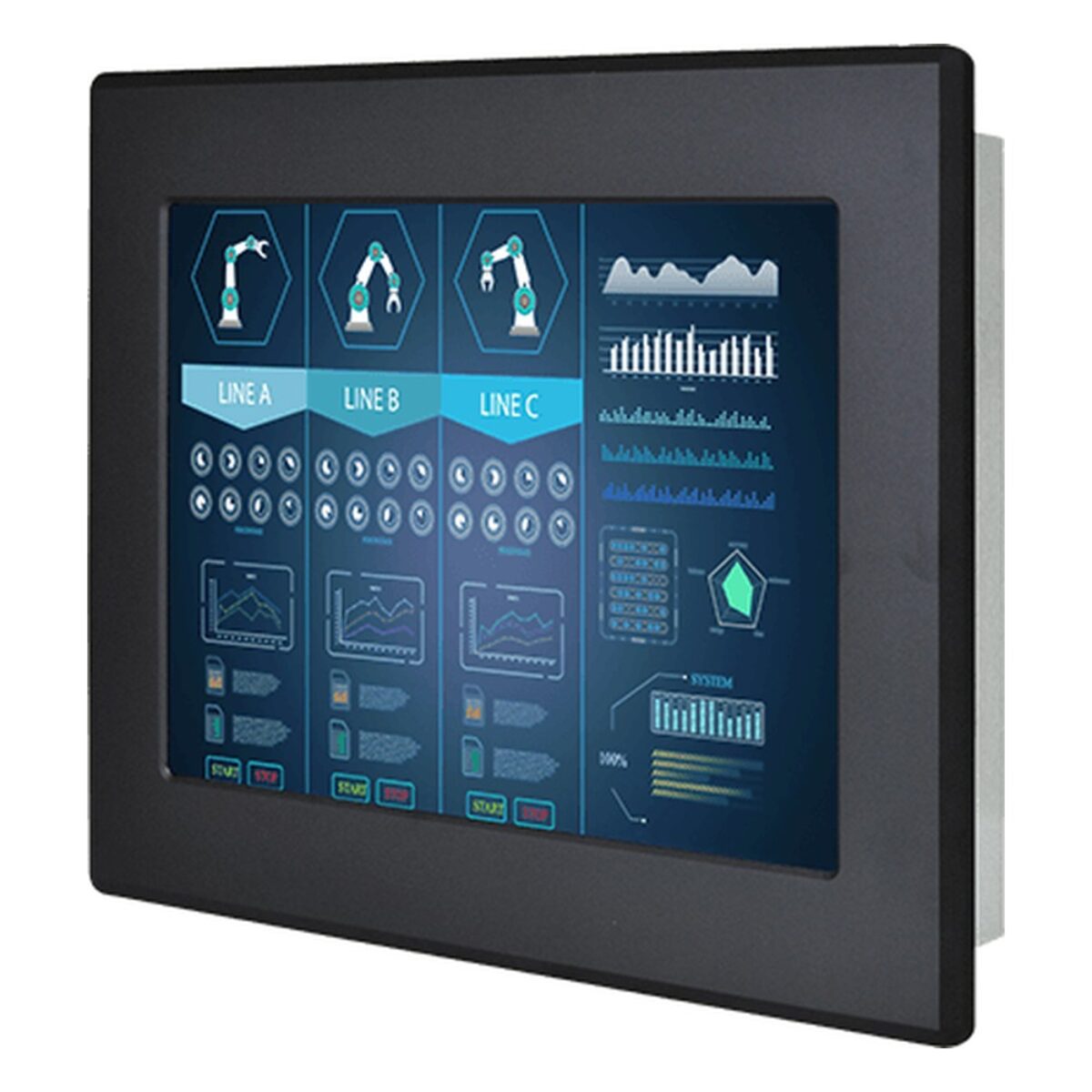

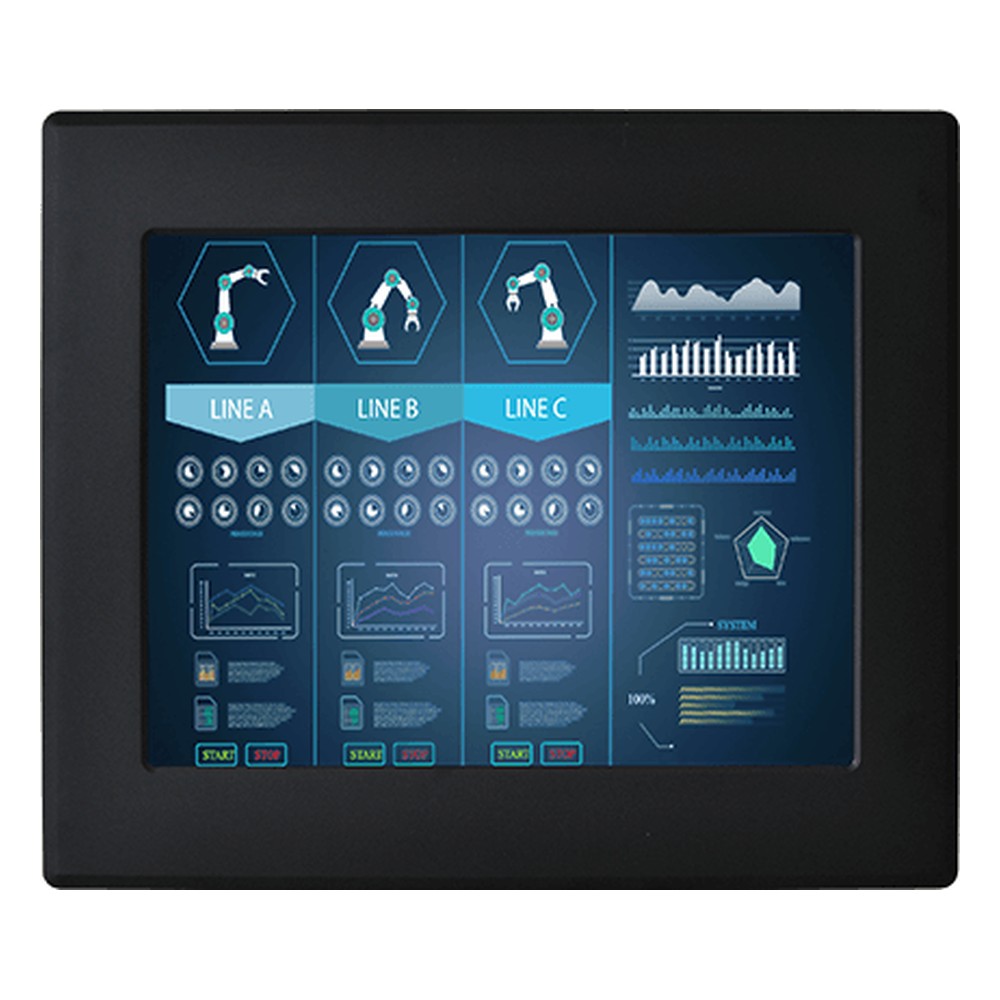

Winmate R15L100-IPA1 15″ Front IP65 Monitor with Resistive Touch and XGA LCD
Resistive
Fanless
Front IP65
CE
FCCR15L100-IPA1 Overview
Operator screens in cabinets and kiosk fronts usually face the wet, dusty side of the installation. The R15L100-IPA1 is Winmate’s 15 inch front IP65 monitor, sealed to IP65 at the front and made to panel mount into factory automation, kiosks and outdoor installations.
The 15″ 4:3 panel runs at 1024 x 768 (XGA) with 350 nits and an 800:1 contrast ratio, and Winmate quotes viewing angles of 160° horizontally and 150° vertically. Resistive touch comes as standard and works with gloves or a stylus. Winmate also offers SAW touch, or protection glass without touch where the screen only needs to display.
Video comes in over VGA as standard, with HDMI or DVI inputs available as options, and touch data runs over a single USB port. An audio line-in and two speakers are optional, and five keys handle the on-screen menu, with a remote control as an optional accessory. Within the Winmate range, the R15L100-IPA1TR is the transflective version at 610 nits, and the R15L100-IPC3HB moves to a 1000 nit panel with 2000:1 contrast.
The R15L100-IPA1 runs from 12 V DC, with a 24 V DC input as an option, and an AC adapter comes with it, along with a power cord, VGA and HDMI cables and VESA screws. It operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. The fanless metal housing with an aluminum bezel mounts into a panel cut-out or on VESA, and the 15 inch monitor carries CE and FCC marks. It pairs with the industrial PC of your choice, and we supply it configured and tested before dispatch.
R15L100-IPA1 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R15L100-IPA1 |
| Features | Fanless Industrial |
| Display | |
| Display | 15"[4:3, 1024 x 768, XGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch Optional Surface Acoustic Wave Touch |
| Brightness | 350 Nits |
| Viewing Angle | Wide Viewing Angle |
| 160° Horizontal, 150° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 800:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 400mm x 320mm x 57mm (15.75" x 12.60" x 2.24") |
- R15L100-IPA1 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R15L100-IPA1 configured and tested for USA machine, kiosk and factory automation projects. Within the Winmate range the R15L100-IPA3WT is the 15 inch wide temperature version.
The R15L100-IPA1 sits among our 15 inch industrial monitors, our front IP65 monitors and our panel mount monitors. Where a project needs a 15 inch front IP65 monitor that connects to an existing computer, this is a sensible model to shortlist.
