Winmate R15L100-IPA1TR 15″ Panel Mount Monitor with Transflective LCD and Resistive Touch
Resistive
Fanless
CE
FCCR15L100-IPA1TR Overview

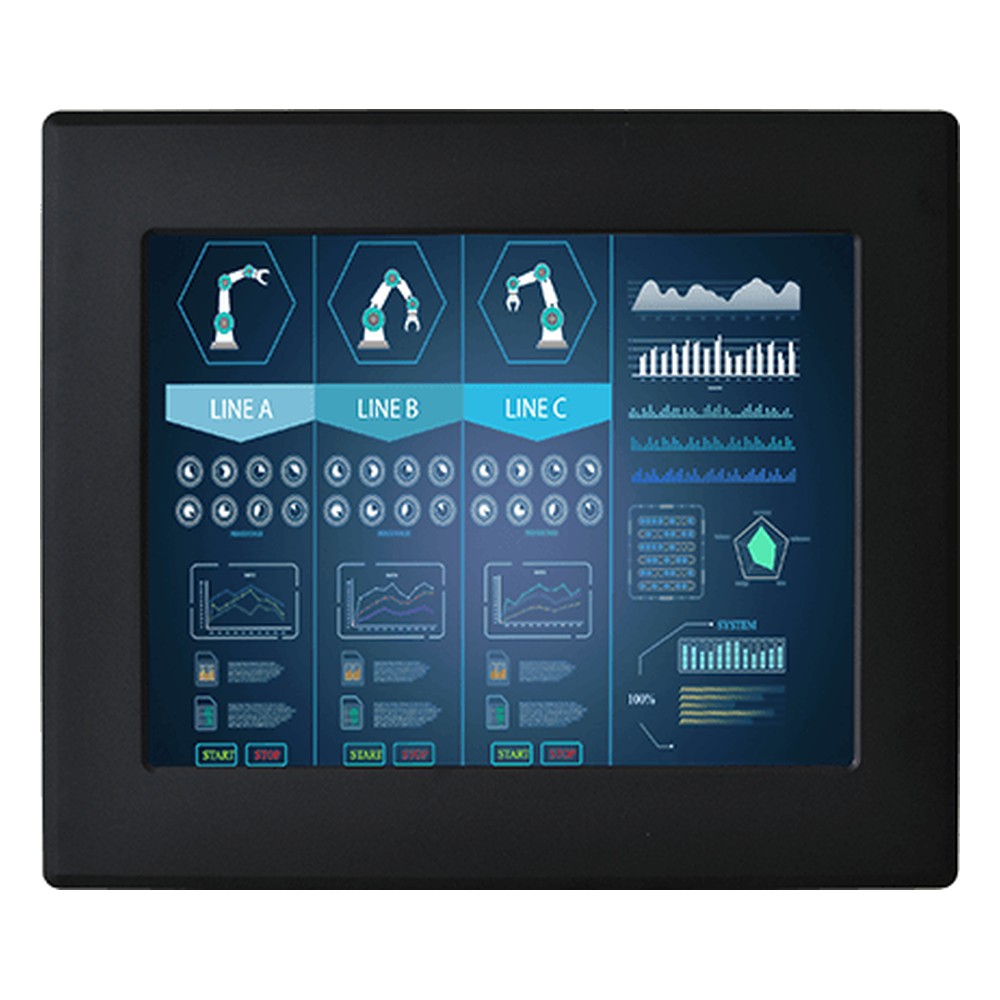

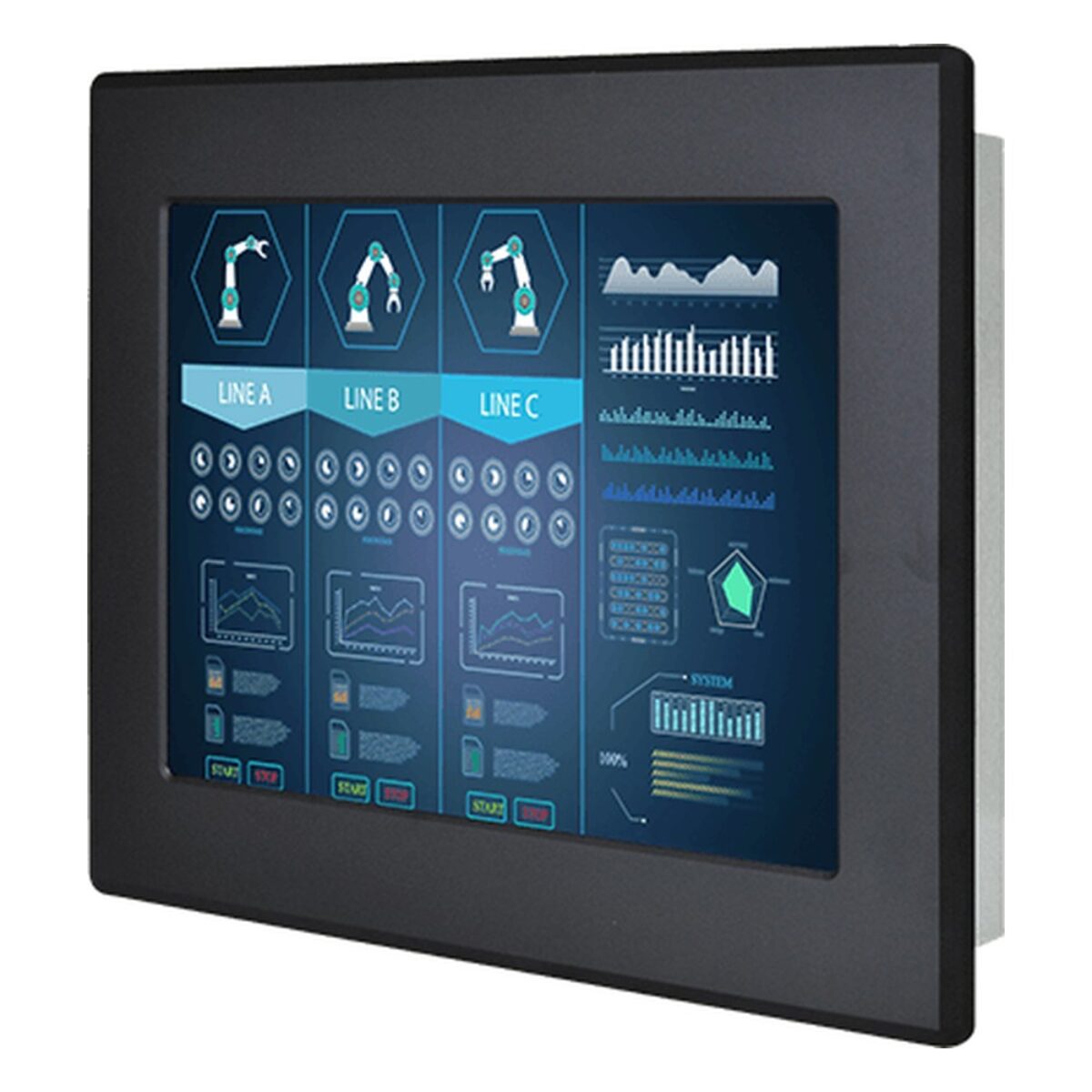

Where a panel faces strong ambient light, a transflective LCD uses that light as well as its backlight to keep the screen readable. The R15L100-IPA1TR is Winmate’s 15 inch front IP65 transflective monitor, built to fit a cabinet door or kiosk front and sealed to IP65 at the front.
The 15″ 4:3 panel runs at 1024 x 768 (XGA) with 610 nits and a 700:1 contrast ratio, and Winmate quotes viewing angles of 176° in both directions. The transflective layer helps the screen hold contrast as ambient light rises. Resistive touch comes as standard and works with gloves or a stylus. Winmate also offers SAW touch, or protection glass without touch where the screen only needs to display.
Video comes in over VGA as standard, with HDMI or DVI inputs available as options, and touch data runs over a single USB port. An audio line-in and two speakers are optional, and five keys handle the on-screen menu, with a remote control as an optional accessory. Within the Winmate range, the R15L100-IPA1 is the standard 350 nit version, and the R15L100-IPC3HB moves to a 1000 nit panel with 2000:1 contrast.
The R15L100-IPA1TR runs from 12 V DC, with a 24 V DC input as an option, and an AC adapter comes with it, along with a power cord, VGA and HDMI cables and VESA screws. It operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. The fanless metal housing with an aluminum bezel mounts into a panel cut-out or on VESA, and the 15 inch monitor carries CE and FCC marks. It pairs with the industrial PC of your choice, and we supply it configured and tested before dispatch.
R15L100-IPA1TR Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R15L100-IPA1TR |
| Features | Fanless Industrial |
| Display | |
| Display | 15"[4:3, 1024 x 768, XGA] |
| Display Treatment | Protective Glass Transflective |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch Optional Surface Acoustic Wave Touch |
| Brightness | 610 Nits |
| Viewing Angle | Wide Viewing Angle |
| 176° Horizontal, 176° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 700:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 4.2 Kg (9.3 Lbs) |
| Dimensions | 400mm x 320mm x 55mm (15.75" x 12.60" x 2.16") |
- R15L100-IPA1TR Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R15L100-IPA1TR configured and tested for USA machine, kiosk and factory automation projects. Within the Winmate range the R10L600-CHP1TR is a 10.4 inch transflective chassis monitor.
The R15L100-IPA1TR sits among our 15 inch industrial monitors, our panel mount monitors and our 4:3 monitors. Where a 15 inch screen faces strong ambient light, this is a sensible model to shortlist.
