Winmate R15L100-MLA3HB 15″ Rugged Defense Monitor with 1000 Nit XGA Display and Defence-Grade Connectors
Resistive
High Bright
Extended Temp
CE
FCCR15L100-MLA3HB Overview

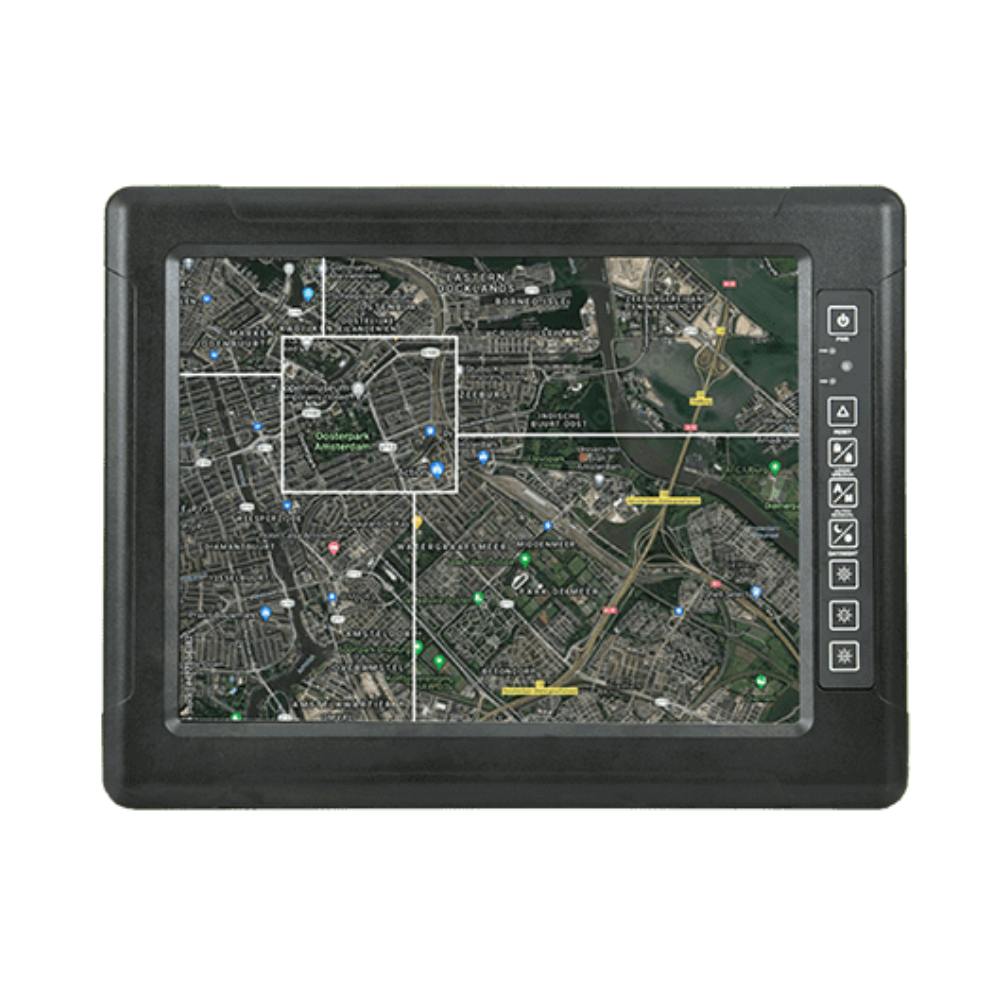

A 10 inch screen can be too small for the maps and camera feeds a commander has to read at a glance. The R15L100-MLA3HB is Winmate’s 15 inch G-WIN defense display, pairing a 1000 nit XGA panel with defence-grade connectors on every port in a fanless metal housing with an aluminum bezel.

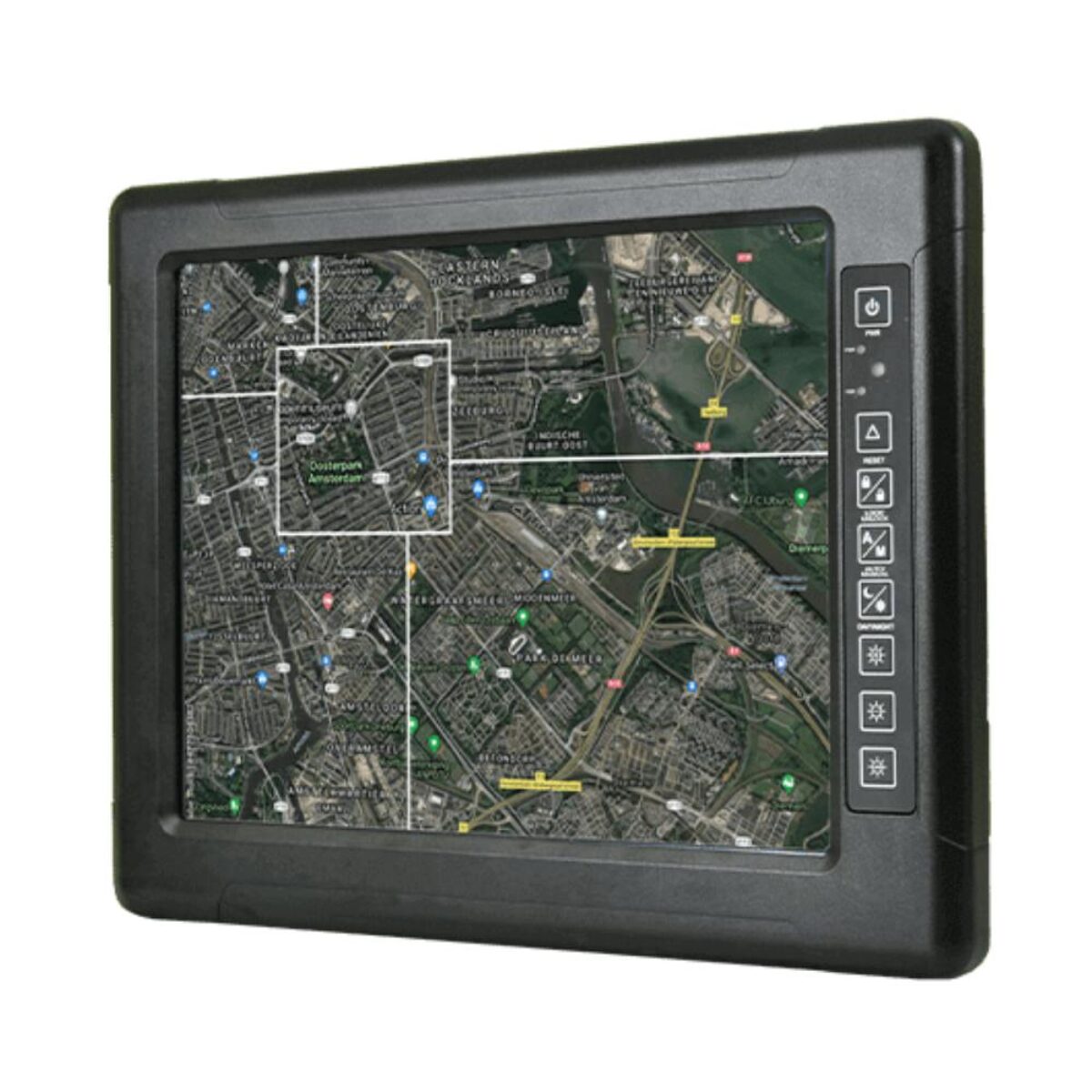

The 15 inch LCD runs at 1024 x 768 with 1000 nits of brightness, a 2500:1 contrast ratio, 16.7M colors and 176° viewing angles. AR protection glass is standard, and touch can be added as 5-wire resistive, resistive with an EMI mesh filter, or EMI glass. An eight-key front panel adjusts brightness and LED level, and handles volume and picture-in-picture, so the crew can adjust the screen for day or night without a host menu.
Video arrives on a defence-grade VGA connector, and optional defence-grade USB and RS-232 ports carry touch data. Winmate states compliance with MIL-STD-810G methods 514.6, 507.4 and 516.5 and with MIL-STD-461E/F/G tests including RE102, CE102 and CS118. The R10L100-MLT2 offers XGA in a 10.4 inch unit, and the R19L100-MLA3 moves to a 19 inch 1280 x 1024 panel.
Power is 12 V DC on a MIL-DTL-38999/1 connector, with a 9 to 36 V DC input as an option, and an AC adapter is included. The display operates from -20 °C to 60 °C at 10 to 95% RH and withstands 30 g operating shock for 18 ms. It measures 398 x 308 x 58 mm, mounts on 100 x 100 mm VESA holes and carries CE and FCC marks. Winmate names armoured and defense vehicles, field command and vehicle navigation as applications.
R15L100-MLA3HB Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R15L100-MLA3HB |
| Features | Fanless Industrial Rugged |
| Display | |
| Display | 15"[4:3, 1024 x 768, XGA] |
| Display Treatment | Anti-reflective glass EMI Mesh Filter |
| Touch Controller | Optional 5-Wire Resistive Touch |
| Brightness | 1,000 Nits |
| Viewing Angle | Wide Viewing Angle |
| 176° Horizontal, 176° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 2500:1 |
| Number of Display Inputs | 1x Display Ports |
| Video Inputs | 1x VGA Input |
| Power | |
| Power Input | 12V DC Input [MIL-STD] 9-36V DC Input [MIL-STD] |
| Environmental Conditions | |
| Operating Temperature | -20°C to 60°C [-4°F to 140°F] |
| Storage Temperature | -30°C to 70°C [-22°F to 158°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 398mm x 308mm x 58mm (15.67" x 12.13" x 2.28") |
- R15L100-MLA3HB Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R15L100-MLA3HB configured for USA defense and vehicle programs. Within the Winmate range the R10L100-MLT2 brings XGA to a 10.4 inch IP65 unit, and the R19L100-MLA3 gives more screen at 1280 x 1024.
With its 1000 nit panel the R15L100-MLA3HB sits among our defense monitors, our sunlight readable monitors and our 15 inch industrial monitors. Where crews need a bright 15 inch MIL-STD screen, this is the model to specify.
