Winmate R15L600-CHC3 15″ Chassis Monitor with Resistive Touch and 300 Nits
Resistive
Fanless
CE
FCCR15L600-CHC3 Overview

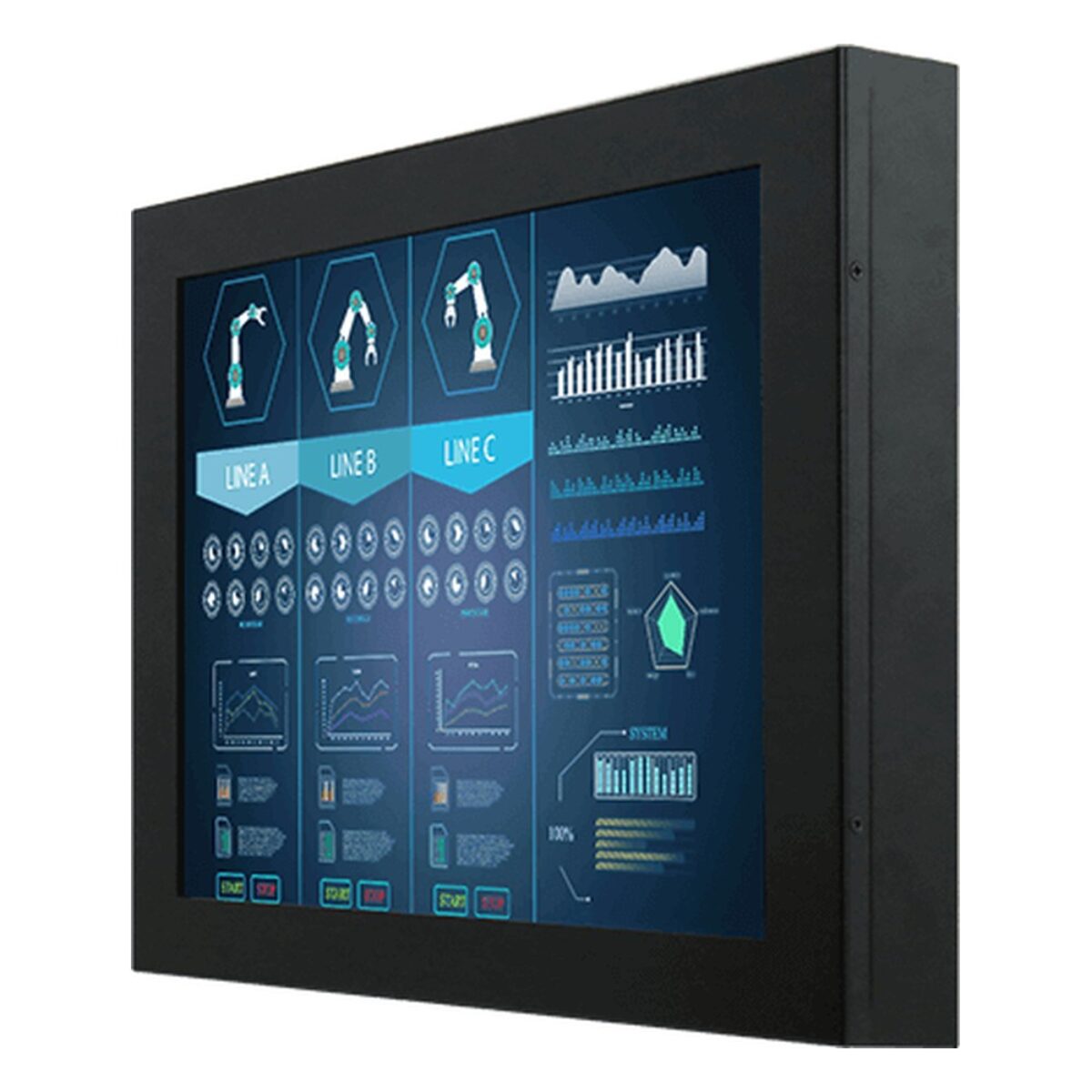

Operator stations and kiosks often run a computer out of sight and need a tough, self-contained screen in front of the user. The R15L600-CHC3 is Winmate’s 15 inch chassis monitor for that role, suited to control rooms, kiosks and manufacturing sites.

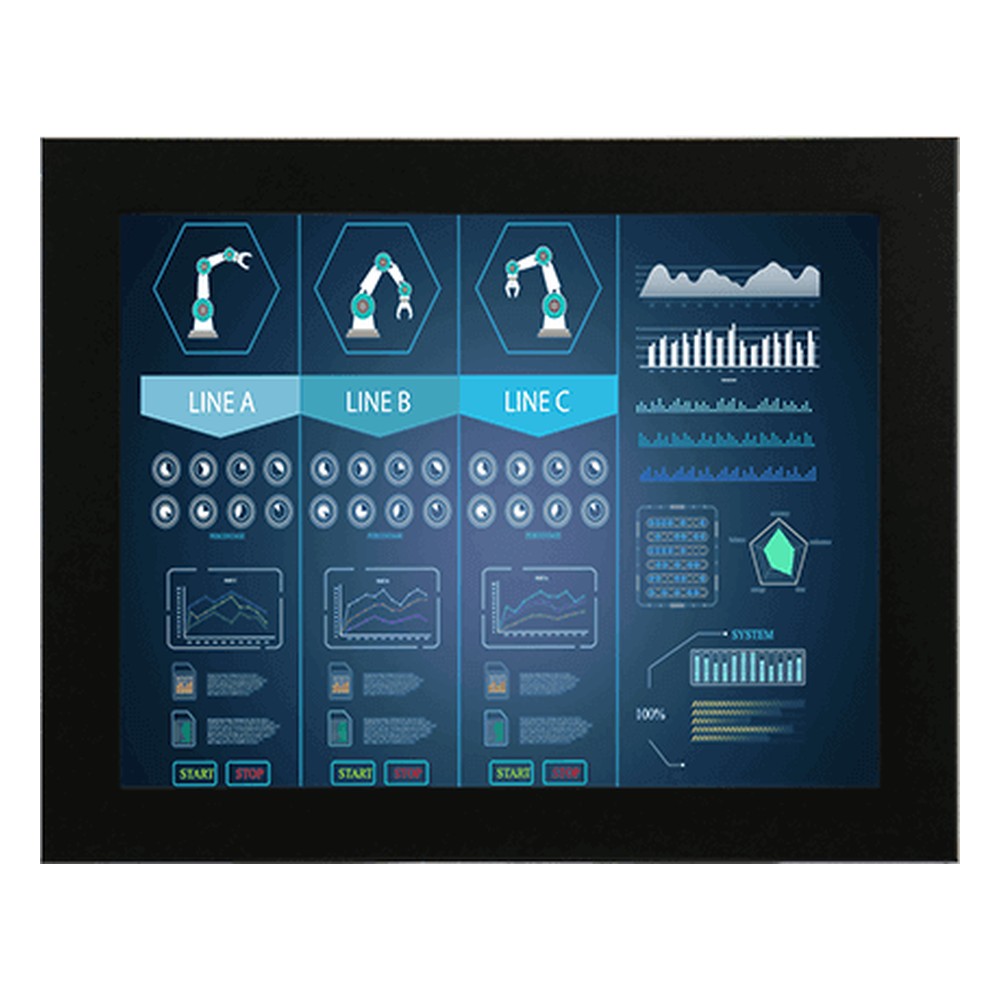

The 15″ 4:3 panel runs at 1024 x 768 (XGA) with 300 nits and a 2000:1 contrast ratio, and Winmate quotes viewing angles of 176° in both directions. Resistive touch comes as standard and works with gloves or a stylus. Winmate also offers SAW touch, or protection glass without touch where the screen only needs to display.

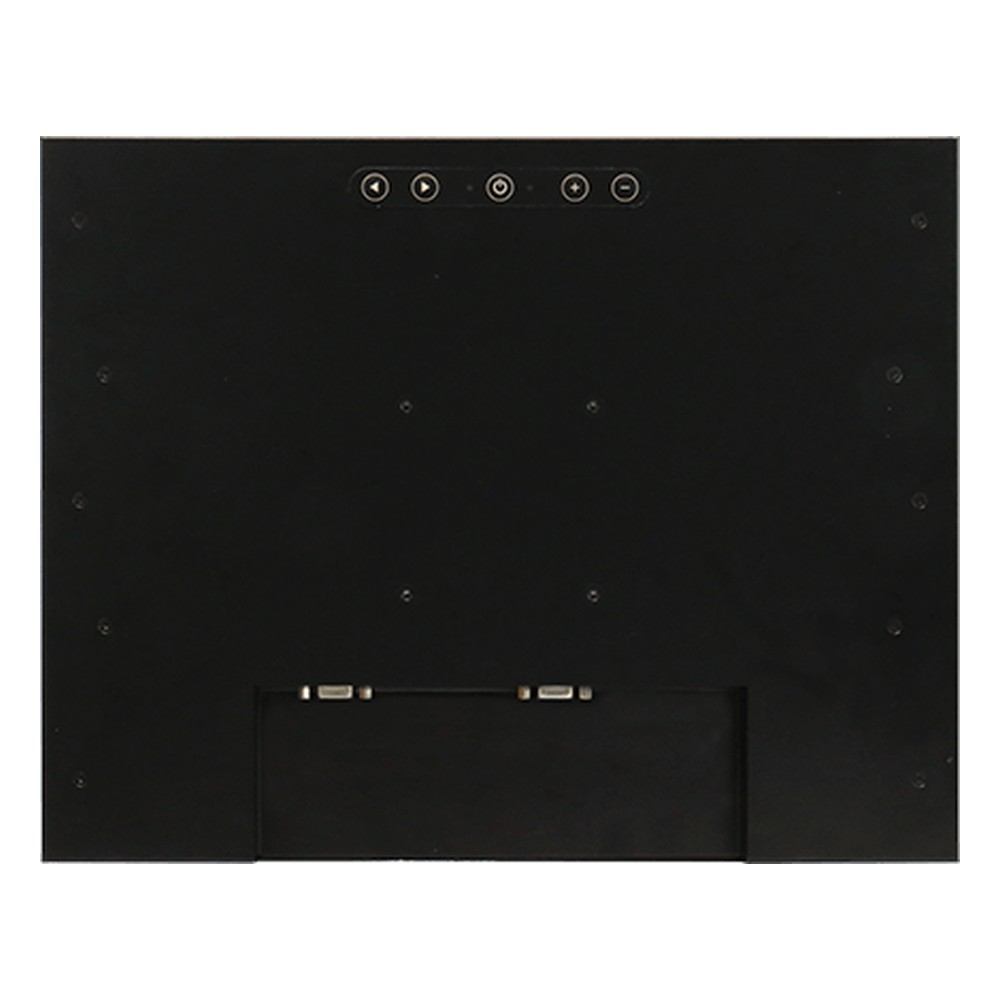

Video comes in over VGA as standard, with HDMI or DVI inputs available as options, and touch data runs over a single USB port. An audio line-in and two speakers are optional, and five keys handle the on-screen menu, with a remote control as an optional accessory. Within the Winmate range, the R15L100-IPA1 is a 15″ front IP65 panel mount monitor at 350 nits, and the R15L100-IPC3HB is a 15″ front IP65 monitor with a 1000 nit panel.
The R15L600-CHC3 runs from 12 V DC, with a 24 V DC input as an option, and an AC adapter comes with it, along with a power cord, VGA and HDMI cables and VESA screws. It operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. The 15 inch monitor cools without a fan, mounts on VESA and carries CE and FCC marks. It pairs with the industrial PC of your choice, and we supply it configured and tested before dispatch.
R15L600-CHC3 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R15L600-CHC3 |
| Features | Fanless Industrial |
| Display | |
| Display | 15"[4:3, 1024 x 768, XGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch Optional Surface Acoustic Wave Touch |
| Brightness | 300 Nits |
| Viewing Angle | Wide Viewing Angle |
| 176° Horizontal, 176° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 2000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 3.5 Kg (7.7 Lbs) |
| Dimensions | 370mm x 290mm x 47mm (14.55" x 11.40" x 1.85") |
- R15L600-CHC3 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R15L600-CHC3 configured and tested for USA control room, kiosk and industrial projects. Within the Winmate range the R17L500-CHM1 is the 17 inch SXGA chassis version.
The R15L600-CHC3 sits among our 15 inch industrial monitors, our chassis monitors and our SAW touch monitors. Where a project needs a 15 inch chassis monitor that connects to an existing computer, this is a sensible model to shortlist.
