Winmate R15L600-MLA3FP 15″ Rack Mount PCAP Touch Defense Monitor with MIL-STD-810G and MIL-STD-461
PCAP
CE
FCCR15L600-MLA3FP Overview

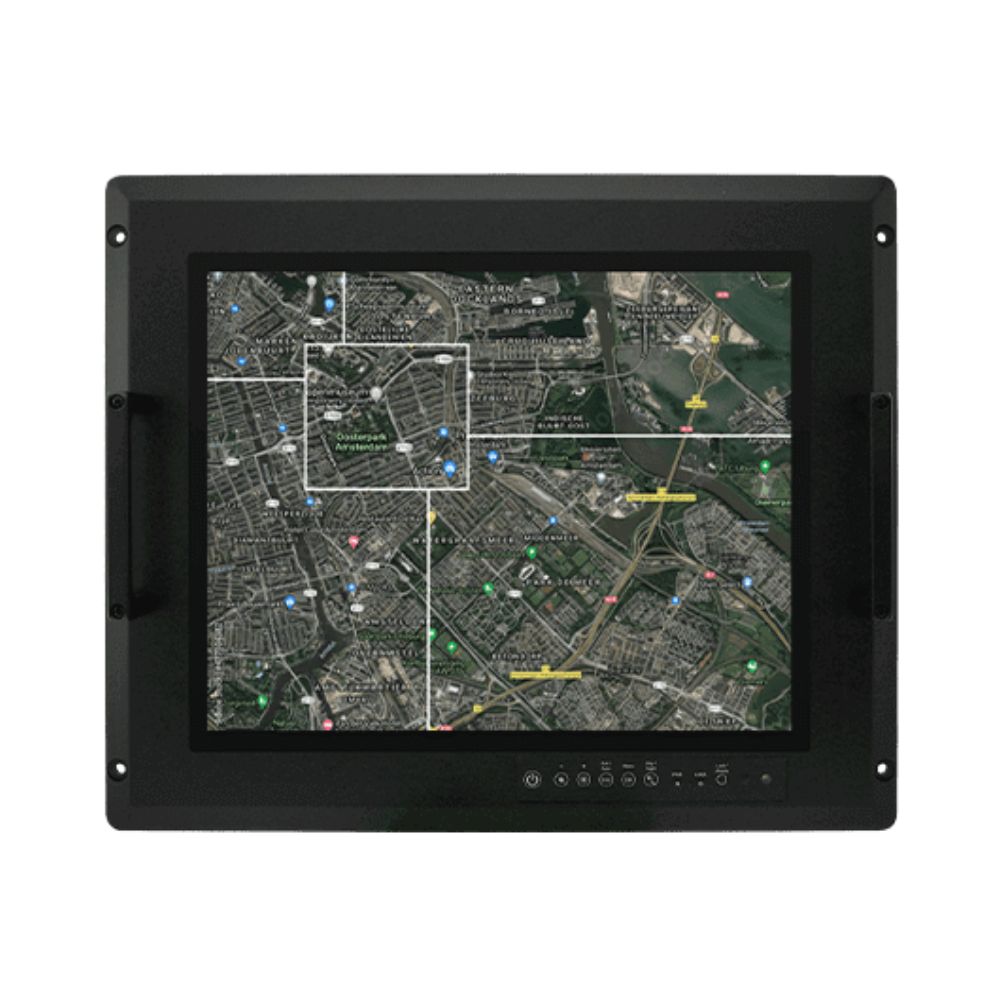

Command centres and simulators often mix current mission computers with older radar and sensor systems that still output RGBHV video. The R15L600-MLA3FP is Winmate’s 15 inch rack mount defense monitor for those racks: a 1024 x 768 PCAP touch display with VGA, DVI-D and five BNC inputs, compliant with MIL-STD-810G and MIL-STD-461.

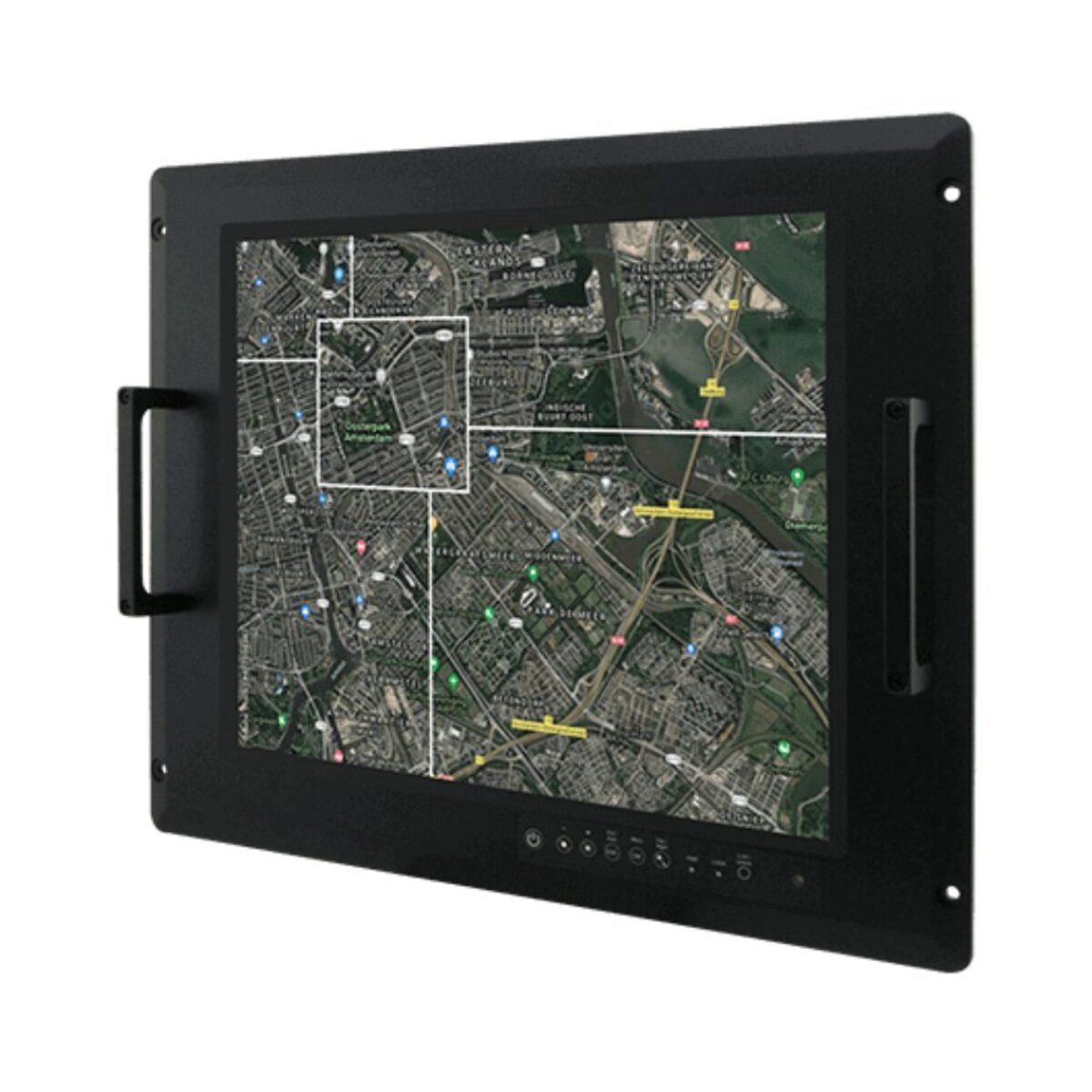

The panel delivers 500 nits with a 2500:1 contrast ratio, 16.7 million colors and 176° viewing angles in both planes. Projected capacitive multi-touch connects over USB, and EMI glass or touch is an option that extends MIL-STD-461 compliance to the CS118 test. A seven-key front panel covers power, brightness, menu, day and night modes and a lock, so settings cannot be changed by accident.
The five BNC connectors take separate R, G, B, H and V signals alongside the VGA and DVI-D inputs. Power arrives on a MIL-DTL-38999 connector. The M320TF-MIL is a 32 inch 4K chassis defense display in the Winmate range, and the R15L100-MLA3HB is a 15 inch high brightness defense display for vehicles.
Power is 100 to 240 V AC as standard, with 9 to 36 V DC as an option. The R15L600-MLA3FP is fanless, operates from -20 to 60 °C at 10 to 95% humidity and stores from -30 to 70 °C. It is compliant with MIL-STD-810G Methods 514.6 vibration, 507.4 humidity and 516.5 transit drop. It measures 402 x 321 x 70 mm and fits a rack with front handles or 75 x 75 mm VESA. Winmate names defense operations, field command, control rooms, training simulators and air traffic control.
R15L600-MLA3FP Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R15L600-MLA3FP |
| Features | Fanless Industrial Rugged |
| Display | |
| Display | 15"[4:3, 1024 x 768, XGA] |
| Touch Controller | Multi Touch PCAP |
| Brightness | 500 Nits |
| Viewing Angle | Wide Viewing Angle |
| 176° Horizontal, 176° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 2500:1 |
| Number of Display Inputs | 7x Display Ports |
| Video Inputs | 1x VGA Input 1xDVI-D 5 x BNC |
| Power | |
| Power Input | 9-36V DC Input [MIL-STD] Optional AC Power Supply |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -20°C to 60°C [-4°F to 140°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 402mm x 321mm x 70mm (15.83" x 12.64" x 2.76") |
- R15L600-MLA3FP Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R15L600-MLA3FP configured for USA defense and aerospace projects. Within the Winmate range the M320TF-MIL is a 32 inch 4K chassis defense display, and the R15L100-MLA3HB is a 15 inch high brightness defense display for vehicles.
With MIL-STD compliance the R15L600-MLA3FP sits among our military monitors, our rack mount displays and our PCAP touch monitors. Where a defense rack must drive RGBHV and DVI sources on one touch screen, this is the model to specify.
