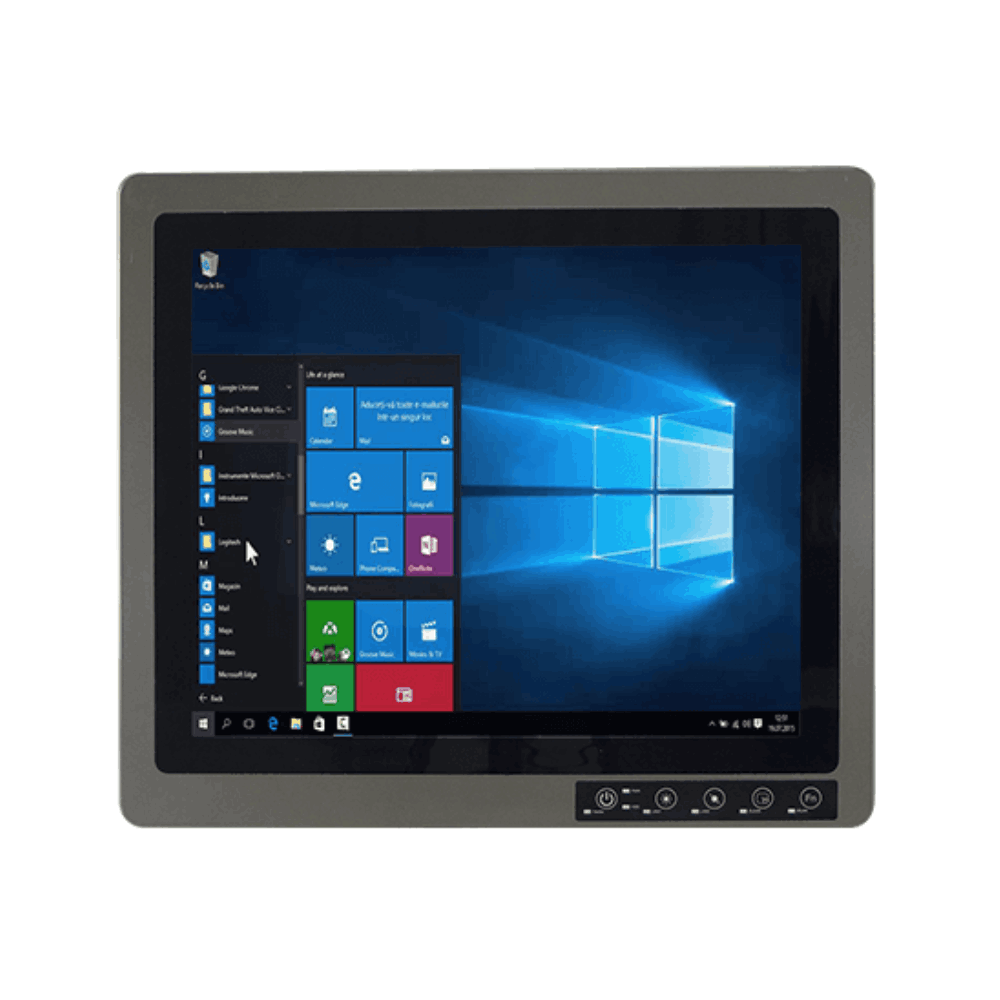

Winmate R19IK3S-67FTP(HB) 19″ Full IP67 Panel PC with Intel Core i5-7300U and Bonded PCAP Touch

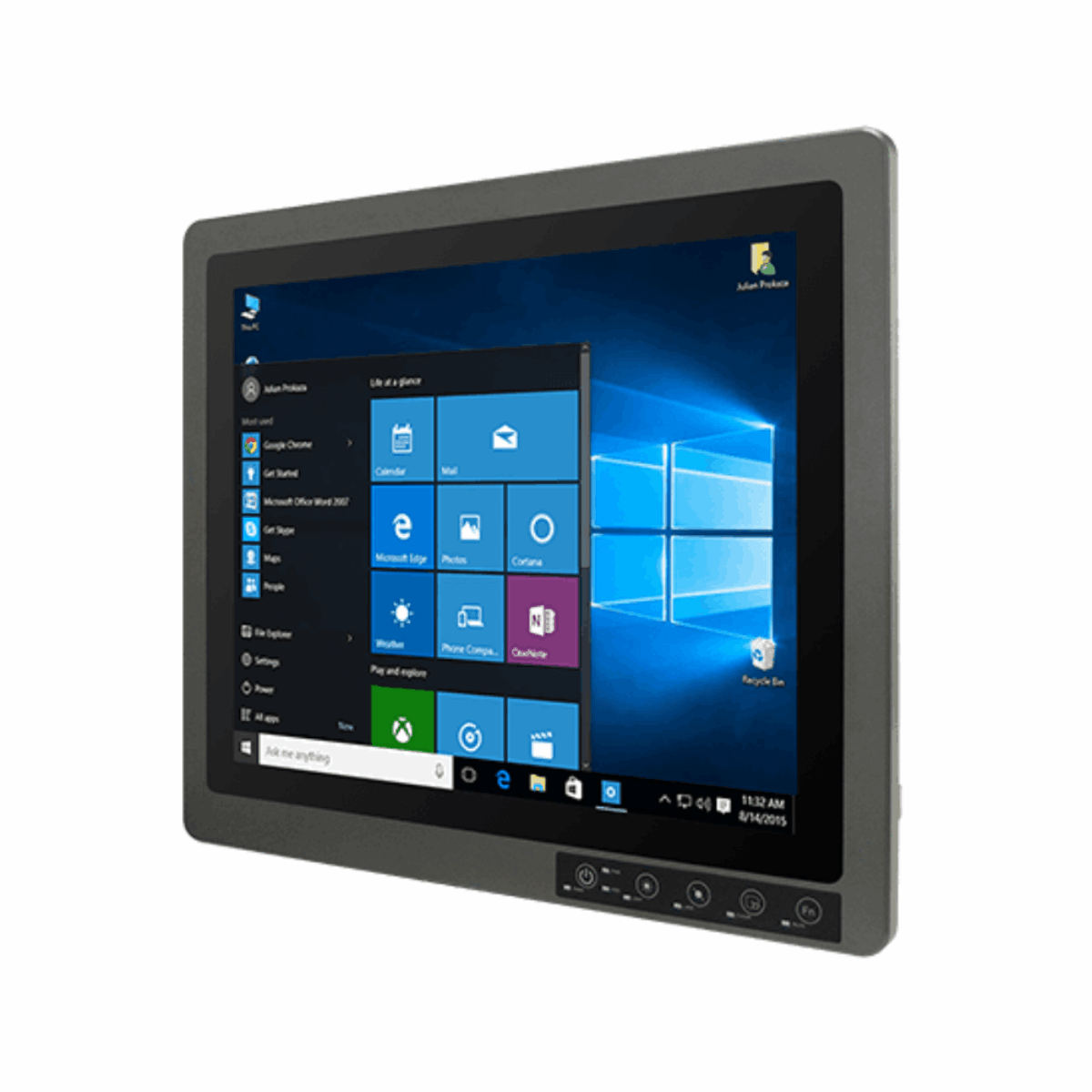

A large HMI mounted outdoors or on an open deck is rained on, sprayed and covered in dust, and operators still need a clear, responsive screen. The R19IK3S-67FTP(HB) is Winmate’s 19 inch G-WIN panel PC for those installs, with an Intel Core i5-7300U in a totally sealed, fanless aluminum housing rated IP67, with a rugged anti-impact front.

The display is a sunlight-viewable 400 nit 1280 x 1024 panel with 1000:1 contrast and 170 by 160 degree viewing angles, with a 1000 nit high-brightness panel as an option. Projected capacitive multi-touch is optically bonded to the panel for clarity, a button switches touch off for cleaning, and the front membrane keys can be locked by software. The Intel Core i5-7300U runs at up to 3.5 GHz with one DDR4-2133 SO-DIMM socket, 4 GB as standard with 8 GB or 16 GB as options, and a 128 GB M.2 2242 SSD with 256 GB or 512 GB as options. TPM 2.0 is on board, and Windows 10 IoT Enterprise or Linux Ubuntu 20.04 can be supplied.

Connections are sealed: 9 to 36 V DC power, two USB 2.0 ports and one RS-232 port on M12 waterproof connectors, a waterproof USB Type-A connector with cover and a waterproof Gigabit LAN RJ45 connector, with waterproof cables and caps supplied. LEDs show power, storage, heater, LAN and touch lock status. Wi-Fi and Bluetooth are optional. The R19IT3S-67FTP(HB) is the same 19 inch full IP67 design with an Intel Core i5-1135G7 and more memory headroom.

The unit operates from -10 °C to 55 °C, or -40 °C to 70 °C with the intelligent heater, and is tested to MIL-STD-810G Method 516.6 for shock and Method 514.6 for vibration. It measures 474 x 410 x 111 mm, needs a 462 x 386 mm cut-out, weighs 9.8 kg and panel mounts with the clips supplied, or on 100 x 100 mm VESA. It carries CE and FCC marks.
