Winmate R19IP7T-CHA2WT 19″ Chassis Panel PC with Intel Apollo Lake Pentium N4200 and Wide Temperature

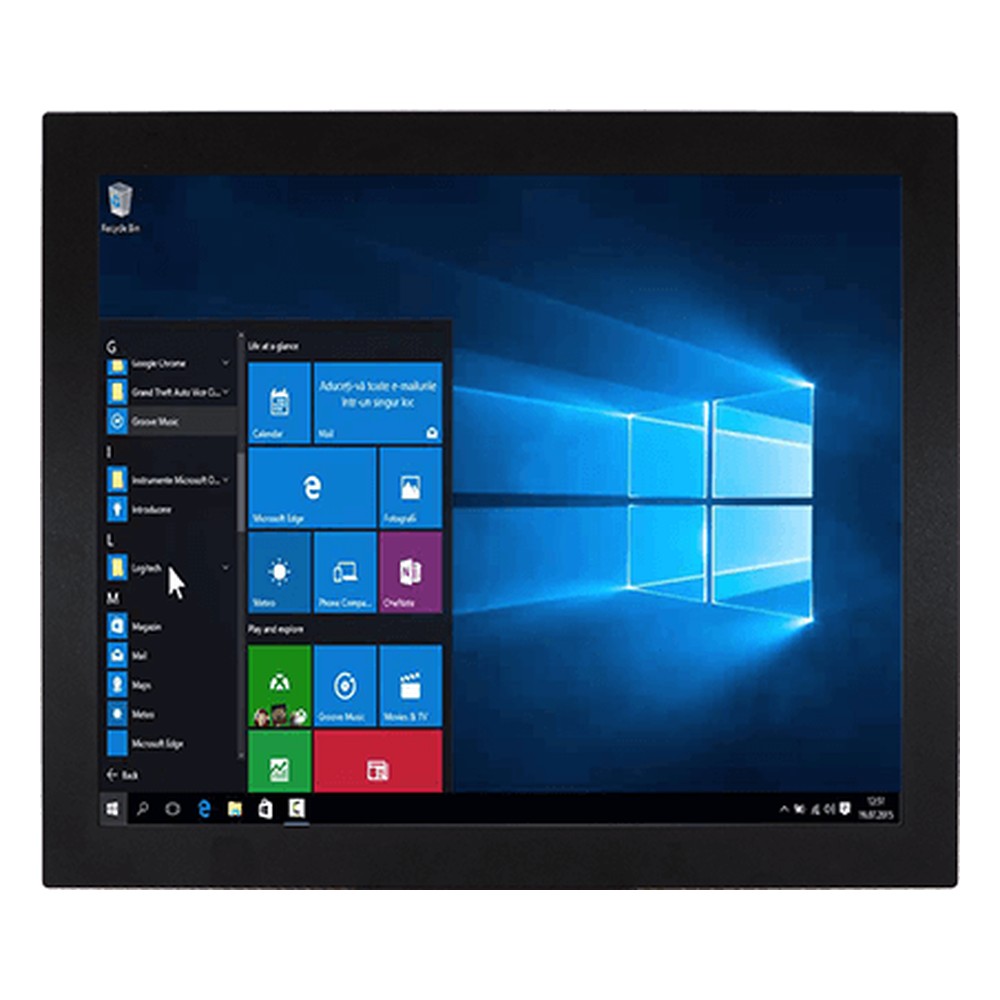

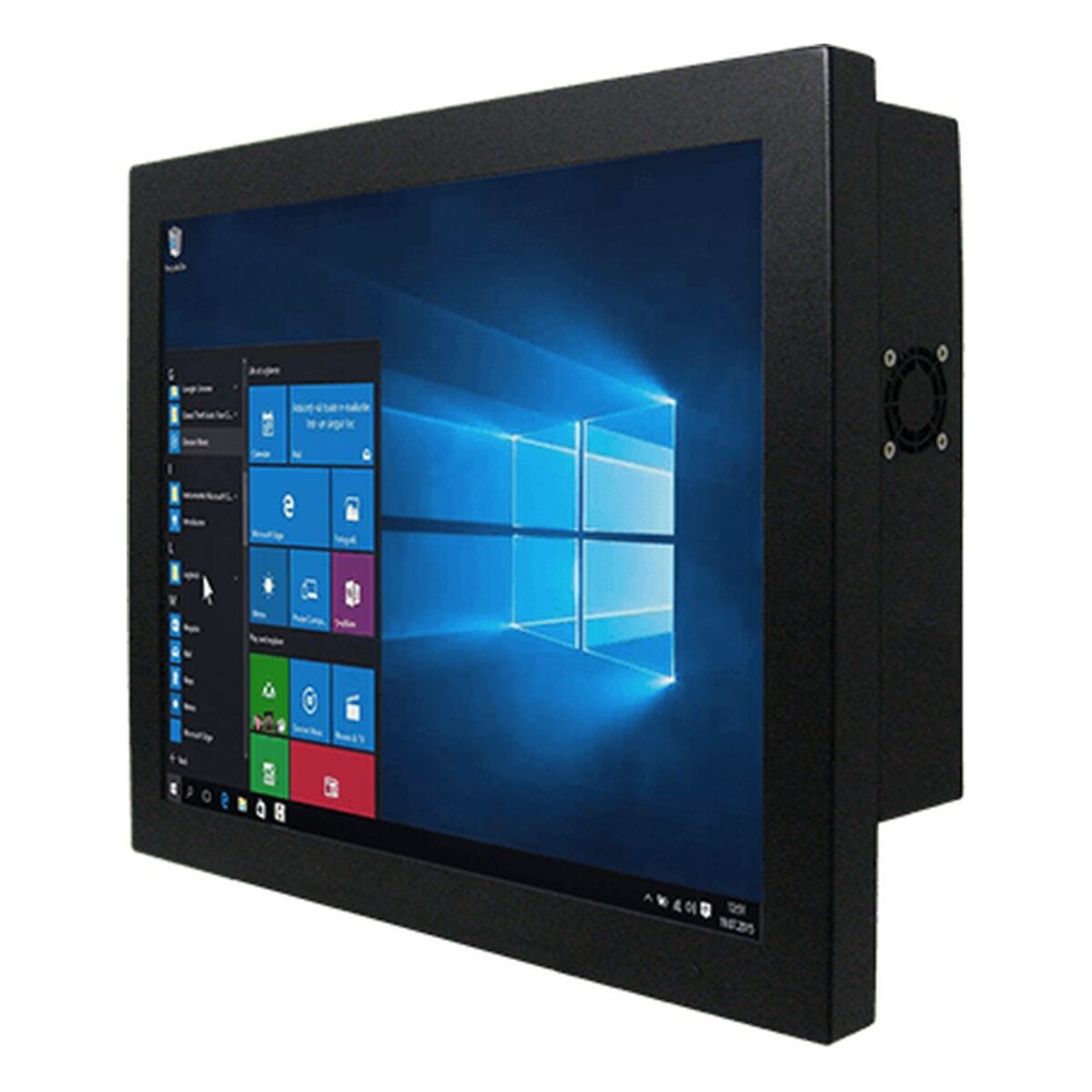

Panels fitted near doors, in cold stores or beside hot processes need a wider operating range than an office-grade unit gives. The R19IP7T-CHA2WT is Winmate’s 19 inch wide-temperature chassis panel PC for VESA arms, desks and wall brackets, with an Intel Pentium N4200 and a 19″ 1280 x 1024 display at 350 nits with 1000:1 contrast, in a fanless metal housing rated from -20 °C to 60 °C. Resistive touch or plain protection glass are options.

The quad-core Intel Pentium N4200 runs at 1.1 GHz with burst to 2.5 GHz and Intel HD Graphics, typically enough for HMI runtimes and SCADA clients without a fan. Two DDR3L-1866 SO-DIMM sockets run in dual channel with up to 16 GB. A 128 GB SSD sits on an M.2 2242 B-key slot, with options to 1 TB, and two optional 2.5″ SATA III bays support RAID 0 or 1. TPM 2.0 is on board, with Windows or Linux Ubuntu 20.04.

Two Gigabit LAN ports on Intel controllers, four USB 3.2 Gen 1 Type-A ports and two DB9 serial ports (one RS-232/422/485, one RS-232) cover networks, peripherals and PLCs. DisplayPort 1.2 drives a second screen at up to 4096 x 2160 at 60 Hz, with HDMI 1.4 or VGA optional, plus mic-in, line-out and two speakers. Optional Wi-Fi and Bluetooth fit an M.2 E-key slot, and a PCIe 2.0 x1 slot takes a card. Within the Winmate range the R19IT7T-CHA2WT is the wide-temperature chassis model with an Intel Core i5-1135G7, and the R19IP7T-IPA2WT is the wide-temperature Pentium N4200 version with a front IP65 rating.

Power is 12 V DC on a DIN 4-pin connector, with an 84 W AC adapter supplied. It runs from -20 °C to 60 °C and stores from -25 °C to 65 °C at 30 to 90% humidity, non-condensing. It fits on VESA, with the screws supplied. It carries CE and FCC marks. We supply the R19IP7T-CHA2WT configured, with the OS installed, and tested before dispatch.
