Winmate R19L300-CHM1 19″ Chassis Monitor with Resistive Touch and 250 Nits
Resistive
Fanless
CE
FCCR19L300-CHM1 Overview

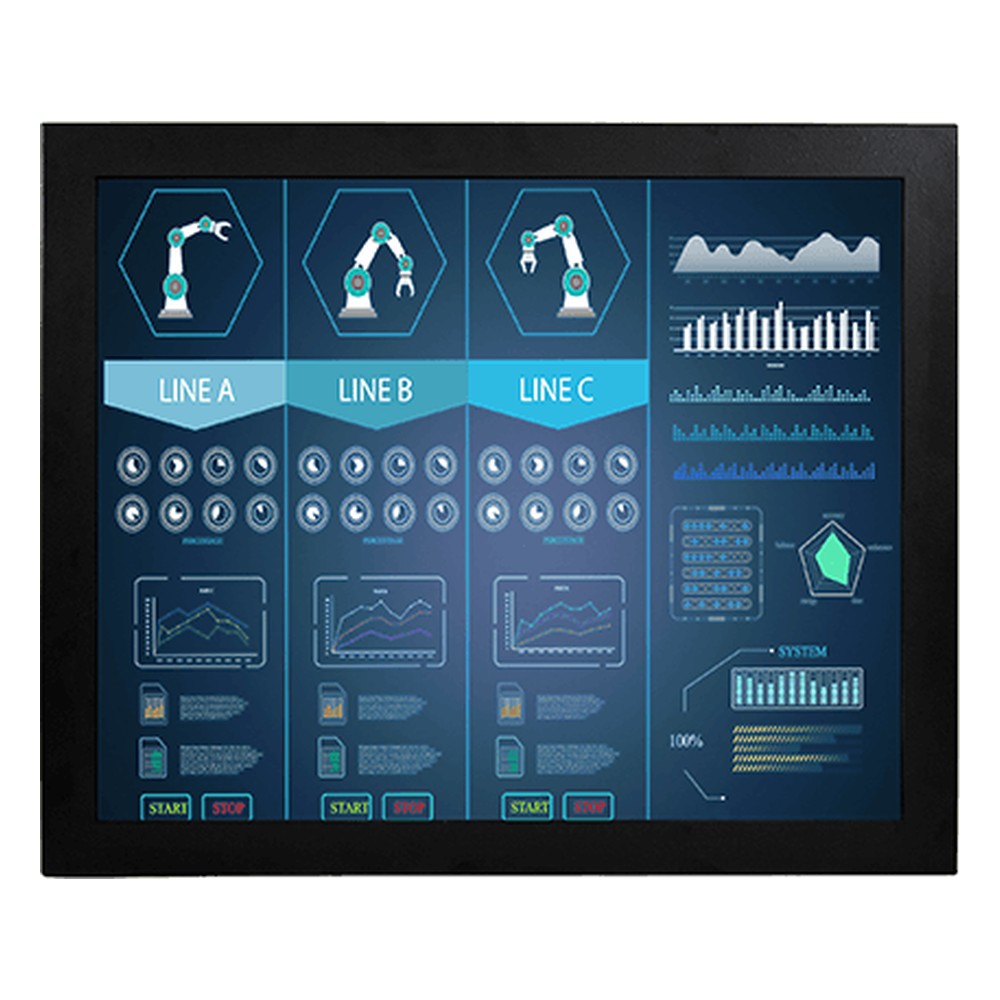

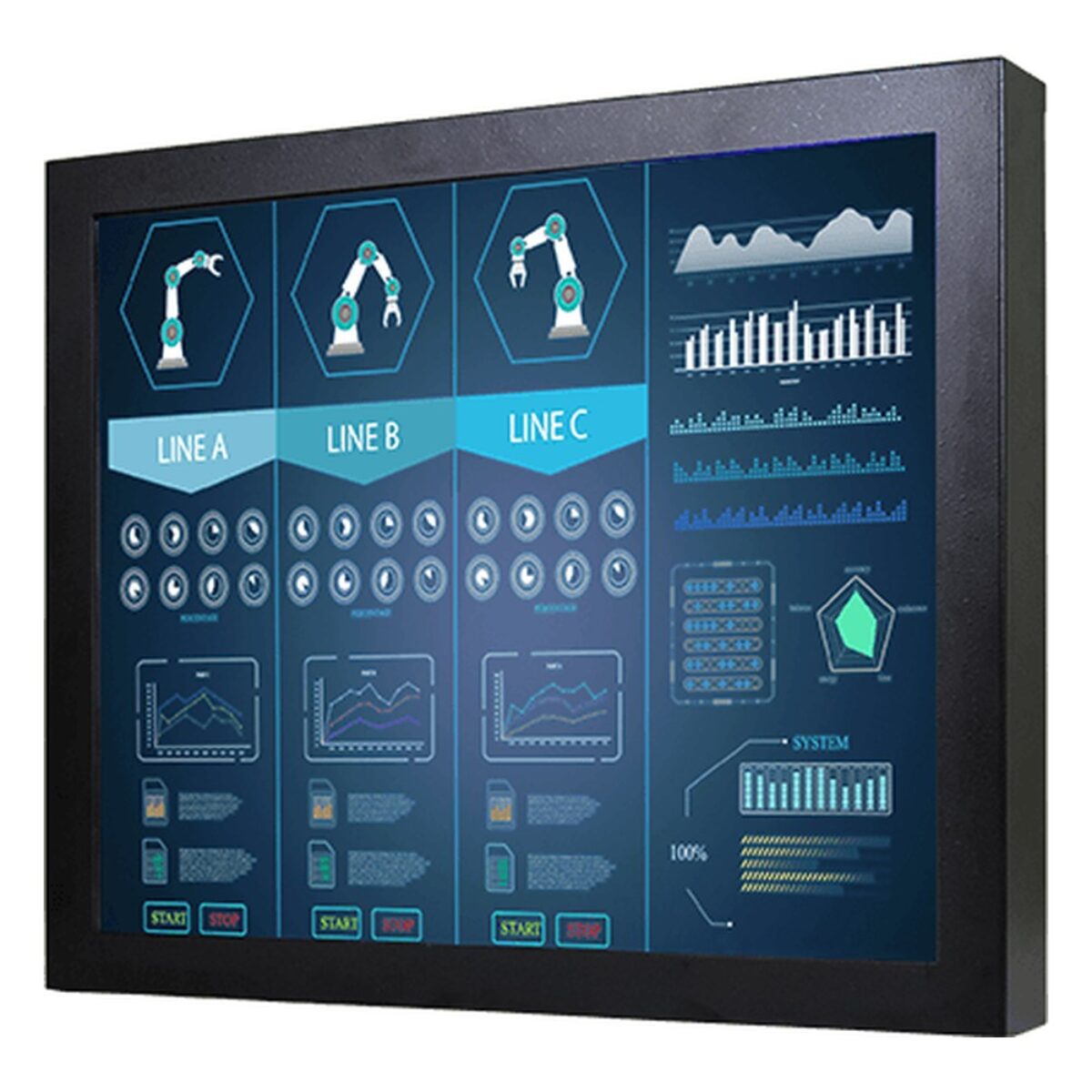

Operator stations and kiosks often run a computer out of sight and need a tough, self-contained screen in front of the user. The R19L300-CHM1 is Winmate’s 19 inch chassis monitor for that role, suited to control rooms, kiosks and manufacturing sites.
The 19″ 5:4 panel runs at 1280 x 1024 (SXGA) with 250 nits and a 1000:1 contrast ratio, and Winmate quotes viewing angles of 170° horizontally and 160° vertically. Touch is optional: specify resistive touch for gloved or stylus input, or protection glass without touch where the screen only needs to display.
Video comes in over VGA as standard, with HDMI or DVI inputs available as options, and touch data runs over a single USB port. An audio line-in and two speakers are optional, and five keys handle the on-screen menu, with a remote control as an optional accessory. Within the Winmate range, the R19L300-CHA1 runs at 400 nits with resistive touch as standard, and the R19L300-CHM2 uses a 300 nit panel with 2000:1 contrast and 178° viewing angles.
The R19L300-CHM1 runs from 12 V DC, with a 24 V DC input as an option, and an AC adapter comes with it, along with a power cord, VGA and HDMI cables and VESA screws. It operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. The 19 inch monitor cools without a fan, mounts on VESA and carries CE and FCC marks. It pairs with the industrial PC of your choice, and we supply it configured and tested before dispatch.
R19L300-CHM1 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R19L300-CHM1 |
| Features | Fanless Industrial |
| Display | |
| Display | 19"[5:4, 1280 x 1024, SXGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch |
| Brightness | 250 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 160° Vertical | |
| Aspect Ratio | 5:4 |
| Format | Standard |
| Contrast | 1000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 430mm x 355mm x 40mm (16.93" x 13.98" x 1.57") |
| Mounting Options | VESA Mount |
- R19L300-CHM1 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R19L300-CHM1 configured and tested for USA control room, kiosk and industrial projects. Within the Winmate range the R19L300-CHA1HB is the 19 inch 1000 nit version.
The R19L300-CHM1 sits among our 19 inch industrial monitors, our 5:4 monitors and our chassis monitors. Where a project needs a 19 inch chassis monitor that connects to an existing computer, this is a sensible model to shortlist.
