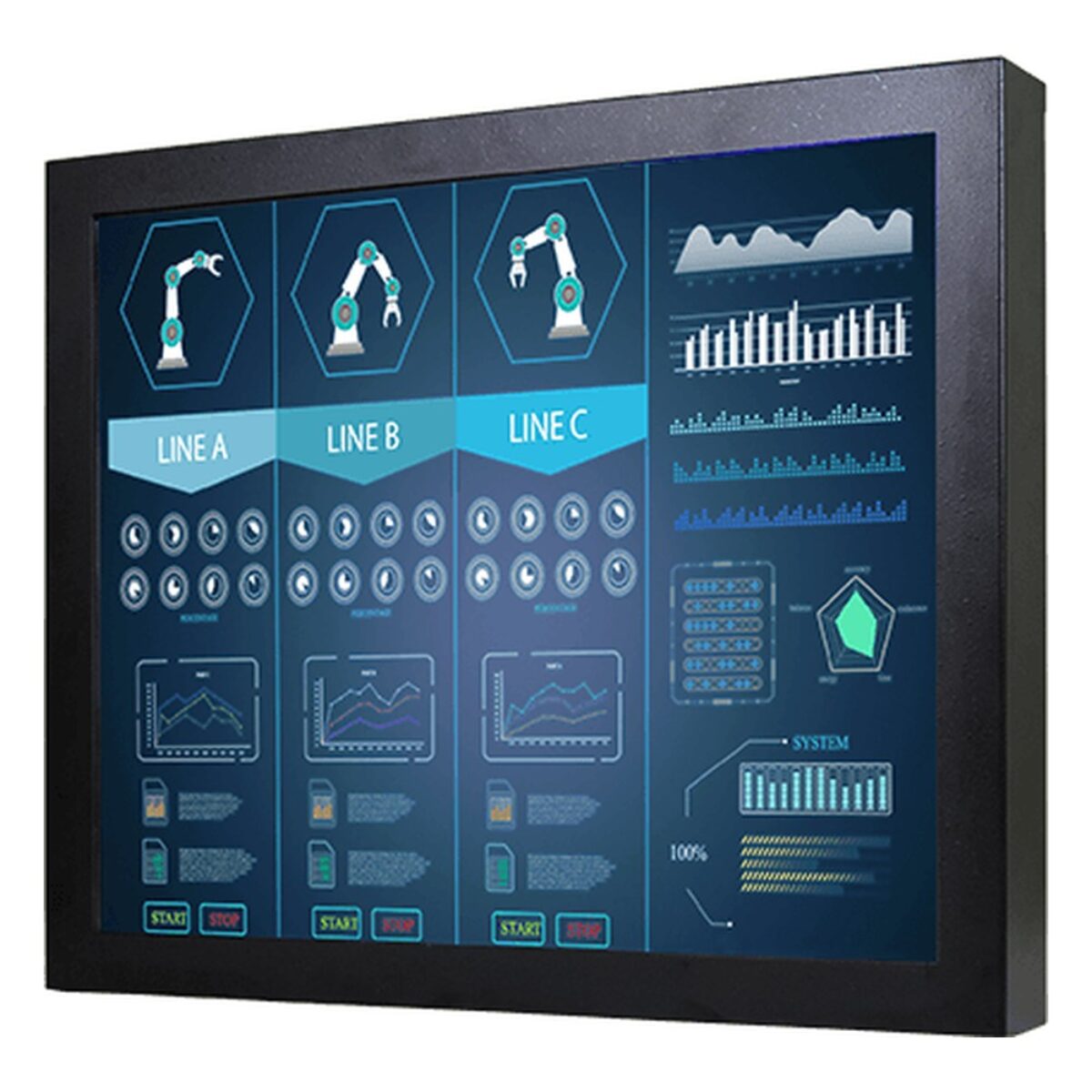

Winmate R19L300-CHM2 19″ Chassis Monitor with Resistive Touch and 300 Nits
Resistive
Fanless
CE
FCCR19L300-CHM2 Overview
A monitor in a control cabinet, kiosk or operator station usually has to fit a VESA arm or bracket and run all shift without a fan. The R19L300-CHM2 is Winmate’s 19 inch chassis monitor for that kind of job, built for control rooms, kiosks and manufacturing sites.

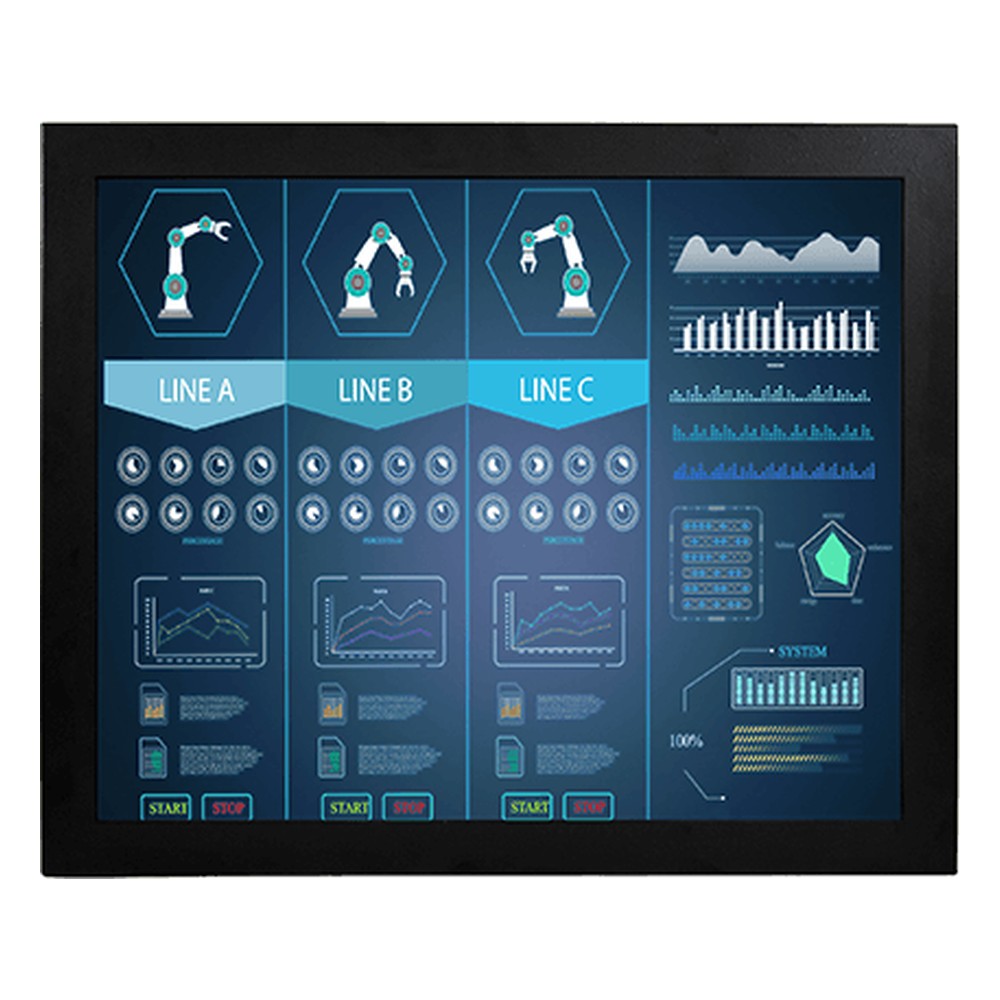

The 19″ 5:4 panel runs at 1280 x 1024 (SXGA) with 300 nits and a 2000:1 contrast ratio, and Winmate quotes viewing angles of 178° in both directions. Resistive touch comes as standard and works with gloves or a stylus. Winmate also offers SAW touch, or protection glass without touch where the screen only needs to display.
Video comes in over VGA as standard, with HDMI or DVI inputs available as options, and touch data runs over a single USB port. An audio line-in and two speakers are optional, and five keys handle the on-screen menu, with a remote control as an optional accessory. Within the Winmate range, the R19L300-CHM2TR is the transflective version of this panel at 350 nits, and the R19L300-CHA1HB moves to a 1000 nit high brightness panel.
The R19L300-CHM2 runs from 12 V DC, with a 24 V DC input as an option, and an AC adapter comes with it, along with a power cord, VGA and HDMI cables and VESA screws. It operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. The 19 inch monitor cools without a fan, mounts on VESA and carries CE and FCC marks. It pairs with the industrial PC of your choice, and we supply it configured and tested before dispatch.
R19L300-CHM2 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R19L300-CHM2 |
| Features | Fanless Industrial |
| Display | |
| Display | 19"[5:4, 1280 x 1024, SXGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Surface Acoustic Wave Touch Resistive Touch |
| Brightness | 300 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 5:4 |
| Format | Standard |
| Contrast | 2000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 430mm x 355mm x 40mm (16.93" x 13.98" x 1.57") |

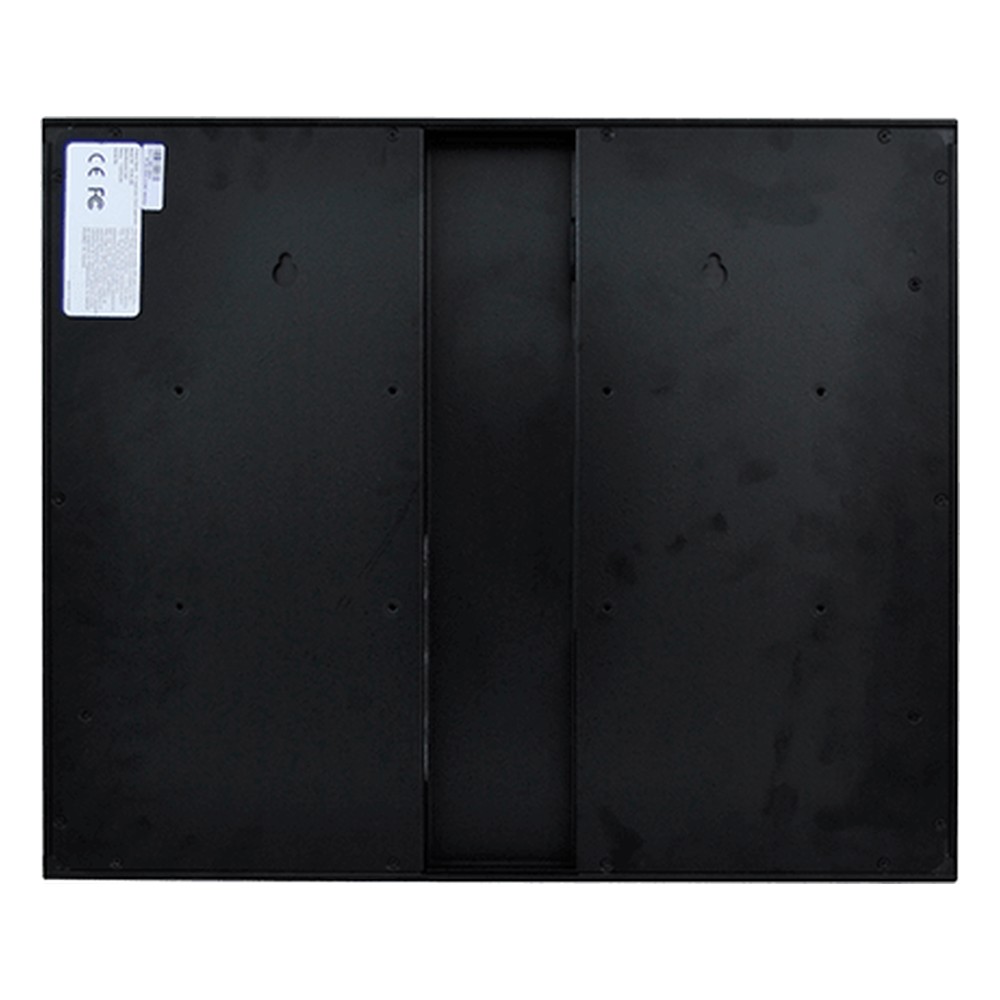

| Mounting Options | VESA Mount |
- R19L300-CHM2 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R19L300-CHM2 configured and tested for USA control room, kiosk and industrial projects. Within the Winmate range the R19L300-CHM1 is the 250 nit version with touch as an option.
The R19L300-CHM2 sits among our 19 inch industrial monitors, our chassis monitors and our SAW touch monitors. Where a project needs a 19 inch chassis monitor that connects to an existing computer, this is a sensible model to shortlist.
