Winmate S101G7 10.1″ Android Rugged Tablet with MediaTek Genio 700, IP65 and MIL-STD-810H

The S101G7 is Winmate's 10.1 inch Android rugged tablet with a MediaTek Genio 700, 4 GB of memory, 64 GB of eMMC and Android 13. Its 1920 x 1200 optically bonded screen gives 800 nits, and IP65 sealing, MIL-STD-810H testing and -20 to 60 °C operation suit logistics, warehousing and industrial sites.

  • MediaTek Genio 700: An octa-core processor at up to 2.2 GHz with 4 GB of memory, 64 GB of eMMC, a Micro SD slot and Android 13.
  • 10.1″ 800 Nit WUXGA Display: A 1920 x 1200 optically bonded PCAP screen with anti-glare treatment, 800:1 contrast and hand, glove and rain touch modes.
  • LAN, USB-A and USB-C: An RJ45 LAN port, a full-size USB Type-A port and a USB Type-C OTG port that accepts 20 V Power Delivery charging.
  • Optional 4G or 5G: Wi-Fi, Bluetooth and GPS/GLONASS built in, with optional 4G or 5G, NFC, a 1D/2D barcode reader and Micro HDMI.
  • IP65 and -20 to 60 °C: Sealed to IP65, tested to MIL-STD-810H for shock, vibration and 4 ft drops, and rated for -20 to 60 °C operation.
Touch Technology: PCAPPCAP
USB Connector Type: Type CType C
USB Generation: USB3USB3
Connectivity: GPS/GLONASSGPS/GLONASS
Connectivity: WirelessWi-Fi
Operating Temperature: Extended TemperatureExtended Temp
Certification: CECE
Certification: FCCFCC
USA Support Team: +1 407 214 9446 Call
Select section
  • Overview
  • Specifications
  • Downloads

S101G7 Overview

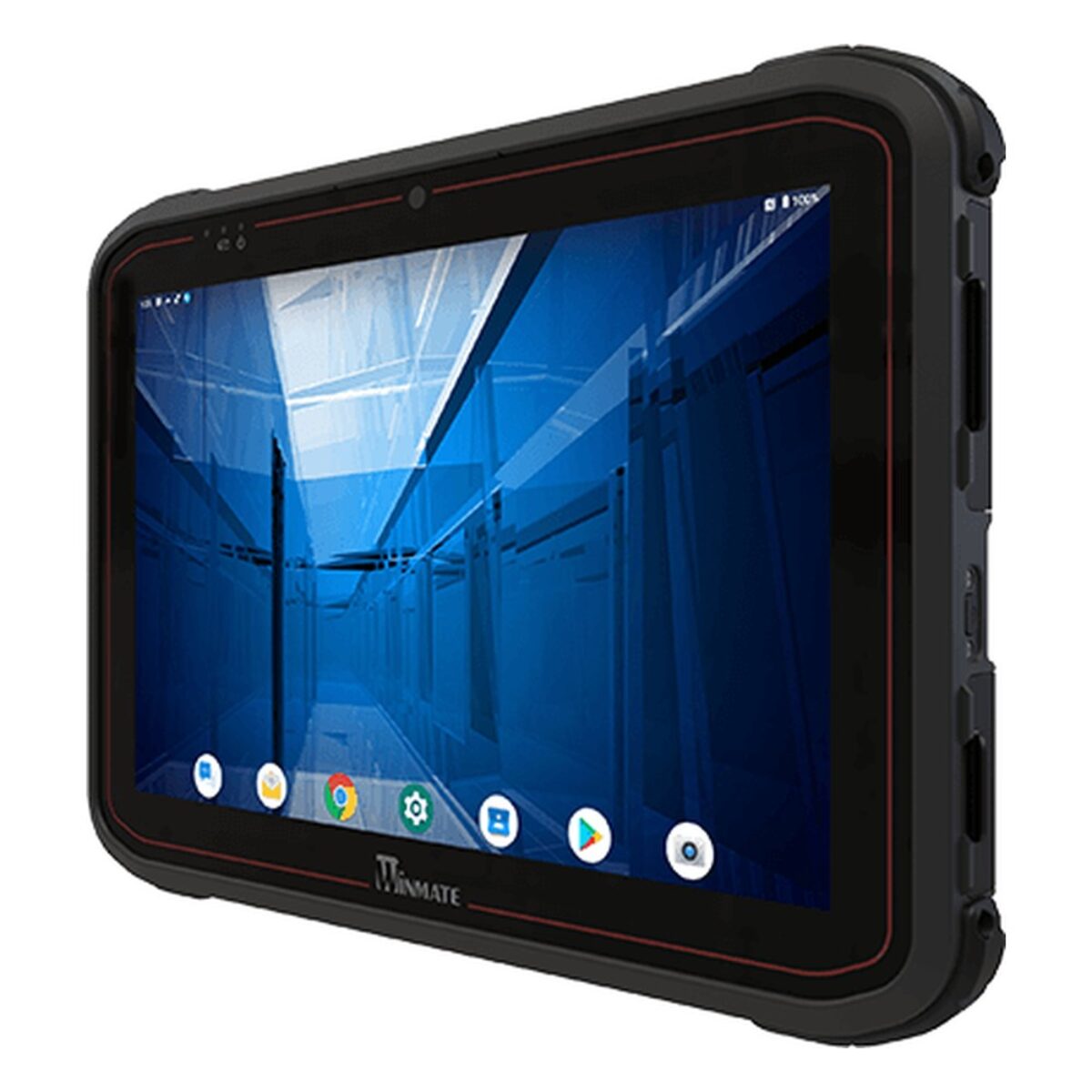

In warehouses, logistics yards and on industrial sites, a tablet often has to run the same Android apps as the team’s other devices while coping with knocks, rain and cold mornings. The S101G7 is Winmate’s 10.1 inch Android rugged tablet for that job, built around a MediaTek Genio 700 with a 10.1″ 1920 x 1200 touch screen and an IP65 housing. Winmate names logistics, warehousing and industrial environments as its intended uses.

The Genio 700 is an octa-core processor at up to 2.2 GHz, with 4 GB of memory, 64 GB of eMMC storage and a Micro SD slot, running Android 13. Winmate lists SOTI MobiControl support for device management. The display gives 800 nits and 800:1 contrast with 85 degree viewing angles, is optically bonded with an anti-glare touch treatment, and works with bare hands, gloves or in rain mode. An 8MP front camera and a 13MP autofocus rear camera with LED are built in, with power and two function buttons.

Connections are an RJ45 LAN port, a full-size USB Type-A port, a USB Type-C OTG port that takes 20 V Power Delivery charging, and a docking connector for Winmate’s optional vehicle cradle, desk dock and battery charger. Wi-Fi, Bluetooth and GPS/GLONASS are standard, with 4G, 5G, NFC, a 1D/2D barcode reader and a Micro HDMI output as options. Within the Winmate range the S101TG is a 10.1 inch rugged tablet with an Intel Core i5-1135G7 and Windows 11 IoT Enterprise, and the M101Q9 is a fanless 10.1″ Android tablet with a Qualcomm QCS6490 and Android 15.

The S101G7 is sealed to IP65 and tested to MIL-STD-810H Method 516.8 for shock and 4 ft drops and Method 514.8 for vibration. It runs from -20 to 60 °C at 10 to 90% humidity and carries CE and FCC marks. The standard 3500 mAh battery is rated for 10 hours, with a warm-swap battery, a high-capacity battery and a VESA mount kit as options, and a 19 V adapter and power cord come with it. We supply the S101G7 configured, with the OS installed, and tested, ready to deploy.

S101G7 Specifications

Overview
Brand & ModelWinmate S101G7
FeaturesRugged
Waterproof
Display
Display10.1"[8:5, 1920 x 1200, WUXGA]
Display TreatmentAnti-Glare Treatment
Optical Bonding
Touch ControllerMulti Touch PCAP
Brightness800 Nits
Viewing AngleWide Viewing Angle
170° Horizontal, 170° Vertical
Aspect Ratio8:5
FormatWidescreen
Contrast800:1
Performance
Processor SeriesGenio 700
Processor ModelsGenio 700
Performance Cores8 Cores
Memory4GB Soldered On-board
Operating SystemAndroid 13.0
Graphics
Display Outputs1x Optional Micro HDMI
I/O
USB2x USB Ports
1x USB 3.0 [Type A]
1x USB OTG [Type C]
Expansion
Wireless ConnectivityOptional 4G Modem
Optional 5G Modem
Storage
Storage1x Micro SD
64GB eMMC
Power
Power Input19V DC
20V [USB-C]
AC Power Supply Included
Environmental Conditions
Operating Temperature-20°C to 60°C [-4°F to 140°F]
Storage Temperature-30°C to 70°C [-22°F to 158°F]
Humidity10-90% (Non-condensing)
Ingress ProtectionIP65
IP65 [Dustproof, Protection against low pressure water jets spraying from any direction]
ShockMIL-STD-810H
VibrationMIL-STD-810H
CertificationCE
FCC
MIL-STD-810
Mechanical Properties
Weight1.0 Kg (2.2 Lbs)
Dimensions268mm x 187mm x 22mm (10.55" x 7.36" x 0.87")

Official Winmate USA Distributor

Things Embedded is an official Winmate USA distributor, supplying the S101G7 configured, with the OS installed, and tested for USA logistics, warehousing and industrial projects. Within the Winmate range the S101TG offers a 10.1 inch rugged tablet with an Intel Core i5-1135G7 for teams that run Windows 11 IoT Enterprise.

The S101G7 sits among our Android rugged tablets and our wider range of rugged tablets. Where a site wants a 10.1 inch Android tablet with LAN, USB-A and a sharp 800 nit screen, it is a sensible model to shortlist.
