Winmate S17L500-OFM1 17″ Open Frame Monitor with 350 Nit SXGA LCD and Resistive or SAW Touch Options
Resistive
Fanless
CE
FCCS17L500-OFM1 Overview

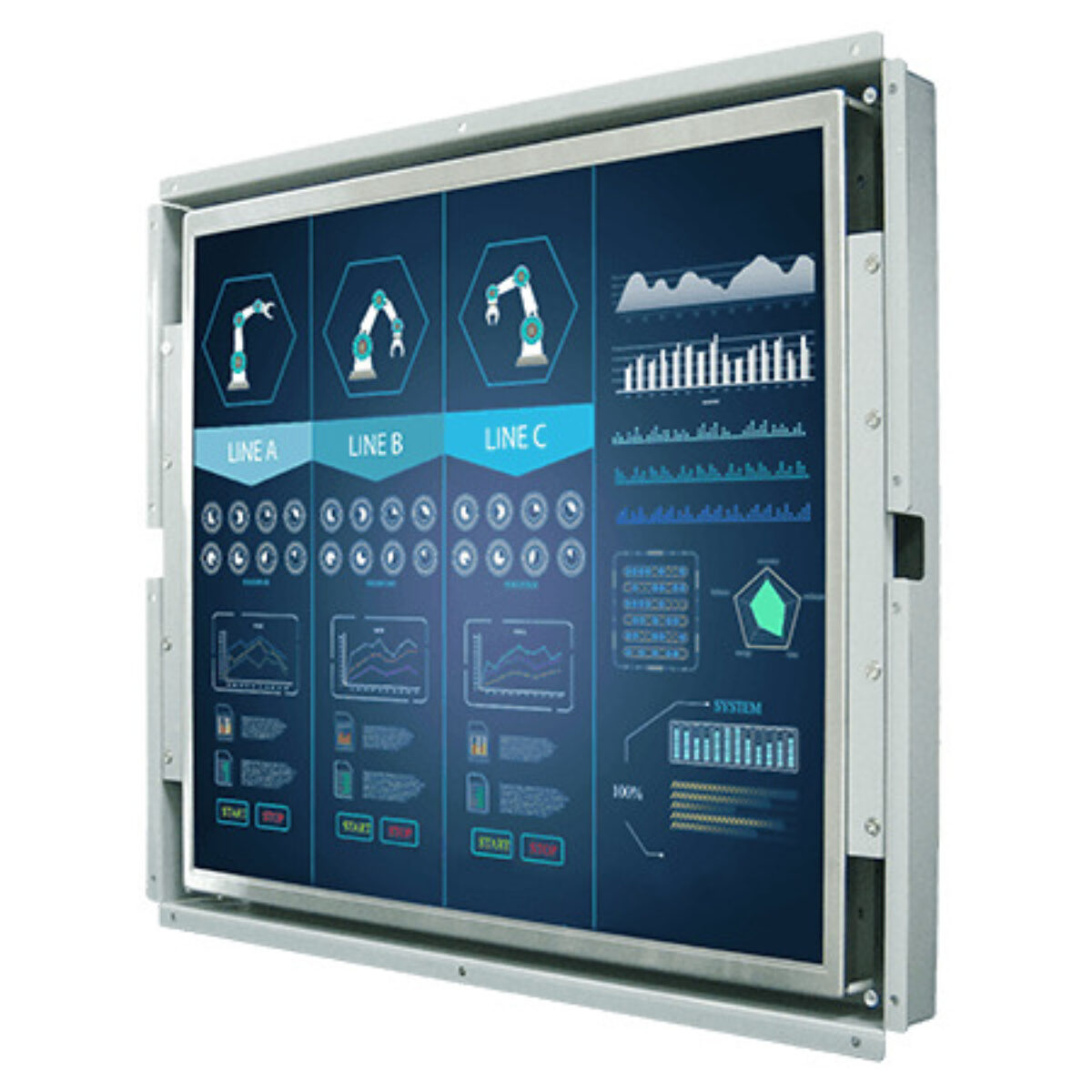

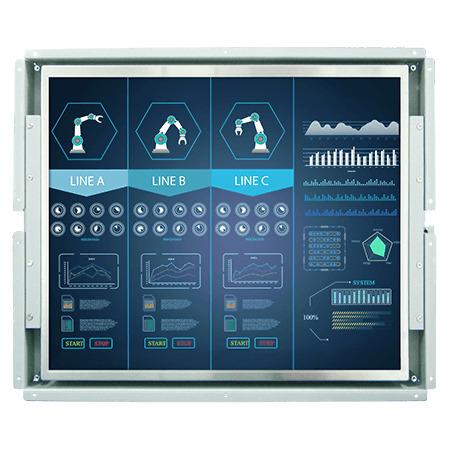

Many machine builders standardize on a 17 inch 5:4 screen because their HMI software is laid out for 1280 x 1024. The S17L500-OFM1 is Winmate’s 17 inch open frame monitor for that format: an SXGA LCD at 350 nits with 1000:1 contrast, in a metal frame that fits behind your own front panel.
The panel shows 16.2 million colors across an active area of 337.92 x 270.336 mm, with viewing angles of 170° horizontally and 160° vertically. Three front options cover most builds. Resistive touch works with gloves and styluses, SAW touch keeps a clear glass surface for good image clarity, and protection glass without touch suits display-only duties such as status boards.

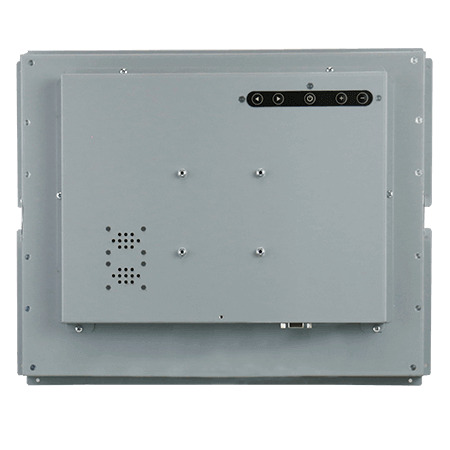

VGA is the standard video input, with HDMI and DVI available as options, and a USB port carries the touch signal to the host. An optional audio line-in and twin speakers add sound for kiosk prompts, and a five-key OSD panel on the rear sets brightness and picture. The S17L500-OFA1HB raises brightness to 1000 nits in the same 17 inch frame, and the R19L300-OFM1 is the 19 inch equivalent.
The S17L500-OFM1 runs from 12 V DC and ships with a 100 to 240 V AC to DC adapter and VGA and HDMI cables. It is fanless, operates from 0 °C to 50 °C and 10 to 90% non-condensing humidity, and stores from -10 °C to 60 °C. The metal frame measures 410 x 330 x 58 mm, with 75 x 75 mm VESA holes, and can also be panel mounted. It carries CE and FCC marks. Winmate lists industrial visualization, control rooms and equipment monitoring as typical uses.
S17L500-OFM1 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate S17L500-OFM1 |
| Features | Fanless Industrial |
| Display | |
| Display | 17"[5:4, 1280 x 1024, SXGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch Optional Surface Acoustic Wave Touch |
| Brightness | 350 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 160° Vertical | |
| Aspect Ratio | 5:4 |
| Format | Standard |
| Contrast | 1000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x DVI Input 1x HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 410mm x 330mm x 58mm (16.14" x 12.99" x 2.28") |
- S17L500-OFM1 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the S17L500-OFM1 for USA machine builders and control panel projects. Within the Winmate range the S17L500-OFA1HB raises brightness to 1000 nits in the same frame, and the R19L300-OFM1 offers the same approach at 19 inch.
With a choice of resistive or SAW touch the S17L500-OFM1 sits among our open frame monitors, our SAW touch monitors and our 5:4 monitors. Where an indoor machine needs a 17 inch SXGA touch screen built in, this is the Winmate model to specify.
