Winmate W10IAN3S-IPH2 10.1″ Front IP65 Panel PC with Quad-Core Intel N150 and Resistive Touch
Resistive
Intel
Linux
Windows
2.5GbE
Type C
USB3
1x M.2
Wi-Fi
NVMe SSD
Fanless
Front IP65
CE
FCCW10IAN3S-IPH2 Overview

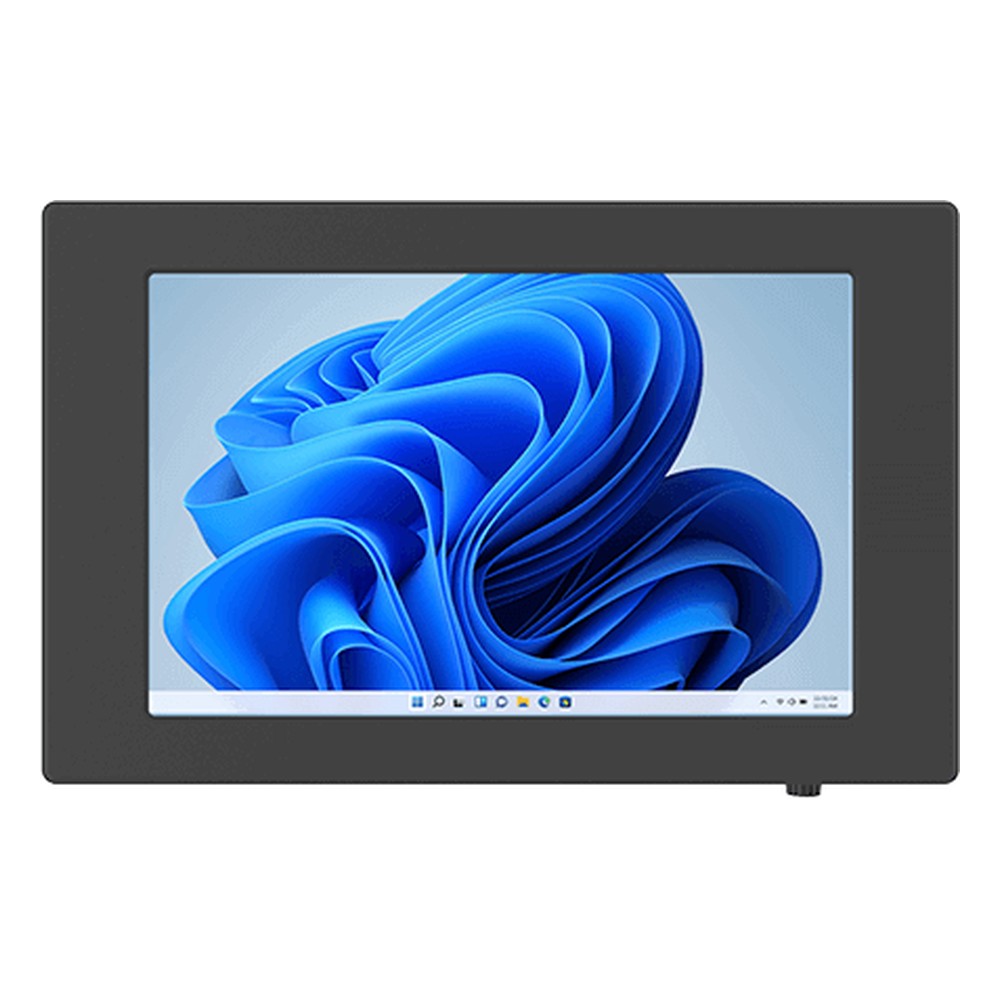

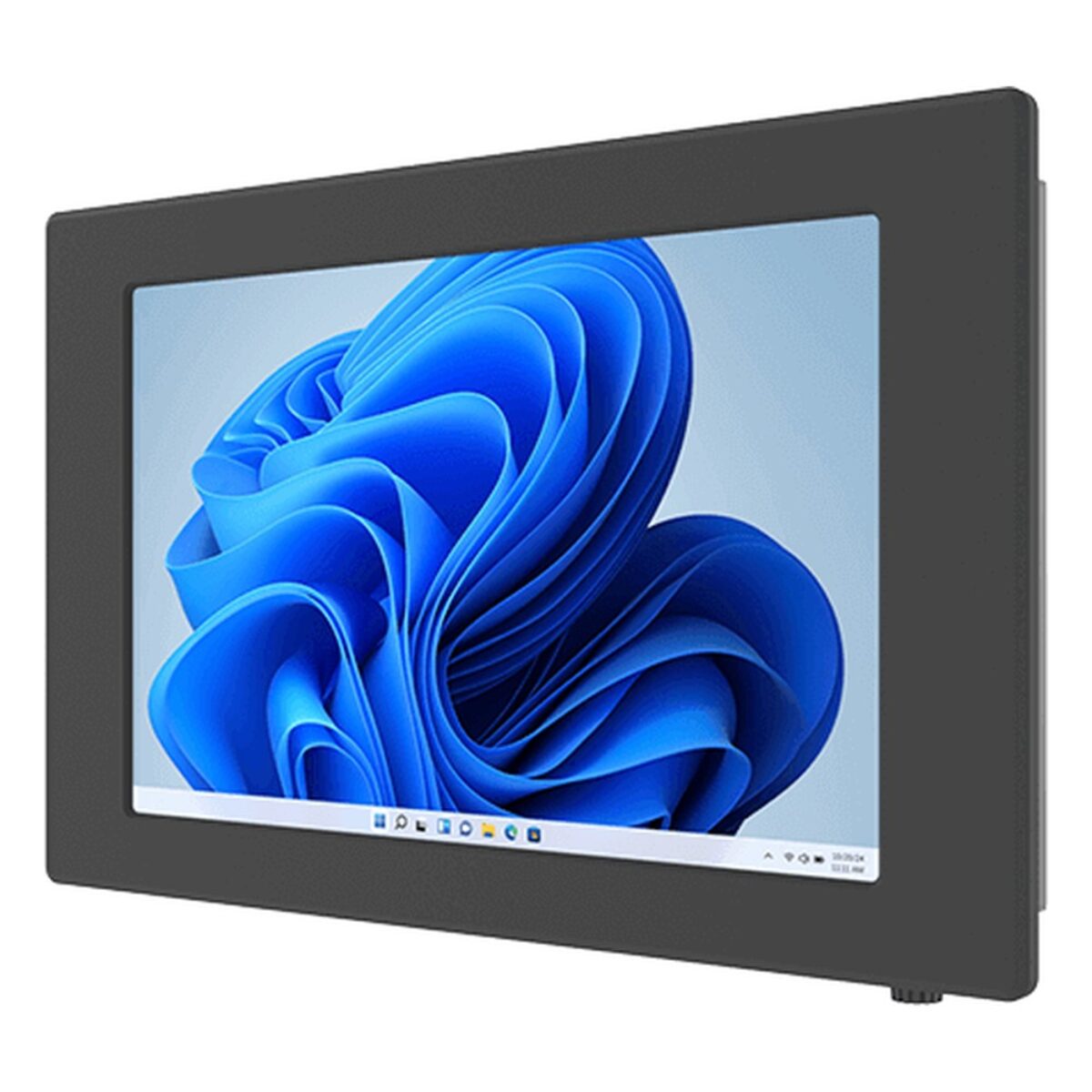

Wide-format screens suit HMIs that show a trend chart next to the controls, and on a production line the front still has to survive cleaning. The W10IAN3S-IPH2 is Winmate’s 10.1 inch front IP65 panel PC, with a quad-core Intel N150 and a 10.1″ 1280 x 800 display rated at 350 nits with 800:1 contrast, plus resistive touch or plain protection glass as options. Winmate positions it for machine control, factory automation and operator HMI.
Inside is an Intel Processor N150, a quad-core Twin Lake chip at up to 3.6 GHz with Intel Graphics, typically enough for HMI runtimes and SCADA clients without a fan. One DDR5-4800 SO-DIMM holds 8 GB, or 16 GB as an option. A 128 GB SSD is standard with options to 2 TB, or an optional 2.5″ SATA III drive in place of the NVMe SSD. TPM 2.0 is on board, with Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 24.04.
Two 2.5GbE ports can keep a plant network apart from a machine network, and the two DB9 serial ports (one RS-232/422/485, one RS-232) reach PLCs and older instruments. Two USB 3.2 Gen 1 Type-A ports and a USB 3.2 Gen 2 Type-C port with DisplayPort Alt Mode complete the set, with HDMI 2.0b and Wi-Fi as options. The W10IAN3S-PMH2 is the panel mount version for dry indoor panels, and the W10IAN3S-OFH2 is the open frame model for OEM enclosures.

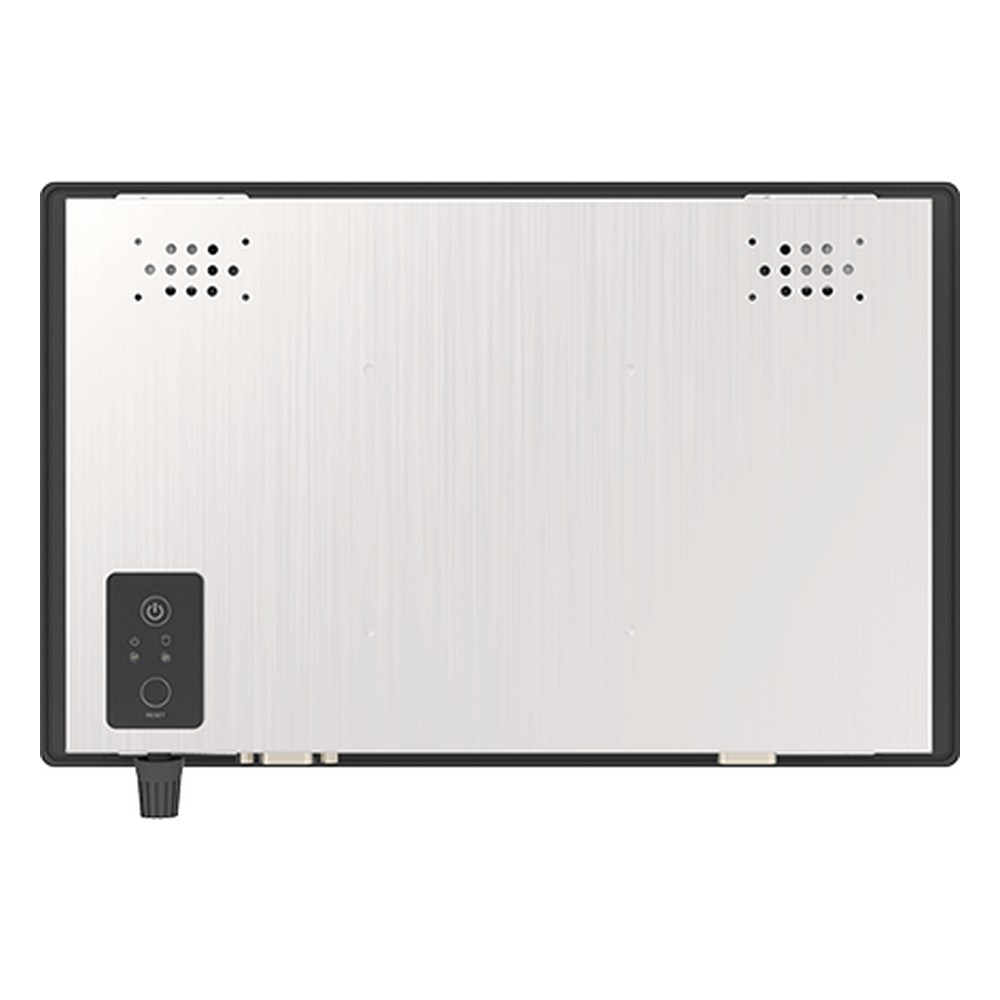

The front is rated IP65, so the operator face resists dust and water jets while the rear stays dry in the cabinet. It panel mounts with the supplied clips, or on VESA as an option. A 100 to 240 V AC adapter is supplied for the 12 V DC input. The fanless metal housing runs from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, with CE and FCC marks. We supply the W10IAN3S-IPH2 configured, with the OS installed, and tested before dispatch.
W10IAN3S-IPH2 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W10IAN3S-IPH2 |
| Features | Fanless Industrial USB C |
| Display | |
| Display | 10.1"[8:5, 1280 x 800, WXGA] |
| Display Treatment | Protective Glass |
| Touch Controller | Optional Resistive Touch |
| Brightness | 350 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 170° Vertical | |
| Aspect Ratio | 8:5 |
| Format | Widescreen |
| Contrast | 800:1 |
| Performance | |
| Processor Series | Intel Processor N Series Twin Lake |
| Processor Models | Intel Processor N150: 0.8~3.6GHz, 4 Cores, 4 Threads, 6MB Cache, 6W |
| Performance Cores | 4 Cores |
| Memory | 1x DDR5 4800MHz SO-DIMM, 16GB |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Ubuntu 24.04 Windows 11 |
| Graphics | |
| Integrated GPU | Intel Graphics |
| Display Outputs | 1x USB Type C |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x 2.5 GbE LAN [RJ45] | |
| USB | 3x USB Ports |
| 1x USB 3.2 Gen 2 [Type C] 2x USB 3.2 Gen 1 [Type A] | |
| Serial | 2x Serial Ports |
| 1x RS232 [DB9] 1x RS232/422/485 [DB9] | |
| Expansion | |
| M.2 | 1x M.2 Expansion Slots |
| 1x M.2 E-Key [2230] | |
| Wireless Connectivity | Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x 2.5" HDD/SSD 1x M.2 SSD |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | 12V DC [Barrel Connector] AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 1.7 Kg (3.7 Lbs) |
| Dimensions | 286mm x 182mm x 51mm (11.26" x 7.17" x 1.99") |
- W10IAN3S-IPH2 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W10IAN3S-IPH2 configured, with the OS installed, and tested for USA machine building and factory automation projects. Within the Winmate range the W10IAN3S-EHH2 is a 10.1 inch HMI with PCAP touch, and the W10IAN3S-POA1 is a 10.1 inch open frame HMI with PCAP touch.
With its sealed front and widescreen panel the W10IAN3S-IPH2 sits among our front IP65 panel PCs, our 10 inch panel PCs and our panel mount PCs. Where a wide HMI faces splashes and daily cleaning, it is a sensible model to shortlist.
