Winmate W10IAN3S-OFH2 10.1″ Open Frame Panel PC with Intel Twin Lake N150 and Resistive Touch

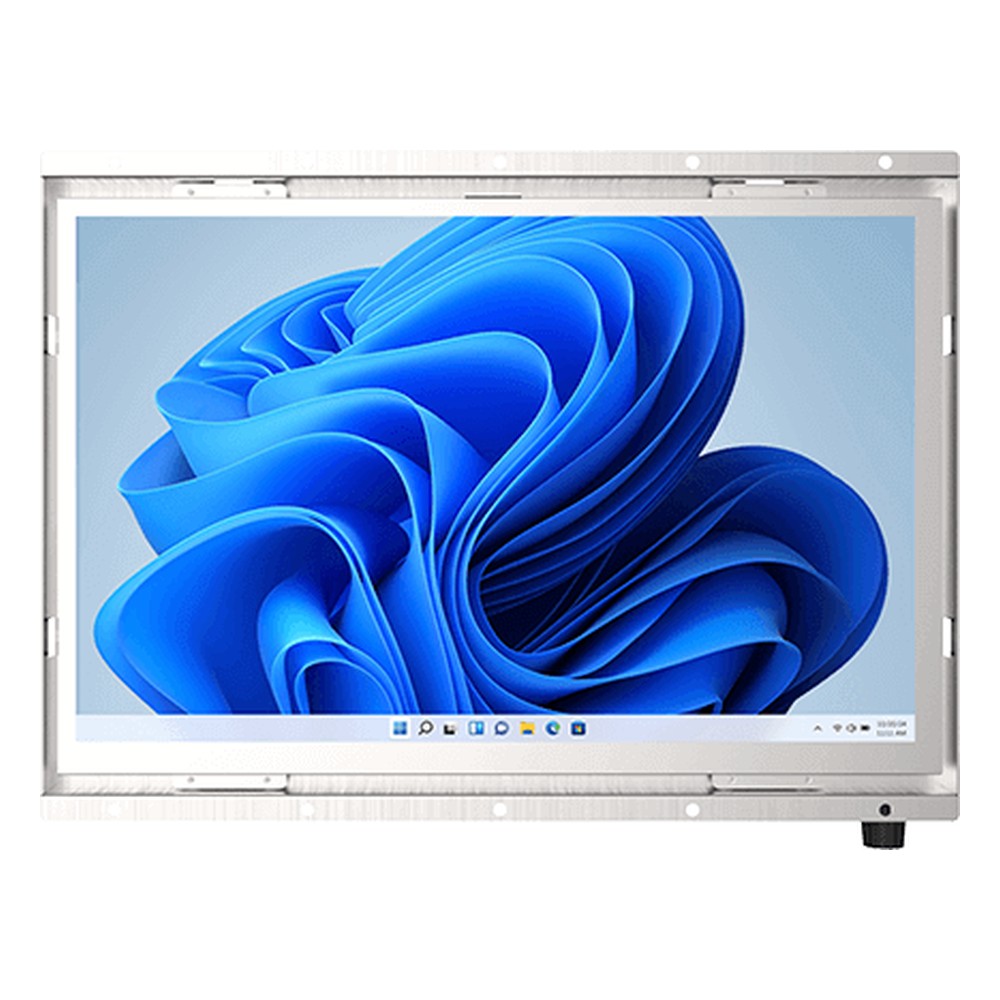

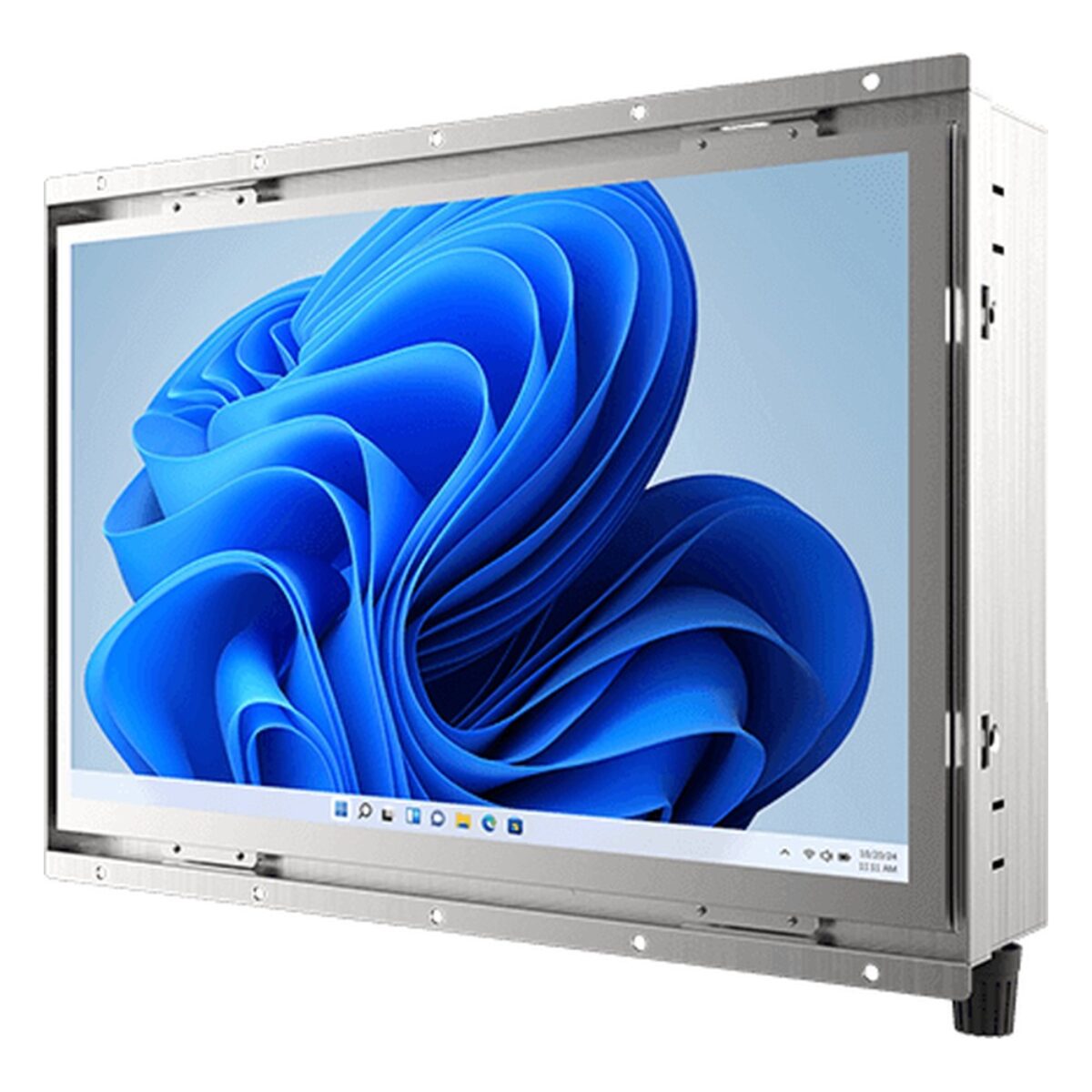

When a machine builder wants a widescreen HMI inside their own enclosure, an open frame panel PC keeps the display and the computer in one module. The W10IAN3S-OFH2 is Winmate’s 10.1 inch open frame panel PC, with a quad-core Intel N150 and a 10.1″ 1280 x 800 display rated at 350 nits with 800:1 contrast, in a fanless metal frame. Resistive touch or plain protection glass are options, and Winmate lists machine control, factory automation and operator HMI as its uses.

The W10IAN3S-OFH2 runs an Intel Processor N150: four cores at up to 3.6 GHz, 6 MB cache and Intel Graphics, in a fanless design that suits always-on operator stations. Memory is one DDR5-4800 SO-DIMM with 8 GB fitted or 16 GB as an option, and a 128 GB SSD is standard with options to 2 TB. TPM 2.0 is fitted, and Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 24.04 can be installed.

On the I/O side there are two 2.5GbE LAN ports, two USB 3.2 Gen 1 Type-A ports, a USB 3.2 Gen 2 Type-C port with DisplayPort Alt Mode for a second screen, one RS-232/422/485 and one RS-232 port on DB9, and two speakers. HDMI 2.0b and an M.2 Wi-Fi module are optional. The W10L100-OFH2 is the open frame monitor with a WXGA panel and no computer inside, and the W10IAN3S-IPH2 is the front IP65 panel mount version of this N150 computer.

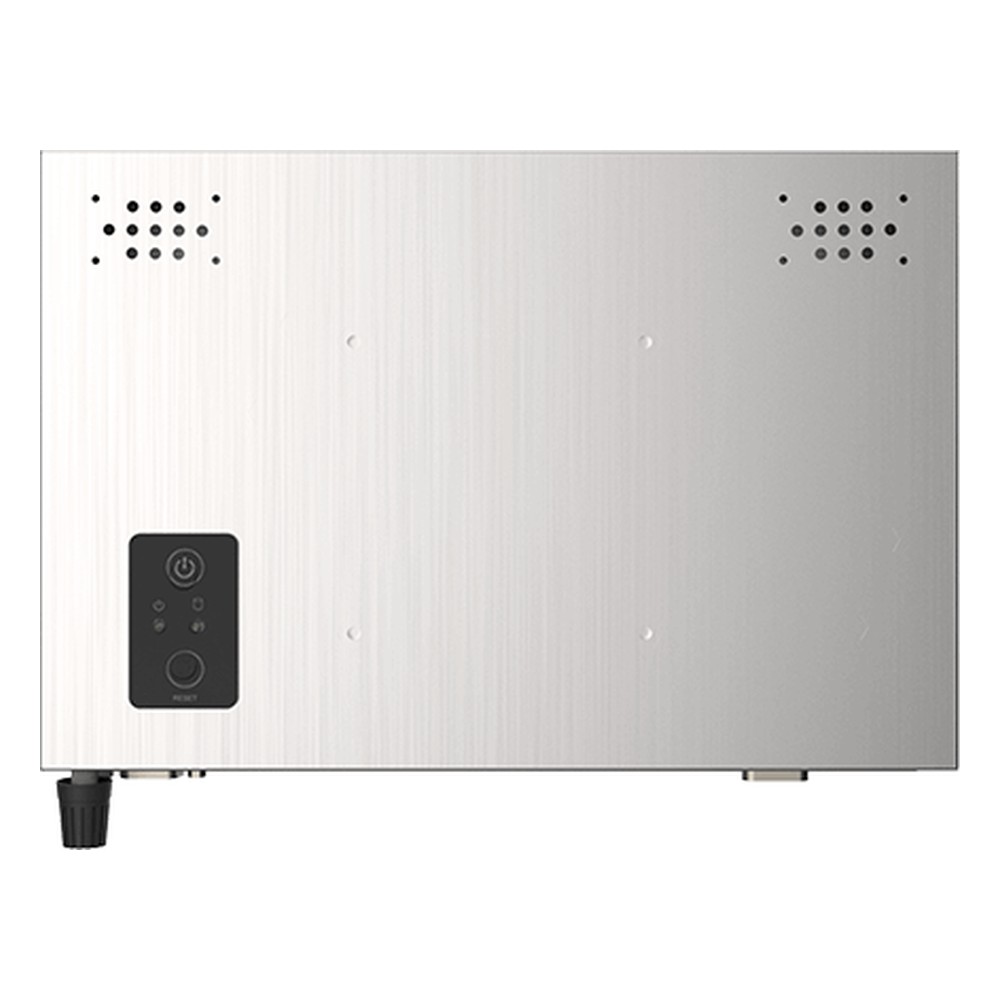

As an open frame unit it builds into an OEM enclosure or machine housing, with panel and VESA mounting as options. A 100 to 240 V AC adapter is supplied for the 12 V DC input. The fanless metal housing runs from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, with CE and FCC marks. We supply the W10IAN3S-OFH2 configured, with the OS installed, and tested before dispatch.
