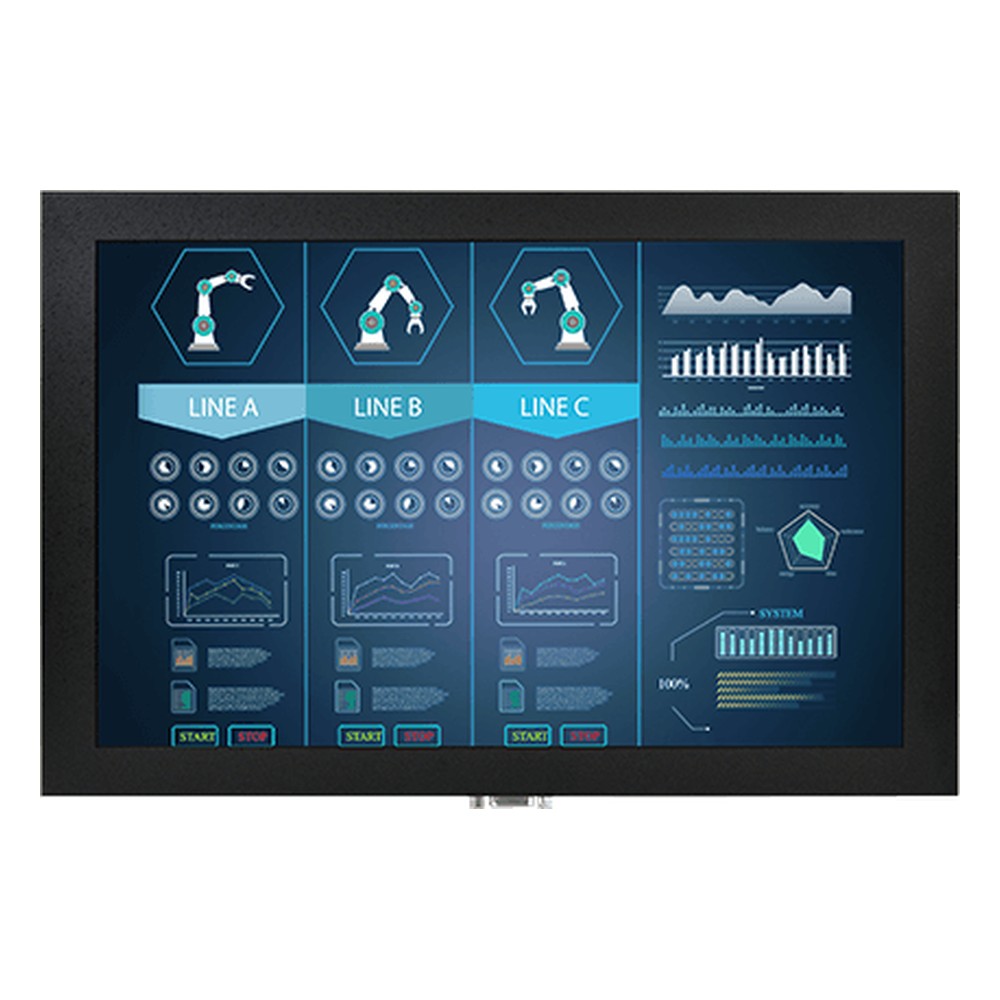

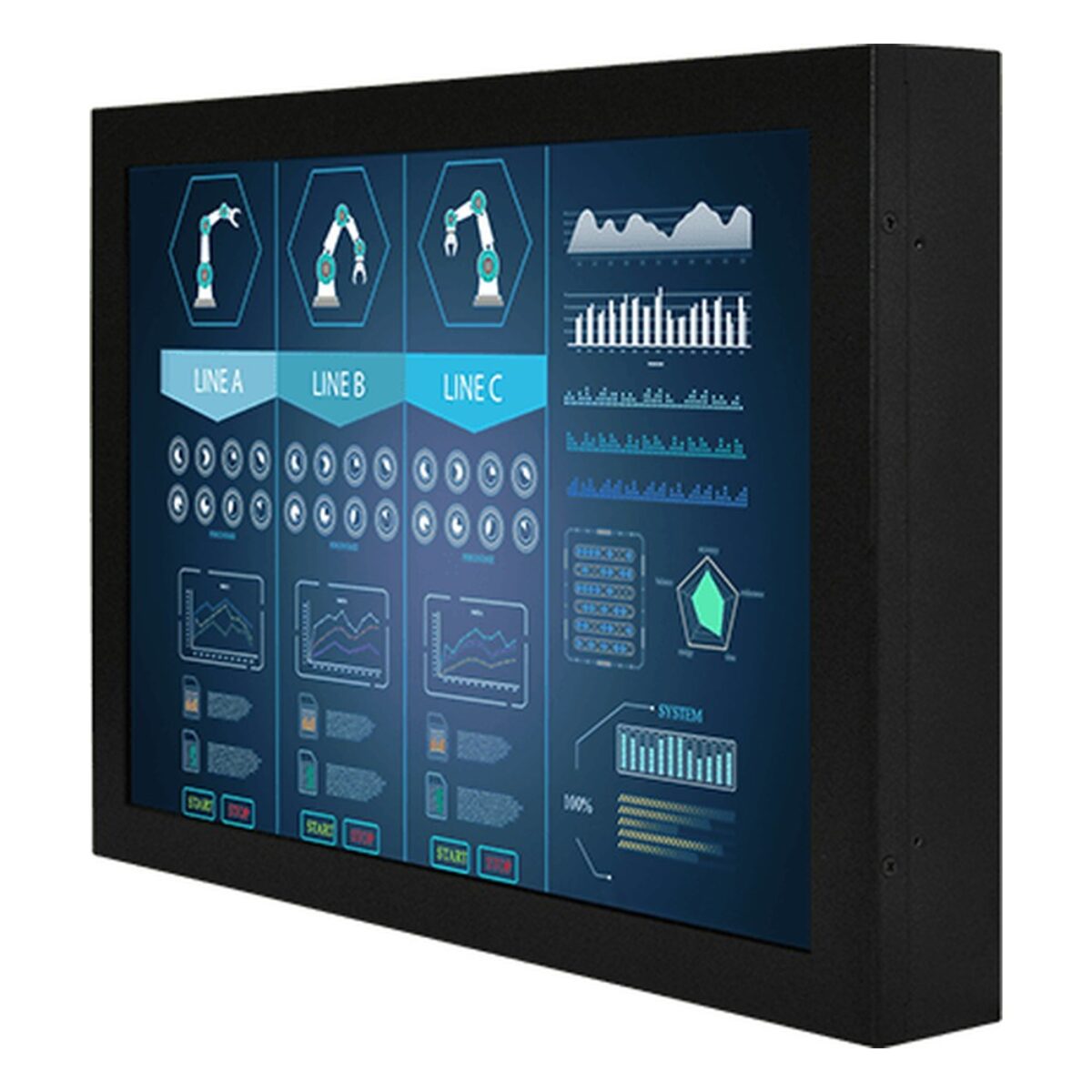

Winmate W12L100-CHM9 12.1″ Chassis Monitor with Resistive Touch and WXGA LCD
Resistive
Fanless
CE
FCCW12L100-CHM9 Overview
Equipment monitoring stations often need a mid-sized widescreen display that arrives finished and ready to mount. The W12L100-CHM9 is Winmate’s 12.1 inch chassis display for this, with a 1280 x 800 WXGA panel at 400 nits, 5-wire resistive touch as standard and a fanless metal housing with an aluminum bezel. Winmate names industrial visualization, control rooms and equipment monitoring as its uses.
The 12.1″ LCD shows 1280 x 800 at 400 nits with a 1000:1 contrast ratio and 176° viewing angles. Resistive touch is fitted as standard and works with gloves or a stylus; SAW touch can be specified instead, or plain protection glass where the screen only needs to display. The 1280 x 800 widescreen panel gives operators room for side-by-side status and trend views.
Video comes in over VGA as standard, with HDMI and DVI inputs as options, and a USB port carries touch data back to the host computer. An audio line-in, two speakers and a remote controller are optional. The W12L100-OFM9 is the open frame version of this 12.1 inch panel, and the W10L100-CHH2 is a smaller 10.1 inch chassis model at the same resolution.
Power is 12 V DC, with 24 V DC as an option, and Winmate supplies a 100 to 240 V AC adapter with a power cord, VGA and HDMI cables and VESA screws. The W12L100-CHM9 operates from 0 °C to 50 °C and stores from -10 °C to 60 °C at 10 to 90% humidity, non-condensing, cools without a fan, mounts on VESA holes and carries CE and FCC marks. We supply it configured and tested, ready to connect to the computer you specify.
W12L100-CHM9 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W12L100-CHM9 |
| Features | Fanless Industrial |
| Display | |
| Display | 12.1"[5:3, 1280 x 800, WXGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Surface Acoustic Wave Touch Resistive Touch |
| Brightness | 400 Nits |
| Viewing Angle | Wide Viewing Angle |
| 176° Horizontal, 176° Vertical | |
| Aspect Ratio | 5:3 |
| Format | Widescreen |
| Contrast | 1000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 310mm x 200mm x 45mm (12.20" x 7.87" x 1.77") |
| Mounting Options | VESA Mount |
- W12L100-CHM9 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W12L100-CHM9 configured and tested for USA control panel, kiosk and machine projects. Within the Winmate range the W12L100-OFM9 is the open frame version of this 12.1 inch screen.
The W12L100-CHM9 sits among our 12 inch monitors, our chassis monitors and our resistive touch monitors. Where a 12.1 inch WXGA screen needs to sit in a chassis of its own beside the host computer, this is the model to specify.
